11 (ENG) VQT3N40

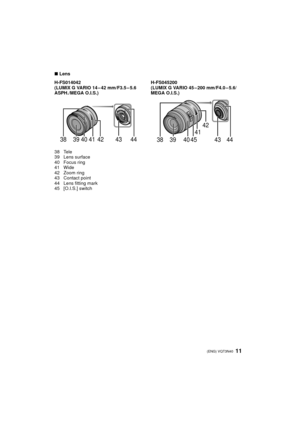

∫Lens
38 Tele
39 Lens surface
40 Focus ring
41 Wide
42 Zoom ring
43 Contact point
44 Lens fitting mark
45 [O.I.S.] switch H-FS014042
(LUMIX G VARIO 14 – 42 mm/F3.5 – 5.6
ASPH./MEGA O.I.S.) H-FS045200
(LUMIX G VARIO 45 – 200 mm/F4.0 – 5.6/
MEGA O.I.S.)
38 39 40 41 42 43 4440
41
42
45393843 44
DMC-G3K&G3W&G3PP-VQT3N40_eng.book  11 ページ  ２０１１年４月２９日　金曜日　午後１２時１３分

VQT3N40 (ENG) 12
This touch panel is a type that detects pressure.Note
•
If you use a commercially available liquid crystal protection
sheet, please follow the instructions that accompany the sheet.
(Some liquid crystal protection sheets may impair visibility or
operability.)
•If a commercially available protection sheet is used,  a little extra
pressure may be required if you notice that the touch panel is
not responsive.
•Avoid having the hand holding the camera accidently apply
pressure to the...

13 (ENG) VQT3N40

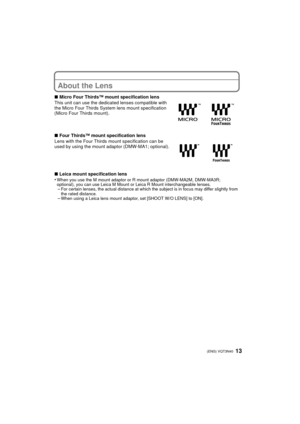

About the Lens
∫Micro Four Thirds™ mount specification lens
This unit can use the dedicated lenses compatible with
the Micro Four Thirds System  lens mount specification
(Micro Four Thirds mount).
∫ Four Thirds™ mount specification lens
Lens with the Four Thirds  mount specification can be
used by using the mount adaptor (DMW-MA1; optional).
∫ Leica mount specification lens
•
When you use the M mount adaptor or R mount adaptor (DMW-MA2M, DMW-MA3R;
optional), you can use Leica M...

VQT3N40 (ENG) 14

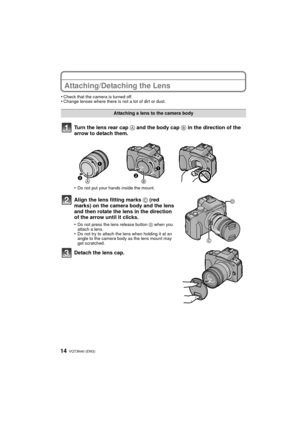

Attaching/Detaching the Lens
•Check that the camera is turned off.•Change lenses where there is not a lot of dirt or dust.
Turn the lens rear cap A and the body cap B in the direction of the
arrow to detach them.
•Do not put your hands inside the mount.
Align the lens fitting marks  C (red
marks) on the camera body and the lens
and then rotate the lens in the direction
of the arrow until it clicks.
•Do not press the lens release button  D when you
attach a lens.
•Do not try to...

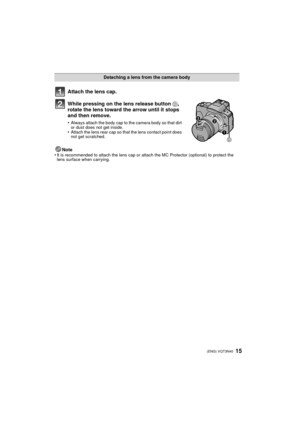

15 (ENG) VQT3N40
Attach the lens cap.
While pressing on the lens release button D,
rotate the lens toward the arrow until it stops
and then remove.
•Always attach the body cap to the camera body so that dirt
or dust does not get inside.
•Attach the lens rear cap so that the lens contact point does
not get scratched.
Note
•It is recommended to attach the lens cap or attach the MC Protector (optional) to protect the
lens surface when carrying.
Detaching a lens from the camera body...

VQT3N40 (ENG) 16

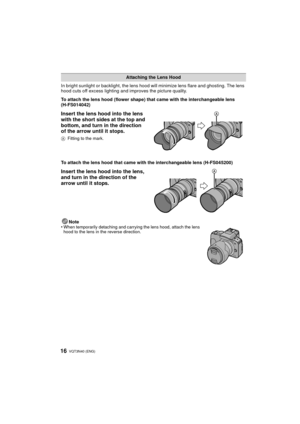

In bright sunlight or backlight, the lens hood will minimize lens flare and ghosting. The lens
hood cuts off excess lighting and improves the picture quality.
To attach the lens hood (flower shape) that came with the interchangeable lens
(H-FS014042)
Insert the lens hood into the lens
with the short sides at the top and
bottom, and turn in the direction
of the arrow until it stops.
A Fitting to the mark.
To attach the lens hood that came with the interchangeable lens (H-FS045200)...

17 (ENG) VQT3N40

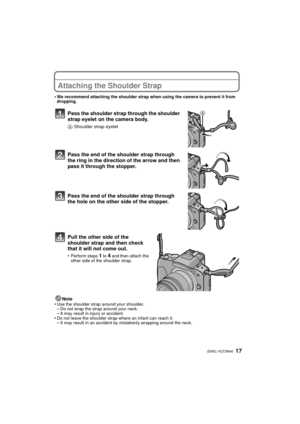

Attaching the Shoulder Strap
•We recommend attaching the shoulder strap when using the camera to prevent it from
dropping.
Pass the shoulder strap through the shoulder
strap eyelet on the camera body.
A: Shoulder strap eyelet
Pass the end of the shoulder strap through
the ring in the direction of the arrow and then
pass it through the stopper.
Pass the end of the shoulder strap through
the hole on the other side of the stopper.
Pull the other side of the
shoulder strap and then...

VQT3N40 (ENG) 18

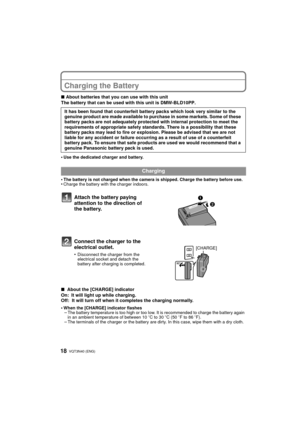

Charging the Battery
∫About batteries that you can use with this unit
The battery that can be used with this unit is DMW-BLD10PP.
•
Use the dedicated charger and battery.
•The battery is not charged when the camera is shipped. Charge the battery before use.•Charge the battery with the charger indoors.
∫  About the [CHARGE] indicator
On: It will light up while charging.
Off:  It will turn off when it completes the charging normally.
•
When the [CHARGE] indicator flashes–The battery...

19 (ENG) VQT3N40

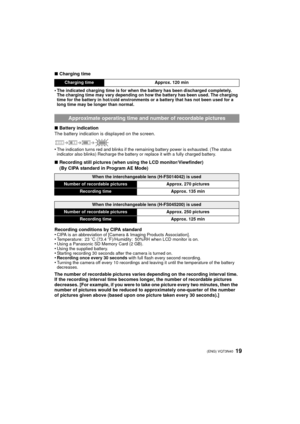

∫Charging time
•
The indicated charging time is for when the battery has been discharged completely.
The charging time may vary depending on how the battery has been used. The charging
time for the battery in hot/cold environments or a battery that has not been used for a
long time may be longer than normal.
∫ Battery indication
The battery indication is displayed on the screen.
•
The indication turns red and blinks if the remaining battery power is exhausted. (The status
indicator...

VQT3N40 (ENG) 20

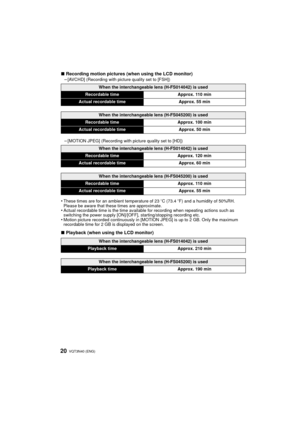

∫Recording motion pictures (when using the LCD monitor)
–[AVCHD] (Recording with picture quality set to [FSH])
–[MOTION JPEG] (Recording with picture quality set to [HD])
•These times are for an ambient temperature of 23 oC (73.4 oF) and a humidity of 50%RH.
Please be aware that these times are approximate.
•Actual recordable time is the time availabl e for recording when repeating actions such as
switching the power supply [ON]/[OFF], starting/stopping recording etc.
•Motion picture...
