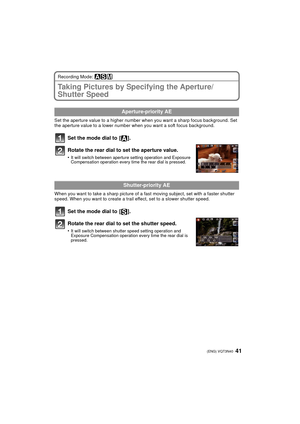

Page 41
![Page 41
41 (ENG) VQT3N40
Recording Mode: ±´²
Taking Pictures by Specifying the Aperture/
Shutter Speed
Set the aperture value to a higher number when you want a sharp focus background. Set
the aperture value to a lower number when you want a soft focus background.
Set the mode dial to [ ].
Rotate the rear dial to set the aperture value.
•It will switch between aperture setting operation and Exposure
Compensation operation every time the rear dial is pressed.
When you want to take a sharp picture of a fast...](http://img.usermanuals.tech/thumb/58/65515/w300_dmc-g3_en_om_d-40.png "Page 41
41 (ENG) VQT3N40
Recording Mode: ±´²
Taking Pictures by Specifying the Aperture/
Shutter Speed
Set the aperture value to a higher number when you want a sharp focus background. Set
the aperture value to a lower number when you want a soft focus background.
Set the mode dial to [ ].
Rotate the rear dial to set the aperture value.
•It will switch between aperture setting operation and Exposure
Compensation operation every time the rear dial is pressed.
When you want to take a sharp picture of a fast...")
41 (ENG) VQT3N40 Recording Mode: ±´² Taking Pictures by Specifying the Aperture/ Shutter Speed Set the aperture value to a higher number when you want a sharp focus background. Set the aperture value to a lower number when you want a soft focus background. Set the mode dial to [ ]. Rotate the rear dial to set the aperture value. •It will switch between aperture setting operation and Exposure Compensation operation every time the rear dial is pressed. When you want to take a sharp picture of a fast...

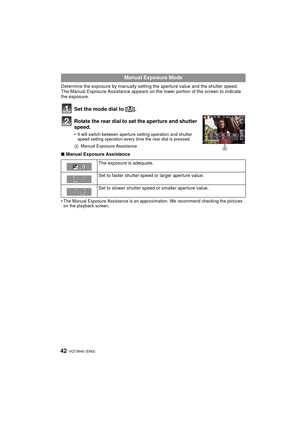

Page 42
![Page 42
VQT3N40 (ENG) 42
Determine the exposure by manually setting the aperture value and the shutter speed.
The Manual Exposure Assistance appears on the lower portion of the screen to indicate
the exposure.
Set the mode dial to [²].
Rotate the rear dial to set the aperture and shutter
speed.
•It will switch between aperture setting operation and shutter
speed setting operation every time the rear dial is pressed.
A Manual Exposure Assistance
∫Manual Exposure Assistance
•
The Manual Exposure Assistance is...](http://img.usermanuals.tech/thumb/58/65515/w300_dmc-g3_en_om_d-41.png "Page 42
VQT3N40 (ENG) 42
Determine the exposure by manually setting the aperture value and the shutter speed.
The Manual Exposure Assistance appears on the lower portion of the screen to indicate
the exposure.
Set the mode dial to [²].
Rotate the rear dial to set the aperture and shutter
speed.
•It will switch between aperture setting operation and shutter
speed setting operation every time the rear dial is pressed.
A Manual Exposure Assistance
∫Manual Exposure Assistance
•
The Manual Exposure Assistance is...")
VQT3N40 (ENG) 42 Determine the exposure by manually setting the aperture value and the shutter speed. The Manual Exposure Assistance appears on the lower portion of the screen to indicate the exposure. Set the mode dial to [²]. Rotate the rear dial to set the aperture and shutter speed. •It will switch between aperture setting operation and shutter speed setting operation every time the rear dial is pressed. A Manual Exposure Assistance ∫Manual Exposure Assistance • The Manual Exposure Assistance is...

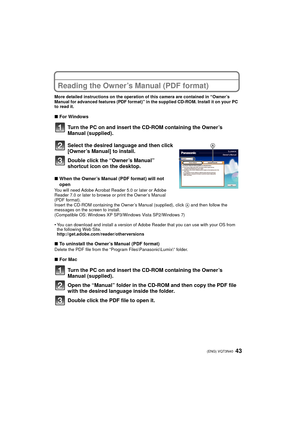

Page 43
![Page 43
43 (ENG) VQT3N40
Reading the Owner’s Manual (PDF format)
More detailed instructions on the operation of this camera are contained in “Owner’s
Manual for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC
to read it.
∫For Windows
Turn the PC on and insert the CD-ROM containing the Owner’s
Manual (supplied).
Select the desired language and then click
[Owner’s Manual] to install.
Double click the “Owner’s Manual”
shortcut icon on the desktop.
∫When the Owner’s Manual (PDF...](http://img.usermanuals.tech/thumb/58/65515/w300_dmc-g3_en_om_d-42.png "Page 43
43 (ENG) VQT3N40
Reading the Owner’s Manual (PDF format)
More detailed instructions on the operation of this camera are contained in “Owner’s
Manual for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC
to read it.
∫For Windows
Turn the PC on and insert the CD-ROM containing the Owner’s
Manual (supplied).
Select the desired language and then click
[Owner’s Manual] to install.
Double click the “Owner’s Manual”
shortcut icon on the desktop.
∫When the Owner’s Manual (PDF...")
43 (ENG) VQT3N40 Reading the Owner’s Manual (PDF format) More detailed instructions on the operation of this camera are contained in “Owner’s Manual for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it. ∫For Windows Turn the PC on and insert the CD-ROM containing the Owner’s Manual (supplied). Select the desired language and then click [Owner’s Manual] to install. Double click the “Owner’s Manual” shortcut icon on the desktop. ∫When the Owner’s Manual (PDF...

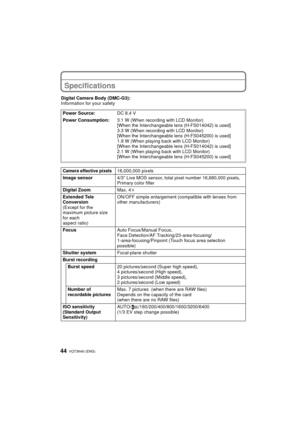

Page 44
![Page 44
VQT3N40 (ENG) 44
Specifications
Digital Camera Body (DMC-G3):
Information for your safetyPower Source: DC 8.4 V
Power Consumption: 3.1 W (When recording with LCD Monitor)
[When the Interchangeable lens (H-FS014042) is used]
3.3 W (When recording with LCD Monitor)
[When the Interchangeable lens (H-FS045200) is used]
1.9 W (When playing back with LCD Monitor)
[When the Interchangeable lens (H-FS014042) is used]
2.1 W (When playing back with LCD Monitor)
[When the Interchangeable lens (H-FS045200) is used]...](http://img.usermanuals.tech/thumb/58/65515/w300_dmc-g3_en_om_d-43.png "Page 44
VQT3N40 (ENG) 44
Specifications
Digital Camera Body (DMC-G3):
Information for your safetyPower Source: DC 8.4 V
Power Consumption: 3.1 W (When recording with LCD Monitor)
[When the Interchangeable lens (H-FS014042) is used]
3.3 W (When recording with LCD Monitor)
[When the Interchangeable lens (H-FS045200) is used]
1.9 W (When playing back with LCD Monitor)
[When the Interchangeable lens (H-FS014042) is used]
2.1 W (When playing back with LCD Monitor)
[When the Interchangeable lens (H-FS045200) is used]...")
VQT3N40 (ENG) 44 Specifications Digital Camera Body (DMC-G3): Information for your safetyPower Source: DC 8.4 V Power Consumption: 3.1 W (When recording with LCD Monitor) [When the Interchangeable lens (H-FS014042) is used] 3.3 W (When recording with LCD Monitor) [When the Interchangeable lens (H-FS045200) is used] 1.9 W (When playing back with LCD Monitor) [When the Interchangeable lens (H-FS014042) is used] 2.1 W (When playing back with LCD Monitor) [When the Interchangeable lens (H-FS045200) is used]...

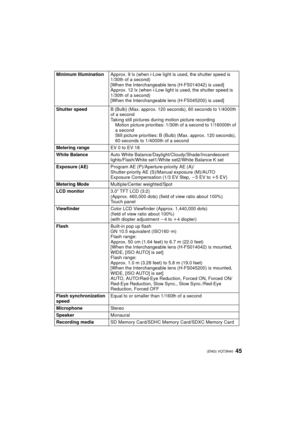

Page 45
![Page 45
45 (ENG) VQT3N40
Minimum IlluminationApprox. 9 lx (when i-Low light is used, the shutter speed is
1/30th of a second)
[When the Interchangeable lens (H-FS014042) is used]
Approx. 12 lx (when i-Low light is used, the shutter speed is
1/30th of a second)
[When the Interchangeable lens (H-FS045200) is used]
Shutter speed B (Bulb) (Max. approx. 120 seconds),
60 seconds to 1/4000th
of a second
Taking still pictures during motion picture recording Motion picture priorities: 1/30th of a second to 1/16000th...](http://img.usermanuals.tech/thumb/58/65515/w300_dmc-g3_en_om_d-44.png "Page 45
45 (ENG) VQT3N40
Minimum IlluminationApprox. 9 lx (when i-Low light is used, the shutter speed is
1/30th of a second)
[When the Interchangeable lens (H-FS014042) is used]
Approx. 12 lx (when i-Low light is used, the shutter speed is
1/30th of a second)
[When the Interchangeable lens (H-FS045200) is used]
Shutter speed B (Bulb) (Max. approx. 120 seconds),
60 seconds to 1/4000th
of a second
Taking still pictures during motion picture recording Motion picture priorities: 1/30th of a second to 1/16000th...")
45 (ENG) VQT3N40 Minimum IlluminationApprox. 9 lx (when i-Low light is used, the shutter speed is 1/30th of a second) [When the Interchangeable lens (H-FS014042) is used] Approx. 12 lx (when i-Low light is used, the shutter speed is 1/30th of a second) [When the Interchangeable lens (H-FS045200) is used] Shutter speed B (Bulb) (Max. approx. 120 seconds), 60 seconds to 1/4000th of a second Taking still pictures during motion picture recording Motion picture priorities: 1/30th of a second to 1/16000th...

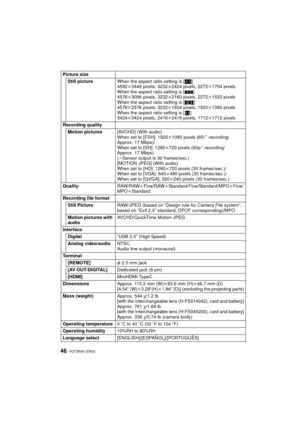

Page 46
![Page 46
VQT3N40 (ENG) 46
Picture sizeStill picture When the aspect ratio setting is [ X]
4592k 3448 pixels, 3232 k2424 pixels, 2272 k1704 pixels
When the aspect ratio setting is [ Y]
4576k 3056 pixels, 3232 k2160 pixels, 2272 k1520 pixels
When the aspect ratio setting is [ W]
4576k 2576 pixels, 3232 k1824 pixels, 1920 k1080 pixels
When the aspect ratio setting is [ ]
3424k 3424 pixels, 2416 k2416 pixels, 1712 k1712 pixels
Recording quality Motion pictures [AVCHD] (With audio)
When set to [FSH]: 1920 k1080 pixels...](http://img.usermanuals.tech/thumb/58/65515/w300_dmc-g3_en_om_d-45.png "Page 46
VQT3N40 (ENG) 46
Picture sizeStill picture When the aspect ratio setting is [ X]
4592k 3448 pixels, 3232 k2424 pixels, 2272 k1704 pixels
When the aspect ratio setting is [ Y]
4576k 3056 pixels, 3232 k2160 pixels, 2272 k1520 pixels
When the aspect ratio setting is [ W]
4576k 2576 pixels, 3232 k1824 pixels, 1920 k1080 pixels
When the aspect ratio setting is [ ]
3424k 3424 pixels, 2416 k2416 pixels, 1712 k1712 pixels
Recording quality Motion pictures [AVCHD] (With audio)
When set to [FSH]: 1920 k1080 pixels...")
VQT3N40 (ENG) 46 Picture sizeStill picture When the aspect ratio setting is [ X] 4592k 3448 pixels, 3232 k2424 pixels, 2272 k1704 pixels When the aspect ratio setting is [ Y] 4576k 3056 pixels, 3232 k2160 pixels, 2272 k1520 pixels When the aspect ratio setting is [ W] 4576k 2576 pixels, 3232 k1824 pixels, 1920 k1080 pixels When the aspect ratio setting is [ ] 3424k 3424 pixels, 2416 k2416 pixels, 1712 k1712 pixels Recording quality Motion pictures [AVCHD] (With audio) When set to [FSH]: 1920 k1080 pixels...

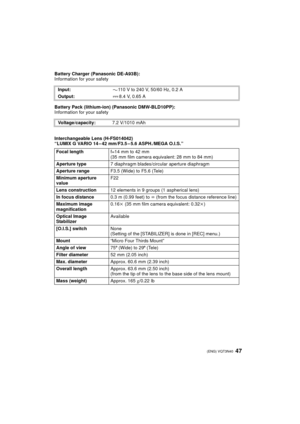

Page 47
47 (ENG) VQT3N40 Battery Charger (Panasonic DE-A93B): Information for your safety Battery Pack (lithium-ion) (Panasonic DMW-BLD10PP): Information for your safety Interchangeable Lens (H-FS014042) “LUMIX G VARIO 14 – 42 mm/F3.5 – 5.6 ASPH./MEGA O.I.S.”Input: 110 V to 240 V, 50/60 Hz, 0.2 A Output: 8.4 V, 0.65 A Voltage/capacity: 7.2 V/1010 mAh Focal length f=14 mm to 42 mm (35 mm film camera equivalent: 28 mm to 84 mm) Aperture type 7 diaphragm blades/circular aperture diaphragm Aperture range F3.5 (Wide)...

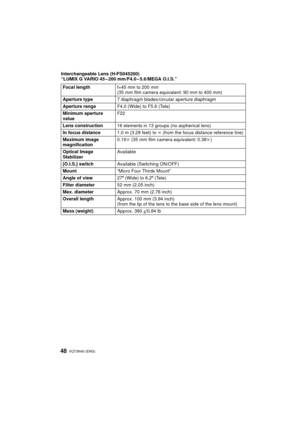

Page 48
VQT3N40 (ENG) 48 Interchangeable Lens (H-FS045200) “LUMIX G VARIO 45 – 200 mm/F4.0 – 5.6/MEGA O.I.S.”Focal length f=45 mm to 200 mm (35 mm film camera equivalent: 90 mm to 400 mm) Aperture type 7 diaphragm blades/circular aperture diaphragm Aperture range F4.0 (Wide) to F5.6 (Tele) Minimum aperture value F22 Lens construction 16 elements in 13 groups (no aspherical lens) In focus distance 1.0 m (3.28 feet) to ¶ (from the focus distance reference line) Maximum image magnification 0.19 k (35 mm film...

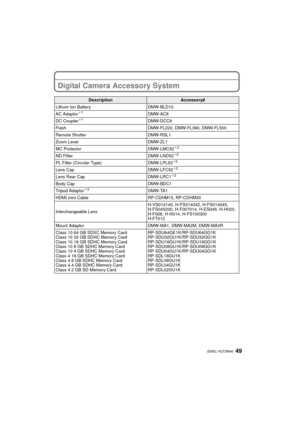

Page 49
49 (ENG) VQT3N40 Digital Camera Accessory System DescriptionAccessory# Lithum Ion Battery DMW-BLD10 AC Adaptor ¢ 1DMW-AC8 DC Coupler¢ 1DMW-DCC9 Flash DMW-FL220, DMW-FL360, DMW-FL500 Remote Shutter DMW-RSL1 Zoom Lever DMW-ZL1 MC Protector DMW-LMC52 ¢2 ND Filter DMW-LND52¢2 PL Filter (Circular Type) DMW-LPL52¢2 Lens Cap DMW-LFC52¢2 Lens Rear Cap DMW-LRC1¢2 Body Cap DMW-BDC1 Tripod Adaptor¢ 3DMW-TA1 HDMI mini Cable RP-CDHM15, RP-CDHM30 Interchangeable Lens H-VS014140, H-FS014042, H-FS014045, H-FS045200,...

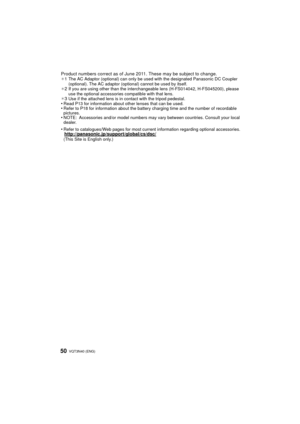

Page 50
VQT3N40 (ENG) 50 Product numbers correct as of June 2011. These may be subject to change.¢1 The AC Adaptor (optional) can only be used with the designated Panasonic DC Coupler (optional). The AC adaptor (optional) cannot be used by itself. ¢ 2If you are using other than the interchangeable lens (H-FS014042, H-FS045200), please use the optional accessories compatible with that lens. ¢ 3Use if the attached lens is in contact with the tripod pedestal.•Read P13 for information about other lenses that can...
