Panasonic Dmc G5 Basic Owners Manual
Here you can view all the pages of manual Panasonic Dmc G5 Basic Owners Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

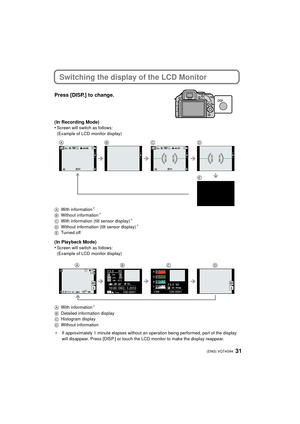

Page 31
![Page 31
31 (ENG) VQT4G94
Switching the display of the LCD Monitor
Press [DISP.] to change.
(In Recording Mode)
•Screen will switch as follows:
(Example of LCD monitor display)
A With information
¢
BWithout information¢
CWith information (tilt sensor display)¢
DWithout information (tilt sensor display)¢
ETurned off
(In Playback Mode)
•Screen will switch as follows:
(Example of LCD monitor display)
A With information
¢
BDetailed information display
C Histogram display
D Without information
¢ If approximately 1...](http://img.usermanuals.tech/thumb/58/65517/w300_dmc-g5_en_om_d-30.png "Page 31
31 (ENG) VQT4G94
Switching the display of the LCD Monitor
Press [DISP.] to change.
(In Recording Mode)
•Screen will switch as follows:
(Example of LCD monitor display)
A With information
¢
BWithout information¢
CWith information (tilt sensor display)¢
DWithout information (tilt sensor display)¢
ETurned off
(In Playback Mode)
•Screen will switch as follows:
(Example of LCD monitor display)
A With information
¢
BDetailed information display
C Histogram display
D Without information
¢ If approximately 1...")
31 (ENG) VQT4G94 Switching the display of the LCD Monitor Press [DISP.] to change. (In Recording Mode) •Screen will switch as follows: (Example of LCD monitor display) A With information ¢ BWithout information¢ CWith information (tilt sensor display)¢ DWithout information (tilt sensor display)¢ ETurned off (In Playback Mode) •Screen will switch as follows: (Example of LCD monitor display) A With information ¢ BDetailed information display C Histogram display D Without information ¢ If approximately 1...

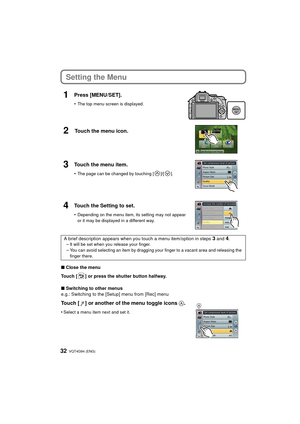

Page 32
![Page 32
VQT4G94 (ENG) 32
Setting the Menu
1Press [MENU/SET].
•The top menu screen is displayed.
2Touch the menu icon.
3Touch the menu item.
•The page can be changed by touching [ ]/[ ].
4Touch the Setting to set.
•Depending on the menu item, its setting may not appear
or it may be displayed in a different way.
A brief description appears when you touch a menu item/option in steps 3 and 4.
–It will be set when you release your finger.
–You can avoid selecting an item by dragging your finger to a vacant area and...](http://img.usermanuals.tech/thumb/58/65517/w300_dmc-g5_en_om_d-31.png "Page 32
VQT4G94 (ENG) 32
Setting the Menu
1Press [MENU/SET].
•The top menu screen is displayed.
2Touch the menu icon.
3Touch the menu item.
•The page can be changed by touching [ ]/[ ].
4Touch the Setting to set.
•Depending on the menu item, its setting may not appear
or it may be displayed in a different way.
A brief description appears when you touch a menu item/option in steps 3 and 4.
–It will be set when you release your finger.
–You can avoid selecting an item by dragging your finger to a vacant area and...")
VQT4G94 (ENG) 32 Setting the Menu 1Press [MENU/SET]. •The top menu screen is displayed. 2Touch the menu icon. 3Touch the menu item. •The page can be changed by touching [ ]/[ ]. 4Touch the Setting to set. •Depending on the menu item, its setting may not appear or it may be displayed in a different way. A brief description appears when you touch a menu item/option in steps 3 and 4. –It will be set when you release your finger. –You can avoid selecting an item by dragging your finger to a vacant area and...

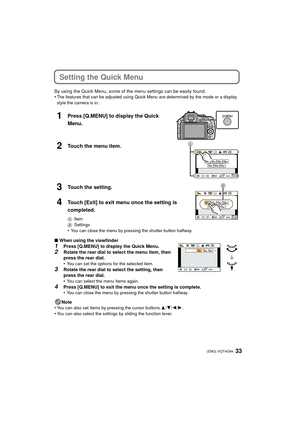

Page 33
![Page 33
33 (ENG) VQT4G94
Setting the Quick Menu
By using the Quick Menu, some of the menu settings can be easily found.
•The features that can be adjusted using Quick Menu are determined by the mode or a display
style the camera is in.
1Press [Q.MENU] to display the Quick
Menu.
2Touch the menu item.
3Touch the setting.
4Touch [Exit] to exit menu once the setting is
completed.
AItem
B Settings
•You can close the menu by pressing the shutter button halfway.
∫When using the viewfinder1Press [Q.MENU] to display...](http://img.usermanuals.tech/thumb/58/65517/w300_dmc-g5_en_om_d-32.png "Page 33
33 (ENG) VQT4G94
Setting the Quick Menu
By using the Quick Menu, some of the menu settings can be easily found.
•The features that can be adjusted using Quick Menu are determined by the mode or a display
style the camera is in.
1Press [Q.MENU] to display the Quick
Menu.
2Touch the menu item.
3Touch the setting.
4Touch [Exit] to exit menu once the setting is
completed.
AItem
B Settings
•You can close the menu by pressing the shutter button halfway.
∫When using the viewfinder1Press [Q.MENU] to display...")
33 (ENG) VQT4G94 Setting the Quick Menu By using the Quick Menu, some of the menu settings can be easily found. •The features that can be adjusted using Quick Menu are determined by the mode or a display style the camera is in. 1Press [Q.MENU] to display the Quick Menu. 2Touch the menu item. 3Touch the setting. 4Touch [Exit] to exit menu once the setting is completed. AItem B Settings •You can close the menu by pressing the shutter button halfway. ∫When using the viewfinder1Press [Q.MENU] to display...

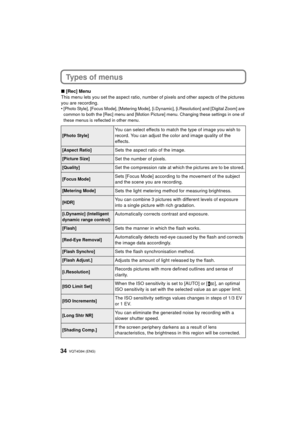

Page 34
![Page 34
VQT4G94 (ENG) 34
Types of menus
∫[Rec] Menu
This menu lets you set the aspect ratio, number of pixels and other aspects of the pictures
you are recording.
•
[Photo Style], [Focus Mode], [Metering Mode], [i.Dynamic], [i.Resolution] and [Digital Zoom] are
common to both the [Rec] menu and [Motion Picture] menu. Changing these settings in one of
these menus is reflected in other menu.
[Photo Style]You can select effects to match the type of image you wish to
record. You can adjust the color and image...](http://img.usermanuals.tech/thumb/58/65517/w300_dmc-g5_en_om_d-33.png "Page 34
VQT4G94 (ENG) 34
Types of menus
∫[Rec] Menu
This menu lets you set the aspect ratio, number of pixels and other aspects of the pictures
you are recording.
•
[Photo Style], [Focus Mode], [Metering Mode], [i.Dynamic], [i.Resolution] and [Digital Zoom] are
common to both the [Rec] menu and [Motion Picture] menu. Changing these settings in one of
these menus is reflected in other menu.
[Photo Style]You can select effects to match the type of image you wish to
record. You can adjust the color and image...")
VQT4G94 (ENG) 34 Types of menus ∫[Rec] Menu This menu lets you set the aspect ratio, number of pixels and other aspects of the pictures you are recording. • [Photo Style], [Focus Mode], [Metering Mode], [i.Dynamic], [i.Resolution] and [Digital Zoom] are common to both the [Rec] menu and [Motion Picture] menu. Changing these settings in one of these menus is reflected in other menu. [Photo Style]You can select effects to match the type of image you wish to record. You can adjust the color and image...

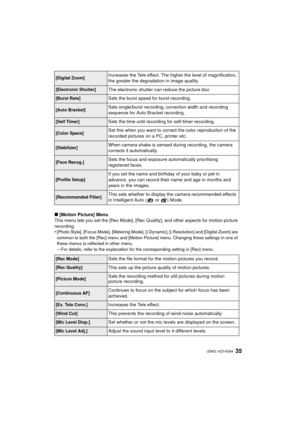

Page 35
![Page 35
35 (ENG) VQT4G94
∫[Motion Picture] Menu
This menu lets you set the [Rec Mode], [Rec Quality], and other aspects for motion picture
recording.
•
[Photo Style], [Focus Mode], [Metering Mode], [i .Dynamic], [i.Resolution] and [Digital Zoom] are
common to both the [Rec] menu and [Motion Pict ure] menu. Changing these settings in one of
these menus is reflected in other menu.
–For details, refer to the explanation for the corresponding setting in [Rec] menu.
[Digital Zoom]Increases the Tele effect. The...](http://img.usermanuals.tech/thumb/58/65517/w300_dmc-g5_en_om_d-34.png "Page 35
35 (ENG) VQT4G94
∫[Motion Picture] Menu
This menu lets you set the [Rec Mode], [Rec Quality], and other aspects for motion picture
recording.
•
[Photo Style], [Focus Mode], [Metering Mode], [i .Dynamic], [i.Resolution] and [Digital Zoom] are
common to both the [Rec] menu and [Motion Pict ure] menu. Changing these settings in one of
these menus is reflected in other menu.
–For details, refer to the explanation for the corresponding setting in [Rec] menu.
[Digital Zoom]Increases the Tele effect. The...")
35 (ENG) VQT4G94 ∫[Motion Picture] Menu This menu lets you set the [Rec Mode], [Rec Quality], and other aspects for motion picture recording. • [Photo Style], [Focus Mode], [Metering Mode], [i .Dynamic], [i.Resolution] and [Digital Zoom] are common to both the [Rec] menu and [Motion Pict ure] menu. Changing these settings in one of these menus is reflected in other menu. –For details, refer to the explanation for the corresponding setting in [Rec] menu. [Digital Zoom]Increases the Tele effect. The...

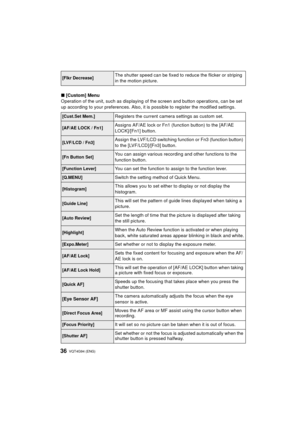

Page 36
![Page 36
VQT4G94 (ENG) 36
∫[Custom] Menu
Operation of the unit, such as displaying of the screen and button operations, can be set
up according to your preferences. Also, it is possible to register the modified settings.
[Flkr Decrease]The shutter speed can be fixed to reduce the flicker or striping
in the motion picture.
[Cust.Set Mem.]Registers the current camera settings as custom set.
[AF/AE LOCK / Fn1]Assigns AF/AE lock or Fn1 (function button) to the [AF/AE
LOCK]/[Fn1] button.
[LVF/LCD / Fn3]Assign the...](http://img.usermanuals.tech/thumb/58/65517/w300_dmc-g5_en_om_d-35.png "Page 36
VQT4G94 (ENG) 36
∫[Custom] Menu
Operation of the unit, such as displaying of the screen and button operations, can be set
up according to your preferences. Also, it is possible to register the modified settings.
[Flkr Decrease]The shutter speed can be fixed to reduce the flicker or striping
in the motion picture.
[Cust.Set Mem.]Registers the current camera settings as custom set.
[AF/AE LOCK / Fn1]Assigns AF/AE lock or Fn1 (function button) to the [AF/AE
LOCK]/[Fn1] button.
[LVF/LCD / Fn3]Assign the...")
VQT4G94 (ENG) 36 ∫[Custom] Menu Operation of the unit, such as displaying of the screen and button operations, can be set up according to your preferences. Also, it is possible to register the modified settings. [Flkr Decrease]The shutter speed can be fixed to reduce the flicker or striping in the motion picture. [Cust.Set Mem.]Registers the current camera settings as custom set. [AF/AE LOCK / Fn1]Assigns AF/AE lock or Fn1 (function button) to the [AF/AE LOCK]/[Fn1] button. [LVF/LCD / Fn3]Assign the...

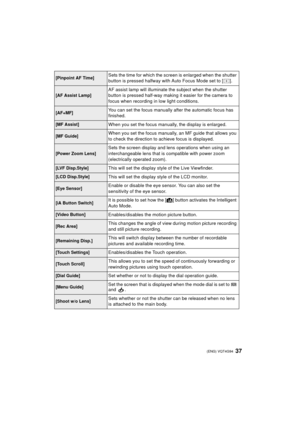

Page 37
![Page 37
37 (ENG) VQT4G94
[Pinpoint AF Time]Sets the time for which the screen is enlarged when the shutter
button is pressed halfway with Auto Focus Mode set to [ ].
[AF Assist Lamp]AF assist lamp will illuminate the subject when the shutter
button is pressed half-way making it easier for the camera to
focus when recording in low light conditions.
[AF+MF]You can set the focus manually after the automatic focus has
finished.
[MF Assist]When you set the focus manually, the display is enlarged.
[MF Guide]When...](http://img.usermanuals.tech/thumb/58/65517/w300_dmc-g5_en_om_d-36.png "Page 37
37 (ENG) VQT4G94
[Pinpoint AF Time]Sets the time for which the screen is enlarged when the shutter
button is pressed halfway with Auto Focus Mode set to [ ].
[AF Assist Lamp]AF assist lamp will illuminate the subject when the shutter
button is pressed half-way making it easier for the camera to
focus when recording in low light conditions.
[AF+MF]You can set the focus manually after the automatic focus has
finished.
[MF Assist]When you set the focus manually, the display is enlarged.
[MF Guide]When...")
37 (ENG) VQT4G94 [Pinpoint AF Time]Sets the time for which the screen is enlarged when the shutter button is pressed halfway with Auto Focus Mode set to [ ]. [AF Assist Lamp]AF assist lamp will illuminate the subject when the shutter button is pressed half-way making it easier for the camera to focus when recording in low light conditions. [AF+MF]You can set the focus manually after the automatic focus has finished. [MF Assist]When you set the focus manually, the display is enlarged. [MF Guide]When...

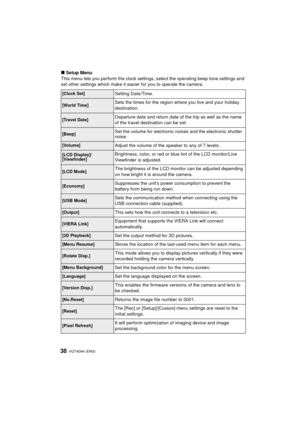

Page 38
![Page 38
VQT4G94 (ENG) 38
∫Setup Menu
This menu lets you perform the clock settings, select the operating beep tone settings and
set other settings which make it easier for you to operate the camera.
[Clock Set]Setting Date/Time.
[World Time]Sets the times for the region where you live and your holiday
destination.
[Travel Date]Departure date and return date of the trip as well as the name
of the travel destination can be set.
[Beep]Set the volume for electronic noises and the electronic shutter
noise....](http://img.usermanuals.tech/thumb/58/65517/w300_dmc-g5_en_om_d-37.png "Page 38
VQT4G94 (ENG) 38
∫Setup Menu
This menu lets you perform the clock settings, select the operating beep tone settings and
set other settings which make it easier for you to operate the camera.
[Clock Set]Setting Date/Time.
[World Time]Sets the times for the region where you live and your holiday
destination.
[Travel Date]Departure date and return date of the trip as well as the name
of the travel destination can be set.
[Beep]Set the volume for electronic noises and the electronic shutter
noise....")
VQT4G94 (ENG) 38 ∫Setup Menu This menu lets you perform the clock settings, select the operating beep tone settings and set other settings which make it easier for you to operate the camera. [Clock Set]Setting Date/Time. [World Time]Sets the times for the region where you live and your holiday destination. [Travel Date]Departure date and return date of the trip as well as the name of the travel destination can be set. [Beep]Set the volume for electronic noises and the electronic shutter noise....

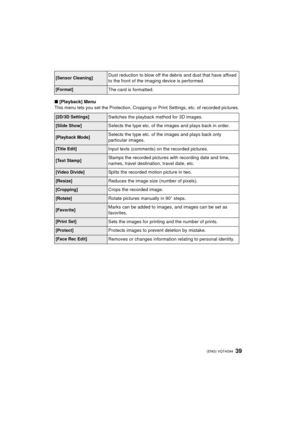

Page 39
![Page 39
39 (ENG) VQT4G94
∫[Playback] Menu
This menu lets you set the Protection, Cropping or Print Settings, etc. of recorded pictures.
[Sensor Cleaning]Dust reduction to blow off the debris and dust that have affixed
to the front of the imaging device is performed.
[Format]The card is formatted.
[2D/3D Settings]Switches the playback method for 3D images.
[Slide Show]Selects the type etc. of the images and plays back in order.
[Playback Mode]Selects the type etc. of the images and plays back only
particular...](http://img.usermanuals.tech/thumb/58/65517/w300_dmc-g5_en_om_d-38.png "Page 39
39 (ENG) VQT4G94
∫[Playback] Menu
This menu lets you set the Protection, Cropping or Print Settings, etc. of recorded pictures.
[Sensor Cleaning]Dust reduction to blow off the debris and dust that have affixed
to the front of the imaging device is performed.
[Format]The card is formatted.
[2D/3D Settings]Switches the playback method for 3D images.
[Slide Show]Selects the type etc. of the images and plays back in order.
[Playback Mode]Selects the type etc. of the images and plays back only
particular...")
39 (ENG) VQT4G94 ∫[Playback] Menu This menu lets you set the Protection, Cropping or Print Settings, etc. of recorded pictures. [Sensor Cleaning]Dust reduction to blow off the debris and dust that have affixed to the front of the imaging device is performed. [Format]The card is formatted. [2D/3D Settings]Switches the playback method for 3D images. [Slide Show]Selects the type etc. of the images and plays back in order. [Playback Mode]Selects the type etc. of the images and plays back only particular...

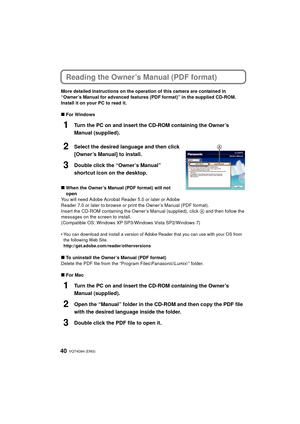

Page 40
![Page 40
VQT4G94 (ENG) 40
Reading the Owner’s Manual (PDF format)
More detailed instructions on the operation of this camera are contained in
“Owner’s Manual for advanced features (PDF format)” in the supplied CD-ROM.
Install it on your PC to read it.
∫For Windows
1Turn the PC on and insert the CD-ROM containing the Owner’s
Manual (supplied).
2Select the desired language and then click
[Owner’s Manual] to install.
3Double click the “Owner’s Manual”
shortcut icon on the desktop.
∫When the Owner’s Manual (PDF...](http://img.usermanuals.tech/thumb/58/65517/w300_dmc-g5_en_om_d-39.png "Page 40
VQT4G94 (ENG) 40
Reading the Owner’s Manual (PDF format)
More detailed instructions on the operation of this camera are contained in
“Owner’s Manual for advanced features (PDF format)” in the supplied CD-ROM.
Install it on your PC to read it.
∫For Windows
1Turn the PC on and insert the CD-ROM containing the Owner’s
Manual (supplied).
2Select the desired language and then click
[Owner’s Manual] to install.
3Double click the “Owner’s Manual”
shortcut icon on the desktop.
∫When the Owner’s Manual (PDF...")
VQT4G94 (ENG) 40 Reading the Owner’s Manual (PDF format) More detailed instructions on the operation of this camera are contained in “Owner’s Manual for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it. ∫For Windows 1Turn the PC on and insert the CD-ROM containing the Owner’s Manual (supplied). 2Select the desired language and then click [Owner’s Manual] to install. 3Double click the “Owner’s Manual” shortcut icon on the desktop. ∫When the Owner’s Manual (PDF...
