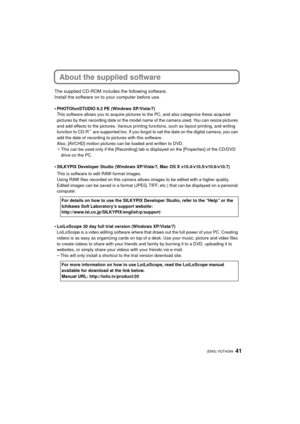

41 (ENG) VQT4G94
About the supplied software
The supplied CD-ROM includes the following software.
Install the software on to your computer before use.
•
PHOTOfunSTUDIO 8.2 PE (Windows XP/Vista/7)
This software allows you to acquire pictures to the PC, and also categorize these acquired
pictures by their recording date or the model name  of the camera used. You can resize pictures
and add effects to the pictures. Various printing functions, such as layout printing, and writing
function to CD-R
¢ are...

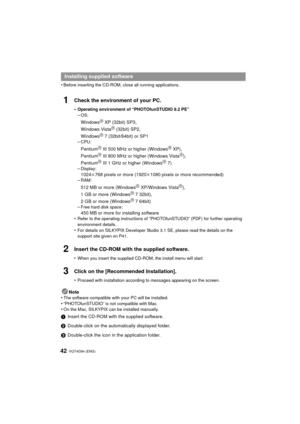

VQT4G94 (ENG) 42
•Before inserting the CD-ROM, close all running applications.
1Check the environment of your PC.
•Operating environment of “PHOTOfunSTUDIO 8.2 PE”–OS:
WindowsR XP (32bit) SP3,
Windows VistaR (32bit) SP2,
WindowsR 7 (32bit/64bit) or SP1
–CPU:
PentiumR III 500 MHz or higher (WindowsR XP),
PentiumR III 800 MHz or higher (Windows VistaR),
PentiumR III 1 GHz or higher (WindowsR 7)
–Display:
1024 k768 pixels or more (1920 k1080 pixels or more recommended)
–RAM:
512 MB or more (WindowsR...

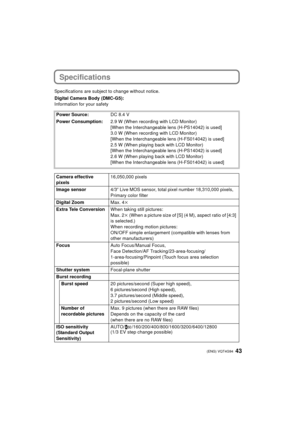

43 (ENG) VQT4G94
Specifications
Specifications are subject to change without notice.
Digital Camera Body (DMC-G5):
Information for your safetyPower Source: DC 8.4 V
Power Consumption: 2.9 W (When recording with LCD Monitor)
[When the Interchangeable lens (H-PS14042) is used]
3.0 W (When recording with LCD Monitor)
[When the Interchangeable lens (H-FS014042) is used]
2.5 W (When playing back with LCD Monitor)
[When the Interchangeable lens (H-PS14042) is used]
2.6 W (When playing back with LCD Monitor)...

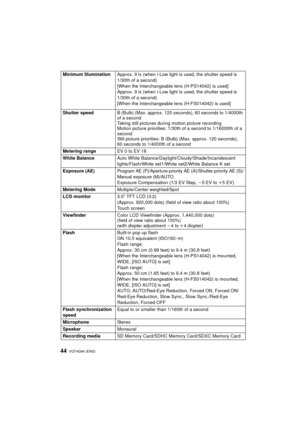

VQT4G94 (ENG) 44
Minimum IlluminationApprox. 9 lx (when i-Low light is  used, the shutter speed is
1/30th of a second)
[When the Interchangeable lens (H-PS14042) is used]
Approx. 9 lx (when i-Low light is  used, the shutter speed is
1/30th of a second)
[When the Interchangeable lens (H-FS014042) is used]
Shutter speed B (Bulb) (Max. approx. 120 seconds),
 60 seconds to 1/4000th
of a second
Taking still pictures during motion picture recording
Motion picture priorities: 1/30th of a second to 1/16000th...

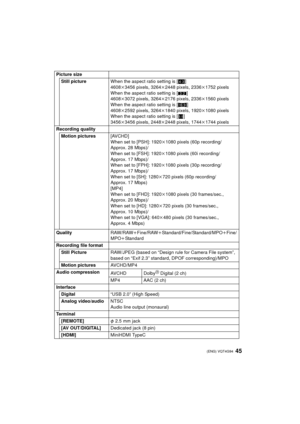

45 (ENG) VQT4G94
Picture sizeStill picture When the aspect ratio setting is [ X]
4608 k3456 pixels, 3264 k2448 pixels, 2336k 1752 pixels
When the aspect ratio setting is [ Y]
4608 k3072 pixels, 3264 k2176 pixels, 2336k 1560 pixels
When the aspect ratio setting is [ W]
4608 k2592 pixels, 3264 k1840 pixels, 1920k 1080 pixels
When the aspect ratio setting is [ ]
3456 k3456 pixels, 2448 k2448 pixels, 1744k 1744 pixels
Recording quality Motion pictures [AVCHD]
When set to [PSH]: 1920 k1080 pixels (60p...

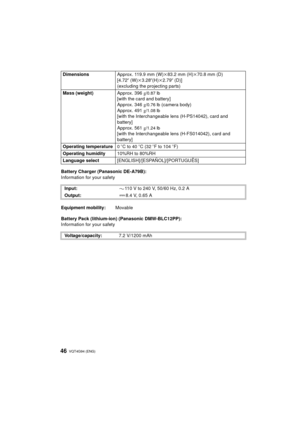

VQT4G94 (ENG) 46
Battery Charger (Panasonic DE-A79B):
Information for your safety
Battery Pack (lithium-ion) (Panasonic DMW-BLC12PP):
Information for your safetyDimensions
Approx. 119.9 mm (W)k83.2 mm (H) k70.8 mm (D)
[4.72 q (W)k3.28 q(H)k2.79q (D)]
(excluding the projecting parts)
Mass (weight) Approx. 396g
/0.87 lb[with the card and battery]
Approx. 346g
/0.76 lb (camera body)
Approx. 491 g/1.08 lb[with the Interchangeable lens (H-PS14042), card and
battery]
Approx. 561g
/1.24 lb[with the...

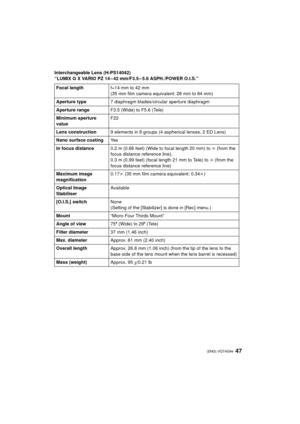

47 (ENG) VQT4G94
Interchangeable Lens (H-PS14042)
“LUMIX G X VARIO PZ 14 – 42 mm/F3.5 – 5.6 ASPH./POWER O.I.S.”Focal length f=14 mm to 42 mm
(35 mm film camera equivalent: 28 mm to 84 mm)
Aperture type 7 diaphragm blades/circular aperture diaphragm
Aperture range F3.5 (Wide) to F5.6 (Tele)
Minimum aperture
value F22
Lens construction 9 elements in 8 groups (4 as pherical lenses, 2 ED Lens)
Nano surface coating Ye s
In focus distance 0.2 m (0.66 feet) (Wide to focal length 20 mm) to  ¶ (from the
focus...

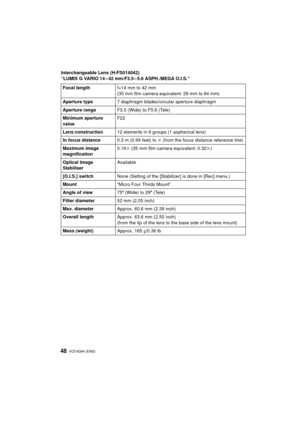

VQT4G94 (ENG) 48
Interchangeable Lens (H-FS014042)
“LUMIX G VARIO 14 – 42 mm/F3.5 – 5.6 ASPH./MEGA O.I.S.”Focal length f=14 mm to 42 mm
(35 mm film camera equivalent: 28 mm to 84 mm)
Aperture type 7 diaphragm blades/circular aperture diaphragm
Aperture range F3.5 (Wide) to F5.6 (Tele)
Minimum aperture
value F22
Lens construction 12 elements in 9 groups (1 aspherical lens)
In focus distance 0.3 m (0.99 feet) to ¶ (from the focus distance reference line)
Maximum image
magnification 0.16
k (35 mm film...

49 (ENG) VQT4G94
Digital Camera Accessory System
¢1 The AC Adaptor (optional) can only be used with the designated Panasonic DC Coupler
(optional). The AC adaptor (optional) cannot be used by itself.
¢ 2 When the interchangeable lens (H-PS14042) is used
¢ 3 When the interchangeable lens (H-FS014042) is used
¢
4Use if the attached lens is in contact with the tripod pedestal.
DescriptionAccessory#
Lithum Ion Battery DMW-BLC12
AC Adaptor
¢ 1DMW-AC8
DC Coupler
¢ 1DMW-DCC8
Flash DMW-FL220, DMW-FL360,...

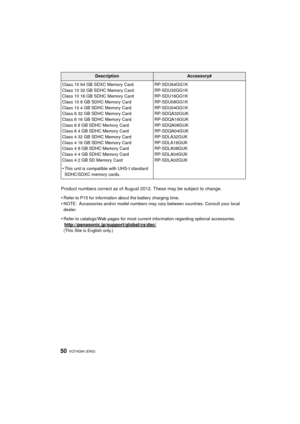

VQT4G94 (ENG) 50
Product numbers correct as of August 2012. These may be subject to change.
•
Refer to P15 for information about the battery charging time.
•NOTE: Accessories and/or model numbers may va ry between countries. Consult your local
dealer.
•Refer to catalogs/Web pages for most current information regarding optional accessories.
http://panasonic.jp/support/global/cs/dsc/(This Site is English only.)
DescriptionAccessory#
Class 10 64 GB SDXC Memory Card
Class 10 32 GB SDHC Memory Card
Class 10...
