Panasonic Dmp Bd75 Operating Instructions
Here you can view all the pages of manual Panasonic Dmp Bd75 Operating Instructions. The Panasonic manuals for CD/DVD/Blu-Ray Drive are available online for free. You can easily download all the documents as PDF.

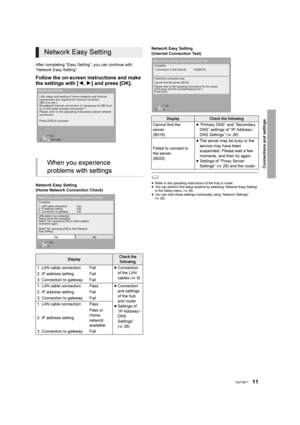

Page 11
![Page 11
Connections and settings
11VQT3B11
After completing “Easy Setting”, you can continue with
“Network Easy Setting”.
Follow the on-screen instructions and make
the settings with [2,1] and press [OK].
Network Easy Setting
(Home Network Connection Check) Network Easy Setting
(Internet Connection Test)
≥
Refer to the operating instructions of the hub or router.
≥ You can perform this setup anytime by selecting “Network Easy Setting”
in the Setup menu. ( 26)
≥ You can redo these settings individually...](http://img.usermanuals.tech/thumb/58/64154/w300_dmp-bd75_en_om_d-10.png "Page 11
Connections and settings
11VQT3B11
After completing “Easy Setting”, you can continue with
“Network Easy Setting”.
Follow the on-screen instructions and make
the settings with [2,1] and press [OK].
Network Easy Setting
(Home Network Connection Check) Network Easy Setting
(Internet Connection Test)
≥
Refer to the operating instructions of the hub or router.
≥ You can perform this setup anytime by selecting “Network Easy Setting”
in the Setup menu. ( 26)
≥ You can redo these settings individually...")
Connections and settings 11VQT3B11 After completing “Easy Setting”, you can continue with “Network Easy Setting”. Follow the on-screen instructions and make the settings with [2,1] and press [OK]. Network Easy Setting (Home Network Connection Check) Network Easy Setting (Internet Connection Test) ≥ Refer to the operating instructions of the hub or router. ≥ You can perform this setup anytime by selecting “Network Easy Setting” in the Setup menu. ( 26) ≥ You can redo these settings individually...

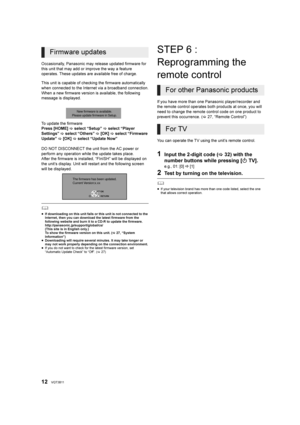

Page 12
![Page 12
12VQT3B11
Occasionally, Panasonic may release updated firmware for
this unit that may add or improve the way a feature
operates. These updates are available free of charge.
This unit is capable of checking the firmware automatically
when connected to the Internet via a broadband connection.
When a new firmware version is available, the following
message is displayed.
To update the firmware
Press [HOME] select “Setup” select “Player
Settings” select “Others” [OK] select “Firmware...](http://img.usermanuals.tech/thumb/58/64154/w300_dmp-bd75_en_om_d-11.png "Page 12
12VQT3B11
Occasionally, Panasonic may release updated firmware for
this unit that may add or improve the way a feature
operates. These updates are available free of charge.
This unit is capable of checking the firmware automatically
when connected to the Internet via a broadband connection.
When a new firmware version is available, the following
message is displayed.
To update the firmware
Press [HOME] select “Setup” select “Player
Settings” select “Others” [OK] select “Firmware...")
12VQT3B11 Occasionally, Panasonic may release updated firmware for this unit that may add or improve the way a feature operates. These updates are available free of charge. This unit is capable of checking the firmware automatically when connected to the Internet via a broadband connection. When a new firmware version is available, the following message is displayed. To update the firmware Press [HOME] select “Setup” select “Player Settings” select “Others” [OK] select “Firmware...

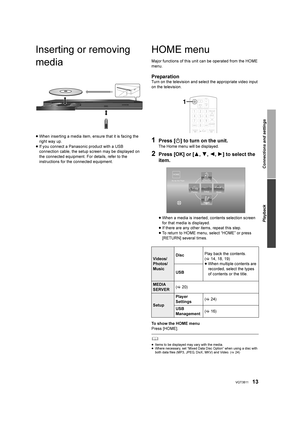

Page 13
Connections and settings Playback 13VQT3B11 Pla ybac k Inserting or removing media ≥When inserting a media item, ensure that it is facing the right way up. ≥ If you connect a Panasonic product with a USB connection cable, the setup screen may be displayed on the connected equipment. For details, refer to the instructions for the connected equipment. HOME menu Major functions of this unit can be operated from the HOME menu. PreparationTurn on the television and select the appropriate video input on...

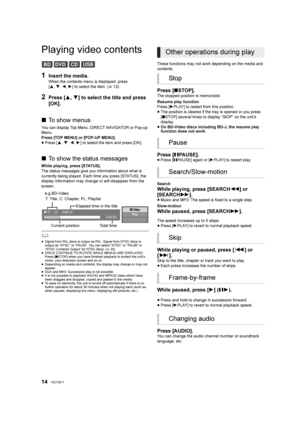

Page 14
![Page 14
14VQT3B11
Playing video contents
1Insert the media.
When the contents menu is displayed, press
[3,4, 2,1 ] to select the item. ( 13)
2Press [3, 4] to select the title and press
[OK].
∫ To show menus
You can display Top Menu, DIRECT NAVIGATOR or Pop-up
Menu.
Press [TOP MENU] or [POP-UP MENU].
≥Press [ 3,4, 2,1 ] to select the item and press [OK].
∫ To show the status messages
While playing, press [STATUS].
The status messages give you information about what is
currently being played. Each time you...](http://img.usermanuals.tech/thumb/58/64154/w300_dmp-bd75_en_om_d-13.png "Page 14
14VQT3B11
Playing video contents
1Insert the media.
When the contents menu is displayed, press
[3,4, 2,1 ] to select the item. ( 13)
2Press [3, 4] to select the title and press
[OK].
∫ To show menus
You can display Top Menu, DIRECT NAVIGATOR or Pop-up
Menu.
Press [TOP MENU] or [POP-UP MENU].
≥Press [ 3,4, 2,1 ] to select the item and press [OK].
∫ To show the status messages
While playing, press [STATUS].
The status messages give you information about what is
currently being played. Each time you...")
14VQT3B11 Playing video contents 1Insert the media. When the contents menu is displayed, press [3,4, 2,1 ] to select the item. ( 13) 2Press [3, 4] to select the title and press [OK]. ∫ To show menus You can display Top Menu, DIRECT NAVIGATOR or Pop-up Menu. Press [TOP MENU] or [POP-UP MENU]. ≥Press [ 3,4, 2,1 ] to select the item and press [OK]. ∫ To show the status messages While playing, press [STATUS]. The status messages give you information about what is currently being played. Each time you...

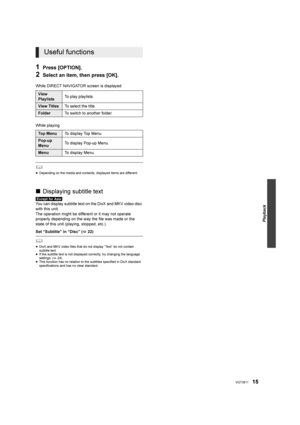

Page 15
![Page 15
Playback
15VQT3B11
1Press [OPTION].
2Select an item, then press [OK].
While DIRECT NAVIGATOR screen is displayed
While playing
≥Depending on the media and contents, displayed items are different.
∫ Displaying subtitle text
[Except\for\Asia[
You can display subtitle text on the DivX and MKV video disc
with this unit.
The operation might be different or it may not operate
properly depending on the way the file was made or the
state of this unit (playing, stopped, etc.).
Set “Subtitle” in “Disc” (...](http://img.usermanuals.tech/thumb/58/64154/w300_dmp-bd75_en_om_d-14.png "Page 15
Playback
15VQT3B11
1Press [OPTION].
2Select an item, then press [OK].
While DIRECT NAVIGATOR screen is displayed
While playing
≥Depending on the media and contents, displayed items are different.
∫ Displaying subtitle text
[Except\for\Asia[
You can display subtitle text on the DivX and MKV video disc
with this unit.
The operation might be different or it may not operate
properly depending on the way the file was made or the
state of this unit (playing, stopped, etc.).
Set “Subtitle” in “Disc” (...")
Playback 15VQT3B11 1Press [OPTION]. 2Select an item, then press [OK]. While DIRECT NAVIGATOR screen is displayed While playing ≥Depending on the media and contents, displayed items are different. ∫ Displaying subtitle text [Except\for\Asia[ You can display subtitle text on the DivX and MKV video disc with this unit. The operation might be different or it may not operate properly depending on the way the file was made or the state of this unit (playing, stopped, etc.). Set “Subtitle” in “Disc” (...

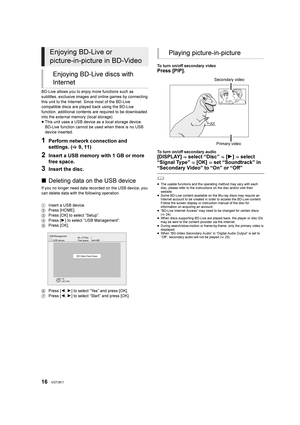

Page 16
16VQT3B11 BD-Live allows you to enjoy more functions such as subtitles, exclusive images and online games by connecting this unit to the Internet. Since most of the BD-Live compatible discs are played back using the BD-Live function, additional contents are required to be downloaded into the external memory (local storage). ≥This unit uses a USB device as a local storage device. BD-Live function cannot be used when there is no USB device inserted. 1Perform network connection and settings. ( 9,...

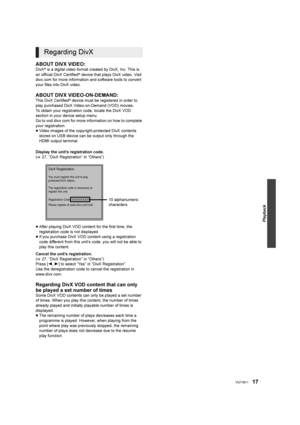

Page 17
Playback 17VQT3B11 ABOUT DIVX VIDEO:DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND:This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more...
Page 18

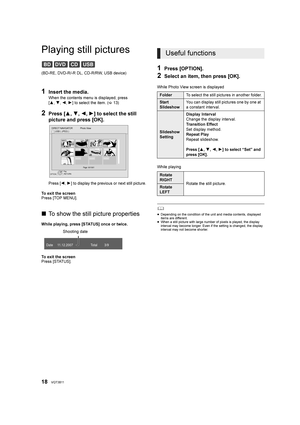

![Page 18
18VQT3B11
Playing still pictures
(BD-RE, DVD-R/-R DL, CD-R/RW, USB device)
1Insert the media.
When the contents menu is displayed, press
[3,4, 2,1 ] to select the item. ( 13)
2Press [3, 4,2,1] to select the still
picture and press [OK].
Press [ 2,1] to display the previous or next still picture.
To exit the screen
Press [TOP MENU].
∫ To show the still picture properties
While playing, press [STATUS] once or twice.
To exit the screen
Press [STATUS].
1Press [OPTION].
2Select an item, then press [OK]....](http://img.usermanuals.tech/thumb/58/64154/w300_dmp-bd75_en_om_d-17.png "Page 18
18VQT3B11
Playing still pictures
(BD-RE, DVD-R/-R DL, CD-R/RW, USB device)
1Insert the media.
When the contents menu is displayed, press
[3,4, 2,1 ] to select the item. ( 13)
2Press [3, 4,2,1] to select the still
picture and press [OK].
Press [ 2,1] to display the previous or next still picture.
To exit the screen
Press [TOP MENU].
∫ To show the still picture properties
While playing, press [STATUS] once or twice.
To exit the screen
Press [STATUS].
1Press [OPTION].
2Select an item, then press [OK]....")
18VQT3B11 Playing still pictures (BD-RE, DVD-R/-R DL, CD-R/RW, USB device) 1Insert the media. When the contents menu is displayed, press [3,4, 2,1 ] to select the item. ( 13) 2Press [3, 4,2,1] to select the still picture and press [OK]. Press [ 2,1] to display the previous or next still picture. To exit the screen Press [TOP MENU]. ∫ To show the still picture properties While playing, press [STATUS] once or twice. To exit the screen Press [STATUS]. 1Press [OPTION]. 2Select an item, then press [OK]....
Page 19

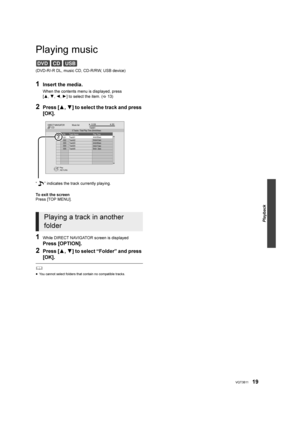

![Page 19
Playback
19VQT3B11
Playing music
(DVD-R/-R DL, music CD, CD-R/RW, USB device)
1Insert the media.
When the contents menu is displayed, press
[3, 4,2 ,1] to select the item. ( 13)
2Press [ 3,4] to select the track and press
[OK].
“ ” indicates the track currently playing.
To exit the screen
Press [TOP MENU].
1While DIRECT NAVIGATOR screen is displayed
Press [OPTION].
2Press [3 ,4] to select “Folder” and press
[OK].
≥ You cannot select folders that contain no compatible tracks.
Playing a track in...](http://img.usermanuals.tech/thumb/58/64154/w300_dmp-bd75_en_om_d-18.png "Page 19
Playback
19VQT3B11
Playing music
(DVD-R/-R DL, music CD, CD-R/RW, USB device)
1Insert the media.
When the contents menu is displayed, press
[3, 4,2 ,1] to select the item. ( 13)
2Press [ 3,4] to select the track and press
[OK].
“ ” indicates the track currently playing.
To exit the screen
Press [TOP MENU].
1While DIRECT NAVIGATOR screen is displayed
Press [OPTION].
2Press [3 ,4] to select “Folder” and press
[OK].
≥ You cannot select folders that contain no compatible tracks.
Playing a track in...")
Playback 19VQT3B11 Playing music (DVD-R/-R DL, music CD, CD-R/RW, USB device) 1Insert the media. When the contents menu is displayed, press [3, 4,2 ,1] to select the item. ( 13) 2Press [ 3,4] to select the track and press [OK]. “ ” indicates the track currently playing. To exit the screen Press [TOP MENU]. 1While DIRECT NAVIGATOR screen is displayed Press [OPTION]. 2Press [3 ,4] to select “Folder” and press [OK]. ≥ You cannot select folders that contain no compatible tracks. Playing a track in...

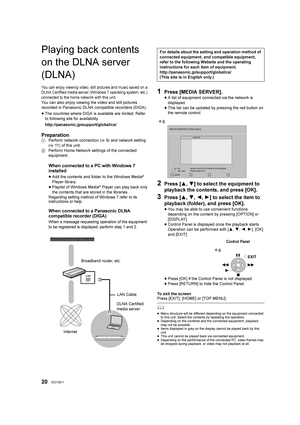

Page 20
20VQT3B11 Playing back contents on the DLNA server (DLNA) You can enjoy viewing video, still pictures and music saved on a DLNA Certified media server (Windows 7 operating system, etc.) connected to the home network with this unit. You can also enjoy viewing the video and still pictures recorded in Panasonic DLNA compatible recorders (DIGA). ≥The countries where DIGA is available are limited. Refer to following site for availability. http://panasonic.jp/support/global/cs/ Preparation1 Perform...
