Playback

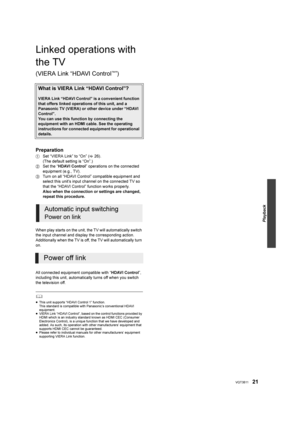

21VQT3B11
Linked operations with
the TV
(VIERA Link “HDAVI Control™”)
Preparation
1Set “VIERA Link” to “On” ( 26).
(The default setting is “On”.)
2 Set the “ HDAVI Control ” operations on the connected
equipment (e.g., TV).
3 Turn on all “HDAVI Control” compatible equipment and
select this unit’s input channel on the connected TV so
that the “HDAVI Control” function works properly.
Also when the connection or settings are changed,
repeat this procedure.
When play starts on the unit, the...

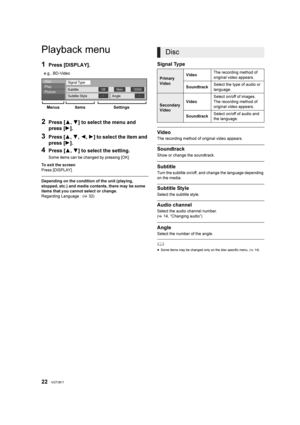

22VQT3B11
Se tt in gs
Playback menu
1Press [DISPLAY].
2Press [3,4] to select the menu and
press [ 1].
3Press [ 3,4, 2,1] to select the item and
press [ 1].
4Press [3, 4] to select the setting.
Some items can be changed by pressing [OK].
To exit the screen
Press [DISPLAY].
Depending on the condition of the unit (playing,
stopped, etc.) and media contents, there may be some
items that y ou cannot select or change.
Regarding Language : ( 32)
Signal Type
Video
The recording method of original video...

Settings

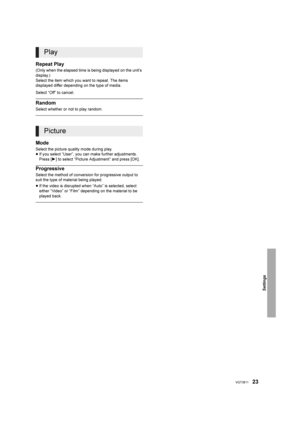

23VQT3B11
Repeat Play
(Only when the elapsed time is being displayed on the unit’s
display.)
Select the item which you want to repeat. The items
displayed differ depending on the type of media.
Select “Off” to cancel.
Random
Select whether or not to play random.
Mode
Select the picture quality mode during play.
≥If you select “User”, you can make further adjustments.
Press [ 1] to select “Picture Adjustment” and press [OK].
Progressive
Select the method of conversion for progressive output to...

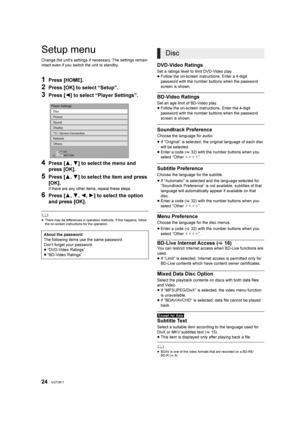

24VQT3B11
Setup menu
Change the unit’s settings if necessary. The settings remain
intact even if you switch the unit to standby.
1Press [HOME].
2Press [OK] to select “Setup”.
3Press [2] to select “Player Settings”.
4Press [3,4] to select the menu and
press [OK].
5Press [3, 4] to select the item and press
[OK].
If there are any other items, repeat these steps.
6Press [3, 4,2,1] to select the option
and press [OK].
	≥ There may be differences in operation methods. If this happens, follow
the on-screen...

Settings

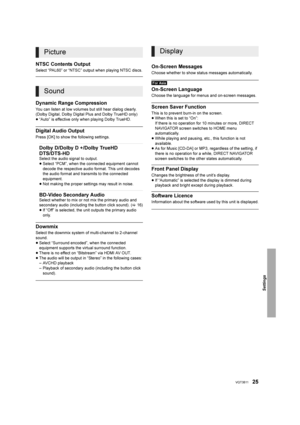

25VQT3B11
NTSC Contents Output
Select “PAL60” or “NTSC” output when playing NTSC discs.
Dynamic Range Compression
You can listen at low volumes but still hear dialog clearly.
(Dolby Digital, Dolby Digital Plus and Dolby TrueHD only)
≥“Auto” is effective only when playing Dolby TrueHD.
Digital Audio Output
Press [OK] to show the following settings.
Downmix
Select the downmix system of multi-channel to 2-channel
sound.
≥Select “Surround encoded”, when the connected
equipment supports the virtual...

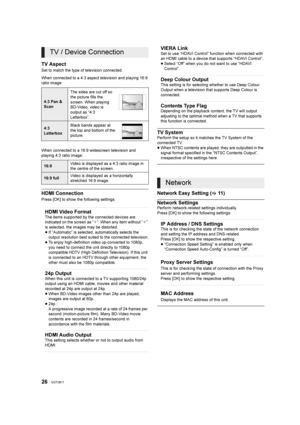

26VQT3B11
TV Aspect
Set to match the type of television connected.
When connected to a 4:3 aspect television and playing 16:9
ratio image:
When connected to a 16:9 widescreen television and
playing 4:3 ratio image:
HDMI Connection
Press [OK] to show the following settings:
TV SystemPerform the setup so it matches the TV System of the
connected TV.
≥When NTSC contents are played, they are outputted in the
signal format specified in the “NTSC Contents Output”,
irrespective of the settings here....

Settings

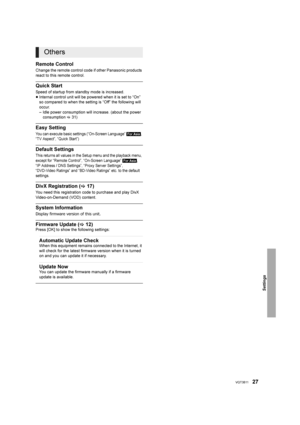

27VQT3B11
Remote Control
Change the remote control code if other Panasonic products
react to this remote control.
Quick Start
Speed of startup from standby mode is increased.
≥Internal control unit will be powered when it is set to “On”
so compared to when the setting is “Off” the following will
occur.
– Idle power consumption will increase. (about the power
consumption  31)
Easy Setting
You can execute basic settings (“On-Screen Language” [For[Asia],
“TV Aspect”, “Quick Start”)
Default...

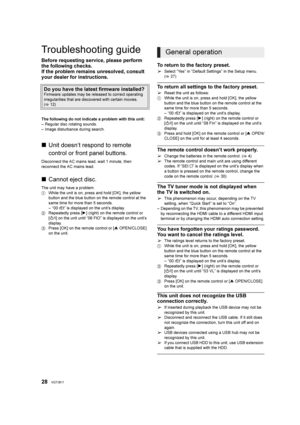

28VQT3B11
Re fer enc e
Troubleshooting guide
Before requesting service, please perform
the following checks.
If the problem remains unresolved, consult
your dealer for instructions.
The following do not indicate a problem with this unit:
– Regular disc rotating sounds.
– Image disturbance during search.
∫Unit doesn’t respond to remote
control or front panel buttons.
Disconnect the AC mains lead, wait 1 minute, then
reconnect the AC mains lead.
∫Cannot eject disc.
The unit may have a problem.
1 While...

Reference

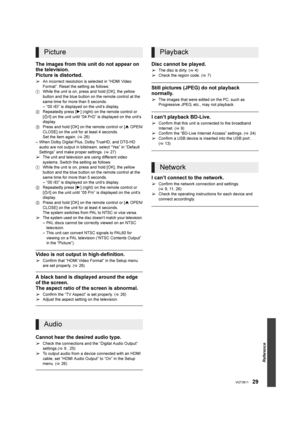

29VQT3B11
The images from this unit do not appear on
the television.
Picture is distorted.
¾An incorrect resolution is selected in “HDMI Video
Format”. Reset the setting as follows:
1 While the unit is on, press and hold [OK], the yellow
button and the blue button on the remote control at the
same time for more than 5 seconds.
– “00 rEt” is displayed on the unit’s display.
2 Repeatedly press [ 1] (right) on the remote control or
[ Í/I] on the unit until “04 PrG” is displayed on the unit’s...

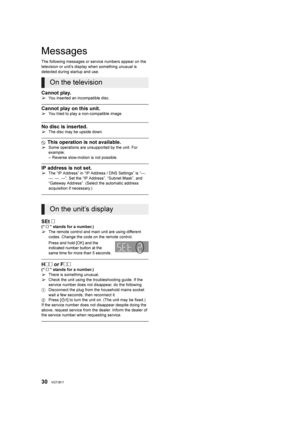

30VQT3B11
Messages
The following messages or service numbers appear on the
television or unit’s display when something unusual is
detected during startup and use.
Cannot play.¾You inserted an incompatible disc.
Cannot play on this unit.¾You tried to play a non-compatible image.
No disc is inserted.¾The disc may be upside down.
$ This operation is not available.¾Some operations are unsupported by the unit. For
example;
– Reverse slow-motion is not possible.
IP address is not set.¾The “IP Address” in...
