Panasonic Door Station Video Intercom System Vl Gc002aw Installation And Operation Guide

Door Station
 Installation and Operation Guide
Model No. VL-GC002A
Thank you for purchasing a Panasonic Door Station.
Please read this Installation and Operation Guide before using the unit and
save for future reference.
Video Intercom System

2
Important Information
Introduction and Installation
Included items ............................................................................................................ 5
Location of controls ................................................................................................... 6
Before installation ...................................................................................................... 7
Installing the door station...

3
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to persons.The exclamation point within a
triangle is intended to tell the
user that important operating and
servicing instructions are in the
papers with the appliance.
Important safety instructions
1) Read these instructions.
All the safety and operating instructions should be read before the appliance is
operated.
2)...

4
Important Information
Additional safety information
1. Use only the power source marked on the unit. If you are not sure of the type of
power supplied to your home, consult your dealer or local power company.
2. Use only the specified AC adaptor.
3. Do not tamper with the plug.
4. Make sure the plug is securely inserted.
5. Do not touch the plug with wet hands.
6. Do not place objects on the power cord. Install the unit where no one can step or trip
on  the cord.
7. To reduce the risk of electric...

5
Included items
No. Item Quantity Notes
Mounting base
Wood screws1
2 Door station
1 ------
4 mm x 20 mm (3/16″
 x 13/16″
)
Button cover 1 ------
Introduction and Installation
------
•The Mounting base comes preattached to the Door station.

6
Introduction and Installation
Location of controls
 Camera
•When a visitor presses the Call
Button, the camera will turn on and
an image of the visitor will be shown
   on the display of the monitor station
   and sub monitor station.
•The camera angle can be adjusted
   when installing the door station
   (page 9).
 Infrared light
 Microphone
 Speaker
* Be sure to attach the accessory button cover to the Call Button before using it.
(The diagram shows the button cover installed.) (Page 11.)
Front...

7

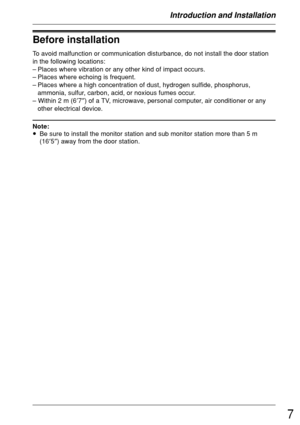

Before installation
Introduction and Installation
To avoid malfunction or communication disturbance, do not install the door station
in the following locations:
– Places where vibration or any other kind of impact occurs.
– Places where echoing is frequent.
– Places where a high concentration of dust, hydrogen sulfide, phosphorus,
ammonia, sulfur, carbon, acid, or noxious fumes occur.
– Within 2 m (6′7″) of a TV, microwave, personal computer, air conditioner or any
other electrical device.
Note:
•Be...

8
Introduction and Installation
Installing the door station
1
Loosen the mounting screw, and then remove the mounting base.
Screwdriver
2Install the mounting base to a wall using the attached wood screws.
(4 mm x 20 mm, 3/16″ x 13/16″).
WallMounting base
Wood
Screws

Important information:
On the bottom surface of the door station, there are holes to allow water to drain.
Do not cover it up when installing.Note:
•Install so that picture range will be within a height of
995 mm ~ 1795 mm from the ground...

9
Introduction and Installation

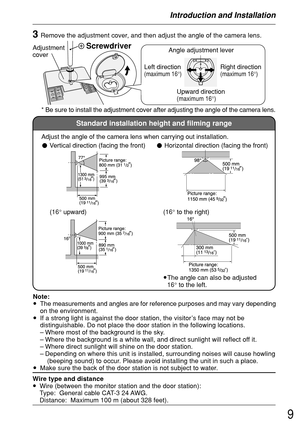

3Remove the adjustment cover, and then adjust the angle of the camera lens.
* Be sure to install the adjustment cover after adjusting the angle of the camera lens.
Screwdriver
Left direction(maximum 16°)
Angle adjustment lever
Right direction
(maximum 16°)
Upward direction(maximum 16°)
Adjustment
cover
Standard installation height and filming range
Adjust the angle of the camera lens when carrying out installation.
• Vertical direction (facing the front)
(16° to the right)...

10
Introduction and Installation
Wire (Not included)Tighten with screws
4Attach the wire to the terminal.
Mounting baseDoor station
Speaker Microphone
5Secure the door station to the mounting base.
• Tighten the mounting screws.
Connect to terminals
D11 and D12 (D21
and D22) of the
monitor station.
Wall WallDoor station (rear)
Screwdriver
