Panasonic Door Station Video Intercom System Vl Gc002aw Installation And Operation Guide

11
Introduction and Installation
Button cover

Button cover
Align with base.Push
Call button
6Attach the button cover.
•Align the inside of the button cover base with the bottom of the call button, and
then push the top of the button cover to fit it into place.

 Removing the button cover
•Insert a flat-tipped screwdriver as far as it will go into the slot in the base
of the button cover, and then turn the flat-tipped screwdriver to remove
the button cover.
* Press against the button cover gently with a...

12
Important information:
•Do not use anything containing alcohol, polish powder, powder soap, benzine,
thinner, wax, petroleum, or boiling water. Also do not spray with insecticide, glass
cleaner, or hair spray. This could cause a change in color or quality. Clean the unit with a soft, dry cloth when cleaning. For excessive dirt, wipe the unit
with a slightly damp cloth.
Cleaning
Help

13

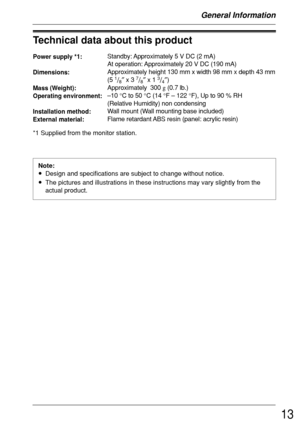

Technical data about this product
Note:
•Design and specifications are subject to change without notice.
•The pictures and illustrations in these instructions may vary slightly from the
actual product.
Power supply *1:
Dimensions:
Mass (Weight):
Operating environment:
Installation method:
External material:Standby: Approximately 5 V DC (2 mA)
At operation: Approximately 20 V DC (190 mA)
Approximately height 130 mm x width 98 mm x depth 43 mm
(5
1/8″ x 3 7/8″ x 1 3/4″)
Approximately  300 g (0.7 lb.)...

14

15

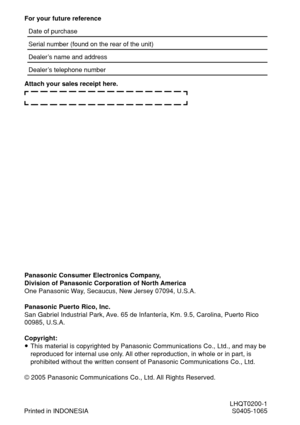

For your future reference
Date of purchase
Serial number (found on the rear of the unit)
Dealer’s name and address
Dealer’s telephone number
Attach your sales receipt here.
LHQT0200-1
S0405-1065 Printed in INDONESIAPanasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094, U.S.A.
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5, Carolina, Puerto Rico
00985, U.S.A.
Copyright:
•This...
