Installation Introductions

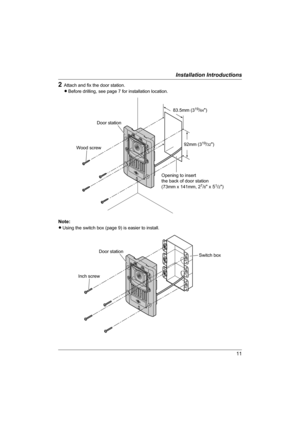

2Attach and fix the door station.
LBefore drilling, see page 7 for installation location.
Note:
LUsing the switch box (page 9) is easier to install.
Door station
92mm (319/32) 83.5mm (3
19/64)
Opening to insert
the back of door station
(73mm x 141mm, 2
7/8 x 51/2)
Wood screw
Door station
Switch box
Inch screw
VL-GC003A.book  Page 11  Monday, October 24, 2005  8:35 PM

12
Installation Introductions

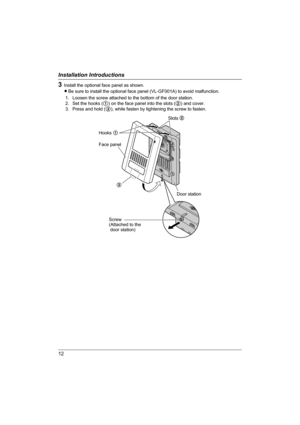

3Install the optional face panel as shown.
LBe sure to install the optional face panel (VL-GF001A) to avoid malfunction.
1. Loosen the screw attached to the bottom of the door station.
2. Set the hooks (
1) on the face panel into the slots (2) and cover.
3. Press and hold (
3), while fasten by tightening the screw to fasten.
Door station Hooks
Slots
Screw
(Attached to the
 door station)
Face panel
VL-GC003A.book  Page 12  Monday, October 24, 2005  8:35 PM

13
Help
Cleaning
Use a soft, dry cloth when cleaning. For excessive dirt, wipe the unit with a slightly damp
cloth.
Important:
LDo not use anything containing alcohol, polish powder, powder soap, benzine, thinner, wax,
petroleum, or boiling water. Also do not spray with insecticide, glass cleaner, or hair spray.
This could cause a change in color or quality.
VL-GC003A.book  Page 13  Monday, October 24, 2005  8:35 PM

14
General Information
Technical data about this product
Power supply*1:Standby: Approximately 5 V DC (2 mA)
At operation: Approximately 20 V DC (180 mA)
Dimensions:Approximate height 165 mm x width 115 mm x depth 51 mm
 (6
1/2 x 41/2 x 2)
Mass (Weight):Approximately 225 g (0.5 lb.)
Operating environment:–10 °C to 50 °C (14 °F – 122 °F),
Up to 90% RH (Relative Humidity) non condensing
Installation method:Flush mount
External material:ABS (V-0)
Image pickup device:
1/4 CCD (0.25 megapixel)
Minimum...

15
General Information
FCC and Other Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this device.
NOTE:
This equipment has been...
