Panasonic Dual DIN Hdd Mobile Navigation System Cn Nvd905u Installation Instructions

Add to Favourites
    Download as PDF

    View the Panasonic Dual DIN Hdd Mobile Navigation System Cn Nvd905u Installation Instructions for free. All the Panasonic manuals and user’s guides are available for free view without any registration. You can also download the manual as PDF to your computer.

    Overview View all the pages Comments

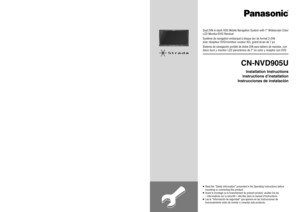

    Page 1 Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America One Panasonic Way, Secaucus, New Jersey 07094 http://www.panasonic.com Panasonic Puerto Rico, Inc. Ave. 65 de Infanteria, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985 http://www.panasonic.com Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 http://www.panasonic.ca CN-NVD905U Installation Dual DIN in-dash HDD Mobile Navigation System with 7 Widescreen Color LCD Monitor/DVD...

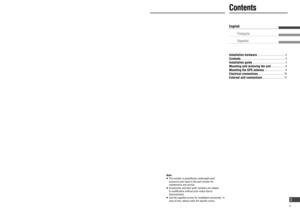

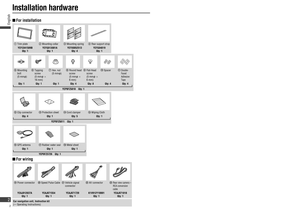

    Page 2 Contents Installation hardware ...........................................2 Contents ....................................................................3 Installation guide ...................................................4 Mounting and removing the unit ......................6 Mounting the GPS antenna ................................8 Electrical connections ........................................10 External unit connections .................................12 Note:  The number in parentheses...
    Page 3 Contents Installation hardware ...........................................2 Contents ....................................................................3 Installation guide ...................................................4 Mounting and removing the unit ......................6 Mounting the GPS antenna ................................8 Electrical connections ........................................10 External unit connections .................................12 Note:  The number in parentheses...

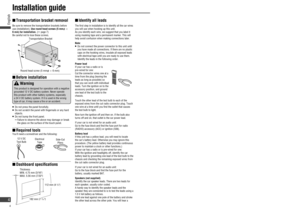

    Page 4  Transportation bracket removal Be sure to remove the transportation brackets before use (installation). Use round head screws (5 mm  6 mm) for installation. (  page 7) Be careful not to lose these screws. Transportation Bracket Round head screw (5 mm  6 mm)  Before installation Installation guide  Required tools You’ll need a screwdriver and the following: 12 V DC Test BulbElectrical TapeSide-Cut Pliers  Dashboard speci cations Thickness MIN. 4.75 mm {3/16} MAX. 5.56 mm {7/32} 112 mm...
