CN-NVD905U
Installation
Dual DIN in-dash HDD Mobile Navigation System with 7 Widescreen Color
LCD Monitor/DVD...

Contents
Installation hardware ...........................................2
Contents ....................................................................3
Installation guide ...................................................4
Mounting and removing the unit ......................6
Mounting the GPS antenna ................................8
Electrical connections ........................................10
External unit connections .................................12
Note:
   The number in parentheses...

Contents
Installation hardware ...........................................2
Contents ....................................................................3
Installation guide ...................................................4
Mounting and removing the unit ......................6
Mounting the GPS antenna ................................8
Electrical connections ........................................10
External unit connections .................................12
Note:
   The number in parentheses...

  Transportation bracket removal
Be sure to remove the transportation brackets before
use (installation). Use round head screws (5 mm 
6 mm) for installation. (
 page 7)
Be careful not to lose these screws.
Transportation Bracket
Round head screw (5 mm  6 mm)
  Before  installation
Installation guide
  Required  tools
You’ll need a screwdriver and the following:
12 V DC
Test BulbElectrical
TapeSide-Cut
Pliers
  Dashboard speci cations
Thickness
MIN. 4.75 mm {3/16}
MAX. 5.56 mm {7/32}
112 mm...

  Transportation bracket removal
Be sure to remove the transportation brackets before
use (installation). Use round head screws (5 mm 
6 mm) for installation. (
 page 7)
Be careful not to lose these screws.
Transportation Bracket
Round head screw (5 mm  6 mm)
  Before  installation
Installation guide
  Required  tools
You’ll need a screwdriver and the following:
12 V DC
Test BulbElectrical
TapeSide-Cut
Pliers
  Dashboard speci cations
Thickness
MIN. 4.75 mm {3/16}
MAX. 5.56 mm {7/32}
112 mm...

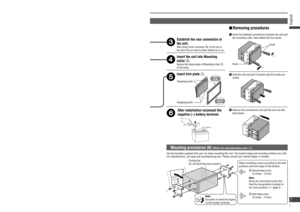

Hook

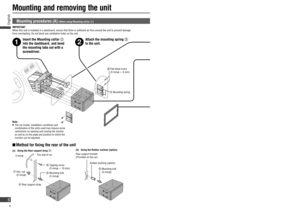

Mounting procedures (A) (When using Mounting collar 
)
Note:   The car model, installation conditions and
combination of the units used may impose some
restrictions on opening and closing the monitor
as well as on the angle and position to which the
monitor can be adjusted.
(a)  Using the Rear support strap 
.
Fire wall of car
3 mm

  Rear support strap
  Tapping screw
(5 mm  16 mm)

  Mounting bolt
(5 mm) 
  Hex. nut
(5 mm)(b)  Using the Rubber cushion (option)
Rubber bushing...

Hook
Mounting procedures (A) (When using Mounting collar 
)
Note:   The car model, installation conditions and
combination of the units used may impose some
restrictions on opening and closing the monitor
as well as on the angle and position to which the
monitor can be adjusted.
(a)  Using the Rear support strap 
.
Fire wall of car
3 mm

  Rear support strap
  Tapping screw
(5 mm  16 mm)

  Mounting bolt
(5 mm) 
  Hex. nut
(5 mm)(b)  Using the Rubber cushion (option)
Rubber bushing...

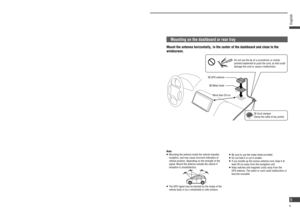

Route the cord so that it does not
allow rainwater into the vehicle.
   If the vehicle is a hatchback, allow enough slack
in the cord so that it does not get pulled when the
rear door is opened or closed.
Note:

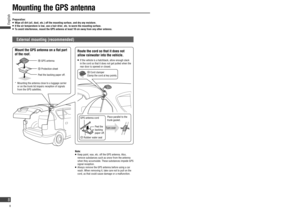

   Keep paint, wax, etc. off the GPS antenna. Also,
remove substances such as snow from the antenna
when they accumulate. These substances impede GPS
signal reception.
   Always remove the GPS antenna before using a car
wash. When removing it, take care not to pull on the
cord, as that...

Route the cord so that it does not
allow rainwater into the vehicle.
   If the vehicle is a hatchback, allow enough slack
in the cord so that it does not get pulled when the
rear door is opened or closed.
Note:
   Keep paint, wax, etc. off the GPS antenna. Also,
remove substances such as snow from the antenna
when they accumulate. These substances impede GPS
signal reception.
   Always remove the GPS antenna before using a car
wash. When removing it, take care not to pull on the
cord, as that...

SPEED
ILLUMINATION
SIDE BRAKE
REVERSEPR
ND
2
L
VIDEO-OUT
S.W-OUTAV-IN
PRE-OUT FRONT
ACC 3 A3 A
ANT CONT MAX 0.1 A
BATTERY 15 A
BATTERY 5 A
5 A
FRONT L
FRONT R
AMP CONT MAX 0.1 A
REAR L
REAR R
PRE-OUT REAR
REMOTE-OUT

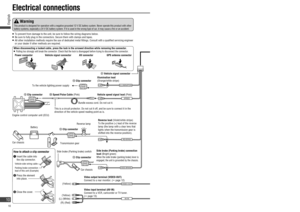

Electrical connections
CN-NVD905U (Rear)
   To prevent from damage to the unit, be sure to follow the wiring diagrams below.   Be sure to fully plug in the connectors. Secure them with clamps and tapes.   All other installation methods require the use of dedicated metal  ttings. Consult...
