Panasonic Dual DIN Mobile Navigation System Cn Nvd905u Quick Reference Guidebook

Use coordinates to search for a
destination.
1Select [Coordinates] from
the Destination menu (All).
(page 4)
2Enter the coordinates and
select [OK].
   When entering a latitude, select
[N] for north and [S] for south;
and select [E] for east and
[W] for west when entering a
longitude.
   To correct the coordinates,
select [
] to delete digits one
at a time.
   A map is displayed according
to the coordinates input.
3Select [Enter].
4Select [Start].
  Route guidance starts.
Coordinates...

This search covers POIs within a radius of 20 miles (32 km*) from the current
position, or from the center of the cursor.
*   This is the range when “km” is set as the distance setting
(
 Operating Instructions).

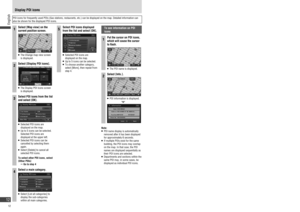

1Select [Map view] on the
current position screen.
   The Change map view screen
is displayed.
2Select [Display POI icons].
   The Display POI Icons screen
is displayed.
3Select the POI icons to
search for, then select [List
Nearest POIs].
   The names of POIs and their
distance from...

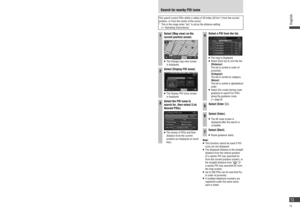

This search covers POIs within a radius of 20 miles (32 km*) from the current
position, or from the center of the cursor.
*   This is the range when “km” is set as the distance setting
(
 Operating Instructions).
1Select [Map view] on the
current position screen.
   The Change map view screen
is displayed.
2Select [Display POI icons].
   The Display POI Icons screen
is displayed.
3Select the POI icons to
search for, then select [List
Nearest POIs].
   The names of POIs and their
distance from...

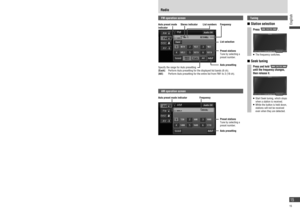

 Tuning
    Station  selection
Press .
   The frequency switches.
    Seek  tuning
Press and hold
until the frequency changes,
then release it.
   Start Seek tuning, which stops
when a station is received.
   While the button is held down,
stations will not be received
even when they are detected. Frequency Auto preset mode indicator
 AM operation screen
Radio
 FM operation screen
List selection Frequency
Auto presetting
Specify the range for Auto presetting
[Each]:   Perform Auto presetting...

 Tuning
    Station  selection
Press .
   The frequency switches.
    Seek  tuning
Press and hold
until the frequency changes,
then release it.
   Start Seek tuning, which stops
when a station is received.
   While the button is held down,
stations will not be received
even when they are detected. Frequency Auto preset mode indicator
 AM operation screen
Radio
 FM operation screen
List selection Frequency
Auto presetting
Specify the range for Auto presetting
[Each]:   Perform Auto presetting...

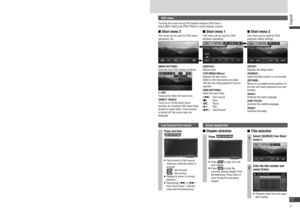

DVD menu
Touching the screen during DVD playback displays Short menu 1.
Select [NEXT PAGE] and [PREV PAGE] to switch between screens.
   Short menu 1
This menu can be used for DVD
playback operations.
   Short menu 2
This menu can be used for DVD menu
operations, etc.
   Short menu 3
This menu can be used for DVD
playback-related settings.
[MOVE BUTTONS]:
Switches touch key display positions.

[

DVD menu
Touching the screen during DVD playback displays Short menu 1.
Select [NEXT PAGE] and [PREV PAGE] to switch between screens.
   Short menu 1
This menu can be used for DVD
playback operations.
   Short menu 2
This menu can be used for DVD menu
operations, etc.
   Short menu 3
This menu can be used for DVD
playback-related settings.
[MOVE BUTTONS]:
Switches touch key display positions.

[

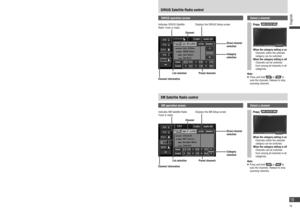

SIRIUS operation screen
Displays the SIRIUS Setup screen
Channel informationDirect channel
selection
Category
selection
Preset channels Indicates SIRIUS Satellite
Radio Tuner is ready.
List selection
Select a channel
Press .
When the category setting is on
   Channels within the selected
category can be switched.
When the category setting is off
   Channels can be switched
from among all channels in all
categories.
Note:
   Press and hold  or  to
scan the channels. Release to stop
scanning...

SIRIUS operation screen
Displays the SIRIUS Setup screen
Channel informationDirect channel
selection
Category
selection
Preset channels Indicates SIRIUS Satellite
Radio Tuner is ready.
List selection
Select a channel
Press .
When the category setting is on
   Channels within the selected
category can be switched.
When the category setting is off
   Channels can be switched
from among all channels in all
categories.
Note:
   Press and hold  or  to
scan the channels. Release to stop
scanning...

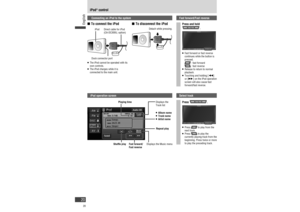

   To disconnect the iPod
  Detach while pressing.
Connecting an iPod to the system
   To connect the iPod
   iPod Direct cable for iPod
(CA-DC300U, option)
Dock connector port
   The iPod cannot be operated with its
own controls.
   The iPod charges while it is
connected to the main unit.
iPod® control
iPod operation screen
Playing time
Fast forward/
Fast reverseDisplays the
Track list
  Album name  Track name  Artist name
Displays the Music menu Shuf e playRepeat play
Fast forward/Fast...
