Page 11

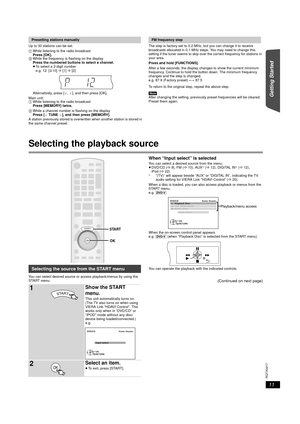

![Page 11
11
RQTX0217
Getting Started Playing Discs Other Operations Reference
Up to 30 stations can be set.
A station previously stored is overwritten when another station is stored in
the same channel preset.The step is factory-set to 0.2-MHz, but you can change it to receive
broadcasts allocated in 0.1-MHz steps. You may need to change this
setting if the tuner seems to skip over the correct frequency for stations in
your area.
Press and hold [FUNCTIONS].
After a few seconds, the display changes to show the...](http://img.usermanuals.tech/thumb/58/66831/w300_sc-pt464_en_om_d-10.png "Page 11
11
RQTX0217
Getting Started Playing Discs Other Operations Reference
Up to 30 stations can be set.
A station previously stored is overwritten when another station is stored in
the same channel preset.The step is factory-set to 0.2-MHz, but you can change it to receive
broadcasts allocated in 0.1-MHz steps. You may need to change this
setting if the tuner seems to skip over the correct frequency for stations in
your area.
Press and hold [FUNCTIONS].
After a few seconds, the display changes to show the...")
11 RQTX0217 Getting Started Playing Discs Other Operations Reference Up to 30 stations can be set. A station previously stored is overwritten when another station is stored in the same channel preset.The step is factory-set to 0.2-MHz, but you can change it to receive broadcasts allocated in 0.1-MHz steps. You may need to change this setting if the tuner seems to skip over the correct frequency for stations in your area. Press and hold [FUNCTIONS]. After a few seconds, the display changes to show the...

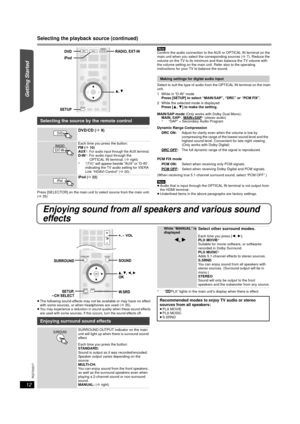

Page 12
![Page 12
12
RQTX0217
Getting Started Playing Discs Other Operations Reference
Selecting the playback source (continued)
Press [SELECTOR] on the main unit to select source from the main unit.
(B35)[Note]
Confirm the audio connection to the AUX or OPTICAL IN terminal on the
main unit when you select the corresponding sources (B7). Reduce the
volume on the TV to its minimum and then balance the TV volume with
the volume setting on the main unit. Refer also to the operating
instructions for your TV to balance...](http://img.usermanuals.tech/thumb/58/66831/w300_sc-pt464_en_om_d-11.png "Page 12
12
RQTX0217
Getting Started Playing Discs Other Operations Reference
Selecting the playback source (continued)
Press [SELECTOR] on the main unit to select source from the main unit.
(B35)[Note]
Confirm the audio connection to the AUX or OPTICAL IN terminal on the
main unit when you select the corresponding sources (B7). Reduce the
volume on the TV to its minimum and then balance the TV volume with
the volume setting on the main unit. Refer also to the operating
instructions for your TV to balance...")
12 RQTX0217 Getting Started Playing Discs Other Operations Reference Selecting the playback source (continued) Press [SELECTOR] on the main unit to select source from the main unit. (B35)[Note] Confirm the audio connection to the AUX or OPTICAL IN terminal on the main unit when you select the corresponding sources (B7). Reduce the volume on the TV to its minimum and then balance the TV volume with the volume setting on the main unit. Refer also to the operating instructions for your TV to balance...
Page 13

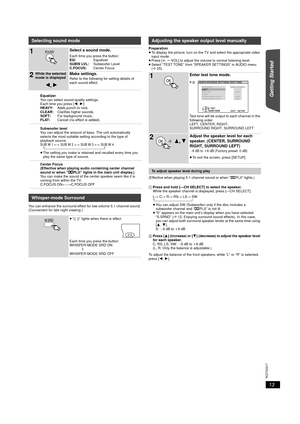

![Page 13
13
RQTX0217
Getting Started Playing Discs Other Operations Reference
You can enhance the surround effect for low volume 5.1-channel sound.
(Convenient for late night viewing.)Preparation
≥To display the picture, turn on the TV and select the appropriate video
input mode.
≥Press [r, s VOL] to adjust the volume to normal listening level.
≥Select “TEST TONE” from “SPEAKER SETTINGS” in AUDIO menu
(B25).
(Effective when playing 5.1-channel sound or when “ÎPLII” lights.)
Selecting sound mode
1Select a sound...](http://img.usermanuals.tech/thumb/58/66831/w300_sc-pt464_en_om_d-12.png "Page 13
13
RQTX0217
Getting Started Playing Discs Other Operations Reference
You can enhance the surround effect for low volume 5.1-channel sound.
(Convenient for late night viewing.)Preparation
≥To display the picture, turn on the TV and select the appropriate video
input mode.
≥Press [r, s VOL] to adjust the volume to normal listening level.
≥Select “TEST TONE” from “SPEAKER SETTINGS” in AUDIO menu
(B25).
(Effective when playing 5.1-channel sound or when “ÎPLII” lights.)
Selecting sound mode
1Select a sound...")
13 RQTX0217 Getting Started Playing Discs Other Operations Reference You can enhance the surround effect for low volume 5.1-channel sound. (Convenient for late night viewing.)Preparation ≥To display the picture, turn on the TV and select the appropriate video input mode. ≥Press [r, s VOL] to adjust the volume to normal listening level. ≥Select “TEST TONE” from “SPEAKER SETTINGS” in AUDIO menu (B25). (Effective when playing 5.1-channel sound or when “ÎPLII” lights.) Selecting sound mode 1Select a sound...
Page 14

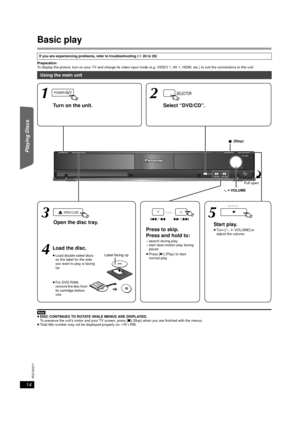

![Page 14
14
RQTX0217
Getting Started Playing Discs Other Operations Reference
Basic play
Preparation
To display the picture, turn on your TV and change its video input mode (e.g. VIDEO 1, AV 1, HDMI, etc.) to suit the connections to this unit.
[Note]
≥DISC CONTINUES TO ROTATE WHILE MENUS ARE DISPLAYED.
To preserve the unit’s motor and your TV screen, press [∫] (Stop) when you are finished with the menus.
≥Total title number may not be displayed properly on iR/iRW. If you are experiencing problems, refer to...](http://img.usermanuals.tech/thumb/58/66831/w300_sc-pt464_en_om_d-13.png "Page 14
14
RQTX0217
Getting Started Playing Discs Other Operations Reference
Basic play
Preparation
To display the picture, turn on your TV and change its video input mode (e.g. VIDEO 1, AV 1, HDMI, etc.) to suit the connections to this unit.
[Note]
≥DISC CONTINUES TO ROTATE WHILE MENUS ARE DISPLAYED.
To preserve the unit’s motor and your TV screen, press [∫] (Stop) when you are finished with the menus.
≥Total title number may not be displayed properly on iR/iRW. If you are experiencing problems, refer to...")
14 RQTX0217 Getting Started Playing Discs Other Operations Reference Basic play Preparation To display the picture, turn on your TV and change its video input mode (e.g. VIDEO 1, AV 1, HDMI, etc.) to suit the connections to this unit. [Note] ≥DISC CONTINUES TO ROTATE WHILE MENUS ARE DISPLAYED. To preserve the unit’s motor and your TV screen, press [∫] (Stop) when you are finished with the menus. ≥Total title number may not be displayed properly on iR/iRW. If you are experiencing problems, refer to...
Page 15

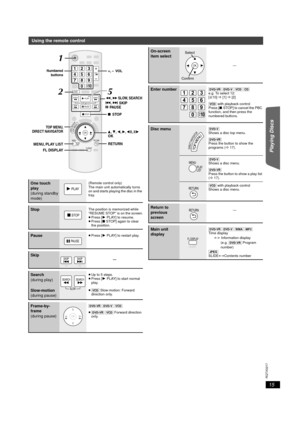

![Page 15
15
RQTX0217
Getting Started Playing Discs Other Operations Reference
Using the remote control
One touch
play
(during standby
mode)(Remote control only)
The main unit automatically turns
on and starts playing the disc in the
tray.
StopThe position is memorized while
“RESUME STOP” is on the screen.
≥Press [1PLAY] to resume.
≥Press [∫STOP] again to clear
the position.
Pause≥Press [1PLAY] to restart play.
Skip
Search
(during play)≥Up to 5 steps.
≥Press [1PLAY] to start normal
play.
Slow-motion
(during...](http://img.usermanuals.tech/thumb/58/66831/w300_sc-pt464_en_om_d-14.png "Page 15
15
RQTX0217
Getting Started Playing Discs Other Operations Reference
Using the remote control
One touch
play
(during standby
mode)(Remote control only)
The main unit automatically turns
on and starts playing the disc in the
tray.
StopThe position is memorized while
“RESUME STOP” is on the screen.
≥Press [1PLAY] to resume.
≥Press [∫STOP] again to clear
the position.
Pause≥Press [1PLAY] to restart play.
Skip
Search
(during play)≥Up to 5 steps.
≥Press [1PLAY] to start normal
play.
Slow-motion
(during...")
15 RQTX0217 Getting Started Playing Discs Other Operations Reference Using the remote control One touch play (during standby mode)(Remote control only) The main unit automatically turns on and starts playing the disc in the tray. StopThe position is memorized while “RESUME STOP” is on the screen. ≥Press [1PLAY] to resume. ≥Press [∫STOP] again to clear the position. Pause≥Press [1PLAY] to restart play. Skip Search (during play)≥Up to 5 steps. ≥Press [1PLAY] to start normal play. Slow-motion (during...
Page 16

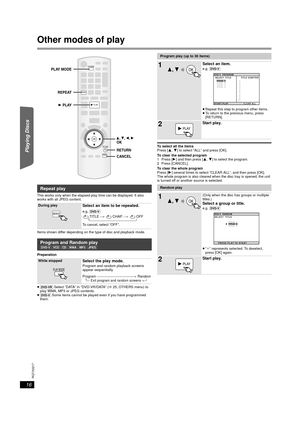

![Page 16
16
RQTX0217
Getting Started Playing Discs Other Operations Reference
Other modes of play
This works only when the elapsed play time can be displayed. It also
works with all JPEG content.
Items shown differ depending on the type of disc and playback mode.
Preparation
≥[DVD-VR] Select “DATA” in “DVD-VR/DATA” (B25, OTHERS menu) to
play WMA, MP3 or JPEG contents.
≥[DVD-V] Some items cannot be played even if you have programmed
them.
To select all the items
Press [3,4] to select “ALL” and press [OK].
To...](http://img.usermanuals.tech/thumb/58/66831/w300_sc-pt464_en_om_d-15.png "Page 16
16
RQTX0217
Getting Started Playing Discs Other Operations Reference
Other modes of play
This works only when the elapsed play time can be displayed. It also
works with all JPEG content.
Items shown differ depending on the type of disc and playback mode.
Preparation
≥[DVD-VR] Select “DATA” in “DVD-VR/DATA” (B25, OTHERS menu) to
play WMA, MP3 or JPEG contents.
≥[DVD-V] Some items cannot be played even if you have programmed
them.
To select all the items
Press [3,4] to select “ALL” and press [OK].
To...")
16 RQTX0217 Getting Started Playing Discs Other Operations Reference Other modes of play This works only when the elapsed play time can be displayed. It also works with all JPEG content. Items shown differ depending on the type of disc and playback mode. Preparation ≥[DVD-VR] Select “DATA” in “DVD-VR/DATA” (B25, OTHERS menu) to play WMA, MP3 or JPEG contents. ≥[DVD-V] Some items cannot be played even if you have programmed them. To select all the items Press [3,4] to select “ALL” and press [OK]. To...

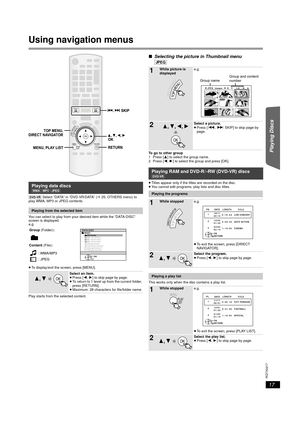

Page 17
![Page 17
17
RQTX0217
Getting Started Playing Discs Other Operations Reference
Using navigation menus
[DVD-VR] Select “DATA” in “DVD-VR/DATA” (B25, OTHERS menu) to
play WMA, MP3 or JPEG contents.
You can select to play from your desired item while the “DATA-DISC”
screen is displayed.
e.g.
≥To display/exit the screen, press [MENU].
Play starts from the selected content.
∫Selecting the picture in Thumbnail menu
[JPEG]
To go to other group
1 Press [3] to select the group name.
2 Press [2,1] to select the group and...](http://img.usermanuals.tech/thumb/58/66831/w300_sc-pt464_en_om_d-16.png "Page 17
17
RQTX0217
Getting Started Playing Discs Other Operations Reference
Using navigation menus
[DVD-VR] Select “DATA” in “DVD-VR/DATA” (B25, OTHERS menu) to
play WMA, MP3 or JPEG contents.
You can select to play from your desired item while the “DATA-DISC”
screen is displayed.
e.g.
≥To display/exit the screen, press [MENU].
Play starts from the selected content.
∫Selecting the picture in Thumbnail menu
[JPEG]
To go to other group
1 Press [3] to select the group name.
2 Press [2,1] to select the group and...")
17 RQTX0217 Getting Started Playing Discs Other Operations Reference Using navigation menus [DVD-VR] Select “DATA” in “DVD-VR/DATA” (B25, OTHERS menu) to play WMA, MP3 or JPEG contents. You can select to play from your desired item while the “DATA-DISC” screen is displayed. e.g. ≥To display/exit the screen, press [MENU]. Play starts from the selected content. ∫Selecting the picture in Thumbnail menu [JPEG] To go to other group 1 Press [3] to select the group name. 2 Press [2,1] to select the group and...
Page 18

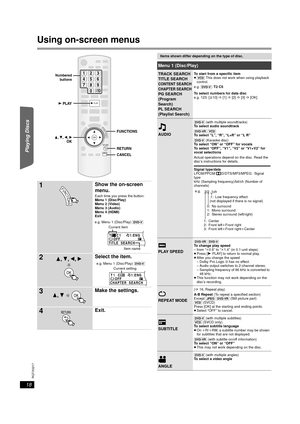

![Page 18
18
RQTX0217
Getting Started Playing Discs Other Operations Reference
Using on-screen menus
1Show the on-screen
menu.
Each time you press the button:
Menu 1 (Disc/Play)
Menu 2 (Video)
Menu 3 (Audio)
Menu 4 (HDMI)
Exit
2Select the item.
3Make the settings.
4Exit.
RETURN
123
456
78
0
9
PLAY
OK
FUNCTIONS
10
CANCEL
OK
RETURN
FUNCTIONS
CANCEL
Numbered
buttons
PLAY
FUNCTIONS
T1C1
1:ENG
3/2.
1 :E OFF
TITLE SEARCH
Current item
Item name e.g. Menu 1 (Disc/Play) [DVD-V]
OKT1C1
1:ENG
3/
1 OFF
CHAPTER SEARCH...](http://img.usermanuals.tech/thumb/58/66831/w300_sc-pt464_en_om_d-17.png "Page 18
18
RQTX0217
Getting Started Playing Discs Other Operations Reference
Using on-screen menus
1Show the on-screen
menu.
Each time you press the button:
Menu 1 (Disc/Play)
Menu 2 (Video)
Menu 3 (Audio)
Menu 4 (HDMI)
Exit
2Select the item.
3Make the settings.
4Exit.
RETURN
123
456
78
0
9
PLAY
OK
FUNCTIONS
10
CANCEL
OK
RETURN
FUNCTIONS
CANCEL
Numbered
buttons
PLAY
FUNCTIONS
T1C1
1:ENG
3/2.
1 :E OFF
TITLE SEARCH
Current item
Item name e.g. Menu 1 (Disc/Play) [DVD-V]
OKT1C1
1:ENG
3/
1 OFF
CHAPTER SEARCH...")
18 RQTX0217 Getting Started Playing Discs Other Operations Reference Using on-screen menus 1Show the on-screen menu. Each time you press the button: Menu 1 (Disc/Play) Menu 2 (Video) Menu 3 (Audio) Menu 4 (HDMI) Exit 2Select the item. 3Make the settings. 4Exit. RETURN 123 456 78 0 9 PLAY OK FUNCTIONS 10 CANCEL OK RETURN FUNCTIONS CANCEL Numbered buttons PLAY FUNCTIONS T1C1 1:ENG 3/2. 1 :E OFF TITLE SEARCH Current item Item name e.g. Menu 1 (Disc/Play) [DVD-V] OKT1C1 1:ENG 3/ 1 OFF CHAPTER SEARCH...
Page 19

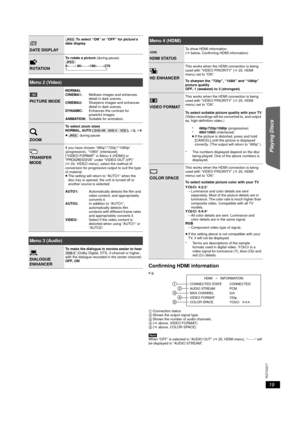

![Page 19
19
RQTX0217
Getting Started Playing Discs Other Operations Reference
Confirming HDMI information
1Connection status
2Shows the output signal type.
3Shows the number of audio channels.
4(Babove, VIDEO FORMAT)
5(Babove, COLOR SPACE)
[Note]
When “OFF” is selected in “AUDIO OUT” (B25, HDMI menu), “– – –” will
be displayed in “AUDIO STREAM”.
DATE DISPLAY
[JPEG] To select “ON” or “OFF” for picture’s
date display
ROTATION
To rotate a picture (during pause)
[JPEG]:
0,------. 90,------.180,------.270...](http://img.usermanuals.tech/thumb/58/66831/w300_sc-pt464_en_om_d-18.png "Page 19
19
RQTX0217
Getting Started Playing Discs Other Operations Reference
Confirming HDMI information
1Connection status
2Shows the output signal type.
3Shows the number of audio channels.
4(Babove, VIDEO FORMAT)
5(Babove, COLOR SPACE)
[Note]
When “OFF” is selected in “AUDIO OUT” (B25, HDMI menu), “– – –” will
be displayed in “AUDIO STREAM”.
DATE DISPLAY
[JPEG] To select “ON” or “OFF” for picture’s
date display
ROTATION
To rotate a picture (during pause)
[JPEG]:
0,------. 90,------.180,------.270...")
19 RQTX0217 Getting Started Playing Discs Other Operations Reference Confirming HDMI information 1Connection status 2Shows the output signal type. 3Shows the number of audio channels. 4(Babove, VIDEO FORMAT) 5(Babove, COLOR SPACE) [Note] When “OFF” is selected in “AUDIO OUT” (B25, HDMI menu), “– – –” will be displayed in “AUDIO STREAM”. DATE DISPLAY [JPEG] To select “ON” or “OFF” for picture’s date display ROTATION To rotate a picture (during pause) [JPEG]: 0,------. 90,------.180,------.270...
Page 20
20 RQTX0217 Getting Started Playing Discs Other Operations Reference Other Operating Using the VIERA Link “HDAVI ControlTM” VIERA Link “HDAVI Control” VIERA LinkTM is a new name for EZ SyncTM. VIERA Link “HDAVI Control” is a convenient function that offers linked operations of this unit, and a Panasonic TV (VIERA) under “HDAVI Control”. You can use this function by connecting the equipment with the HDMI cable. See the operating instructions for connected equipment for operational details. ≥VIERA...
