Panasonic Dvd Home Theater Sound SystemSc Pt464 Operating Instructions

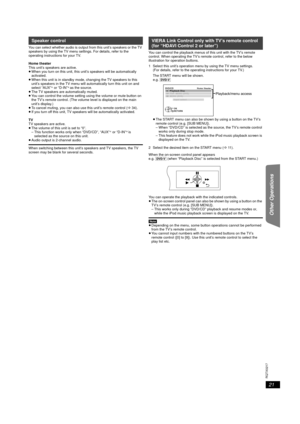

21
RQTX0217
Getting Started Playing Discs Other Operations Reference
You can select whether audio is output from this unit’s speakers or the TV
speakers by using the TV menu settings. For details, refer to the
operating instructions for your TV.
Home theater
This unit’s speakers are active.
≥When you turn on this unit, this unit’s speakers will be automatically
activated.
≥When this unit is in standby mode, changing the TV speakers to this
unit’s speakers in the TV menu will automatically turn this...

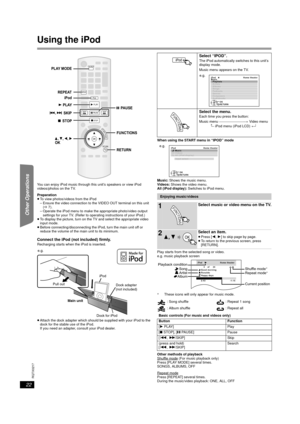

22
RQTX0217
Getting Started Playing Discs Other Operations Reference
Using the iPod
You can enjoy iPod music through this unit’s speakers or view iPod
videos/photos on the TV.
Preparation
≥To view photos/videos from the iPod
– Ensure the video connection to the VIDEO OUT terminal on this unit
(B7).
– Operate the iPod menu to make the appropriate photo/video output
settings for your TV. (Refer to operating instructions of your iPod.)
≥To display the picture, turn on the TV and select the appropriate...

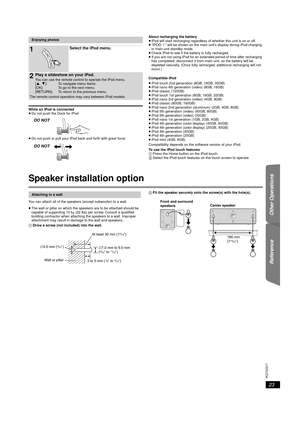

23
RQTX0217
Getting Started Playing Discs Other Operations Reference
While an iPod is connected
≥Do not push the Dock for iPod.
≥Do not push or pull your iPod back and forth with great force.About recharging the battery
≥iPod will start recharging regardless of whether this unit is on or off.
≥“IPOD¢” will be shown on the main unit’s display during iPod charging
in main unit standby mode.
≥Check iPod to see if the battery is fully recharged.
≥If you are not using iPod for an extended period of time...

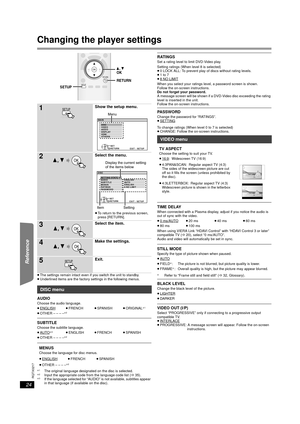

24
RQTX0217
Getting Started Playing Discs Other Operations Reference
Changing the player settings
≥The settings remain intact even if you switch the unit to standby.
≥Underlined items are the factory settings in the following menus.
§1The original language designated on the disc is selected.§2Input the appropriate code from the language code list (B35).§3If the language selected for “AUDIO” is not available, subtitles appear
in that language (if available on the disc).
RATINGSSet a rating level to limit...

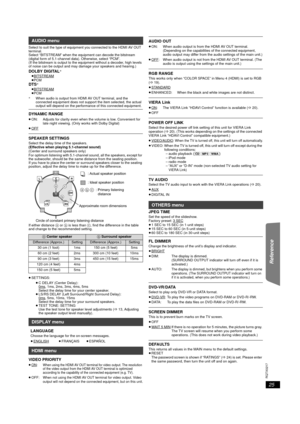

25
RQTX0217
Getting Started Playing Discs Other Operations Reference
Select to suit the type of equipment you connected to the HDMI AV OUT
terminal.
Select “BITSTREAM” when the equipment can decode the bitstream
(digital form of 5.1-channel data). Otherwise, select “PCM”.
(If the bitstream is output to the equipment without a decoder, high levels
of noise can be output and may damage your speakers and hearing.)
DOLBY DIGITAL§
≥BITSTREAM≥PCMDTS§
≥BITSTREAM≥PCM§ When audio is output from HDMI AV OUT...

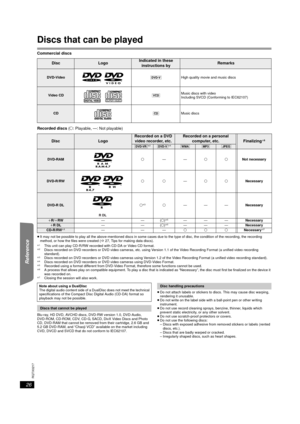

26
RQTX0217
Getting Started Playing Discs Other Operations Reference
Reference
Discs that can be played
Commercial discs
Recorded discs (±: Playable, —: Not playable)
≥It may not be possible to play all the above-mentioned discs in some cases due to the type of disc, the condition of the recording, the recording
method, or how the files were created (B27, Tips for making data discs).
§1This unit can play CD-R/RW recorded with CD-DA or Video CD format.§2Discs recorded on DVD recorders or DVD video...

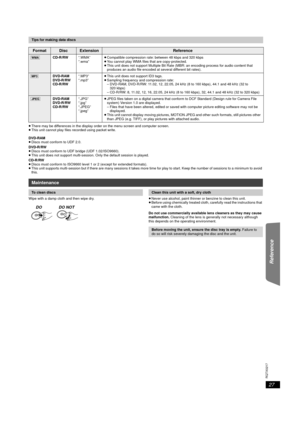

27
RQTX0217
Getting Started Playing Discs Other Operations Reference
≥There may be differences in the display order on the menu screen and computer screen.
≥This unit cannot play files recorded using packet write.
DVD-RAM
≥Discs must conform to UDF 2.0.
DVD-R/RW
≥Discs must conform to UDF bridge (UDF 1.02/ISO9660).
≥This unit does not support multi-session. Only the default session is played.
CD-R/RW
≥Discs must conform to ISO9660 level 1 or 2 (except for extended formats).
≥This unit supports...

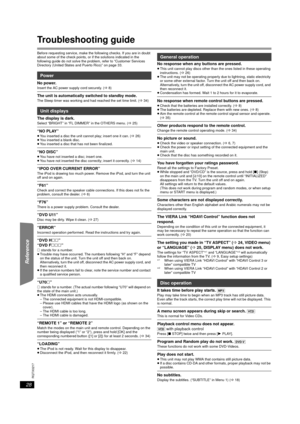

28
RQTX0217
Getting Started Playing Discs Other Operations Reference
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt
about some of the check points, or if the solutions indicated in the
following guide do not solve the problem, refer to “Customer Services
Directory (United States and Puerto Rico)” on page 33.
No power.Insert the AC power supply cord securely. (B8)
The unit is automatically switched to standby mode.The Sleep timer was working and had...

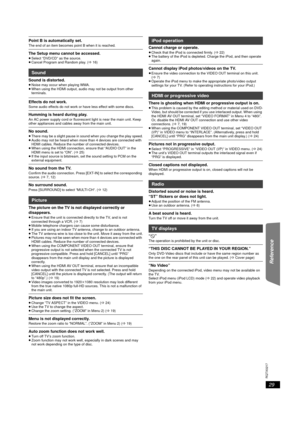

29
RQTX0217
Getting Started Playing Discs Other Operations Reference
Point B is automatically set.The end of an item becomes point B when it is reached.
The Setup menu cannot be accessed.≥Select “DVD/CD” as the source.
≥Cancel Program and Random play. (B16)
Sound is distorted.≥Noise may occur when playing WMA.
≥When using the HDMI output, audio may not be output from other
terminals.
Effects do not work.Some audio effects do not work or have less effect with some discs.
Humming is heard during play.An...

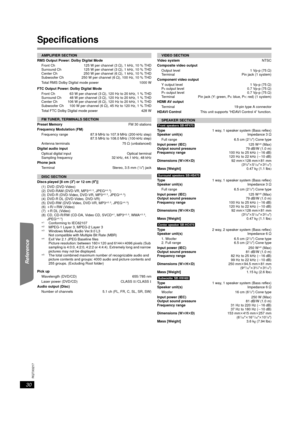

30
RQTX0217
Getting Started Playing Discs Other Operations Reference
Specifications
AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
Front Ch
Surround Ch
Center Ch
Subwoofer Ch125 W per channel (3≠), 1 kHz, 10 % THD
125 W per channel (3≠), 1 kHz, 10 % THD
250 W per channel (6≠), 1 kHz, 10 % THD
250 W per channel (6≠), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power 1000 W
FTC Output Power: Dolby Digital Mode
Front Ch
Surround Ch
Center Ch
Subwoofer Ch63 W per channel (3 ≠), 120 Hz to 20 kHz, 1...
