Panasonic EY4542LN2L Operating Instructions Manual

 - 11 -

Fig. 12
NOTE
When the cutter has difficulty ejecting or collect-
ing dust.
The cutter outlet may be clogged with dust. Open
the front cover and remove any dust.

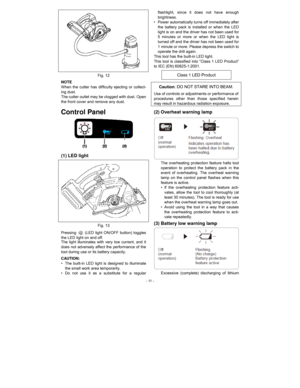

Control Panel

(1) LED light

Fig. 13
Pressing
  (LED light ON/OFF button) toggles
the LED light on and off.

The light illuminates with very low current, and it
does not adversely affect the performance of the
tool during use or its battery capacity.
CAUTION:

•  The built-in LED light is designed to illuminate
the...

 - 12 -
ion batteries shortens their service life dra-
matically. The tool includes a battery protec-
tion feature designed to prevent excessive
discharging of the battery pack.
• The battery protection feature activates
immediately before the battery loses its
charge, causing the battery low warning
lamp to flash.
•  If you notice the battery low warning lamp
flashing, charge the battery pack immedi-
ately.
For Proper Use (Further Detail)
WARNING
To prevent the risk of serious personal injury:...

 - 13 -
WARNING
To prevent the risk of serious personal injury:
• When making an incomplete cut or cutting is interrupted, or blade is binding or cutter is stalling; re-
lease the power switch immediately and hold the cutter motionless in the material until the blade
comes to a complete stop.
• To avoid kickback, never attempt to remove the cutter from the work or pull the cutter backward while
the blade is in motion. Make sure the blade has come to a complete stop, then remove cutter from
cut....

 - 14 -
[Battery Pack]
For Appropriate Use of
Battery pack
Li-ion Battery pack (EY9L40)
•  For optimum battery life, store the Li-ion bat-
tery pack following use without charging it.

•  When charging the battery pack, confirm that
the terminals on the battery charger are free of
foreign substances such as dust and water etc.
Clean the terminals before charging the battery
pack if any foreign substances are found on
the terminals.
  The life of the battery pack terminals may be
affected by...

 - 15 -

3.
During charging, the charging lamp will be lit.
  When charging is completed, an internal elec-
tronic switch will automatically be triggered to
prevent overcharging.
•  Charging will not start if the battery pack is
warm (for example, immediately after
heavy-duty operation).
  The orange standby lamp will be flashing un-
til the battery cools down.
  Charging will then begin automatically.
4. The charge lamp (green) will flash slowly once
the battery is approximately 80% charged....

 - 16 -
LAMP INDICATIONS
 Green Lit
Charger is plugged into the AC outlet.
Ready to charge.

 Green Flashing Quickly
Charging is completed. (Full charge.)
 Green Flashing
Battery is approximately 80% charged. (Usable charge. Li-ion only.)
 Green Lit
Now charging.
 Orange Lit
Battery pack is cool.
The battery pack is being charged slowly to reduce the load on the battery. (Li-ion only.)
 Orange Flashing
Battery pack is warm. Charging will begin when temperature of battery pack drops.
 If...

 - 17 -
V. MAINTENANCE
WARNING
To avoid severe personal injury, always remove
the battery pack from the tool before starting any
maintenance procedure.
CAUTION: To assure product SAFETY and RELIABILITY,
servicing should be performed by an authorized
service center. Always insist on genuine
Panasonic replacement parts.
Cleaning Tool
Keep your tool clean for good cutting perform-
ance, and to help keep it safe to use.
Follow these steps:
1. Remove the battery pack from the tool.
2. Wipe the...

 - 18 -
VII. SPECIFICATIONS
Motor voltage  14.4 V DC
Blade speed  XX min-1 (rpm)
Blade size
 Outside diameter
 Arbor size
135 mm (5-5/16)
20 mm (25/32)
Maximum cutting depth  0 – 46 mm (0 – 1-13/16) (φ 165 mm blade)
Overall length  329 mm (12-61/64)
Weight (with battery pack)  2.6 kg (5.7 lbs)
BATTERY PACK
Model EY9L40
Storage battery  Li-ion Battery
Battery voltage  14.4 V DC (3.6 V × 4 cells)
Capacity 3 Ah
BATTERY CHARGER
Model EY0L80
Electrical rating  See the rating plate on the...

 - 19 -
[Ni-Cd/Ni-MH battery pack]
  7.2 V  9.6 V  12 V  15.6 V  18 V  24 V
EY9065
EY9066 EY9080
EY9086 EY9001
1.2 Ah

EY9180
EY9182 EY9101
EY9103
1.7 Ah

EY9168 EY9188 EY9106
EY9107
EY9108 EY9136 EY9116
EY9117 2 Ah


EY9200 EY9230  EY9210 3 Ah


EY9201 EY9231 EY9251
Charging
time
3.5 Ah

NOTE: This chart may include models that are not available in your area.
  Please refer to the latest general catalogue.


















20 min.
25...

 - 20 -
ONLY FOR U.K.
VIII. ELECTRICAL  PLUG
INFORMATION

FOR YOUR SAFETY PLEASE READ
THE FOLLOWING TEXT CAREFULLY


This appliance is supplied with a moulded three
pin mains plug for your safety and convenience.
A 5 amp fuse is fitted in this plug.
Should the fuse need to be replaced please
ensure that the replacement fuse has a rating
of 5 amp and that it is approved by ASTA or BSI
to BS1362.
Check for the ASTA mark
  or the BSI mark   on the body of the fuse.
If the plug contains a...
