Panasonic Facial Ionic Steamer Eh 2426 Operating Instructions

Operating Instructions
Instrucciones de operación
Facial Ionic Steamer
Vaporera facial iónica
Model No.
Modelo No.  EH2426
Before operating this unit, please read these instructions completely and save them for
future use.
Antes de utilizar esta unidad, por favor lea estas instrucciones completamente, y guarde
este manual para uso futuro.
English
2
Español	 1
 1


English
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, especially when children are
present, basic safety precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING
DANGER To reduce the risk of electrocution:
1.  Always unplug this appliance immediately after using.
.  Do not use while bathing.
3.  Do not place or store appliance where it can fall or be pulled
into a tub or sink.
4.  Do not place in or drop into w

ater or other...

  3
	 English
14. Never hold this facial steamer close to your face in one position
as this may cause scalding.
SAVE THESE INSTRUCTIONS
Use only distilled water or purified water.
This appliance has a polarized plug (one blade is wider than the
other). As a safety feature, this plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician. Do
not attempt to override this safety future.
Any...

4
English
Safety precautions
To ensure proper operation of this appliance, please read carefully all the safety
precautions before use. The safety precautions are provided to instruct you how to
correctly and safely operate this appliance so that you may avoid injuries to yourself
and others as well as damage to property. The safety precautions are defined as
follows.
ALWAYS FOLLOW THESE IMPORTANT SAFETY PRECAUTIONS!
WARNING:
This message indicates potentially hazardous actions and situations, which,...

  5
	 English

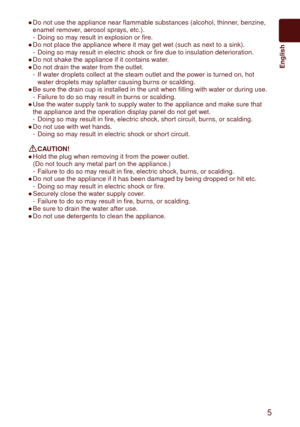

Do not use the appliance near flammable substances (alcohol, thinner, benzine,
enamel remover, aerosol sprays, etc.).Doing so may result in explosion or fire.
Do not place the appliance where it may get wet (such as next to a sink). Doing so may result in electric shock or fire due to insulation deterioration.
Do not shake the appliance if it contains water.
Do not drain the water from the outlet. If water droplets collect at the steam outlet and the power is turned on, hot
water droplets...

6
English

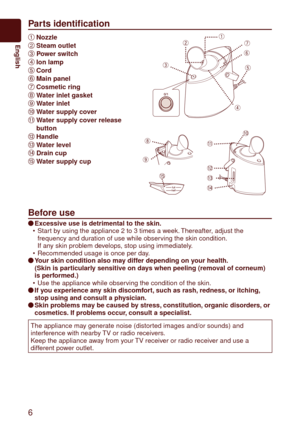

Parts identification
1 Nozzle
2  Steam outlet
3  P

ower switch
4  Ion lamp
5  Cor

d
6  Main panel
7  Cosmetic ring
8  W

ater inlet gasket
9  W
ater inlet
:  W
ater supply cover
;  W
ater supply cover release
button
  Handle
  W

ater level
  Drain cup
  W

ater supply cup
Before use
Excessive use is detrimental to the skin.
Start by using the appliance  to 3 times a week. Thereafter, adjust the
frequency and duration of use while observing the skin condition.
If any skin problem...

  7
	 English

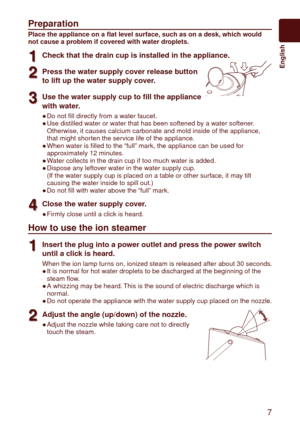

Preparation
Place the appliance on a flat level surface, such as on a desk, which would
not cause a problem if covered with water droplets.
1
1Check that the drain cup is installed in the appliance.
2
2Press the water supply cover release button
to lift up the water supply cover.
3
3Use the water supply cup to fill the appliance
with water.
Do not fill directly from a water faucet.
Use distilled water or water that has been softened by a water softener.
Otherwise, it causes calcium...

8
English

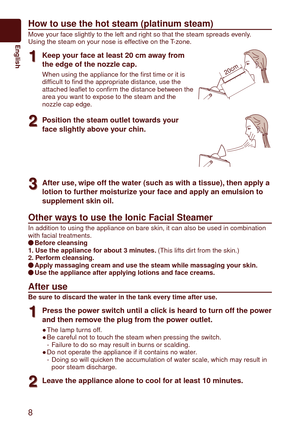

How to use the hot steam (platinum steam)
Move your face slightly to the left and right so that the steam spreads evenly.
Using the steam on your nose is effective on the T-zone.
1
1Keep your face at least 20 cm away from
the edge of the nozzle cap.
When using the appliance for the first time or it is
difficult to find the appropriate distance, use the
attached leaflet to confirm the distance between the
area you want to expose to the steam and the
nozzle cap edge.20cm
2
2Position the...

  9
	 English

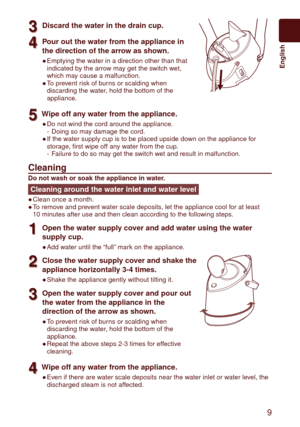

3
3Discard the water in the drain cup.
4
4Pour out the water from the appliance in
the direction of the arrow as shown.
Emptying the water in a direction other than that
indicated by the arrow may get the switch wet,
which may cause a malfunction.
To prevent risk of burns or scalding when
discarding the water, hold the bottom of the
appliance.
●
●
5
5Wipe off any water from the appliance.
Do not wind the cord around the appliance.
Doing so may damage the cord.
If the water supply cup...

10
English

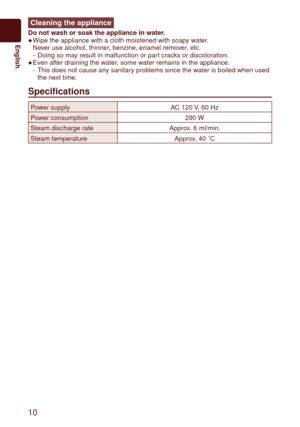

Cleaning the appliance
Do not wash or soak the appliance in water.Wipe the appliance with a cloth moistened with soapy water.
Never use alcohol, thinner, benzine, enamel remover, etc.Doing so may result in malfunction or part cracks or discoloration.
Even after draining the water, some water remains in the appliance. This does not cause any sanitary problems since the water is boiled when used
the next time.
Specifications
Power supply AC 10 V, 60 Hz
Power consumption
 90 W
Steam...
