Panasonic Flatbed Scanner Kvss080 Operating Instructions

Included Accessories
•
Check that all accessories are included before
installing the unit.
In the event that an item is missing, please contact
your dealer.Power cordAC adaptor
*1USB cable
Drivers & Utilities /
Manuals CD-ROMOperating Instructions
(this manual)
Safety Guide
*2
(for French, German,
Spanish, Italian and
Russian only)
*1
Panasonic AC adaptor  PJSWC0003
*2
Safety Guide may be included depending on country/area.
Note
•
It is highly recommended to keep the original
carton and all packing...

RearAPower connecterBUSB connecterCPower switchDUSB cableEAC adaptorFPower cordAbout the LEDs
The status of the unit is indicated by the combination of
the LED (Green) (
A
) and LED (Red) (
B
), as shown in
the table below:A
 LED (Green)B
 LED (Red)StatusONOFFReadyONONError
*1BlinkOFFScanning/
Warming up
*1
Check the status of the unit using User Utility. For details about
User Utility, refer to the User Utility Reference Manual.
12Operating InstructionsInstallation123
65
4 12

Installing the Unit
About the installation location
•
In order to ensure proper operation, install the unit
maintaining the proper distances from surrounding
objects, as shown in the following illustration.
Notice
•
Do not move the unit immediately from a cold
place to a warm place. It may cause dew.
1.
Remove all packing tapes.
2.
Set the LOCK/UNLOCK selector to unlock.
a.
Open the document cover (
A
).
b.
Slide the LOCK/UNLOCK selector (
A
) to the
left to release the lock.
c.
Close the document...

3.
Connect the power cord, AC adaptor, and the USB
cable to the unit.
Notice
•
Use only the power cord, the AC adaptor,
and the USB cable that are provided with
the unit.
•
Confirm that the scanner for connecting this
unit is connected to the computer.
•
Do not connect more than 1 flatbed scanner
to the same computer.
(
Doing so can cause erroneous behavior on
the computer.)
APower cordBAC adaptorCUSB cableDTo the scanner for connecting this unitETo the AC outlet
4.
Install software (page 15)....

Installing Software
System RequirementsComputerIBM
®
 PC/AT
®
 or compatible machine
with a CD-ROM driveCPUPentium
®
 III, 1 GHz or higherOperating
SystemWindows 2000 / Windows XP /
Windows Vista
*1InterfaceUSB 2.0Hard Disk5 GB or more of free space is required.
*1
Will not run on 64-bit versions.
Note
•
The above system requirements may not satisfy
the requirements of all operating systems.
•
The scanning speed differs depending on the
host computer's operating environment or the
application used....

Software Installation
Be sure to install the software from the CD-ROM
included with this unit.
You can select from the 4 installation methods below,
depending on your needs.
a.
Complete
: Install all of the CD-ROM components.
b.
All Drivers & Utilities
: Install all of the CD-ROM
components except for applications.
c.
Custom
: Install one of the drivers, utilities or
manuals.
d.
Application
: Select and install RTIV or the
QuickScan Pro Demo.
Notice
•
Make sure to log on as an administrator to install...

Uninstalling Software
If you want to remove the software that is installed on
your computer, follow the procedure below to uninstall
them.
1.
In Control Panel, open [Add or Remove Programs].
•
In Windows 2000, select [Add/Remove
Programs], and in Windows Vista, select
[Uninstall a program].
2.
Select the item that you want to uninstall.
•
The software is displayed with the program
names below:SoftwareProgram NameDevice driverPanasonic High Speed
Scanner Device Driver
X.XX
*1TWAINKV-S1025C KV-S1020C
TWAIN...

Viewing Manuals Installed on
Your Computer
All manuals installed on your computer can be viewed
as follows.
Note
•
To install manuals on your computer, see
page 16.
•
You can view the RTIV Reference Manual and
the User Utility Reference Manual by clicking
the help button on the software's operation
screen.
1.
On the [Start] menu, point to [All Programs], then
[Panasonic], and select [Scanner Manuals].
•
If you are using Windows 2000, point to
[Program] instead of [All Programs].
2.
Select the desired...

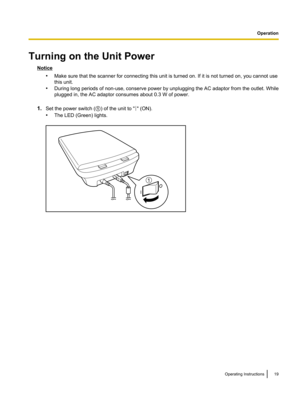

Turning on the Unit Power
Notice
•
Make sure that the scanner for connecting this unit is turned on. If it is not turned on, you cannot use
this unit.
•
During long periods of non-use, conserve power by unplugging the AC adaptor from the outlet. While
plugged in, the AC adaptor consumes about 0.3 W of power.
1.
Set the power switch (
A
) of the unit to "
" (ON).
•
The LED (Green) lights.
Operating Instructions19O
p
e
r
a
t
i
o
nOperation 1

Scanning Documents
Notice
•
Make sure to remove paper clips and staples from documents before scanning. Failing to do so can
damage the flatbed glass.
•
If the document is folded or creased, smooth it out before placing it on the flatbed glass.
1.
Open the document cover (
A
).
2.
Place the document face down, and align the edge of the document (
A
) with the standard mark (
B
) in
the upper right of the flatbed glass.
Notice
•
If the document is set crooked on the flatbed glass, it will not be scanned...
