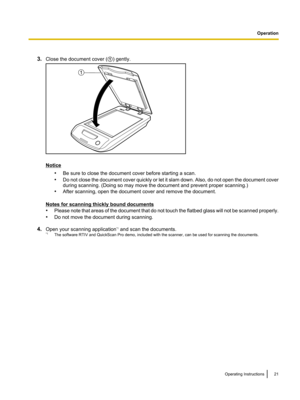

Close the document cover (
A
) gently.
Notice
•
Be sure to close the document cover before starting a scan.
•
Do not close the document cover quickly or let it slam down. Also, do not open the document cover
during scanning. (Doing so may move the document and prevent proper scanning.)
•
After scanning, open the document cover and remove the document.
Notes for scanning thickly bound documents
•
Please note that areas of the document that do not touch the flatbed glass will not be scanned properly.
•...

Changing the Scan Background Color
By reversing the flatbed sheet on the unit, you can change the scanning background color between black and
white. The default setting is black.
When scanning documents like those listed below, set the flatbed sheet to white.
•
Thin paper
•
OHP sheet
•
Plastic films, etc.
Reversing the flatbed sheet

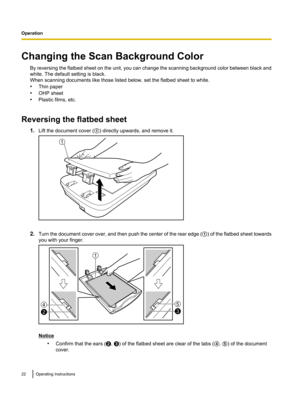

1.
Lift the document cover (
A
) directly upwards, and remove it.
2.
Turn the document cover over, and then push the center of the rear edge (
A
) of the flatbed sheet...

3.
Slightly lift the front side of the flatbed sheet (
A
) and pull it towards you (
B
).

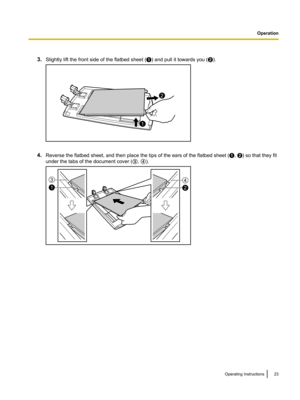

4.
Reverse the flatbed sheet, and then place the tips of the ears of the flatbed sheet (
A
,
B
) so that they fit
under the tabs of the document cover (
C
,
D
).
Operating Instructions23Operation1
2 43
12

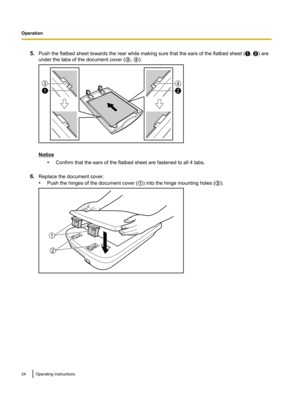

5.
Push the flatbed sheet towards the rear while making sure that the ears of the flatbed sheet (
A
,
B
) are
under the tabs of the document cover (
C
,
D
).
Notice
•
Confirm that the ears of the flatbed sheet are fastened to all 4 tabs.
6.
Replace the document cover.
•
Push the hinges of the document cover (
A
) into the hinge mounting holes (
B
).
24Operating InstructionsOperation1
3
2
4 1
2

Cleaning the Unit
Clean the outside of the scanner, the flatbed glass and the flatbed sheet.
Notice
•
For spots that are difficult to remove, use neutral household cleaner diluted with water.
•
Do not use thinner, benzine, or cleaners containing abrasives or surfactants, for cleaning the unit.
•
If the documents you are scanning are dirty, then the flatbed glass will also become dirty. To maintain
proper scanning, clean the flatbed glass frequently.

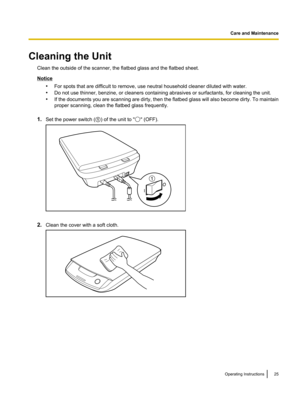

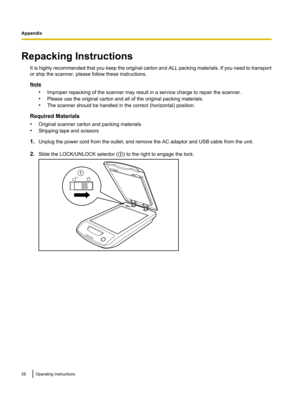

1.
Set the power switch (
A
) of the unit to "...

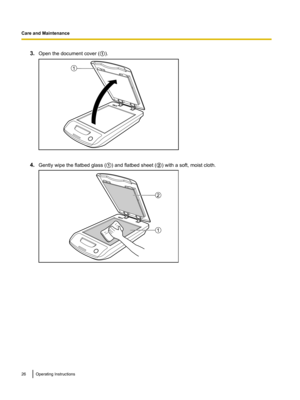

3.
Open the document cover (
A
).
4.
Gently wipe the flatbed glass (
A
) and flatbed sheet (
B
) with a soft, moist cloth.
26Operating InstructionsCare and Maintenance1 2
1

Troubleshooting
If a problem occurs while the scanner is being used, check the following items and check the scanner status
with User Utility. If the scanner still malfunctions, turn it OFF, remove the AC adaptor from the unit, and call
for service.SymptomPossible CauseRemedyThe LED (Green) does not light
when the power switch is
turned ON.The power cord is not plugged in.Insert the power plug firmly.Problem with power supply.Disconnect the scanner from the
electric outlet and call for service.
The...

Repacking Instructions
It is highly recommended that you keep the original carton and
ALL
 packing materials. If you need to transport
or ship the scanner, please follow these instructions.
Note
•
Improper repacking of the scanner may result in a service charge to repair the scanner.
•
Please use the original carton and all of the original packing materials.
•
The scanner should be handled in the correct (horizontal) position.
Required Materials
•
Original scanner carton and packing materials
•
Shipping...

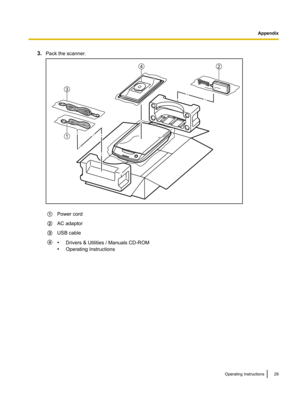

3.
Pack the scanner.APower cordBAC adaptorCUSB cableD•
Drivers & Utilities / Manuals CD-ROM
•
Operating InstructionsOperating Instructions29Appendix2
3
4
1

SpecificationsItemKV-SS080
Scanner
Scanning faceSimplex scanningScanning methodCCDScanning speed
*1
(Binary, 300 dpi)Letter: Approx. 5 sec/page
A4: Approx. 5.3 sec/pageScanning speed
*1
(Color, 300 dpi)Letter: Approx. 5 sec/page
A4: Approx. 5.3 sec/pageResolution100–600 dpi (1 dpi step)
Optical: 600 dpi (Main and Sub feeding directions)Tonal gradationBinary, Grayscale (8 bit), Color,
MultiStream: Binary & Grayscale, Binary & Color
*2Image controlImage emphasis, Dynamic threshold, Automatic separation,...
