Panasonic Hc V520 Owners Manual

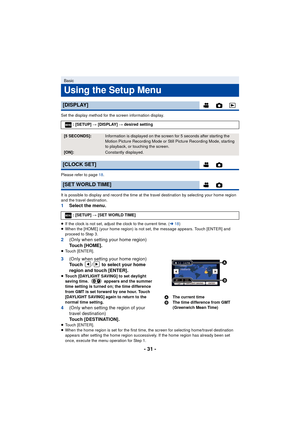

- 31 -
Set the display method for the screen information display.
Please refer to page 18.
It is possible to display and record the time at the travel destination by selecting your home region
and the travel destination.
1 Select the menu.
≥If the clock is not set, adjust the clock to the current time. ( l18)
≥ When the [HOME] (your home region) is not set, the message appears. Touch [ENTER] and
proceed to Step 3.
2 (Only when setting your home region)
To u c h  [ H O M E ] .
≥Touch [ENTER].
3 (Only...

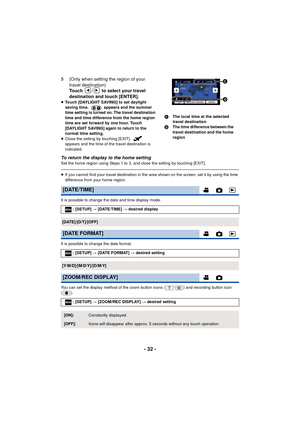

- 32 -
5(Only when setting the region of your
travel destination)
Touch  /  to select your travel
destination and touch [ENTER].
≥Touch [DAYLIGHT SAVING] to set daylight
saving time.   appears and the summer
time setting is turned on. The travel destination
time and time difference from the home region
time are set forward by one hour. Touch
[DAYLIGHT SAVING] again to return to the
normal time setting.
≥ Close the setting by touching [EXIT].
appears and the time of the travel destination is...

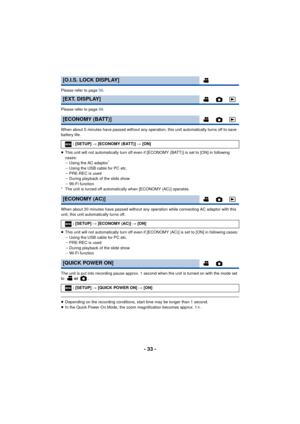

- 33 -
Please refer to page 56.
Please refer to page 99 .
When about 5 minutes have passed without any operation, this unit automatically turns off to save
battery life.
≥ This unit will not automatically turn off even if [ECONOMY (BATT)] is set to [ON] in following
cases:
jUsing the AC adaptor
*
jUsing the USB cable for PC etc.
j PRE-REC is used
j During playback of the slide show
j Wi-Fi function
* The unit is turned off automatically when [ECONOMY (AC)] operates.
When about 30 minutes have passed...

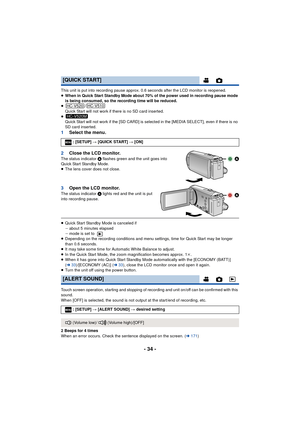

- 34 -
This unit is put into recording pause approx. 0.6 seconds after the LCD monitor is reopened.
≥When in Quick Start Standby Mode about 70% of the power used in recording pause mode
is being consumed, so the recording time will be reduced.
≥
/Quick Start will not work if there is no SD card inserted.
≥ Quick Start will not work if the [SD CARD] is selected in the [MEDIA SELECT], even if there is no
SD card inserted.
1 Select the menu.
2 Close the LCD monitor.
The status indicator  A flashes green...

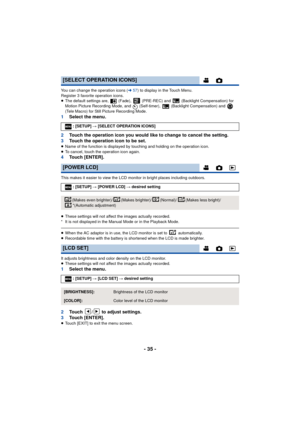

- 35 -
You can change the operation icons (l57) to display in the Touch Menu.
Register 3 favorite operation icons.
≥ The default settings are,   (Fade),   (PRE-REC) and   (Backlight Compensation) for
Motion Picture Recording Mode, and   (Self-timer),   (Backlight Compensation) and
(Tele Macro) for Still Picture Recording Mode.
1 Select the menu.
2 Touch the operation icon you would like to change to cancel the setting.
3 Touch the operation icon to be set.
≥Name of the function is displayed by...

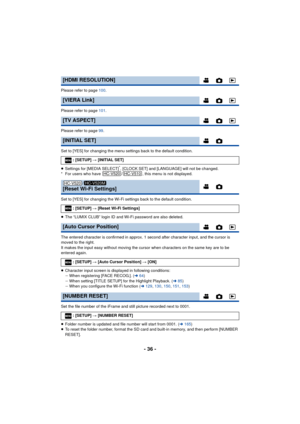

- 36 -
Please refer to page 100.
Please refer to page 101.
Please refer to page 99.
Set to [YES] for changing the menu settings back to the default condition.
≥ Settings for [MEDIA SELECT]
*, [CLOCK SET] and [LANGUAGE] will not be changed.
* For users who have /, this menu is not displayed.
Set to [YES] for changing the Wi-Fi settings back to the default condition.
≥ The “LUMIX CLUB” login ID and Wi-Fi password are also deleted.
The entered character is confirmed in approx. 1 second after character...

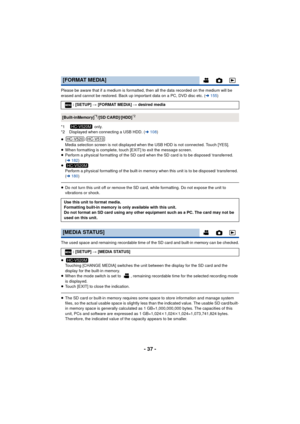

- 37 -
Please be aware that if a medium is formatted, then all the data recorded on the medium will be
erased and cannot be restored. Back up important data on a PC, DVD disc etc. (l155 )
*1  only.
*2 Displayed when connecting a USB HDD. ( l108)
≥ /
Media selection screen is not displayed when the USB HDD is not connected. Touch [YES].
≥ When formatting is complete, touch [EXIT] to exit the message screen.
≥ Perform a physical formatting of the SD card when the SD card is to be disposed/ transferred....

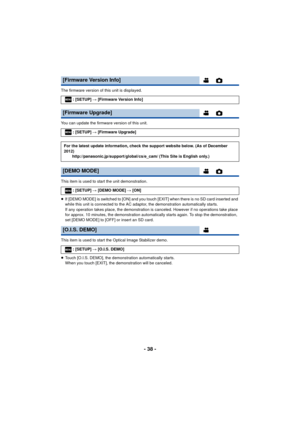

- 38 -
The firmware version of this unit is displayed.
You can update the firmware version of this unit.
This item is used to start the unit demonstration.
≥If [DEMO MODE] is switched to [ON] and you touch [EXIT] when there is no SD card inserted and
while this unit is connected to the AC adapt or, the demonstration automatically starts.
If any operation takes place, the demonstration is canceled. However if no operations take place
for approx. 10 minutes, the demonstration automatically starts again....

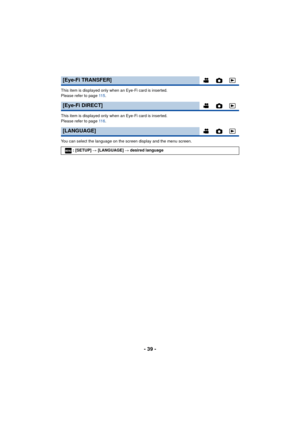

- 39 -
This item is displayed only when an Eye-Fi card is inserted.
Please refer to page 11 5.
This item is displayed only when an Eye-Fi card is inserted.
Please refer to page 11 6 .
You can select the language on the screen display and the menu screen.
[Eye-Fi TRANSFER]
[Eye-Fi DIRECT]
[LANGUAGE]
: [SETUP]  # [LANGUAGE] # desired languageMENU

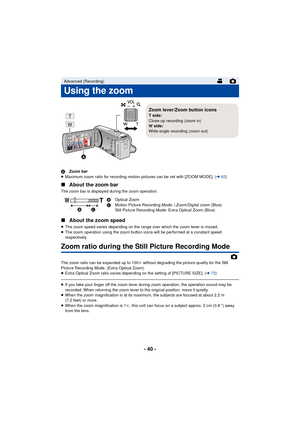

- 40 -
AZoom bar
≥ Maximum zoom ratio for recording motion pictures can be set with [ZOOM MODE]. ( l62)
∫ About the zoom bar
The zoom bar is displayed during the zoom operation.
∫About the zoom speed
≥The zoom speed varies depending on the range over which the zoom lever is moved.
≥ The zoom operation using the zoom button icons will be performed at a constant speed
respectively.
Zoom ratio during the Still Picture Recording Mode
The zoom ratio can be expanded up to 100 k without degrading the picture...
