Panasonic Hc W850 Owners Manual

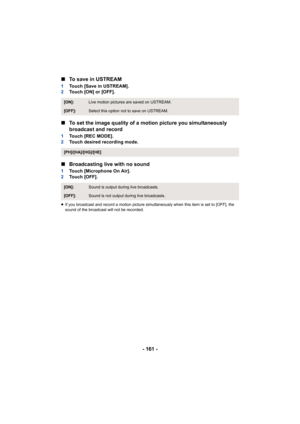

- 161 -
∫
To save in USTREAM
1 Touch [Save in USTREAM].
2 Touch [ON] or [OFF].
∫To set the image quality of a motion picture you simultaneously
broadcast and record
1 Touch [REC MODE].
2 Touch desired recording mode.
∫Broadcasting live with no sound
1 Touch [Microphone On Air].
2 Touch [OFF].
≥If you broadcast and record a motion picture simultaneously when this item is set to [OFF], the
sound of the broadcast will not be recorded.
[ON]:Live motion pictures are saved on USTREAM.
[OFF]:Select this...

- 162 -

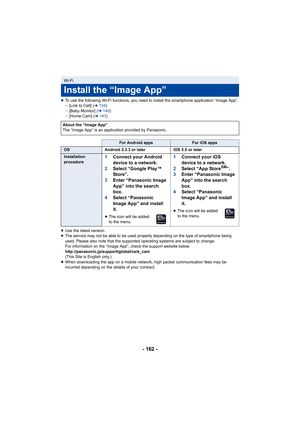

≥To use the following Wi-Fi functions, you need to install the smartphone application “Image App”.
j[Link to Cell] ( l134 )
j [Baby Monitor] ( l140 )
j [Home Cam] ( l143 )
≥ Use the latest version.
≥ The service may not be able to be used properly depending on the type of smartphone being
used. Please also note that the supported operating systems are subject to change.
For information on the “Image App”, check the support website below.
http://panasonic.jp/support/global/cs/e_cam
(This Site is...

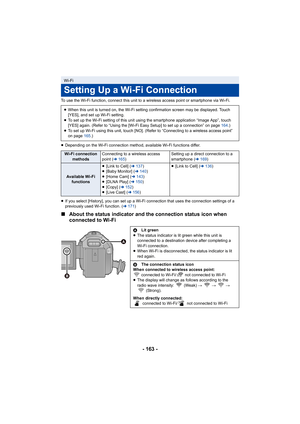

- 163 -
To use the Wi-Fi function, connect this unit to a wireless access point or smartphone via Wi-Fi.
≥Depending on the Wi-Fi connection method, available Wi-Fi functions differ.
≥ If you select [History], you can set up a Wi-Fi connection that uses the connection settings of a
previously used Wi-Fi function. ( l171)
∫ About the status indicator and the connection status icon when
connected to Wi-Fi
Wi-Fi
Setting Up a Wi-Fi Connection
≥When this unit is turned on, the Wi-Fi setting confirmation...

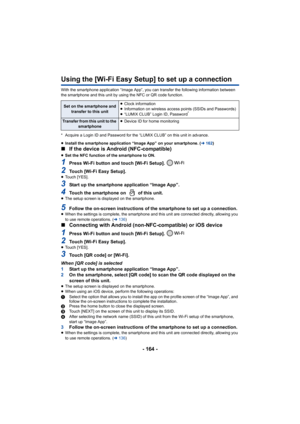

- 164 -
Using the [Wi-Fi Easy Setup] to set up a connection
With the smartphone application “Image App”, you can transfer the following information between
the smartphone and this unit by using the NFC or QR code function.
* Acquire a Login ID and Password for the “LUMIX CLUB” on this unit in advance.
≥Install the smartphone application “Image App” on your smartphone. ( l162)
∫ If the device is Android (NFC-compatible)
≥Set the NFC function of the smartphone to ON.
1Press Wi-Fi button and touch [Wi-Fi...

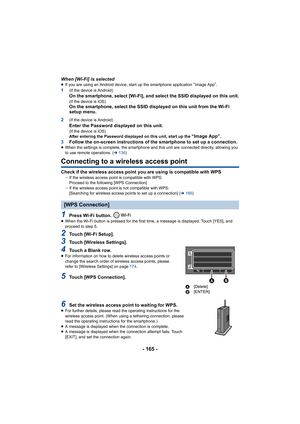

- 165 -
When [Wi-Fi] is selected≥If you are using an Android device, start up the smartphone application “Image App”.
1(If the device is Android)On the smartphone, select [Wi-Fi], and select the SSID displayed on this unit.(If the device is iOS)On the smartphone, select the SSID displayed on this unit from the Wi-Fi
setup menu.
2
(If the device is Android)Enter the Password displayed on this unit.(If the device is iOS)
After entering the Password displayed on this unit, start up the “Image App”.
3...

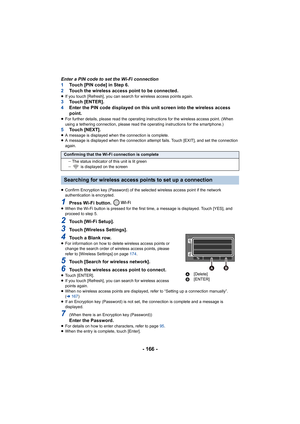

- 166 -
Enter a PIN code to set the Wi-Fi connection
1Touch [PIN code] in Step 6.
2 Touch the wireless access point to be connected.
≥If you touch [Refresh], you can search for wireless access points again.3 Touch [ENTER].
4 Enter the PIN code displayed on this unit screen into the wireless access
point.
≥For further details, please read the operating instructions for the wireless access point. (When
using a tethering connection, please read the operating instructions for the smartphone.)
5 Touch...

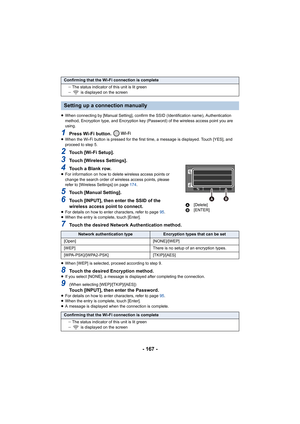

- 167 -
≥When connecting by [Manual Setting], confirm the SSID (Identification name), Authentication
method, Encryption type, and Encryption key (Password) of the wireless access point you are
using.
1Press Wi-Fi button. ≥When the Wi-Fi button is pressed for the first time, a message is displayed. Touch [YES], and
proceed to step 5.
2Touch [Wi-Fi Setup].
3Touch [Wireless Settings].
4Touch a Blank row.≥For information on how to delete wireless access points or
change the search order of wireless...

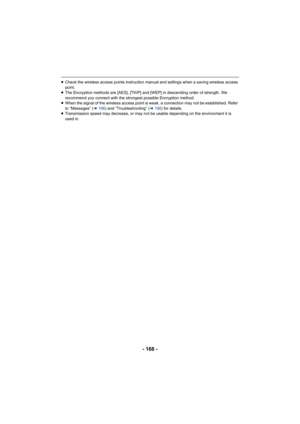

- 168 -
≥Check the wireless access points instruction manual and settings when a saving wireless access
point.
≥ The Encryption methods are [AES], [TKIP] and [WEP] in descending order of strength. We
recommend you connect with the strongest possible Encryption method.
≥ When the signal of the wireless access point is weak, a connection may not be established. Refer
to “Messages” ( l196) and “Troubleshooting” ( l198) for details.
≥ Transmission speed may decrease, or may not be usable depending on the...

- 169 -

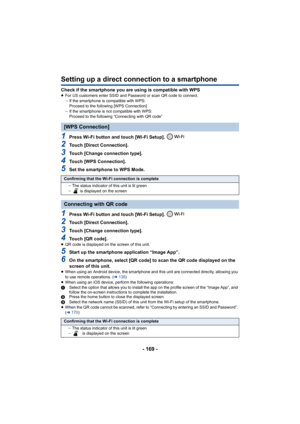

Setting up a direct connection to a smartphone
Check if the smartphone you are using is compatible with WPS≥For US customers enter SSID and Password or scan QR code to connect.
jIf the smartphone is compatible with WPS:
Proceed to the following [WPS Connection]
j If the smartphone is not compatible with WPS:
Proceed to the following “Connecting with QR code”
1Press Wi-Fi button and touch [Wi-Fi Setup].
2Touch [Direct Connection].
3Touch [Change connection type].
4Touch [WPS Connection].
5Set the...

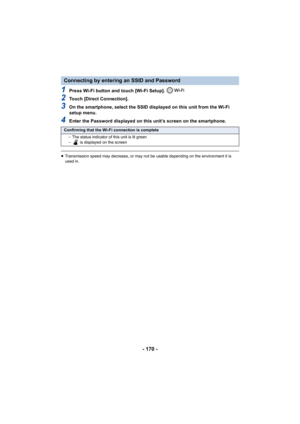

- 170 -
1Press Wi-Fi button and touch [Wi-Fi Setup].
2Touch [Direct Connection].
3On the smartphone, select the SSID displayed on this unit from the Wi-Fi
setup menu.
4Enter the Password displayed on this unit’s screen on the smartphone.
≥Transmission speed may decrease, or may not be usable depending on the environment it is
used in.
Connecting by entering an SSID and Password
Confirming that the Wi-Fi connection is complete
jThe status indicator of this unit is lit green
j  is displayed on the screen
