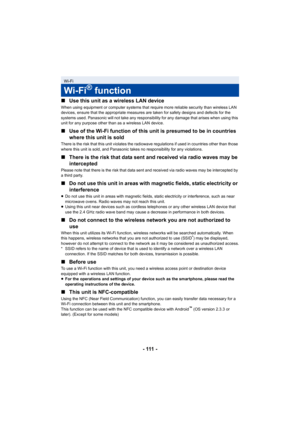

- 111 -
∫
Use this unit as a wireless LAN device
When using equipment or computer systems that require more reli able security than wireless LAN
devices, ensure that the appropriate measures are taken for saf ety designs and defects for the
systems used. Panasonic will not take any responsibility for an y damage that arises when using this
unit for any purpose other than as a wireless LAN device.
∫ Use of the Wi-Fi function of this unit is presumed to be in cou ntries
where this unit is sold
There is...

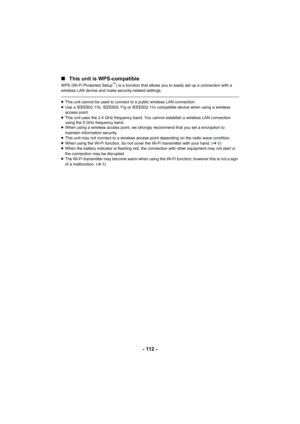

- 112 -
∫
This unit is WPS-compatible
WPS (Wi-Fi Protected Setup™) is a function that allows you to easily set up a connection w ith a
wireless LAN device and make security-related settings.
≥ This unit cannot be used to connect to a public wireless LAN co nnection.
≥ Use a IEEE802.11b, IEEE802.11g or IEEE802.11n compatible device  when using a wireless
access point.
≥ This unit uses the 2.4 GHz frequency band. You cannot establish  a wireless LAN connection
using the 5 GHz frequency band.
≥ When...

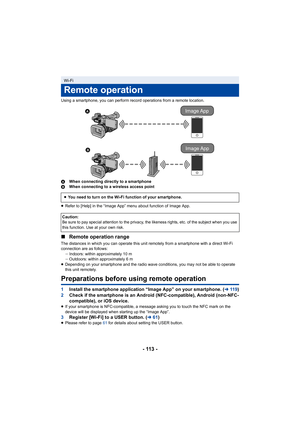

- 113 -
Using a smartphone, you can perform record operations from a remote location.
A When connecting directly to a smartphone
B When connecting to a wireless access point
≥ Refer to [Help] in the “Image App” menu about function of Image  App.
∫Remote operation range
The distances in which you can operate this unit remotely from a smartphone with a direct Wi-Fi
connection are as follows:
jIndoors: within approximately 10 m
j Outdoors: within approximately 6 m
≥ Depending on your smartphone and the...

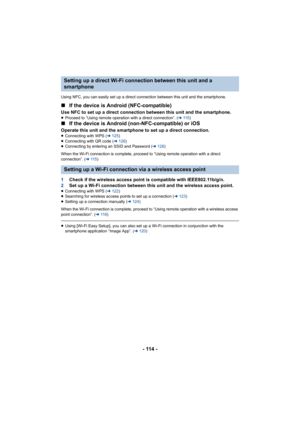

- 114 -
Using NFC, you can easily set up a direct connection between this unit and the smartphone.
∫If the device is Android (NFC-compatible)
Use NFC to set up a direct connection between this unit and the  smartphone.≥Proceed to “Using remote operation with a direct connection”. ( l11 5 )
∫If the device is Android (n on-NFC-compatible) or iOS
Operate this unit and the smartphone to set up a direct connect ion.≥Connecting with WPS ( l125 )
≥ Connecting with QR code ( l126 )
≥ Connecting by entering an...

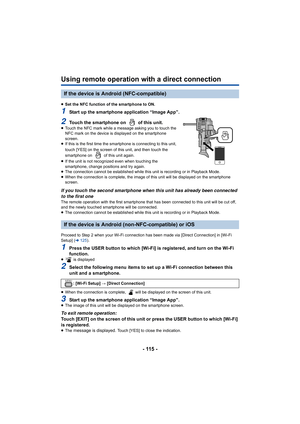

- 115 -
Using remote operation with a direct connection
≥Set the NFC function of the smartphone to ON.
1Start up the smartphone application “Image App”.
2Touch the smartphone on   of this unit.≥Touch the NFC mark while a m essage asking you to touch the
NFC mark on the device is displayed on the smartphone
screen.
≥ If this is the first time the sma rtphone is connecting to this unit,
touch [YES] on the screen of this unit, and then touch the
smartphone on   of this unit again.
≥ If the unit is not...

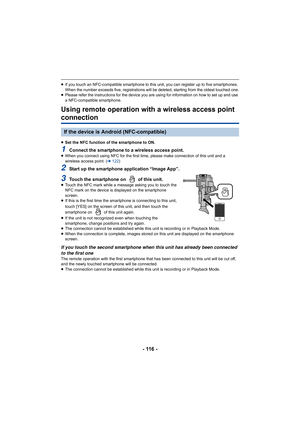

- 116 -
≥If you touch an NFC-compatible smartphone to this unit, you can  register up to five smartphones.
When the number exceeds five, registrations will be deleted, st arting from the oldest touched one.
≥ Please refer the instructions for the device you are using for  information on how to set up and use
a NFC-compatible smartphone.
Using remote operation with a wireless access point
connection
≥ Set the NFC function of the smartphone to ON.
1Connect the smartphone to a wireless access point.≥When...

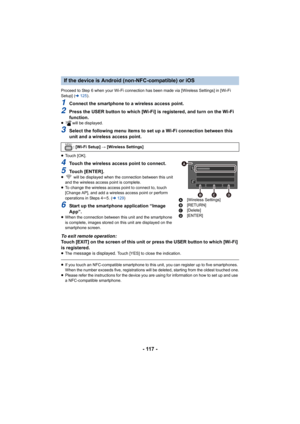

- 117 -
Proceed to Step 6 when your Wi-Fi connection has been made via [Wireless Settings] in [Wi-Fi
Setup] ( l125 ).
1Connect the smartphone to a wireless access point.
2Press the USER button to which [Wi-Fi] is registered, and turn  on the Wi-Fi
function.
≥ will be displayed.
3Select the following menu items to set up a Wi-Fi connection be tween this
unit and a wireless access point.
≥ Touch [OK].
4Touch the wireless access point to connect.
5Touch [ENTER].≥  will be displayed when the connection...

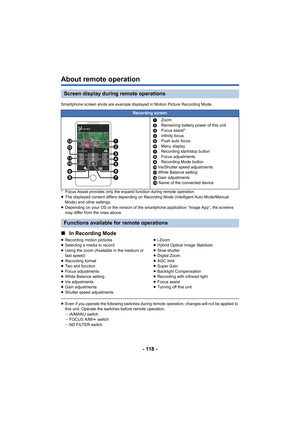

- 118 -
About remote operation
Smartphone screen shots are example displayed in Motion Picture Recording Mode.
* Focus Assist provides only the expand function during remote operation.
≥ The displayed content differs depending on Recording Mode (Inte lligent Auto Mode/Manual
Mode) and other settings.
≥ Depending on your OS or the version of the smartphone applicati on “Image App”, the screens
may differ from the ones above.
∫ In Recording Mode
≥Recording motion pictures
≥ Selecting a media to record
≥...

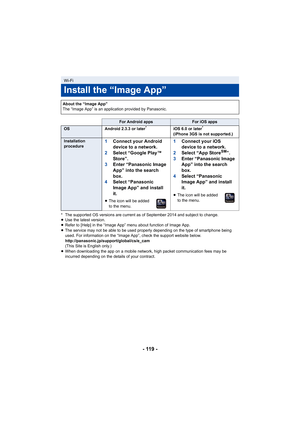

- 119 -
* The supported OS versions are current as of September 2014 and subject to change.
≥ Use the latest version.
≥ Refer to [Help] in the “Image App” menu about function of Image  App.
≥ The service may not be able to be used properly depending on th e type of smartphone being
used. For information on the “Image App”, check the support website below.
http://panasonic.jp/support/global/cs/e_cam
(This Site is English only.)
≥ When downloading the app on a mobile network, high packet commu nication...

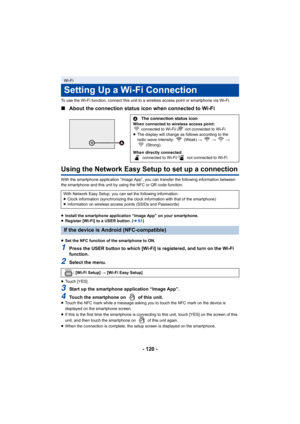

- 120 -
To use the Wi-Fi function, connect this unit to a wireless access point or smartphone via Wi-Fi.
∫About the connection status icon when connected to Wi-Fi
Using the Network Easy Set up to set up a connection
With the smartphone application “Image App”, you can transfer t he following information between
the smartphone and this unit by using the NFC or QR code functi on.
≥ Install the smartphone application “Image App” on your smartpho ne.
≥ Register [Wi-Fi] to a USER button. ( l61)
≥ Set the NFC...
