Features

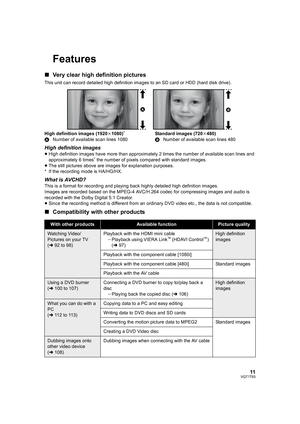

∫Very clear high definition pictures
This unit can record detailed high definition images to an SD card or HDD (hard disk drive).
High definition images (1920k1080)
*
ANumber of available scan lines 1080Standard images (720k480)
BNumber of available scan lines 480
High definition images
≥High definition images have more than approximately 2 times the number of available scan lines and
approximately 6 times* the number of pixels compared with standard images.
≥The still pictures above...

12VQT1T93
Quick Guide

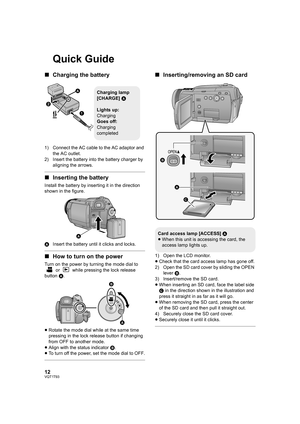

∫Charging the battery
1) Connect the AC cable to the AC adaptor and
the AC outlet.
2) Insert the battery into the battery charger by
aligning the arrows.
∫Inserting the battery
Install the battery by inserting it in the direction
shown in the figure.
AInsert the battery until it clicks and locks.
∫How to turn on the power
Turn on the power by turning the mode dial to
 or   while pressing the lock release
button A.
≥Rotate the mode dial while at the same time
pressing in the...

13VQT1T93

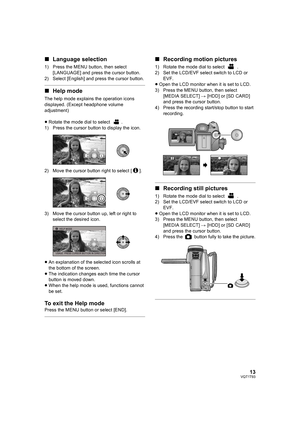

∫Language selection
1) Press the MENU button, then select
[LANGUAGE] and press the cursor button.
2) Select [English] and press the cursor button.
∫Help mode
The help mode explains the operation icons
displayed. (Except headphone volume
adjustment)
≥Rotate the mode dial to select  .
1) Press the cursor button to display the icon.
2) Move the cursor button right to select [ ].
3) Move the cursor button up, left or right to
select the desired icon.
≥An explanation of the selected icon scrolls...

14VQT1T93

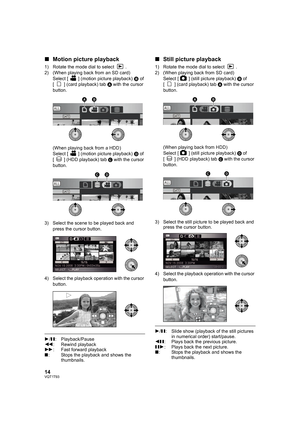

∫Motion picture playback
1) Rotate the mode dial to select  .
2) (When playing back from an SD card)
Select [ ] (motion picture playback) B of
[ ] (card playback) tab A with the cursor
button.
(When playing back from a HDD)
Select [ ] (motion picture playback) D of
[ ] (HDD playback) tab C with the cursor
button.
3) Select the scene to be played back and
press the cursor button.
4) Select the playback operation with the cursor
button.
1/;: Playback/Pause
6: Rewind playback
5: Fast forward...

15VQT1T93

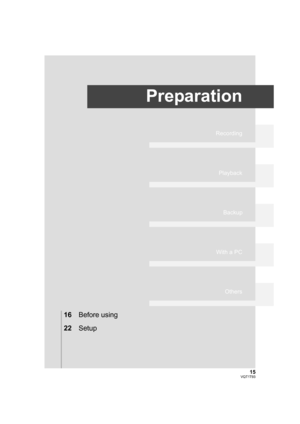

Preparation
Recording
Playback
Backup
With a PC
Others
16Before using
22Setup
HDCHS100P-VQT1T93_ENG.book  15 ページ  ２００８年７月１４日　月曜日　午後１時３６分

16VQT1T93
Before using
1

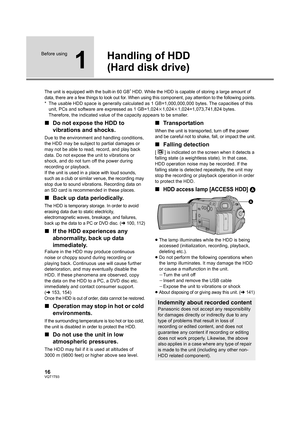

Handling of HDD
(Hard disk drive)
The unit is equipped with the built-in 60 GB* HDD. While the HDD is capable of storing a large amount of
data, there are a few things to look out for. When using this component, pay attention to the following points.
* The usable HDD space is generally calculated as 1 GB=1,000,000,000 bytes. The capacities of this
unit, PCs and software are expressed as 1 GB=1,024k1,024k1,024=1,073,741,824 bytes.
Therefore, the indicated value of the capacity...

17VQT1T93
Before using
2
Parts identification and
handling

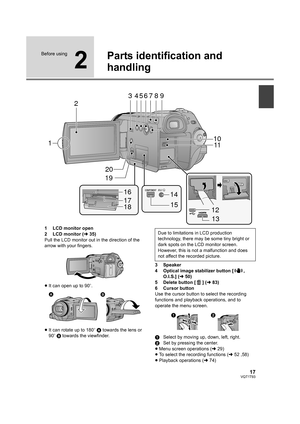

1 LCD monitor open
2 LCD monitor (l35)
Pull the LCD monitor out in the direction of the
arrow with your fingers.
≥It can open up to 90o.
≥It can rotate up to 180o A towards the lens or
90o B towards the viewfinder.3 Speaker
4 Optical image stabilizer button [ ,
O.I.S.] (l50)
5 Delete button [ ] (l83)
6 Cursor button
Use the cursor button to select the recording
functions and playback operations, and to
operate the menu screen.
1Select by...

18VQT1T93

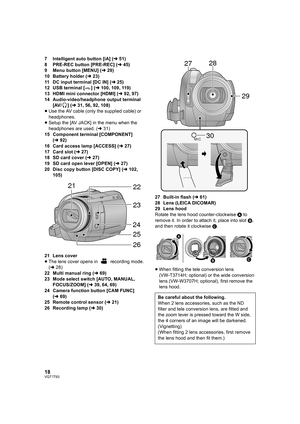

7 Intelligent auto button [iA] (l51)
8 PRE-REC button [PRE-REC] (l45)
9 Menu button [MENU] (l29)
10 Battery holder (l23)
11 DC input terminal [DC IN] (l25)
12 USB terminal [ ] (l100, 109, 119)
13 HDMI mini connector [HDMI] (l92, 97)
14 Audio-video/headphone output terminal
[AV/ ] (l31, 56, 92, 108)
≥Use the AV cable (only the supplied cable) or
headphones.
≥Setup the [AV JACK] in the menu when the
headphones are used. (l31)
15 Component terminal [COMPONENT]
(l92)
16 Card access lamp...

19VQT1T93

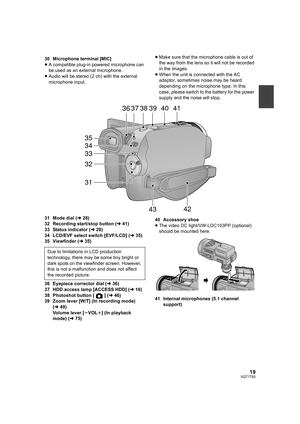

30 Microphone terminal [MIC]
≥A compatible plug-in powered microphone can
be used as an external microphone.
≥Audio will be stereo (2 ch) with the external
microphone input.≥Make sure that the microphone cable is out of
the way from the lens so it will not be recorded
in the images.
≥When the unit is connected with the AC
adaptor, sometimes noise may be heard
depending on the microphone type. In this
case, please switch to the battery for the power
supply and the noise will stop.
31...

20VQT1T93

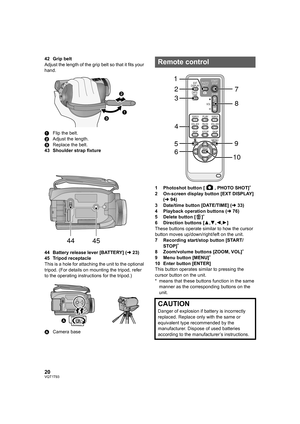

42 Grip belt
