Panasonic Hdc Sd60 Operating Instructions

11VQT2M51

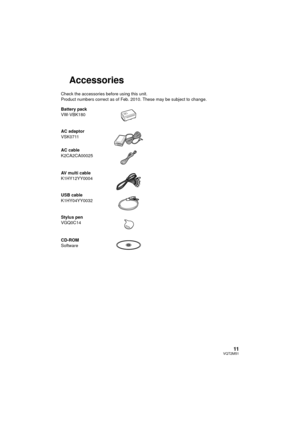

Accessories
Check the accessories before using this unit.
Product numbers correct as of Feb. 2010. These may be subject to change.
Battery pack
VW-VBK180
AC adaptor
VSK0711
AC cable
K2CA2CA00025
AV multi cable
K1HY12YY0004
USB cable
K1HY04YY0032
Stylus pen
VGQ0C14
CD-ROM
Software
HDCSD60_TM60_HS60-P_PC-VQT2M51_eng.book  11 ページ  ２０１０年１月１８日　月曜日　午前１１時３３分

12VQT2M51

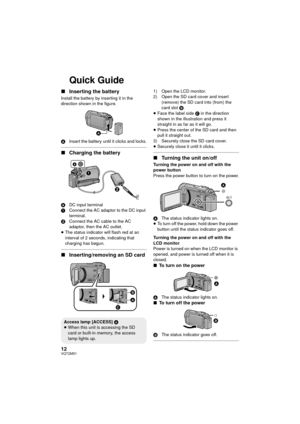

Quick Guide
∫Inserting the battery
Install the battery by inserting it in the
direction shown in the figure.
A Insert the battery until it clicks and locks.
∫Charging the battery
A DC input terminal
1 Connect the AC adaptor to the DC input
terminal.
2 Connect the AC cable to the AC
adaptor, then the AC outlet.
≥ The status indicator will flash red at an
interval of 2 seconds, indicating that
charging has begun.
∫ Inserting/removing an SD card
1) Open the LCD monitor.
2) Open the SD card...

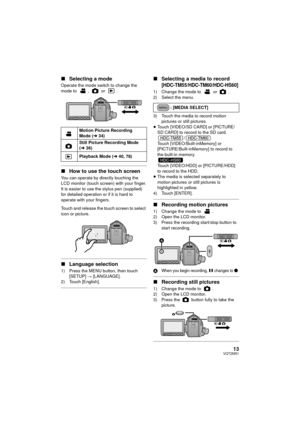

13VQT2M51
∫Selecting a mode
Operate the mode switch to change the
mode to ,  or .
∫How to use the touch screen
You can operate by directly touching the
LCD monitor (touch screen) with your finger.
It is easier to use the stylus pen (supplied)
for detailed operation or if it is hard to
operate with your fingers.
Touch and release the touch screen to select
icon or picture.
∫Language selection
1) Press the MENU button, then touch
[SETUP]  # [LANGUAGE].
2) Touch [English].
∫ Selecting a media to...

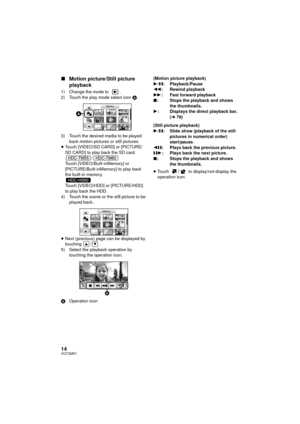

14VQT2M51
∫Motion picture/Still picture
playback
1) Change the mode to  .
2) Touch the play mode select icon  A.
3) Touch the desired media to be played  back motion pictures or still pictures.
≥ Touch [VIDEO/SD CARD] or [PICTURE/
SD CARD] to play back the SD card.
/
Touch [VIDEO/Built-inMemory] or
[PICTURE/Built-inMemory] to play back
the built-in memory.
Touch [VIDEO/HDD] or [PICTURE/HDD]
to play back the HDD.
4) Touch the scene or the still picture to be  played back.
≥ Next (previous) page can...

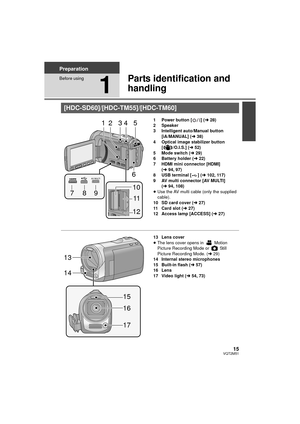

15VQT2M51
Preparation
Before using
1
Parts identification and
handling
1 Power button [ ] (l28)
2 Speaker
3 Intelligent auto/Manual button
[iA/MANUAL] ( l38)
4 Optical image stabilizer button  [ /O.I.S.] ( l52)
5 Mode switch ( l29)
6 Battery holder ( l22)
7 HDMI mini connector [HDMI]
(l 94, 97)
8 USB terminal [ ] ( l102, 117)
9 AV multi connector [AV MULTI]  (l 94, 108)
≥ Use the AV multi cable (only the supplied
cable).
10 SD card cover ( l27)
11 C a r d  sl o t  ( l27)
12 Access lamp [ACCESS] (...

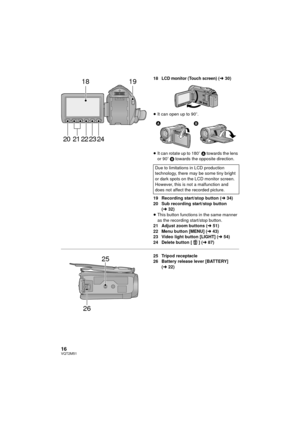

16VQT2M51
18LCD monitor (Touch screen) (l 30)
≥ It can open up to 90 o.
≥ It can rotate up to 180 o A towards the lens
or 90 o B  towards the opposite direction.
19 Recording start/stop button (l 34)
20 Sub recording start/stop button  (l 32)
≥ This button functions in the same manner
as the recording start/stop button.
21 Adjust zoom buttons ( l51)
22 Menu button [MENU] ( l43)
23 Video light button [LIGHT] ( l54)
24 Delete button [ ] (l 87)
25 Tripod receptacle
26 Battery release lever [BATTERY]
(l...

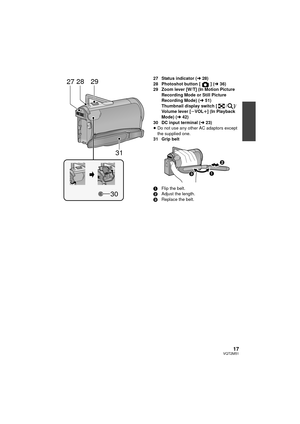

17VQT2M51
27 Status indicator (l28)
28 Photoshot button [ ] ( l36)
29 Zoom lever [W/T] (In Motion Picture  Recording Mode or Still Picture
Recording Mode) (l 51)
Thumbnail display switch [ / ]/
Volume lever [ sVOL r] (In Playback
Mode) ( l42)
30 DC input terminal ( l23)
≥ Do not use any other AC adaptors except
the supplied one.
31 Grip belt
1 Flip the belt.
2 Adjust the length.
3 Replace the belt.292827
31
30
HDCSD60_TM60_HS60-P_PC-VQT2M51_eng.book  17 ページ  ２０１０年１月１８日　月曜日　午前１１時３３分

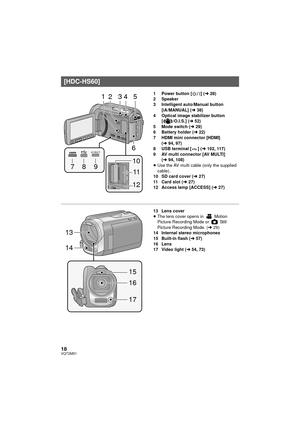

18VQT2M51
1 Power button [ ] (l28)
2 Speaker
3 Intelligent auto/Manual button
[iA/MANUAL] ( l38)
4 Optical image stabilizer button  [ /O.I.S.] ( l52)
5 Mode switch ( l29)
6 Battery holder ( l22)
7 HDMI mini connector [HDMI]
(l 94, 97)
8 USB terminal [ ] ( l102, 117)
9 AV multi connector [AV MULTI]  (l 94, 108)
≥ Use the AV multi cable (only the supplied
cable).
10 SD card cover ( l27)
11 C a r d  sl o t  ( l27)
12 Access lamp [ACCESS] ( l27)
13 Lens cover
≥The lens cover opens in   Motion
Picture...

19VQT2M51

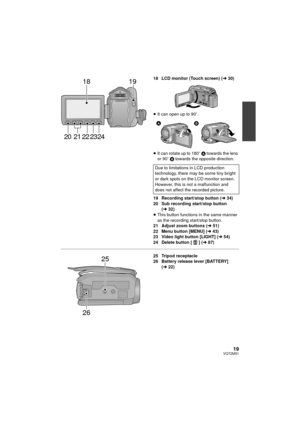

18 LCD monitor (Touch screen) (l30)
≥ It can open up to 90 o.
≥ It can rotate up to 180 o A towards the lens
or 90 o B  towards the opposite direction.
19 Recording start/stop button (l 34)
20 Sub recording start/stop button  (l 32)
≥ This button functions in the same manner
as the recording start/stop button.
21 Adjust zoom buttons ( l51)
22 Menu button [MENU] ( l43)
23 Video light button [LIGHT] ( l54)
24 Delete button [ ] (l 87)
25 Tripod receptacle
26 Battery release lever [BATTERY]
(l...

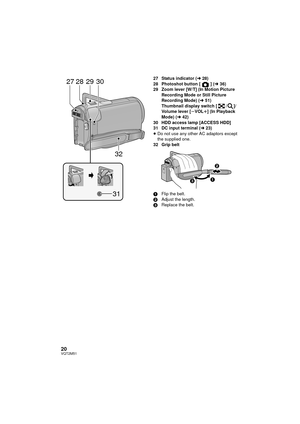

20VQT2M51
27 Status indicator (l28)
28 Photoshot button [ ] ( l36)
29 Zoom lever [W/T] (In Motion Picture  Recording Mode or Still Picture
Recording Mode) (l 51)
Thumbnail display switch [ / ]/
Volume lever [ sVOL r] (In Playback
Mode) ( l42)
30 HDD access lamp [ACCESS HDD]
31 DC input terminal ( l23)
≥ Do not use any other AC adaptors except
the supplied one.
32 Grip belt
1 Flip the belt.
2 Adjust the length.
3 Replace the belt.29 302827
32
31
