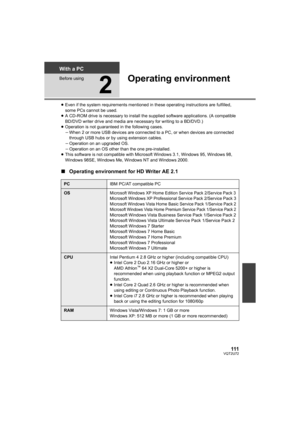

Panasonic Hdc Sd600p Operating Instructions

111VQT2U72
With a PC
Before using
2
Operating environment
≥Even if the system requirements mentioned in these operating instructions are fulfilled,
some PCs cannot be used.
≥ A CD-ROM drive is necessary to install the su pplied software applications. (A compatible
BD/DVD writer drive and media are necessary for writing to a BD/DVD.)
≥ Operation is not guaranteed in the following cases.
jWhen 2 or more USB devices are connected to a PC, or when devices are connected
through USB hubs or by using...

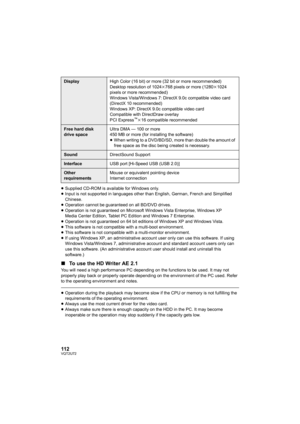

112VQT2U72
≥Supplied CD-ROM is available for Windows only.
≥ Input is not supported in languages other than English, German, French and Simplified
Chinese.
≥ Operation cannot be guaranteed on all BD/DVD drives.
≥ Operation is not guaranteed on Microsof t Windows Vista Enterprise, Windows XP
Media Center Edition, Tablet PC Edition and Windows 7 Enterprise.
≥ Operation is not guaranteed on 64 bit edi tions of Windows XP and Windows Vista.
≥ This software is not compatible with a multi-boot environment.
≥...

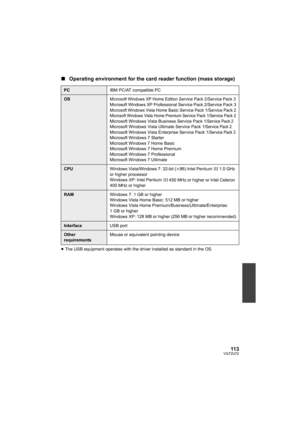

11 3VQT2U72
∫Operating environment for the card reader function (mass storage)
≥The USB equipment operates with the driver installed as standard in the OS.
PC IBM PC/AT compatible PC
OSMicrosoft Windows XP Home Edition Service Pack 2/Service Pack 3Microsoft Windows XP Professional Service Pack 2/Service Pack 3Microsoft Windows Vista Home Basic Service Pack 1/Service Pack 2Microsoft Windows Vista Home Premium Service Pack 1/Service Pack 2Microsoft Windows Vista Business Service Pack 1/Service Pack...

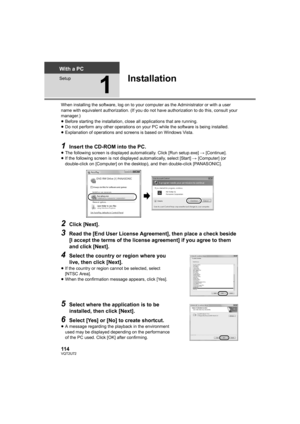

114VQT2U72
With a PC
Setup
1
Installation
When installing the software, log on to your computer as the Administrator or with a user
name with equivalent authorization. (If you do not have authorization to do this, consult your
manager.)
≥Before starting the installation, close all applications that are running.
≥ Do not perform any other operations on your PC while the software is being installed.
≥ Explanation of operations and screens is based on Windows Vista.
1Insert the CD-ROM into the PC.≥The...

11 5VQT2U72
7When installation is complete, some notes will appear.
Check the contents, then close the window.
8Select [Yes, I want to restart my computer
now.], then click [Finish].
∫Uninstalling HD Writer AE 2.1
Follow the steps below to uninstall any software applications that you no longer require.
1Select [Start]  #
[Control Panel]  #
[Uninstall a Program].
2Select [HD Writer AE 2.1], then
click [Uninstall].
≥ Proceed with the uninstallation by following
the on-screen instructions.
≥ After...

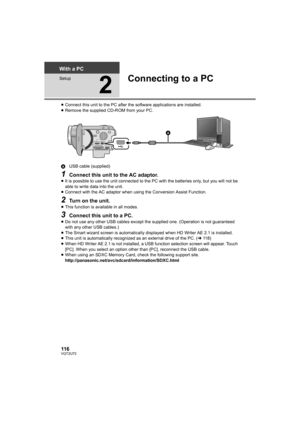

116VQT2U72
With a PC
Setup
2
Connecting to a PC
≥Connect this unit to the PC after the  software applications are installed.
≥ Remove the supplied CD-ROM from your PC.
A USB cable (supplied)
1Connect this unit to the AC adaptor.≥It is possible to use the unit connected to the PC with the batteries only, but you will not be
able to write data into the unit.
≥ Connect with the AC adaptor when using the Conversion Assist Function.
2Turn on the unit.≥This function is available in all modes.
3Connect this...

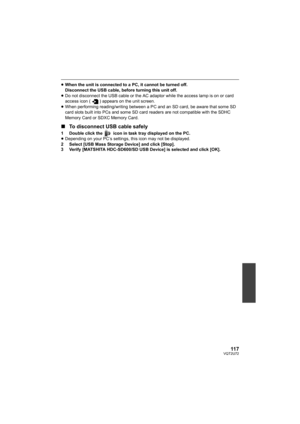

11 7VQT2U72
≥When the unit is connected to a PC, it cannot be turned off.
Disconnect the USB cable, before turning this unit off.
≥ Do not disconnect the USB cable or the AC adaptor while the access lamp is on or card
access icon ( ) appears on the unit screen.
≥ When performing reading/writing between a PC and an SD card, be aware that some SD
card slots built into PCs and some SD ca rd readers are not compatible with the SDHC
Memory Card or SDXC Memory Card.
∫ To disconnect USB cable safely
1 Double...

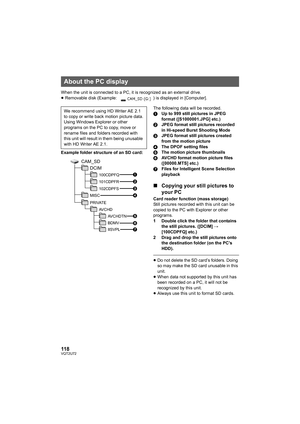

118VQT2U72
When the unit is connected to a PC, it is recognized as an external drive.
≥Removable disk (Example:  ) is displayed in [Computer].
Example folder structure of an SD card: The following data will be recorded.
1
Up to 999 still pictures in JPEG
format ([S1000001.JPG] etc.)
2 JPEG format still pictures recorded
in Hi-speed Burst Shooting Mode
3 JPEG format still pictures created
from the motion picture
4 The DPOF setting files
5 The motion picture thumbnails
6 AVCHD format motion picture...

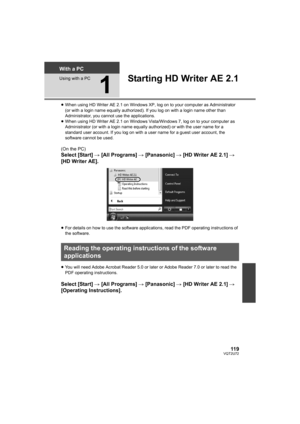

11 9VQT2U72
With a PC
Using with a PC
1
Starting HD Writer AE 2.1
≥When using HD Writer AE 2.1 on Windows XP,  log on to your computer as Administrator
(or with a login name equally authorized). If you log on with a login name other than
Administrator, you cannot use the applications.
≥ When using HD Writer AE 2.1 on Windows Vist a/Windows 7, log on to your computer as
Administrator (or with a login name equally authorized) or with the user name for a
standard user account. If you log on with a user...

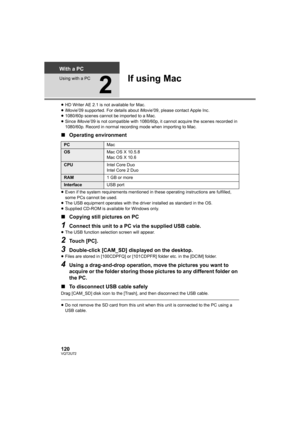

120VQT2U72
With a PC
Using with a PC
2
If using Mac
≥HD Writer AE 2.1 is not available for Mac.
≥ iMovie’09 supported. For details about iMovie’09, please contact Apple Inc.
≥ 1080/60p scenes cannot be imported to a Mac.
≥ Since iMovie’09 is not compatible with 1080/60p, it cannot acquire the scenes recorded in
1080/60p. Record in normal recording mode when importing to Mac.
∫ Operating environment
≥Even if the system requirements mentioned in these operating instructions are fulfilled,
some PCs cannot...
