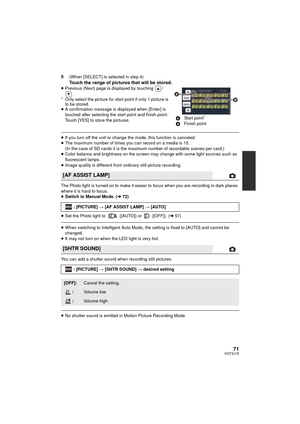

71VQT3J15
5(When [SELECT] is selected in step 4)
Touch the range of pictures that will be stored.≥Previous (Next) page is displayed by touching  /
.
* Only select the picture for start point if only 1 picture is  to be stored.
≥ A confirmation message is displayed when [Enter] is
touched after selecting the start point and finish point.
Touch [YES] to store the pictures.
≥If you turn off the unit or change the mode, this function is canceled.
≥ The maximum number of times you can record on a media is...

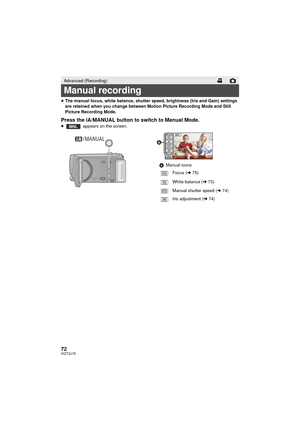

72VQT3J15
≥The manual focus, white balance, shutter speed, brightness (Iris and Gain) settings
are retained when you change between Motion Picture Recording Mode and Still
Picture Recording Mode.
Press the iA/MANUAL button to switch to Manual Mode.
≥  appears on the screen.
Advanced (Recording)
Manual recording
MNL
/MANUALFOCUSWBSHTRIRIS
MNL
AManual icons
Focus ( l75)
White balance ( l73)
Manual shutter speed ( l74)
Iris adjustment ( l74)
FOCUS
WB
SHTR
IRIS
HDC-SD80_TM80_HS80-P-VQT3J15_mst.book  72 ページ...

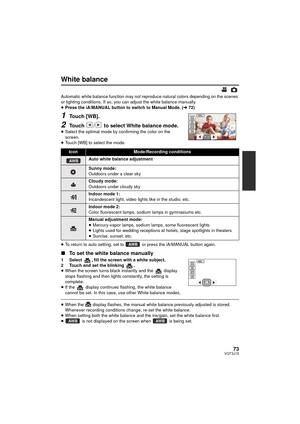

73VQT3J15
White balance
Automatic white balance function may not reproduce natural colors depending on the scenes
or lighting conditions. If so, you can adjust the white balance manually.
≥Press the iA/MANUAL button to switch to Manual Mode. ( l72)
1Touch [WB].
2Touch  /  to select White balance mode.≥Select the optimal mode by confirming the color on the
screen.
≥ Touch [WB] to select the mode.
≥ To return to auto setting, set to   or press the iA/MANUAL button again.
∫ To set the white balance...

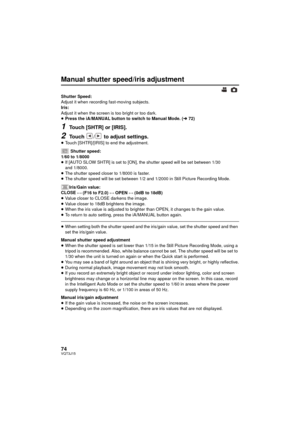

74VQT3J15
Manual shutter speed/iris adjustment
Shutter Speed:
Adjust it when recording fast-moving subjects.
Iris:
Adjust it when the screen is too bright or too dark.
≥Press the iA/MANUAL button to switch to Manual Mode. ( l72)
1Touch [SHTR] or [IRIS].
2Touch  /  to adjust settings.
≥Touch [SHTR]/[IRIS] to end the adjustment.
Shutter speed:
1/60 to 1/8000
≥ If [AUTO SLOW SHTR] is set to [ON], the shutter speed will be set between 1/30
and 1/8000.
≥ The shutter speed closer to 1/8000 is faster.
≥ The...

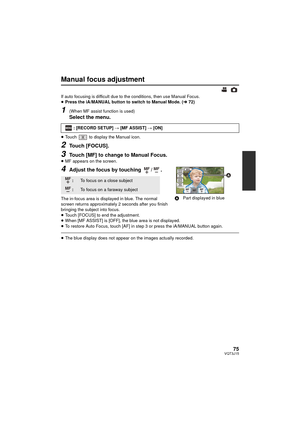

75VQT3J15
Manual focus adjustment
If auto focusing is difficult due to the conditions, then use Manual Focus.
≥Press the iA/MANUAL button to switch to Manual Mode. ( l72)
1(When MF assist function is used)
Select the menu.
≥Touch   to display the Manual icon.
2Touch [FOCUS].
3Touch [MF] to change to Manual Focus.≥MF appears on the screen.
4Adjust the focus by touching  / .
The in-focus area is displayed in blue. The normal
screen returns approximately 2 seconds after you finish
bringing the subject...

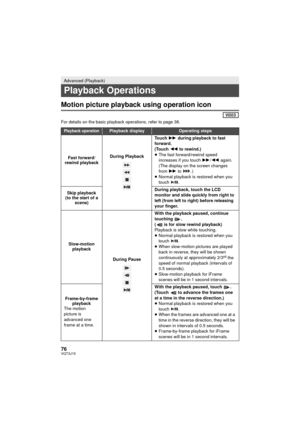

76VQT3J15
Motion picture playback using operation icon
For details on the basic playback operations, refer to page 38.
Advanced (Playback)
Playback Operations
Playback operationPlayback displayOperating steps
Fast forward/
rewind playback During PlaybackTo u c h
5 during playback to fast
forward.
(Touch  6 to rewind.)
≥ The fast forward/rewind speed
increases if you touch  5/6  again.
(The display on the screen changes
from  5 to  .)
≥ Normal playback is restored when you
touch .
Skip playback
(to...

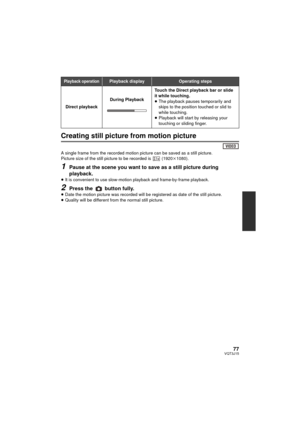

77VQT3J15
Creating still picture from motion picture
A single frame from the recorded motion picture can be saved as a still picture.
Picture size of the still picture to be recorded is   (1920k1080).
1Pause at the scene you want to save as a still picture during
playback.
≥ It is convenient to use slow-motion playback and frame-by-frame playback.
2Press the   button fully.≥Date the motion picture was recorded will be registered as date of the still picture.
≥ Quality will be different from the normal...

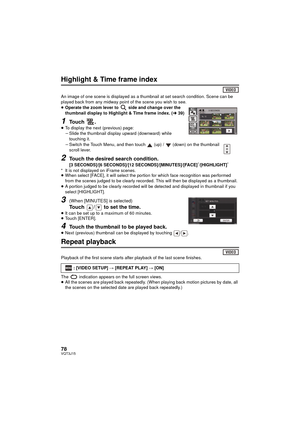

78VQT3J15
Highlight & Time frame index
An image of one scene is displayed as a thumbnail at set search condition. Scene can be
played back from any midway point of the scene you wish to see.
≥Operate the zoom lever to   side and change over the
thumbnail display to Highlight & Time frame index. ( l39)
1Touch .≥To display the next (previous) page:
jSlide the thumbnail display upward (downward) while
touching it.
j Switch the Touch Menu, and then touch   (up) /   (down) on the thumbnail
scroll lever....

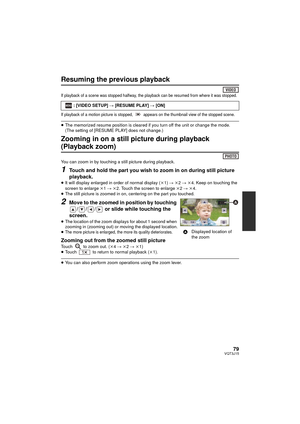

79VQT3J15
Resuming the previous playback
If playback of a scene was stopped halfway, the playback can be resumed from where it was stopped.
If playback of a motion picture is stopped,   appears on the thumbnail view of the stopped scene.
≥The memorized resume position is cleared if you turn off the unit or change the mode.
(The setting of [RESUME PLAY] does not change.)
Zooming in on a still picture during playback
(Playback zoom)
You can zoom in by touching a still picture during playback.
1Touch and...

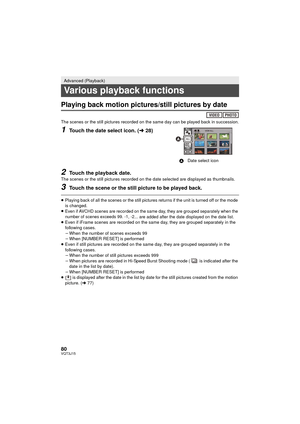

80VQT3J15
Playing back motion pictures/still pictures by date
The scenes or the still pictures recorded on the same day can be played back in succession.
1Touch the date select icon. (l28)
2Touch the playback date.
The scenes or the still pictures recorded on the date selected are displayed as thumbnails.
3Touch the scene or the still picture to be played back.
≥Playing back of all the scenes or the still pictures returns if the unit is turned off or the mode
is changed.
≥
Even if AVCHD scenes are...
