OPTIONAL EQUIPMENT CONNECTIONS
9 z
ENGLISH

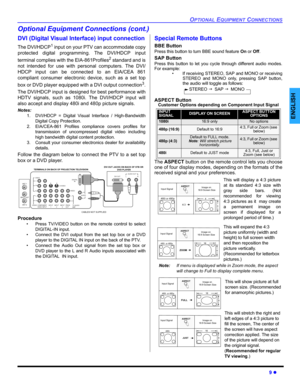

Optional Equipment Connections (cont.)
DVI (Digital Visual Interface) input connection
The DVI/HDCP1 input on your PTV can accommodate copy
protected digital programming. The DVI/HDCP input
terminal complies with the EIA-861Profiles
2 standard and is
not intended for use with personal computers. The DVI/
HDCP input can be connected to an EIA/CEA 861
compliant consumer electronic device, such as a set top
box or DVD player equipped with a DVI output connection...

10 z
PICTURE IN PICTURE AND SPLIT OPERATION
ENGLISH

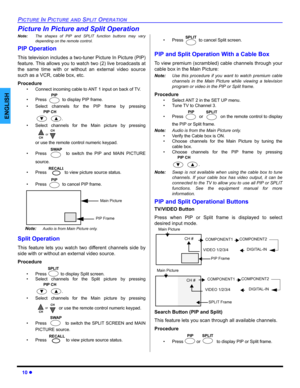

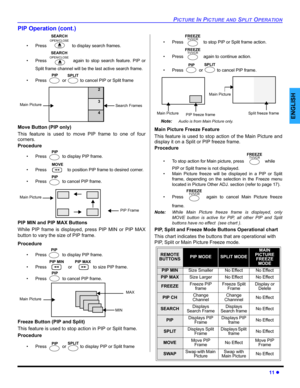

Picture In Picture and Split Operation
Note:The shapes of PIP and SPLIT function buttons may vary
depending on the remote control.
PIP Operation
This television includes a two-tuner Picture In Picture (PIP)
feature. This allows you to watch two (2) live broadcasts at
the same time with or without an external video source
such as a VCR, cable box, etc.
Procedure
• Connect incoming cable to ANT 1 input on back of TV.
• Press   to display PIP frame.
•...

PICTURE IN PICTURE AND SPLIT OPERATION
11 z
ENGLISH
PIP Operation (cont.)
• Press   to display search frames.
• Press  again to stop search feature. PIP or
Split frame channel will be the last active search frame.
• Press   or   to cancel PIP or Split frame
Move Button (PIP only)
This feature is used to move PIP frame to one of four
corners.
Procedure
• Press   to display PIP frame.
• Press   to position PIP frame to desired corner.
• Press   to cancel PIP frame.
PIP MIN and PIP MAX Buttons
While PIP...

12 z
REMOTE CONTROL OPERATION (FOR MODEL PT-47WX34 ONLY)
ENGLISH

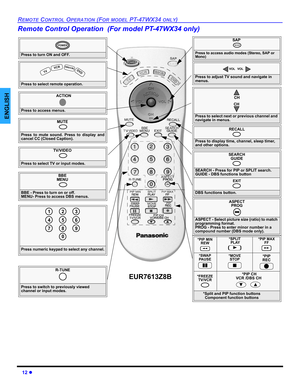

Remote Control Operation  (For model PT-47WX34 only)
EUR7613Z8B

Press to turn ON and OFF.
POWER
MUTE

Press to mute sound. Press to display and
cancel CC (Closed Caption).
SAP

Press to access audio modes (Stereo, SAP or
Mono)
TV/VIDEO

Press to select TV or input modes.
Press to select remote operation.
  T
V V
CRD
BS
/
CB
L DV
D
ACTION
Press to access menus.
Press to select next or previous channel and
navigate in...

REMOTE CONTROL OPERATION (FOR MODEL PT-47WX34 ONLY)
13 z
ENGLISH

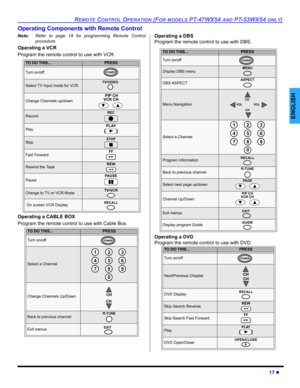

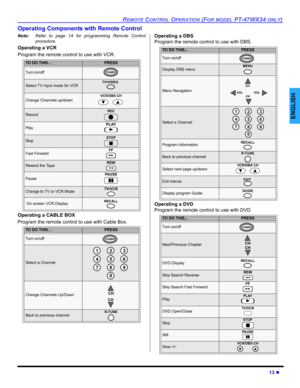

Operating Components with Remote Control
Note:Refer to page 14 for programming Remote Control
procedure.
Operating a VCR
Program the remote control to use with VCR.
Operating a CABLE BOX
Program the remote control to use with Cable Box. Operating a DBS
Program the remote control to use with DBS.
Operating a DVD
Program the remote control to use with DVD

TO DO THIS...PRESS
Turn on/off
Select TV Input mode for VCR
Change Channels...

14 z
REMOTE CONTROL OPERATION (FOR MODEL PT-47WX34 ONLY)
ENGLISH

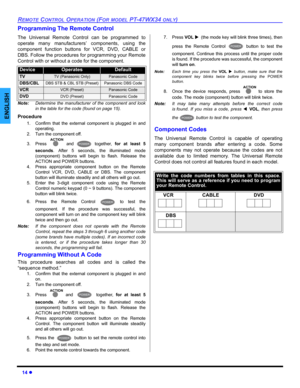

Programming The Remote Control
The Universal Remote Control can be programmed to
operate many manufacturers’ components, using the
component function buttons for VCR, DVD, CABLE or
DBS. Follow the procedures for programming your Remote
Control with or without a code for the component.
Note:Determine the manufacturer of the component and look
in the table for the code (found on page 15).
Procedure
1. Confirm that the external component is...

REMOTE CONTROL OPERATION (FOR MODEL PT-47WX34 ONLY)
15 z
ENGLISH

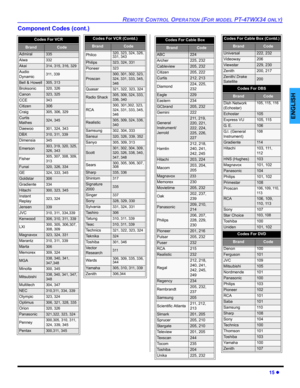

Component Codes (cont.)
Codes For VCR
BrandCode
Admiral335
Aiwa332
Akai314, 315, 316, 329
Audio
Dynamic311, 339
Bell & Howell305, 313
Broksonic320, 326
Canon323, 325
CCE343
Citizen306
Craig305, 306, 329
Curtis
Mathes324, 345
Daewoo 301, 324, 343
DBX310, 311, 339
Dimensia345
Emerson303, 319, 320, 325,
326, 343
Fisher305, 307, 308, 309,
313
Funai320, 326, 334
GE324, 333, 345
Goldstar306
Gradiente334
Hitachi300, 323, 345
Instant...

16 z
REMOTE CONTROL OPERATION (FOR MODELS PT-47WX54 AND PT-53WX54 ONLY)
ENGLISH

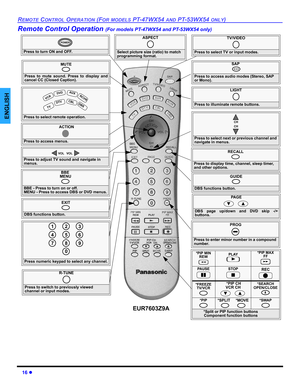

Remote Control Operation (For models PT-47WX54 and PT-53WX54 only)

Press to turn ON and OFF.
POWER
MUTE
Press to mute sound. Press to display and
cancel CC (Closed Caption).
SAP

Press to access audio modes (Stereo, SAP
or Mono).
TV/VIDEO
Press to select TV or input modes.
Press to select remote operation.
 V
CR
 DVD

TV
 C
BL DB
S

AU
X RC
V
R
 DT
V
ACTION
Press to access menus.Press to select next...

REMOTE CONTROL OPERATION (FOR MODELS PT-47WX54 AND PT-53WX54 ONLY)
17 z
ENGLISH
Operating Components with Remote Control
Note:Refer to page 19 for programming Remote Control
procedure.
Operating a VCR
Program the remote control to use with VCR.
Operating a CABLE BOX
Program the remote control to use with Cable Box. Operating a DBS
Program the remote control to use with DBS.
Operating a DVD
Program the remote control to use with DVD.
TO DO THIS...PRESS
Turn on/off
Select TV Input mode for VCR
Change...

18 z
REMOTE CONTROL OPERATION (FOR MODELS PT-47WX54 AND PT-53WX54 ONLY)
ENGLISH

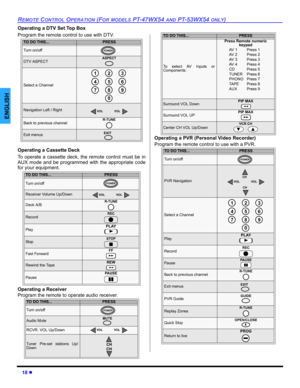

Operating a DTV Set Top Box
Program the remote control to use with DTV.
Operating a Cassette Deck
To operate a cassette deck, the remote control must be in
AUX mode and be programmed with the appropriate code
for your equipment.
Operating a Receiver
Program the remote to operate audio receiver. Operating a PVR (Personal Video Recorder)
Program the remote control to use with a PVR.
TO DO THIS...PRESS
Turn on/off
DTV...
