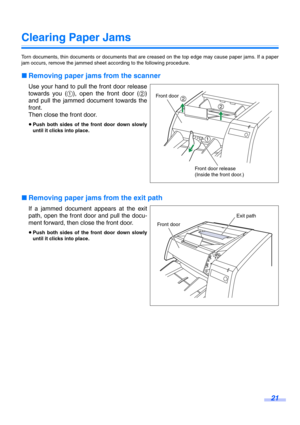

Clearing Paper Jams
Torn documents, thin documents or documents that are creased on the top edge may cause paper jams. If a paper
jam occurs, remove the jammed sheet according to the following procedure.
∫Removing paper jams from the scanner
Use your hand to pull the front door release
towards you (1), open the front door (2)
and pull the jammed document towards the
front.
Then close the front door.
≥Push both sides of the front door down slowly
until it clicks into place.
∫Removing paper jams from...

22

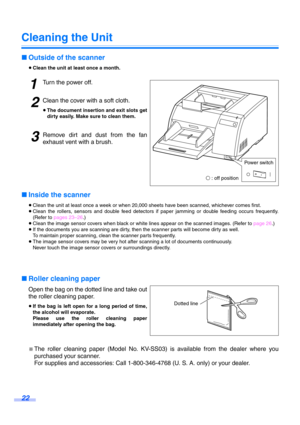

Cleaning the Unit
∫Outside of the scanner
≥Clean the unit at least once a month.
1Turn the power off.
2Clean the cover with a soft cloth.
≥The document insertion and exit slots get
dirty easily. Make sure to clean them.
3Remove dirt and dust from the fan
exhaust vent with a brush.
∫Inside the scanner
≥Clean the unit at least once a week or when 20,000 sheets have been scanned, whichever comes first.
≥Clean the rollers, sensors and double feed detectors if paper jamming or double feeding occurs...

Cleaning the Unit
23

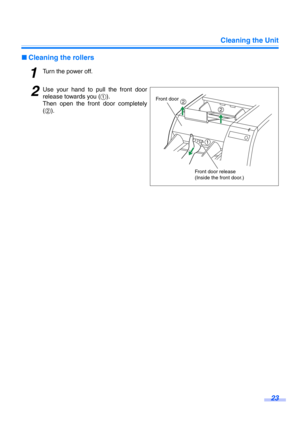

∫Cleaning the rollers
1Turn the power off.
2Use your hand to pull the front door
release towards you (1).
Then open the front door completely
(2).
Front door
Front door release
(Inside the front door.)
1 2
2

Cleaning the Unit
24

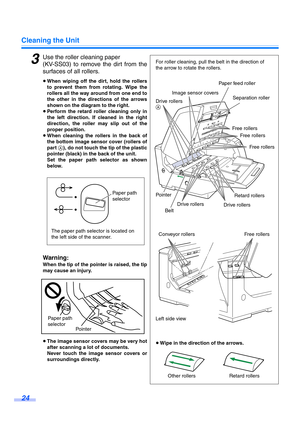

3Use the roller cleaning paper
(KV-SS03) to remove the dirt from the
surfaces of all rollers.
≥When wiping off the dirt, hold the rollers
to prevent them from rotating. Wipe the
rollers all the way around from one end to
the other in the directions of the arrows
shown on the diagram to the right.
≥Perform the retard roller cleaning only in
the left direction. If cleaned in the right
direction, the roller may slip out of the
proper position.
≥When cleaning the rollers in the back of...

Cleaning the Unit
25

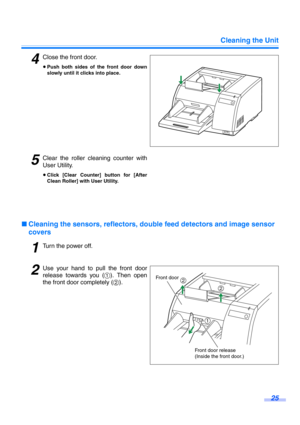

4Close the front door.
≥Push both sides of the front door down
slowly until it clicks into place.
5Clear the roller cleaning counter with
User Utility.
≥Click [Clear Counter] button for [After
Clean Roller] with User Utility.
∫Cleaning the sensors, reflectors, double feed detectors and image sensor
covers
1Turn the power off.
2Use your hand to pull the front door
release towards you (1). Then open
the front door completely (2).
Front door
Front door release
(Inside the front...

Cleaning the Unit
26

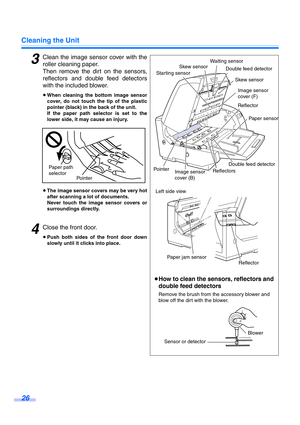

3Clean the image sensor cover with the
roller cleaning paper.
Then remove the dirt on the sensors,
reflectors and double feed detectors
with the included blower.
≥When cleaning the bottom image sensor
cover, do not touch the tip of the plastic
pointer (black) in the back of the unit.
If the paper path selector is set to the
lower side, it may cause an injury.
≥The image sensor covers may be very hot
after scanning a lot of documents.
Never touch the image sensor covers or...

27
Replacing Consumables

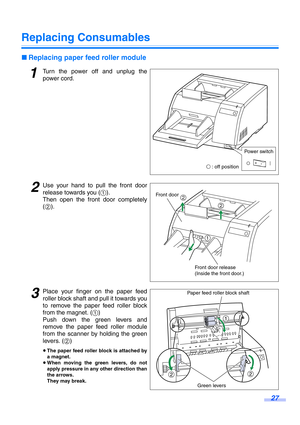

∫Replacing paper feed roller module
1Turn the power off and unplug the
power cord.
2Use your hand to pull the front door
release towards you (1).
Then open the front door completely
(2).
3Place your finger on the paper feed
roller block shaft and pull it towards you
to remove the paper feed roller block
from the magnet. (1)
Push down the green levers and
remove the paper feed roller module
from the scanner by holding the green
levers. (2)
≥The paper feed roller block is attached...

Replacing Consumables
28

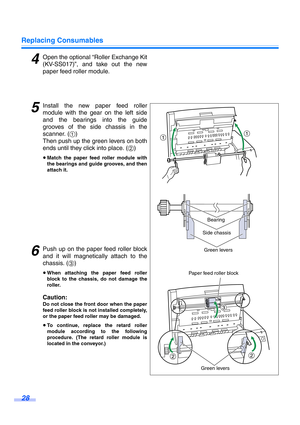

4Open the optional “Roller Exchange Kit
(KV-SS017)”, and take out the new
paper feed roller module.
5Install the new paper feed roller
module with the gear on the left side
and the bearings into the guide
grooves of the side chassis in the
scanner. (1)
Then push up the green levers on both
ends until they click into place. (2)
≥Match the paper feed roller module with
the bearings and guide grooves, and then
attach it.
6Push up on the paper feed roller block
and it will...

Replacing Consumables
29
∫Replacing retard roller module

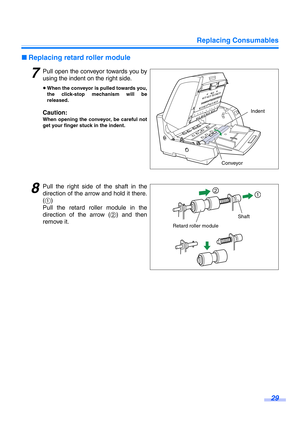

7Pull open the conveyor towards you by
using the indent on the right side.
≥When the conveyor is pulled towards you,
the click-stop mechanism will be
released.
Caution:
When opening the conveyor, be careful not
get your finger stuck in the indent.
8Pull the right side of the shaft in the
direction of the arrow and hold it there.
(1)
Pull the retard roller module in the
direction of the arrow (2) and then
remove it.
Indent
Conveyor
12
Retard roller...

Replacing Consumables
30
9Take out the new retard roller module
in the optional “Roller Exchange Kit
(KV-SS017)”.
10Pull the right side of the shaft in the
direction of the arrow and hold it there.
(1)
Attach the new retard roller module as
shown in the diagram on the right (2)
and then return the right side of the
shaft in the direction of the arrow. (3)
≥Confirm if pin A and pin B are inserted in
their notches correctly.
≥Attach the retard roller module so that the
notch A is on the left side.
2
3
