Panasonic High Speed Color Scanner Kv S3065 Operating Instructions

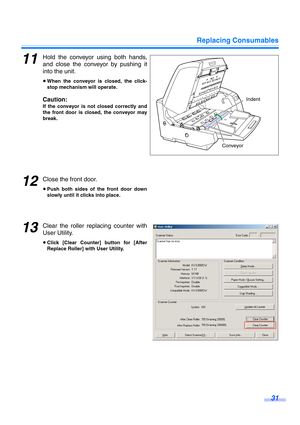

Replacing Consumables
31
11Hold the conveyor using both hands,
and close the conveyor by pushing it
into the unit.
≥When the conveyor is closed, the click-
stop mechanism will operate.
Caution:
If the conveyor is not closed correctly and
the front door is closed, the conveyor may
break.
12Close the front door.
≥Push both sides of the front door down
slowly until it clicks into place.
13Clear the roller replacing counter with
User Utility.
≥Click [Clear Counter] button for [After
Replace Roller] with User...

32

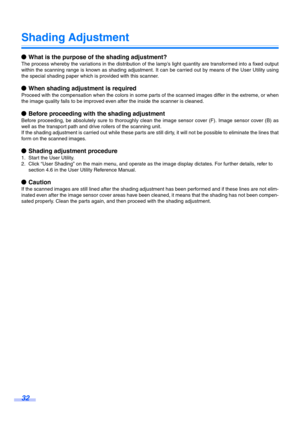

Shading Adjustment
¥What is the purpose of the shading adjustment?
The process whereby the variations in the distribution of the lamp’s light quantity are transformed into a fixed output
within the scanning range is known as shading adjustment. It can be carried out by means of the User Utility using
the special shading paper which is provided with this scanner.
¥When shading adjustment is required
Proceed with the compensation when the colors in some parts of the scanned images differ in the extreme,...

33

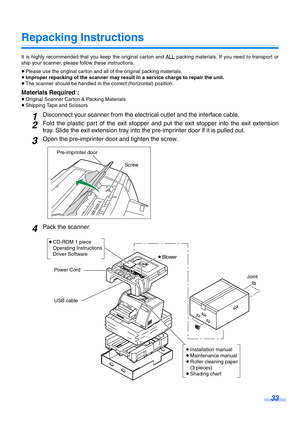

Repacking Instructions
It is highly recommended that you keep the original carton and ALL packing materials. If you need to transport or
ship your scanner, please follow these instructions.
≥Please use the original carton and all of the original packing materials.
≥Improper repacking of the scanner may result in a service charge to repair the unit.
≥The scanner should be handled in the correct (horizontal) position.
Materials Required :
≥Original Scanner Carton & Packing Materials
≥Shipping Tape and...

34

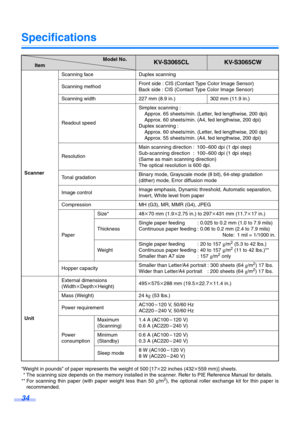

Specifications
Item
Model No.KV-S3065CLKV-S3065CW
ScannerScanning face Duplex scanning
Scanning methodFront side : CIS (Contact Type Color Image Sensor)
Back side : CIS (Contact Type Color Image Sensor)
Scanning width 227 mm (8.9 in.) 302 mm (11.9 in.)
Readout speedSimplex scanning :
Approx. 65 sheets/min. (Letter, fed lengthwise, 200 dpi)
Approx. 60 sheets/min. (A4, fed lengthwise, 200 dpi)
Duplex scanning :
Approx. 60 sheets/min. (Letter, fed lengthwise, 200 dpi)
Approx. 55 sheets/min. (A4, fed...

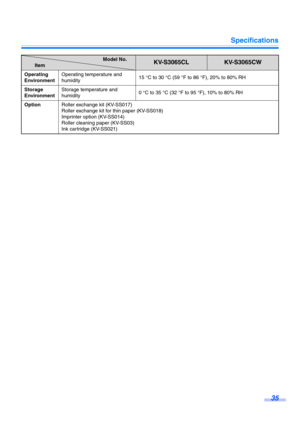

Specifications
35
Operating
EnvironmentOperating temperature and
humidity15 °C to 30 °C (59 °F to 86 °F), 20% to 80% RH
Storage
EnvironmentStorage temperature and
humidity0 °C to 35 °C (32 °F to 95 °F), 10% to 80% RH
OptionRoller exchange kit (KV-SS017)
Roller exchange kit for thin paper (KV-SS018)
Imprinter option (KV-SS014)
Roller cleaning paper (KV-SS03)
Ink cartridge (KV-SS021)
Item
Model No.KV-S3065CLKV-S3065CW

36

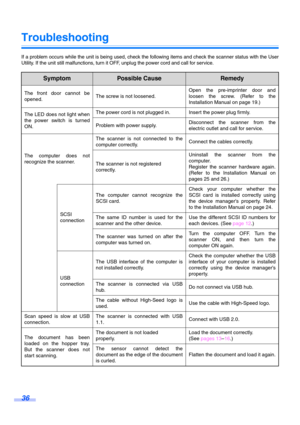

Troubleshooting
If a problem occurs while the unit is being used, check the following items and check the scanner status with the User
Utility. If the unit still malfunctions, turn it OFF, unplug the power cord and call for service.
SymptomPossible CauseRemedy
The front door cannot be
opened.The screw is not loosened.Open the pre-imprinter door and
loosen the screw. (Refer to the
Installation Manual on page 19.)
The LED does not light when
the power switch is turned
ON.The power cord is not plugged...

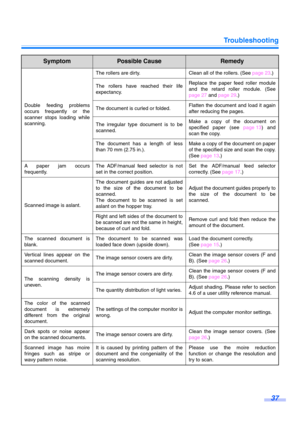

Troubleshooting
37
Double feeding problems
occurs frequently or the
scanner stops loading while
scanning.The rollers are dirty. Clean all of the rollers. (See page 23.)
The rollers have reached their life
expectancy.Replace the paper feed roller module
and the retard roller module. (See
page 27 and page 29.)
The document is curled or folded.Flatten the document and load it again
after reducing the pages.
The irregular type document is to be
scanned.Make a copy of the document on
specified paper (see page...

38
Pag e Pa ge

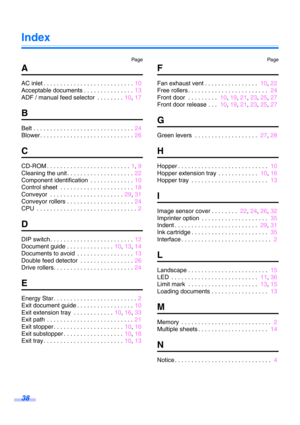

Index
A
AC inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Acceptable documents . . . . . . . . . . . . . . .  13
ADF / manual feed selector  . . . . . . . .   10, 17
B
Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  24
Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . .  26
C
CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . 1,  9
Cleaning the unit . . . . . . . . . . . . . . . . . . . .  22
Component identification  . . . . . . . . . . ....

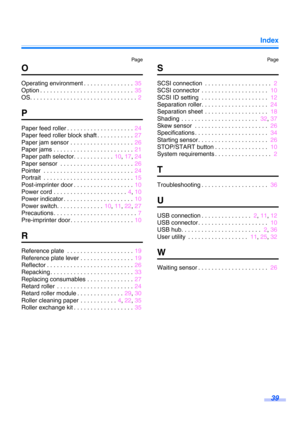

Index39
Pag e Pa ge
O
Operating environment . . . . . . . . . . . . . . .  35
Option . . . . . . . . . . . . . . . . . . . . . . . . . . . .  35
OS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  2
P
Paper feed roller . . . . . . . . . . . . . . . . . . . . 24
Paper feed roller block shaft . . . . . . . . . . .  27
Paper jam sensor . . . . . . . . . . . . . . . . . . .  26
Paper jams . . . . . . . . . . . . . . . . . . . . . . . .  21
Paper path selector. . . . . . . . . . . .  10, 17 ,...

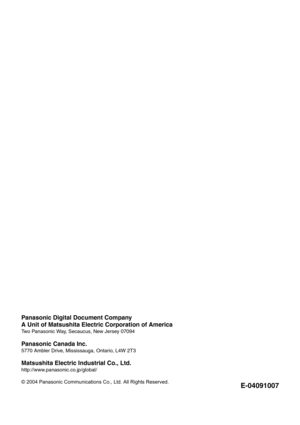

Panasonic Digital Document Company
A Unit of Matsushita Electric Corporation of America
Two Panasonic Way, Secaucus, New Jersey 07094
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3
Matsushita Electric Industrial Co., Ltd.
http://www.panasonic.co.jp/global/
© 2004 Panasonic Communications Co., Ltd. All Rights Reserved.
E-04091007
