Loading Documents on the ADF21
4Align the document pages along one
side.

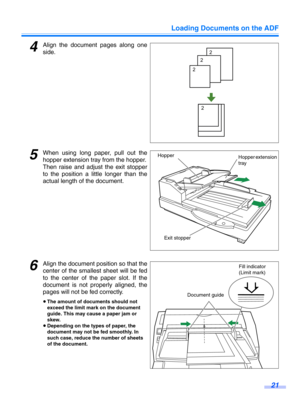

5When using long paper, pull out the
hopper extension tray from the hopper.
Then raise and adjust the exit stopper
to the position a little longer than the
actual length of the document.
6Align the document position so that the
center of the smallest sheet will be fed
to the center of the paper slot. If the
document is not properly aligned, the
pages will not  be fed correctly.
≥The amount of documents should not
exceed the limit...

Loading Documents on the ADF
22

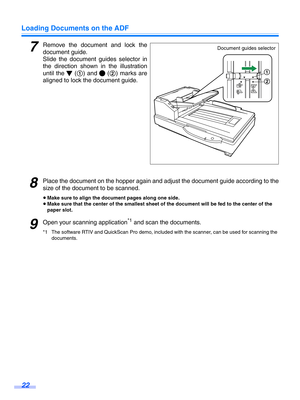

7Remove the document and lock the
document guide.
Slide the document guides selector in
the direction shown in the illustration
until the   ( 1) and   (2) marks are
aligned to lock  the document guide.
8Place the document on the hopper  again and adjust the document guide a ccording to the
size of the document to be scanned.
≥ Make sure to align the document pages along one side.
≥ Make sure that the center of the smallest sheet of the document will be fed to the center of...

Loading Documents on the ADF23

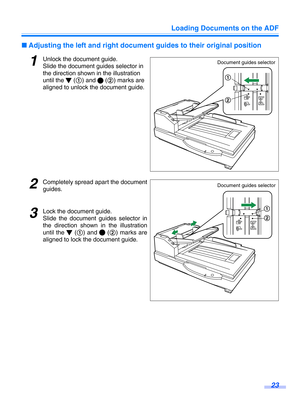

∫Adjusting the left and right document guides to their original position
1Unlock the document guide.
Slide the document guides selector in
the direction shown  in the illustration
until the   ( 1) and   (2) marks are
aligned to unlock the document guide.
2Completely spread apart the document
guides.
3Lock the document guide.
Slide the document guides selector in
the direction shown  in the illustration
until the   ( 1) and   (2) marks are
aligned to lock  the document...

24
Loading Documents on the Flatbed
One sheet or an entire book document can be scanned on the document glass.
Scanning documents in this way is known as “scanning with the flatbed”.
Caution
≥Do not place printed materials containing magnetic in k characters or magnetic strip cards on the flatbed.
Magnets are located in the flatbed cover (flatbed sheet) and may damage data stored on printed materials and
cards.

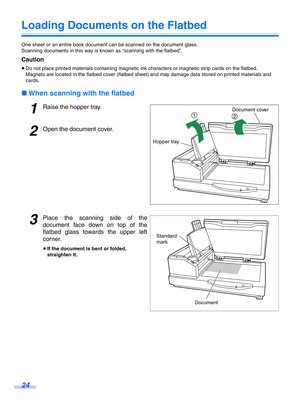

∫ When scanning with the flatbed
1Raise the hopper tray.
2Open the document cover.
3Place the...

Loading Documents on the Flatbed25

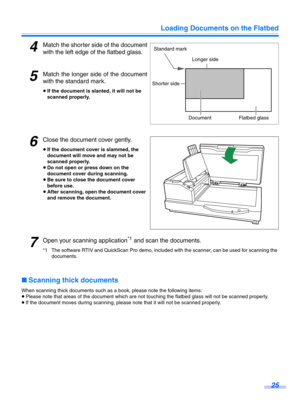

4Match the shorter side of the document
with the left edge of the flatbed glass.
5Match the longer side of the document
with the st andard mark.
≥If the document is slanted, it will not be
scanned properly.
6Close the document cover gently.
≥If the document cover is slammed, the
document will move and may not be
scanned properly.
≥ Do not open or press down on the
document cover during scanning.
≥ Be sure to close the document cover
before use.
≥ After scanning,...

26

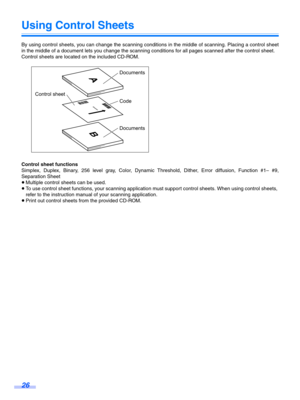

Using Control Sheets
By using control sheets, you can change the scanning conditions in the middle of scanning. Placing a control sheet
in the middle of a document lets you change the scanning conditions for all pages scanned after the control sheet.
Control sheets are located on the included CD-ROM.
Control sheet functions
Simplex, Duplex, Binary, 256 level gray, Color, Dynamic Threshold, Dither, Error diffusion, Function #1– #9,
Separation Sheet
≥Multiple control sheets can be used.
≥ To use control...

Using Control Sheets27

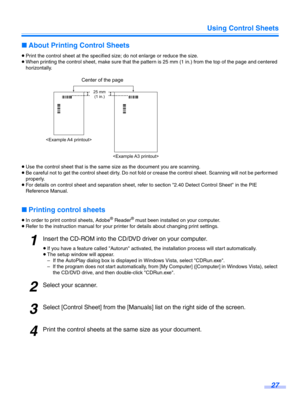

∫About Printing Control Sheets
≥Print the control sheet at the specified size; do not enlarge or reduce the size.
≥ When printing the control sheet, make sure that the pattern is 25 mm (1 in.) from the top of the page and centered
horizontally.
≥ Use the control sheet that is the same size as the document you are scanning.
≥ Be careful not to get the control sheet dirty. Do not fold or crease the control sheet. Scanning will not be performed
properly.
≥ For details on control...

28
Changing the Reference Plate Setting
You can choose a background color to be scanned from white (black) to black (white). The scanner comes from
factory set to black. The reference plate (B), reference plate (F) and flatbed sheet setting must be changed
simultaneously. Anytime the background color is changed from its previous setting, the shading adjustment must be
performed. Please refer to page 47 for more information regarding the shading adjustment.

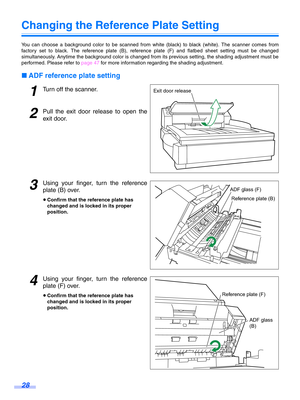

∫ADF reference plate setting
1Turn off the...

Changing the Reference Plate Setting29

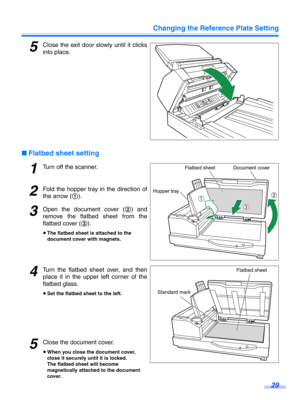

5Close the exit door slowly until it clicks
into place.
∫ Flatbed sheet setting
1Turn off the scanner.
2Fold the hopper tray in the direction of
the arrow ( 1).
3Open the document cover ( 2) and
remove the flatbed sheet from the
flatbed cover ( 3).
≥The flatbed sheet is attached to the
document cover with magnets.
4Turn the flatbed sheet over, and then
place it in the upper  left corner of the
flatbed glass.
≥ Set the flatbed sheet to the left.
5Close the document...

30

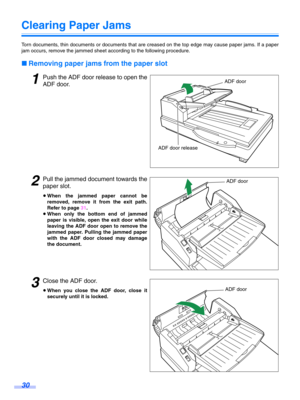

Clearing Paper Jams
Torn documents, thin documents or documents that are creased on the top edge may cause paper jams. If a paper
jam occurs, remove the jammed sheet according to the following procedure.
∫Removing paper jams from the paper slot
1Push the ADF door release to open the
ADF door.
2Pull the jammed document towards the
paper slot.
≥When the jammed paper cannot be
removed, remove it from the exit path.
Refer to page  31.
≥ When only the bottom end of jammed
paper is visible, open the exit...
