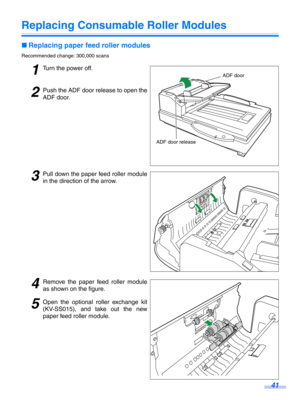

Replacing Consumable Roller Modules
∫Replacing paper feed roller modules
Recommended change: 300,000 scans
1Turn the power off.
2Push the ADF door release to open the
ADF door.
3Pull down the paper feed roller module
in the direction of the arrow.
4Remove the paper f eed roller module
as shown on the figure.
5Open the optional roller exchange kit
(KV-SS015), and take out the new
paper feed roller module.
ADF door
ADF door release

Replacing Consumable Roller Modules
42

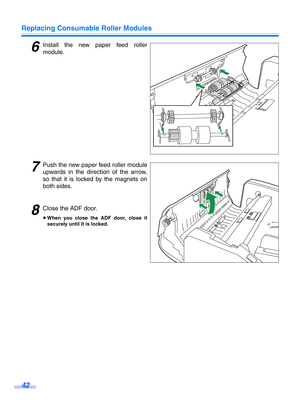

6Install the new paper feed roller
module.
7Push the new paper feed roller module
upwards in the direction of the arrow,
so that it is locked by the magnets on
both sides.
8Close the ADF door.
≥ When you close the ADF door, close it
securely until it is locked.

Replacing Consumable Roller Modules43

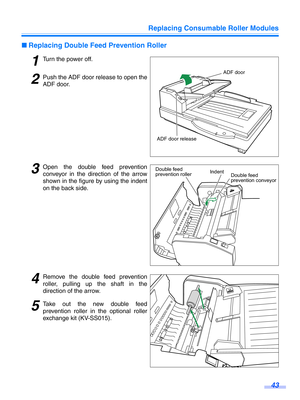

∫Replacing Double Feed Prevention Roller
1Turn the power off.
2Push the ADF door release to open the
ADF door.
3Open the double feed prevention
conveyor in the direction of the arrow
shown in the figure by using the indent
on the back side.
4Remove the double feed prevention
roller, pulling up the shaft in the
direction of the arrow.
5Take out the new double feed
prevention roller in  the optional roller
exchange kit (KV-SS015).
ADF door
ADF door release
Double feed...

Replacing Consumable Roller Modules
44

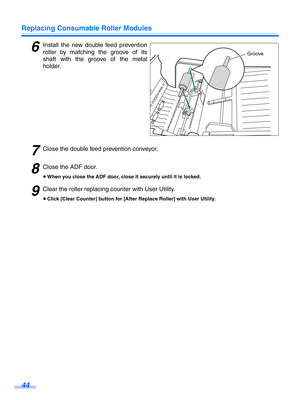

6Install the new double feed prevention
roller by matching the groove of its
shaft with the groove of the metal
holder.
7Close the double feed prevention conveyor.
8Close the ADF door.
≥When you close the ADF door, close it securely until it is locked.
9Clear the roller r eplacing counter wi th User Utility.
≥Click [Clear Counter] button for [After Replace Roller] with User Utility.
Groove

45

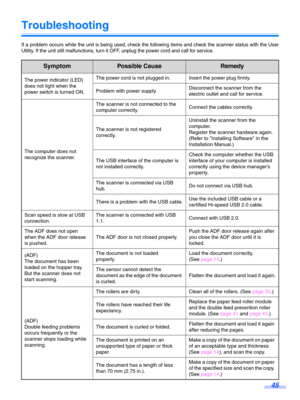

Troubleshooting
If a problem occurs while the unit is being used, check the following items and check the scanner status with the User
Utility. If the unit still malfunctions, turn it OFF, unplug the power cord and call for service.
SymptomPossible CauseRemedy
The power indicator (LED)
does not light when the
power switch is turned ON. The power cord is not plugged in. Insert the power plug firmly.
Problem with power supply.
Disconnect the scanner from the
electric outlet and call for service.
The...

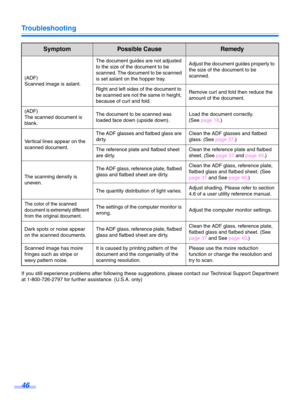

Troubleshooting
46
If you still experience problems after following these suggestions, please contact our Technical Support Department
at 1-800-726-2797 for further assistance. (U.S.A. only)(ADF)
Scanned image is aslant.
The document guides are not adjusted
to the size of the document to be
scanned. The document to be scanned
is set aslant on the hopper tray.
Adjust the document guides properly to
the size of the document to be
scanned.
Right and left sides of the document to
be scanned are not the...

47

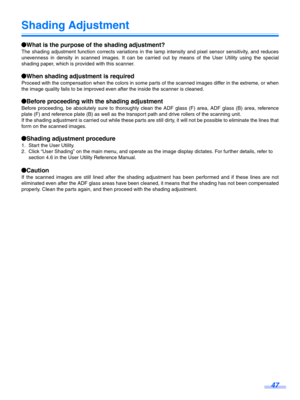

Shading Adjustment
¥What is the purpose of  the shading adjustment?
The shading adjustment function corrects variations in the lamp intensity and pixel sensor sensitivity, and reduces
unevenness in density in scanned images. It can be carr ied out by means of the User Utility using the special
shading paper, which is provided with this scanner.
¥ When shading adjustment is required
Proceed with the compensation when the colors in some parts of the scanned images differ in the extreme, or when
the...

48

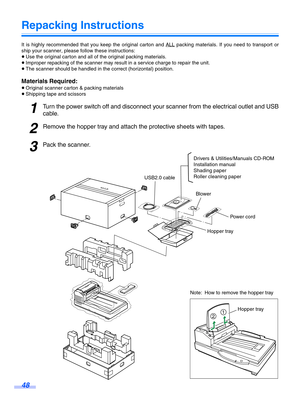

Repacking Instructions
It is highly recommended that you keep the original carton and ALL packing materials. If you need to transport or
ship your scanner, please follow these instructions:
≥ Use the original carton and all of the original packing materials.
≥ Improper repacking of the scanner may result in a service charge to repair the unit.
≥ The scanner should be handled in the correct (horizontal) position.
Materials Required:
≥Original scanner carton & packing materials
≥ Shipping tape and...

49

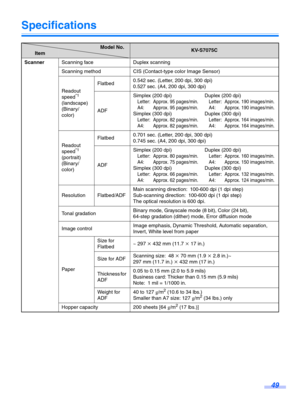

Specifications
Item
Model No.KV-S7075C
Scanner Scanning face Duplex scanning
Scanning method CIS (Contact-type color Image Sensor)
Readout
speed
*1
(landscape)
(Binary/
color) Flatbed
0.542 sec. (Letter, 200 dpi, 300 dpi)
0.527 sec. (A4, 200 dpi, 300 dpi)
ADF Simplex (
200 dpi)
Letter: Approx. 95 pages/min.
A4: Approx. 95 pages/min.
Simplex (300 dpi)
Letter: Approx. 82 pages/min.
A4: Approx. 82 pages/min.
Duplex (200 dpi)
Letter: Approx. 190 images/min.
A4: Approx. 190 images/min.
Duplex (300 dpi)...

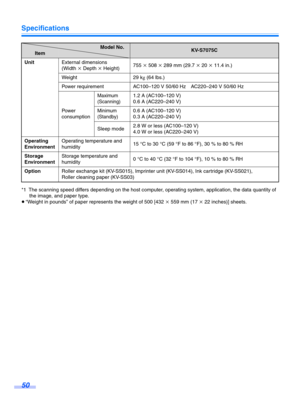

Specifications
50
*1 The scanning speed differs depending on the host computer, operating system, application, the data quantity of the image, and paper type.
≥ “Weight in pounds” of paper represents the weight of 500 [432  k 559 mm (17  k 22 inches)] sheets.
Unit
External dimensions
(Width k Depth k  Height) 755
k 508  k 289 mm (29.7  k 20  k 11.4 in.)
Weight 29 k g (64 lbs.)
Power requirement AC100–120 V 50/60 Hz AC220–240 V 50/60 Hz
Powe r
consumption
Maximum
(Scanning)1.2 A (AC100–120 V)
0.6 A...
