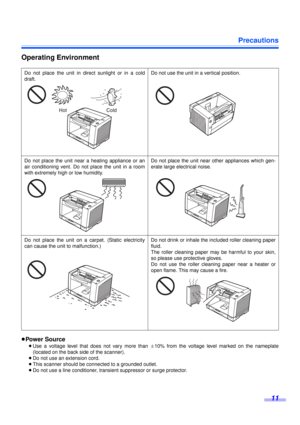

Precautions
11
Operating Environment
≥Power Source
≥Use a voltage level that does not vary more than d10% from the voltage level marked on the nameplate
(located on the back side of the scanner).
≥Do not use an extension cord.
≥This scanner should be connected to a grounded outlet.
≥Do not use a line conditioner, transient suppressor or surge protector. Do not place the unit in direct sunlight or in a cold
draft.Do not use the unit in a vertical position.
Do not place the unit near a heating appliance or...

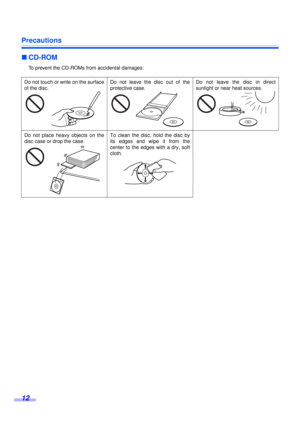

Precautions
12
∫CD-ROM
To prevent the CD-ROMs from accidental damages:
Do not touch or write on the surface
of the disc.Do not leave the disc out of the
protective case.Do not leave the disc in direct
sunlight or near heat sources.
Do not place heavy objects on the
disc case or drop the case.To clean the disc, hold the disc by
its edges and wipe it from the
center to the edges with a dry, soft
cloth.

13

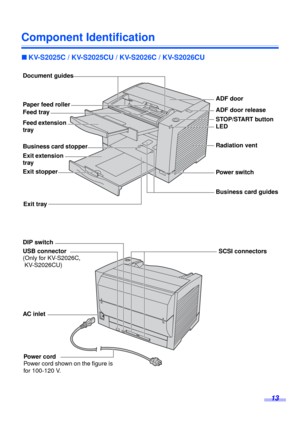

Component Identification
∫KV-S2025C / KV-S2025CU / KV-S2026C / KV-S2026CU
Exit extension
tray
Document guides
Paper feed roller
Feed tray
Feed extension
tray
Business card stopper
Exit tray
Exit stopperADF door
ADF door release
STOP/START button
LED
Radiation vent
Power switch
Business card guide
s
DIP switch
AC inletSCSI connectors
Power cord
Power cord shown on the figure is
for 100-120 V. USB connector
(Only for KV-S2026C,
 KV-S2026CU)

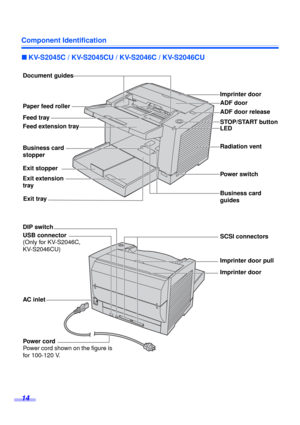

Component Identification
14
∫KV-S2045C / KV-S2045CU / KV-S2046C / KV-S2046CU
Document guides
Paper feed roller
Feed tray
Feed extension tray
Business card
stopper
Exit extension
tray
Exit stopperImprinter door
ADF door
ADF door release
STOP/START butto
n
LED
Radiation vent
Power switch
Business card
guides
Exit tray
DIP switch
AC inletSCSI connectors
Imprinter door pull
Imprinter door USB connector
(Only for KV-S2046C,
KV-S2046CU)
Power cord
Power cord shown on the figure is
for 100-120 V.

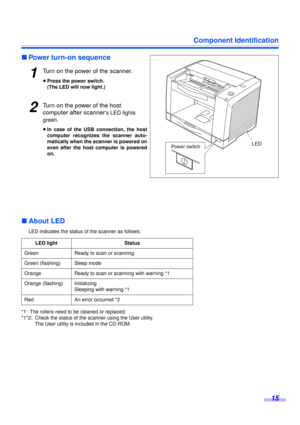

Component Identification
15
∫Power turn-on sequence
1Turn on the power of the scanner.
≥Press the power switch.
(The LED will now light.)
2Turn on the power of the host
computer after scanner
’s LED lights
green
.
≥In case of the USB connection, the host
computer recognizes the scanner auto-
matically when the scanner is powered on
even after the host computer is powered
on.
∫About LED
LED indicates the status of the scanner as follows:
*1: The rollers need to be cleaned or replaced.
*1*2: Check the...

Component Identification
16

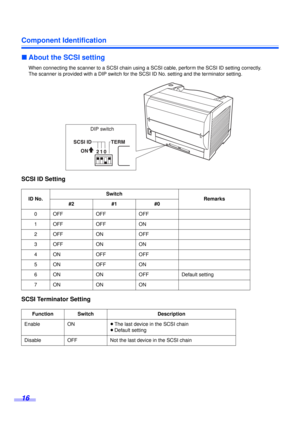

∫About the SCSI setting
When connecting the scanner to a SCSI chain using a SCSI cable, perform the SCSI ID setting correctly.
The scanner is provided with a DIP switch for the SCSI ID No. setting and the terminator setting.
SCSI ID Setting
SCSI Terminator Setting
ID No.Switch
Remarks
#2 #1 #0
0OFF OFF OFF
1OFF OFF ON
2OFF ON OFF
3OFF ON ON
4ON OFF OFF
5ON OFF ON
6ONONOFFDefault setting
7ONONON
Function Switch Description
Enable ON≥The last device in the SCSI chain
≥Default...

17

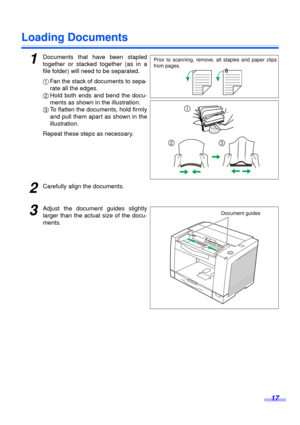

Loading Documents
1Documents that have been stapled
together or stacked together (as in a
file folder) will need to be separated.
1Fan the stack of documents to sepa-
rate all the edges.
2Hold both ends and bend the docu-
ments as shown in the illustration.
3To flatten the documents, hold firmly
and pull them apart as shown in the
illustration.
Repeat these steps as necessary.
2Carefully align the documents.
3Adjust the document guides slightly
larger than the actual size of the docu-
ments.
1
23...

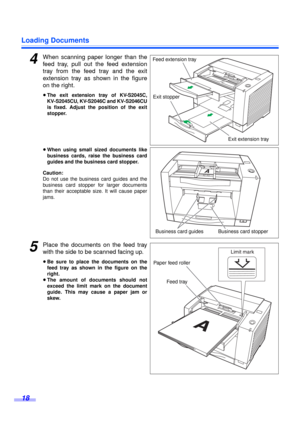

Loading Documents
18
4When scanning paper longer than the
feed tray, pull out the feed extension
tray from the feed tray and the exit
extension tray as shown in the figure
on the right.
≥The exit extension tray of KV-S2045C,
KV-S2045CU, KV-S2046C and KV-S2046CU
is fixed. Adjust the position of the exit
stopper.
≥When using small sized documents like
business cards, raise the business card
guides and the business card stopper.
Caution:
Do not use the business card guides and the
business card stopper for...

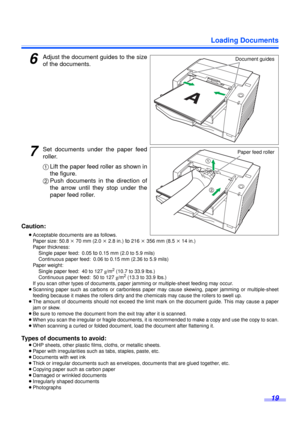

Loading Documents
19
6Adjust the document guides to the size
of the documents.
7Set documents under the paper feed
roller.
1Lift the paper feed roller as shown in
the figure.
2Push documents in the direction of
the arrow until they stop under the
paper feed roller.
Caution:
≥Acceptable documents are as follows.
Paper size: 50.8 k 70 mm (2.0 k 2.8 in.)
to 216 k 356 mm (8.5 k 14 in.)
Paper thickness:
Single paper feed: 0.05
to 0.15 mm (2.0 to 5.9 mils)
Continuous paper feed: 0.06 to 0.15 mm (2.36 to 5.9...

20

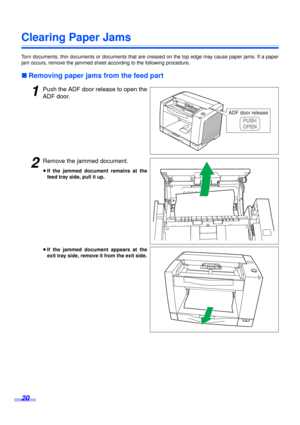

Clearing Paper Jams
Torn documents, thin documents or documents that are creased on the top edge may cause paper jams. If a paper
jam occurs, remove the jammed sheet according to the following procedure.
∫Removing paper jams from the feed part
1Push the ADF door release to open the
ADF door.
2Remove the jammed document.
≥If the jammed document remains at the
feed tray side, pull it up.
≥If the jammed document appears at the
exit tray side, remove it from the exit side.
