Panasonic High Speed Color Scanner Kvs2026c Operating Instructions

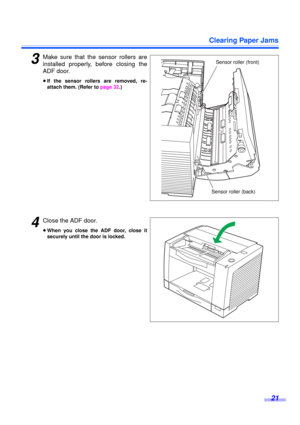

Clearing Paper Jams
21
3Make sure that the sensor rollers are
installed properly, before closing the
ADF door.
≥If the sensor rollers are removed, re-
attach them. (Refer to page 32.)
4Close the ADF door.
≥When you close the ADF door, close it
securely until the door is locked.
Sensor roller (front)
Sensor roller (back)

22

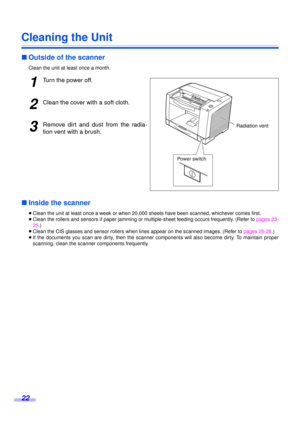

Cleaning the Unit
∫Outside of the scanner
Clean the unit at least once a month.
1Turn the power off.
2Clean the cover with a soft cloth.
3Remove dirt and dust from the radia-
tion vent with a brush.
∫Inside the scanner
≥Clean the unit at least once a week or when 20,000 sheets have been scanned, whichever comes first.
≥Clean the rollers and sensors if paper jamming or multiple-sheet feeding occurs frequently. (Refer to pages 23-
25.)
≥Clean the CIS glasses and sensor rollers when lines appear on the...

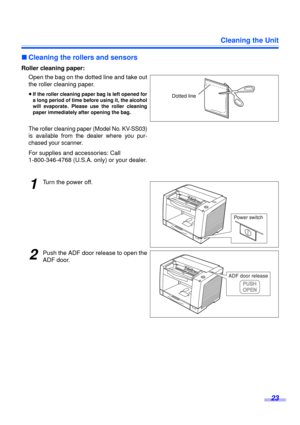

Cleaning the Unit
23
∫Cleaning the rollers and sensors
Roller cleaning paper:
Open the bag on the dotted line and take out
the roller cleaning paper.
≥If the roller cleaning paper bag is left opened for
a long period of time before using it, the alcohol
will evaporate. Please use the roller cleaning
paper immediately after opening the bag.
The roller cleaning paper (Model No. KV-SS03)
is available from the dealer where you pur-
chased your scanner.
For supplies and accessories: Call
1-800-346-4768...

Cleaning the Unit
24

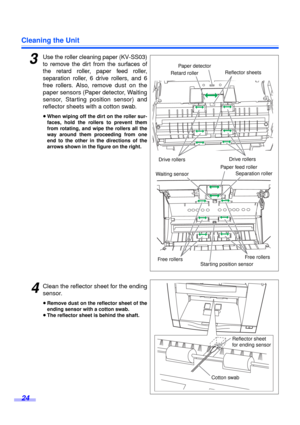

3Use the roller cleaning paper (KV-SS03)
to remove the dirt from the surfaces of
the retard roller, paper feed roller,
separation roller, 6 drive rollers, and 6
free rollers.
 Also, remove dust on the
paper sensors (Paper detector, Waiting
sensor, Starting position sensor) and
reflector sheets with a cotton swab.
≥When wiping off the dirt on the roller sur-
faces, hold the rollers to prevent them
from rotating, and wipe the rollers all the
way around them proceeding from one
end to...

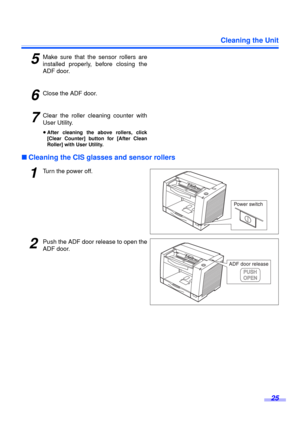

Cleaning the Unit
25
5Make sure that the sensor rollers are
installed properly, before closing the
ADF door.
6Close the ADF door.
7Clear the roller cleaning counter with
User Utility.
≥After cleaning the above rollers, click
[Clear Counter] button for [After Clean
Roller] with User Utility.
∫Cleaning the CIS glasses and sensor rollers
1Turn the power off.
2Push the ADF door release to open the
ADF door.

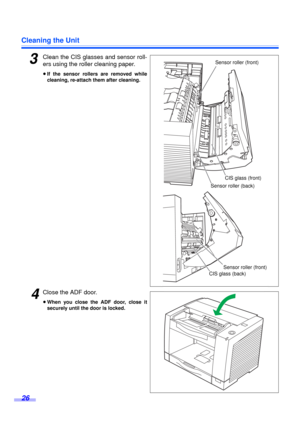

Cleaning the Unit
26
3Clean the CIS glasses and sensor roll-
ers using the roller cleaning paper.
≥If the sensor rollers are removed while
cleaning, re-attach them after cleaning.
4Close the ADF door.
≥When you close the ADF door, close it
securely until the door is locked.
Sensor roller (front)
CIS glass (back)
CIS glass (front)
Sensor roller (back)Sensor roller (front)

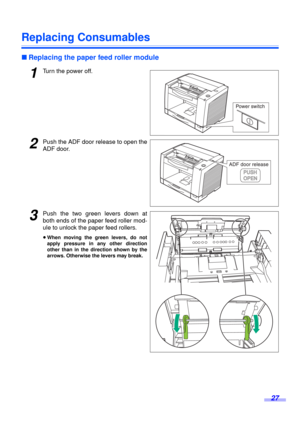

27
Replacing Consumables
∫Replacing the paper feed roller module
1Turn the power off.
2Push the ADF door release to open the
ADF door.
3Push the two green levers down at
both ends of the paper feed roller mod-
ule to unlock the paper feed rollers.
≥When moving the green levers, do not
apply pressure in any other direction
other than in the direction shown by the
arrows. Otherwise the levers may break.

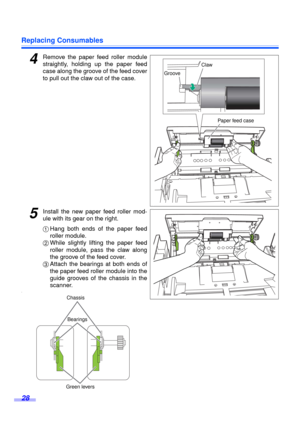

Replacing Consumables
28
4Remove the paper feed roller module
straightly, holding up the paper feed
case along the groove of the feed cover
to pull out the claw out of the case.
5Install the new paper feed roller mod-
ule with its gear on the right.
1Hang both ends of the paper feed
roller module.
2While slightly lifting the paper feed
roller module, pass the claw along
the groove of the feed cover.
3Attach the bearings at both ends of
the paper feed roller module into the
guide grooves of the chassis in...

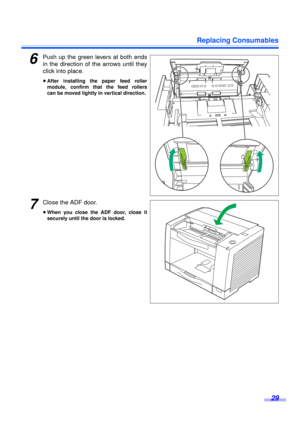

Replacing Consumables
29
6Push up the green levers at both ends
in the direction of the arrows until they
click into place.
≥After installing the paper feed roller
module, confirm that the feed rollers
can be moved lightly in vertical direction.
7Close the ADF door.
≥When you close the ADF door, close it
securely until the door is locked.

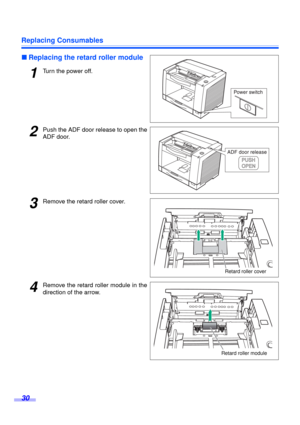

Replacing Consumables
30
∫Replacing the retard roller module
1Turn the power off.
2Push the ADF door release to open the
ADF door.
3Remove the retard roller cover.
4Remove the retard roller module in the
direction of the arrow.
Retard roller cover
Retard roller module
