Panasonic High Speed Color Scanner Kvs3065c Operating Instructions

Model No.   KV-S3065CL / KV-S3065CW
These instructions contain information on operating the scanner. Before reading these
instructions, please read the installation manual enclosed with this unit.
Please carefully read these instructions, the enclosed installation manual and maintenance
manual. Keep all documentation in a safe place for future reference.
Keep the CD-ROM in the protective case. Do not expose the CD-ROM to direct sunlight or
extreme heat and do not scratch or smudge the surface of the...

2 Thank you for purchasing a Panasonic “High Speed Color Scanner.”
≥Panasonic supports your imaging needs with a reliable and easy to use document scanner.
≥ Panasonic has developed Panasonic Image Enhancement Technology to improve the quality of your scanned
images even beyond the quality of your original document.
∫ System requirements
When using the scanner, the required host computer conditions are as follows.
*1Microsoft ®
 Windows  98 operating  system  (hereafter  Windows 98)*2Microsoft Windows...

3
Notice  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   4
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   7
Component Identification  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   10
≥Power turn-on sequence  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   11
≥About LED  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

4
Notice

Roller cleaning paper precautions
Before using the roller cleaning paper, please read these instructions completely. Keep these instructions for future
reference.
Federal Communications Commission Requirements
(For United States only)
Note:This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is...

Notice
5

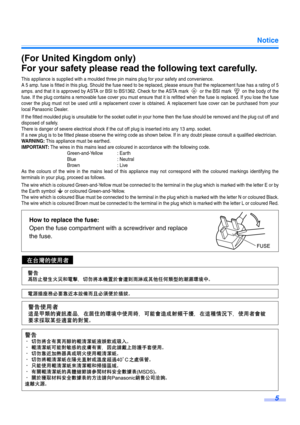

(For United Kingdom only)
For your safety please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for your safety and convenience.
A 5 amp. fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5
amps. and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark   or the BSI mark   on the body of the
fuse. If the plug contains a removable fuse cover you must ensure...

Notice
6

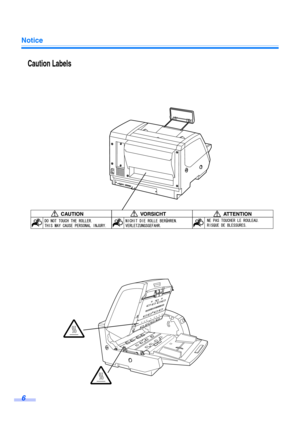

Caution Labels

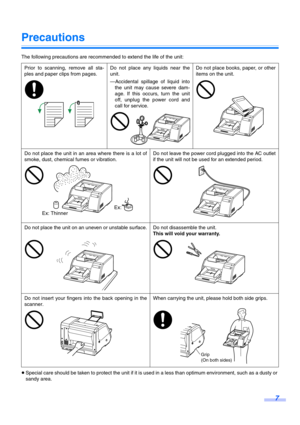

7
Precautions
The following precautions are recommended to extend the life of the unit:
≥Special care should be taken to protect the unit if it is used in a less than optimum environment, such as a dusty or
sandy area. Prior to scanning, remove all sta-
ples and paper clips from pages.Do not place any liquids near the
unit.
—Accidental spillage of liquid into
the unit may cause severe dam-
age. If this occurs, turn the unit
off, unplug the power cord and
call for service.Do not place books, paper, or...

Precautions
8

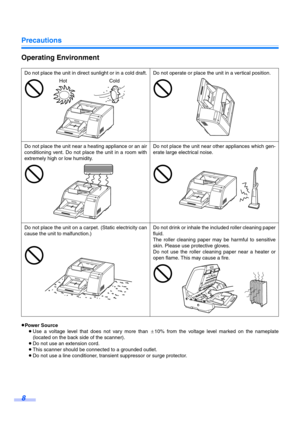

Operating Environment
≥Power Source
≥Use a voltage level that does not vary more than d10% from the voltage level marked on the nameplate
(located on the back side of the scanner).
≥Do not use an extension cord.
≥This scanner should be connected to a grounded outlet.
≥Do not use a line conditioner, transient suppressor or surge protector. Do not place the unit in direct sunlight or in a cold draft. Do not operate or place the unit in a vertical position.
Do not place the unit near a heating...

Precautions
9

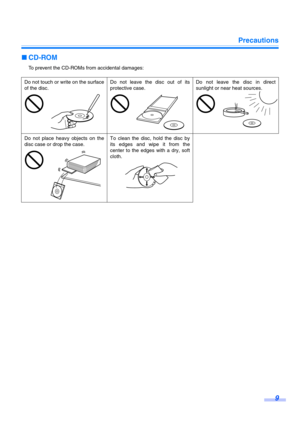

∫CD-ROM
To prevent the CD-ROMs from accidental damages:
Do not touch or write on the surface
of the disc.Do not leave the disc out of its
protective case.Do not leave the disc in direct
sunlight or near heat sources.
Do not place heavy objects on the
disc case or drop the case.To clean the disc, hold the disc by
its edges and wipe it from the
center to the edges with a dry, soft
cloth.

10

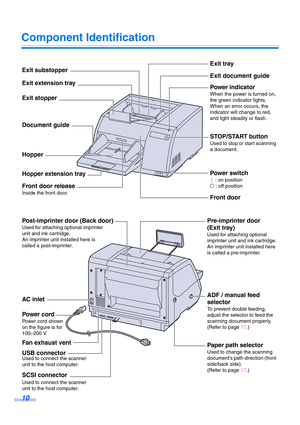

Component Identification
Hopper extension tray
Exit substopper
Exit extension tray
Exit stopper
Document guide
Front door releaseExit document guide
Front door
STOP/START button
Hopper
Inside the front door.Used to stop or start scanning
a document.
Power indicator
When the power is turned on,
the green indicator lights.
When an error occurs, the
indicator will change to red,
and light steadily or flash.
Power switch
 [  : on position
± : off position
Exit tray
AC inlet
Post-imprinter door (Back...
