Component Identification
11

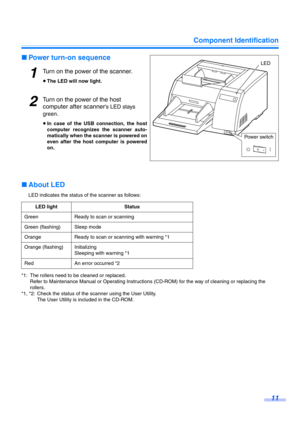

∫Power turn-on sequence
1Turn on the power of the scanner.
≥The LED will now light.
2Turn on the power of the host
computer after scanner
’s LED stays
green
.
≥In case of the USB connection, the host
computer recognizes the scanner auto-
matically when the scanner is powered on
even after the host computer is powered
on.
∫About LED
LED indicates the status of the scanner as follows:
*1: The rollers need to be cleaned or replaced.
Refer to Maintenance Manual or Operating...

Component Identification
12

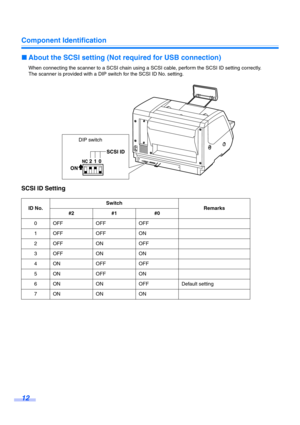

∫About the SCSI setting (Not required for USB connection)
When connecting the scanner to a SCSI chain using a SCSI cable, perform the SCSI ID setting correctly.
The scanner is provided with a DIP switch for the SCSI ID No. setting.
SCSI ID Setting
ID No.Switch
Remarks
#2 #1 #0
0 OFF OFF OFF
1OFF OFF ON
2 OFF ON OFF
3 OFF ON ON
4ON OFF OFF
5ON OFF ON
6 ON ON OFF Default setting
7ON ON ON
DIP switch

13

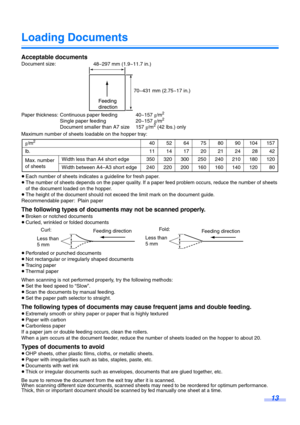

Loading Documents
Acceptable documents
Document size:
Paper thickness: Continuous paper feeding 40~157 g/m
2
Single paper feeding 20~157 g/m2
Document smaller than A7 size 157 g/m2 (42 lbs.) only
Maximum number of sheets loadable on the hopper tray:
≥Each number of sheets indicates a guideline for fresh paper.
≥The number of sheets depends on the paper quality. If a paper feed problem occurs, reduce the number of sheets
of the document loaded on the hopper.
≥The height of the document should not...

Loading Documents
14

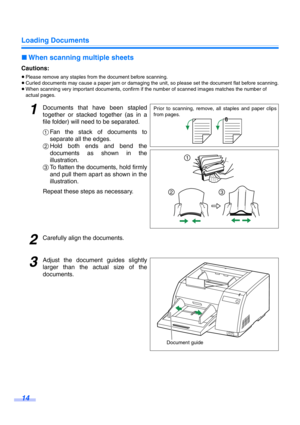

∫When scanning multiple sheets
Cautions:
≥Please remove any staples from the document before scanning.
≥Curled documents may cause a paper jam or damaging the unit, so please set the document flat before scanning.
≥When scanning very important documents, confirm if the number of scanned images matches the number of
actual pages.
1Documents that have been stapled
together or stacked together (as in a
file folder) will need to be separated.
1Fan the stack of documents to
separate all...

Loading Documents
15

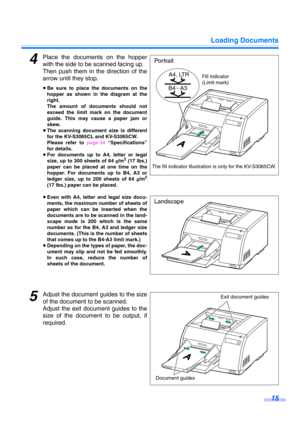

4Place the documents on the hopper
with the side to be scanned facing up.
Then push them in the direction of the
arrow until they stop.
≥Be sure to place the documents on the
hopper as shown in the diagram at the
right.
The amount of documents should not
exceed the limit mark on the document
guide. This may cause a paper jam or
skew.
≥The scanning document size is different
for the KV-S3065CL and KV-S3065CW.
Please refer to page 34 “Specifications”
for details.
≥For documents up to...

Loading Documents
16

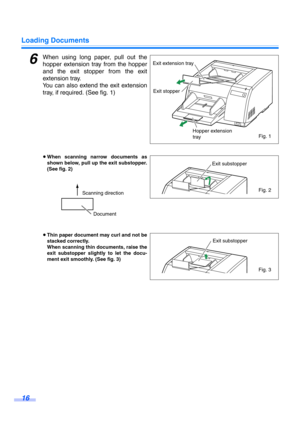

6When using long paper, pull out the
hopper extension tray from the hopper
and the exit stopper from the exit
extension tray.
You can also extend the exit extension
tray, if required. (See fig. 1)
≥When scanning narrow documents as
shown below, pull up the exit substopper.
(See fig. 2)
≥Thin paper document may curl and not be
stacked correctly.
When scanning thin documents, raise the
exit substopper slightly to let the docu-
ment exit smoothly. (See fig. 3)
Exit extension tray
Exit...

17

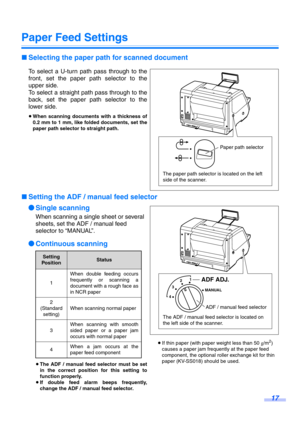

Paper Feed Settings
∫Selecting the paper path for scanned document
To select a U-turn path pass through to the
front, set the paper path selector to the
upper side.
To select a straight path pass through to the
back, set the paper path selector to the
lower side.
≥When scanning documents with a thickness of
0.2 mm to 1 mm, like folded documents, set the
paper path selector to straight path.
∫Setting the ADF / manual feed selector
¥Single scanning
When scanning a single sheet or several
sheets, set...

18
Others

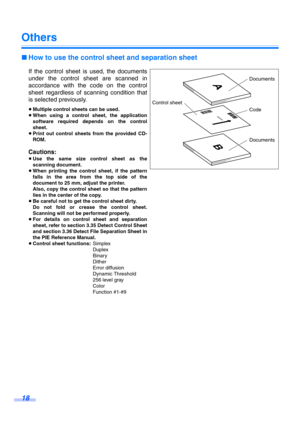

∫How to use the control sheet and separation sheet
If the control sheet is used, the documents
under the control sheet are scanned in
accordance with the code on the control
sheet regardless of scanning condition that
is selected previously.
≥Multiple control sheets can be used.
≥When using a control sheet, the application
software required depends on the control
sheet.
≥Print out control sheets from the provided CD-
ROM.
Cautions:
≥Use the same size control sheet as the
scanning document....

19

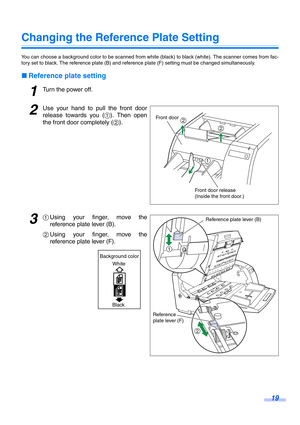

Changing the Reference Plate Setting
You can choose a background color to be scanned from white (black) to black (white). The scanner comes from fac-
tory set to black. The reference plate (B) and reference plate (F) setting must be changed simultaneously.
∫Reference plate setting
1Turn the power off.
2Use your hand to pull the front door
release towards you ( 1). Then open
the front door completely ( 2).
31 Using your finger, move the
reference plate lever (B).
2 Using your finger, move the
reference...

Changing the Reference Plate Setting
20

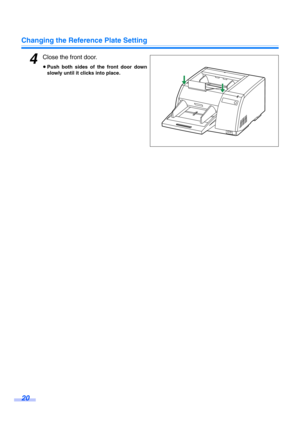

4Close the front door.
≥Push both sides of the front door down
slowly until it clicks into place.
