Panasonic High Speed Color Scanner Kvs7075c Operating Instructions

These instructions contain information on operating the scanner. Before reading these instructions, please read
the installation manual enclosed with this unit.
Please carefully read these instructions and the enclosed installation m\
anual. Keep all documentation in a safe
place for future reference.
 Model No.    KV-S7075C
Operating Manual
High Speed Color Scanner

2
Introduction
Thank you for purchasing a Panasonic High Speed Color Scanner.
∫About the documentation
The scanner documentation consists of 2 manuals: the Installation Manual and the Operating Manual. In addition, 3
software reference manuals are included.
∫Abbreviations
≥Windows® refers to the Microsoft® Windows® operating system (hereafter Windows).
≥ Windows® 2000 refers to the Microsoft® Windows® 2000 operating system (h ereafter Windows 2000).
≥ Windows® XP refers to the Microsoft® Windows® XP...

3
∫
System Requirements
Note
≥The above system requirements may not satisfy the requirements of all operating systems.
≥ The scanning speed differs depending on the host computer’s operating environment or the application used.
≥ Due to the slower speed of USB 1.1, it is recommended to use a USB 2.0 interface.
≥ If you connect the scanner to a USB hub, it is not guaranteed to work.
∫ Federal Communications Commission  Requirements (For United States
only)
Note
This equipment has been tested and found to...

4
For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   5
Precautions . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   9
Component Identification  . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . .   11
≥Power turn-on sequence  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   13
≥ About the power indicator (LED)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

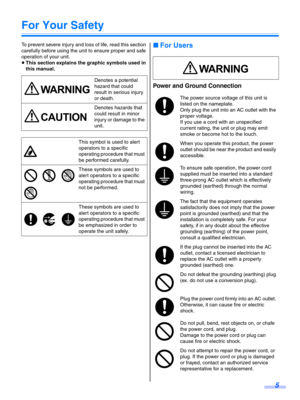

5
For Your Safety
To prevent severe injury and loss of life, read this section
carefully before using the unit to ensure proper and safe
operation of your unit.
≥ This section explains the graphic symbols used in
this manual.∫ For Users
Power and Ground Connection
Denotes a potential
hazard that could
result in serious injury
or death.
Denotes hazards that
could result in minor
injury or damage to the
unit.
This symbol is used to alert
operators to a specific
operating procedure that must
be...

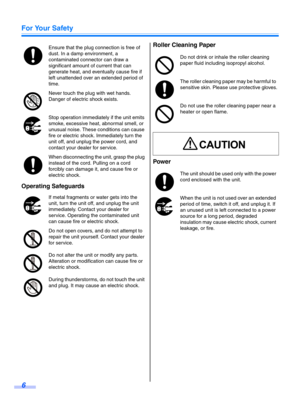

For Your Safety
6
Operating SafeguardsRoller Cleaning Paper
Power
Ensure that the plug connection is free of
dust. In a damp environment, a
contaminated connector can draw a
significant amount of current that can
generate heat, and eventually cause fire if
left unattended over an extended period of
time.
Never touch the plug with wet hands.
Danger of electric shock exists.
Stop operation immediately if the unit emits
smoke, excessive heat, abnormal smell, or
unusual noise. These conditions can...

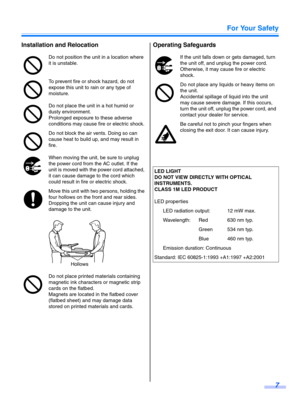

For Your Safety7
Installation and Relocation Operating Safeguards
Do not position the unit in a location where
it is unstable.
To prevent fire or shock hazard, do not
expose this unit to rain or any type of
moisture.
Do not place the unit in a hot humid or
dusty environment.
Prolonged exposure to these adverse
conditions may cause fire or electric shock.
Do not block the air vents. Doing so can
cause heat to build up, and may result in
fire.
When moving the unit, be sure to unplug
the power cord...

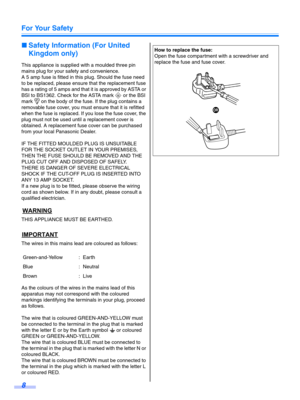

For Your Safety
8
∫Safety Information (For United
Kingdom only)
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5 amp fuse is fitted in this plug. Should the fuse need
to be replaced, please ensure that the replacement fuse
has a rating of 5 amps and that it is approved by ASTA or
BSI to BS1362. Check for the ASTA mark   or the BSI
mark   on the body of the fuse. If the plug contains a
removable fuse cover, you must ensure that it is refitted
when...

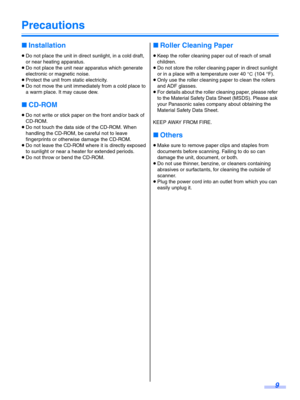

9
Precautions
∫Installation
≥Do not place the unit in direct sunlight, in a cold draft,
or near heating apparatus.
≥ Do not place the unit near apparatus which generate
electronic or magnetic noise.
≥ Protect the unit from static electricity.
≥ Do not move the unit immediately from a cold place to
a warm place. It may cause dew.
∫ CD-ROM
≥Do not write or stick paper on the front and/or back of
CD-ROM.
≥ Do not touch the data side of the CD-ROM. When
handling the CD-ROM, be careful not to leave...

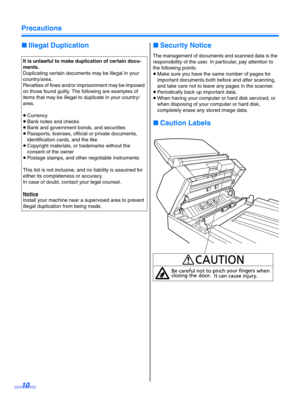

Precautions
10
∫Illegal Duplication ∫Security Notice
The management of documents and scanned data is the
responsibility of the user. In particular, pay attention to
the following points.
≥Make sure you have the same number of pages for
important documents both before and after scanning,
and take care not to leave any pages in the scanner.
≥ Periodically back up important data.
≥ When having your computer or hard disk serviced, or
when disposing of your computer or hard disk,
completely erase any...
