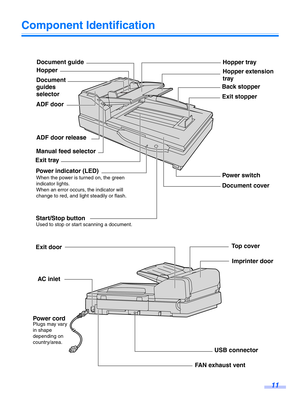

Component Identification
Manual feed selector
Document guide
Hopper
ADF door
ADF door release
Power indicator (LED)Hopper tray
Back stopper Exit stopper
Document cover Power switch
Start/Stop button
Exit tray
When the power is turned on, the green
indicator lights.
When an error occurs, the indicator will
change to red, and light steadily or flash.
Used to stop or start scanning a document.
Document
guides
selector Hopper extension
tray
AC inlet
Imprinter door
Power cord
Top cover
FAN exhaust vent...

Component Identification
12

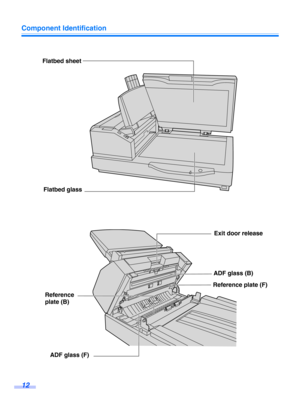

Flatbed sheet
Flatbed glass
Exit door release
ADF glass (B)
Reference plate (F)
Reference
plate (B)
ADF glass (F)

Component Identification13

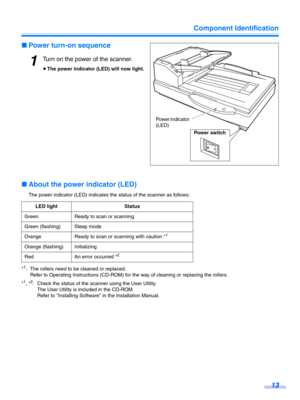

∫Power turn-on sequence
1Turn on the power of the scanner.
≥The power indicator (LED) will now light.
∫ About the power indicator (LED)
The power indicator (LED) indicates the status of the scanner as follows:
*
1: The rollers need to be cleaned or replaced. Refer to Operating Instructions (CD-ROM) for the way of cleaning or replacing the rollers.
*
1, *2: Check the status of the sc anner using the User Utility.
The User Utility is included in the CD-ROM.
Refer to Installing...

14

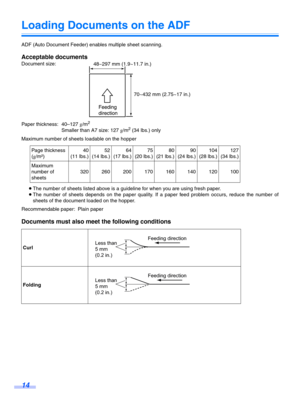

Loading Documents on the ADF
ADF (Auto Document Feeder) enables multiple sheet scanning.
Acceptable documents
Document size:
Paper thickness: 40–127 g/m
2
Smaller than A7 size: 127  g/m2 (34 lbs.) only
Maximum number of sheets loadable on the hopper
≥The number of sheets listed above is a guideline for when you are using fresh paper.
≥ The number of sheets depends on the paper quality. If a paper feed problem occurs, reduce the number of
sheets of the document loaded on the hopper.
Recommendable...

Loading Documents on the ADF15

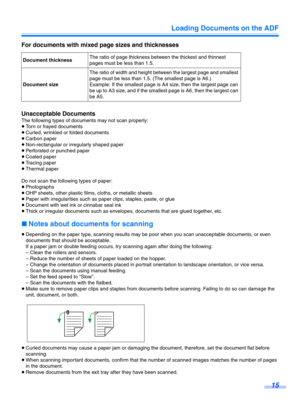

For documents with mixed page sizes and thicknesses
Unacceptable Documents
The following types of documents may not scan properly:
≥Torn or frayed documents
≥ Curled, wrinkled or folded documents
≥ Carbon paper
≥ Non-rectangular or irregularly shaped paper
≥ Perforated or punched paper
≥ Coated paper
≥ Tracing paper
≥ Thermal paper
Do not scan the following types of paper:
≥ Photographs
≥ OHP sheets, other plastic film s, cloths, or metallic sheets
≥ Paper with...

Loading Documents on the ADF
16

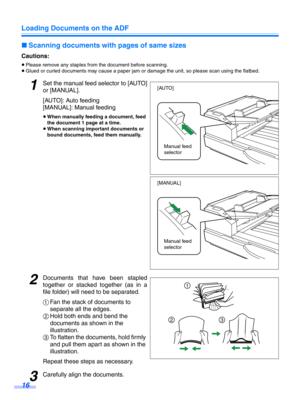

∫Scanning documents with pages of same sizes
Cautions:
≥Please remove any staples from the document before scanning.
≥ Glued or curled documents may cause a paper jam or damage the unit, so please scan using the flatbed.
1Set the manual feed  selector to [AUTO]
or [MANUAL].
[AUTO]: Auto feeding
[MANUAL]: Manual feeding
≥ When manually feeding a document, feed
the document 1 page at a time.
≥ When scanning important documents or
bound documents, feed them manually....

Loading Documents on the ADF17

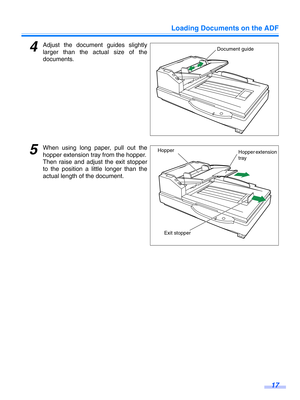

4Adjust the document guides slightly
larger than the actual size of the
documents.
5When using long paper, pull out the
hopper extension tray from the hopper.
Then raise and adjust  the exit stopper
to the position a little longer than the
actual length of the document.
Document guide
Hopper extension
tray
Hopper
Exit stopper

Loading Documents on the ADF
18

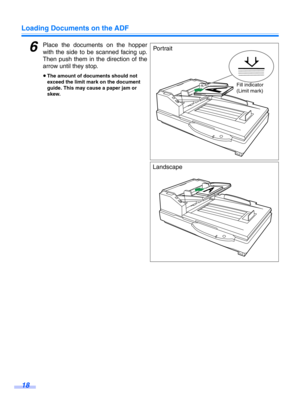

6Place the documents on the hopper
with the side to be scanned facing up.
Then push them in t he direction of the
arrow until they stop.
≥ The amount of documents should not
exceed the limit mark on the document
guide. This may cause a paper jam or
skew.
Fill indicator
(Limit mark)
Po r t ra i t
Landscape

Loading Documents on the ADF19

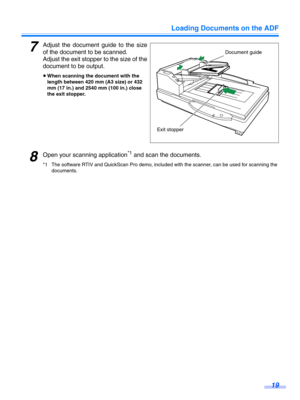

7Adjust the document guide to the size
of the document to be scanned.
Adjust the exit stopper  to the size of the
document to be output.
≥ When scanning the document with the
length between 420 mm (A3 size) or 432
mm (17 in.) and 2540 mm (100 in.) close
the exit stopper.
8Open your scanning application*1 and scan the documents.
*1 The software RTIV and QuickScan Pro demo, included with the scanner, can be used for scanning the
documents.
Document guide
Exit stopper

Loading Documents on the ADF
20

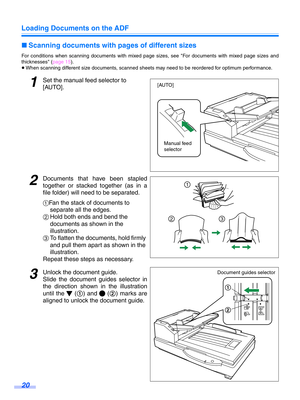

∫Scanning documents with  pages of different sizes
For conditions when scanning documents with mixed pa ge sizes, see For documents with mixed page sizes and
thicknesses ( page 15).
≥ When scanning different size documents, scanned sheets may need to be reordered for optimum performance.
1Set the manual feed selector to
[AUTO].
2Documents that have been stapled
together or stacked together (as in a
file folder) will  need to be separated.
1Fan the stack of documents to...
