Panasonic Hot Water Dispenser Nc Dg3000 Operating Instructions

11
● Do not let the unit fall over. Do not lift, tilt or shake the unit or carry it by the lid.Even when the “Dispense” key is locked, hot water may leak through\
 the dispensing spout
and the steam vent, causing burns, if the unit falls over or is tilted.
● Do not close the lid by force.Hot water can spill causing burns.● Do not pour in water above the maximum
water level indication line.
If the appliance is overfilled, boiling
water may be ejected. Hot water can spill
causing burns.
● Do not boil...

12
● Never do anything that might cause damage to
the cord, power plug or body plug.
Do not damage them, modify them, place hot
objects near to them, bend them, twist them,
stretch them, place heavy objects on them, or
bundle them together.
If the unit is used when damaged, electrical short
circuit or fire may cause.
●   If the supply cord becomes damaged, the cord must be replaced. Refer servicing to an authorized
service center, as described in the warranty.
● Do not connect or disconnect the...

13
During use
Power Cord
To Prevent Burns
● Do not place the unit on unstable surfaces.The appliance may topple over causing burns.
● Do not open the lid or dispense hot water while boiling.Splashing hot water or steam may cause burns.
● Do not rotate the unit while dispensing hot water.Splashing hot water may cause burns.
● Do not use Electric and Air dispenses at the same time.Hot water may splash causing burns.
● Do not touch the hot parts of the unit during use or shortly after use.This may cause...

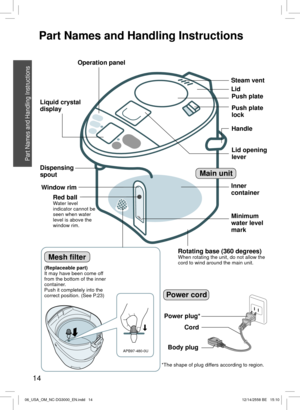

14
Part Names and Handling Instructions
Operation panel Push plate
lock
Lid opening
lever Push plate
Steam vent
Lid
Handle
Inner
container
Minimum
water level
mark
Window rim Red ball
Water level
indicator cannot be
seen when water
level is above the
window rim.
Rotating base (360 degrees)When rotating the unit, do not allow the
cord to wind around the main unit.
Dispensing
spout
Liquid crystal
display
Main unit
Mesh filter Power cord
Power plug*
Cord
Body plug
*The shape of plug differs...

15
How to Remove the Lid
Overheating Protection
To closePress down until hearing “click” sound.To attachInsert the lid slantwise.
How to cancel the display
Supply water into the container,
and press
 key.
160 180 190 208
Notice
Press and lift the lid opening
lever to open the lid. Pull it up slantwise while pressing
the lid release lever.
Lid opening lever
Lid release
lever
Flashing alternately
If an empty inner container is heated, the overheat safety function (wh\
ich prevents an
empty inner...

16
How to Use
How to reduce the chlorine in the water
Press  key to make the indicator
light  flash. (Long Boil mode)
Press one time while water is being boiled, and
press twice while water is being kept warm.
Extends the boiling time by about 6 minutes to
reduce the chlorine by about 80% in the water.
● Press  key again to boil.
Before you use this unit for the  first time
1Pour in water with another container
to the maximum level.
2Close the lid securely.
3Boil the water until VIP keep warm
light...

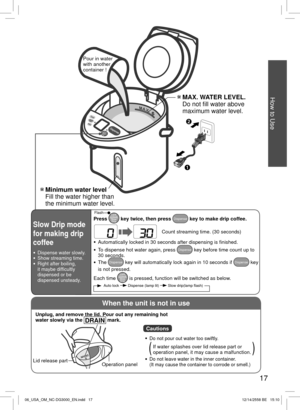

17
When the unit is not in use
Cautions
● Do not pour out water too swiftly.
If water splashes over lid release part or
operation panel, it may cause a malfunction.
● Do not leave water in the inner container.
(It may cause the container to corrode or smell.)
Unplug, and remove the lid. Pour out any remaining hot
water slowly via the
DRAIN mark.
Lid release partOperation panel
w MAX. WATER LEVEL.
 Do not  fill water above
maximum water level.
w  Minimum water level
  Fill the water higher than  the...

160 180 190 208
160 180 190 208
160 180 190 208
160180
190
208
160 180 190 208
160 180 190 208
160 180 190 208
Time required to reach the settled
keep-warm temperature
 keep-warm : approx. 2-4 min keep-warm : approx. 2-2.5 hours keep-warm : approx. 3.5-4.5 hours
Amout of water: Maximum
Room temperature: 68°F (20°C)
Previous keep-warm setting:190°F
Cancel
18
Convenient use methods
Setting the TimerWhen the unit will not be used for a short
time, such as when you go out for the day...

● Each time  key...

160 180 190 208
160 180 190 208

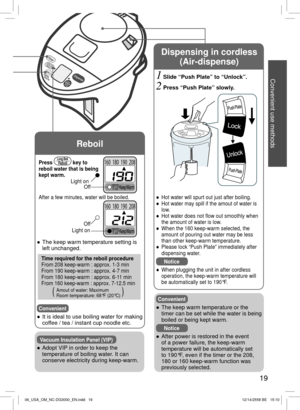

19
Light onLight on Off
Off
Press
 key to
reboil water that is being
kept warm.
After a few minutes, water will be boiled.
Convenient

● The keep warm temperature or the
timer can be set while the water is being
boiled or being kept warm.
Notice

● After power is restored in the event
of a power failure, the keep-warm
temperature will be automatically set
to 190°F, even if the timer or the 208,
180 or 160 keep-warm function was
previously selected.
Convenient...

20
Daily Maintenance
Clean with a damp, well-wrung cloth.● Do not wet or soak the main unit in water.If water enters the main unit from the bottom or from the dispensing
spout, it can also get into the electrical components in the main unit
and may cause a malfunction.
Main unit and lid
Clean the filter with a brush.When filter is clogged, water does not flow
smoothly.
*After cleaning the  filter, be sure to reattach it to
the inner container.
Mesh filter
Clean with a wet soft sponge.● Do not use...
