Panasonic Kx Fp215 Operating Instruction Manual

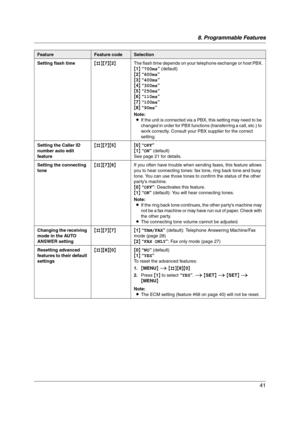

8. Programmable Features
41
Setting flash time{#}{7}{2}The flash time depends on your telephone exchange or host PBX.
{1} “700ms” (default)
{2} “600ms”
{3} “400ms”
{4} “300ms”
{5} “250ms”
{6} “110ms”
{7} “100ms”
{8} “90ms”
Note:
LIf the unit is connected via a PBX, this setting may need to be
changed in order for PBX functions (transferring a call, etc.) to
work correctly. Consult your PBX supplier for the correct
setting.
Setting the Caller ID
number auto edit
feature{#}{7}{5}{0} “OFF”
{1} “ON”...

9. Help
42
For assistance, please visit http://www.panasonic.com/help
9Help

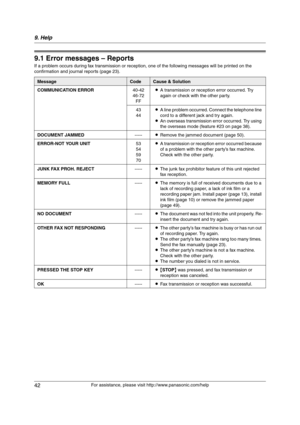

9.1 Error messages – Reports
If a problem occurs during fax transmission or reception, one of the following messages will be printed on the
confirmation and journal reports (page 23).
MessageCodeCause & Solution
COMMUNICATION ERROR40-42
46-72
FFLA transmission or reception error occurred. Try
again or check with the other party.
43
44LA line problem occurred. Connect the telephone line
cord to a different jack and try...

9. Help
43
For assistance, please visit http://www.panasonic.com/help

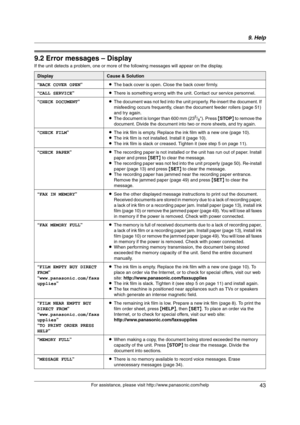

9.2 Error messages – Display
If the unit detects a problem, one or more of the following messages will appear on the display.
DisplayCause & Solution
“BACK COVER OPEN”LThe back cover is open. Close the back cover firmly.
“CALL SERVICE”LThere is something wrong with the unit. Contact our service personnel.
“CHECK DOCUMENT”LThe document was not fed into the unit properly. Re-insert the document. If
misfeeding occurs frequently, clean...

9. Help
44
For assistance, please visit http://www.panasonic.com/help

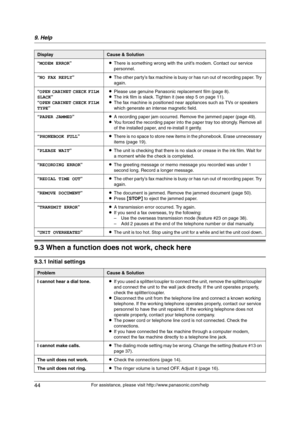

Troublesh ooting
9.3 When a function does not work, check here
9.3.1 Initial settings
“MODEM ERROR”LThere is something wrong with the unit’s modem. Contact our service
personnel.
“NO FAX REPLY”LThe other party’s fax machine is busy or has run out of recording paper. Try
again.
“OPEN CABINET CHECK FILM
SLACK”
“OPEN CABINET CHECK FILM
TYPE”LPlease use genuine Panasonic replacement film (page 8).
LThe ink film is slack. Tighten it...

9. Help
45
For assistance, please visit http://www.panasonic.com/help

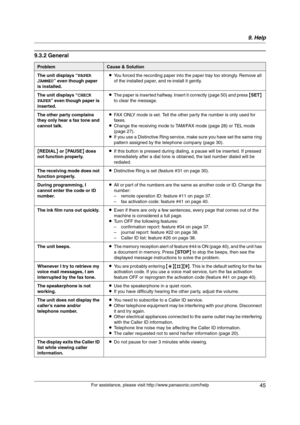

9.3.2 General
ProblemCause & Solution
The unit displays “PAPER
JAMMED” even though paper
is installed.LYou forced the recording paper into the paper tray too strongly. Remove all
of the installed paper, and re-install it gently.
The unit displays “CHECK
PAPER” even though paper is
inserted.LThe paper is inserted halfway. Insert it correctly (page 50) and press {SET}
to clear the message.
The other party complains
they only hear...

9. Help
46
For assistance, please visit http://www.panasonic.com/help

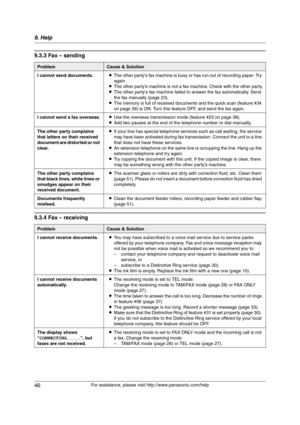

9.3.3 Fax – sending
9.3.4 Fax – receiving
ProblemCause & Solution
I cannot send documents.LThe other party’s fax machine is busy or has run out of recording paper. Try
again.
LThe other party’s machine is not a fax machine. Check with the other party.
LThe other party’s fax machine failed to answer the fax automatically. Send
the fax manually (page 23).
LThe memory is full of received documents and the quick scan (feature #34
on...

9. Help
47
For assistance, please visit http://www.panasonic.com/help

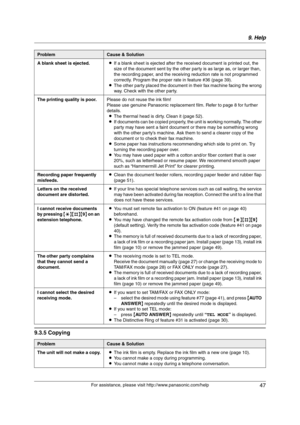

9.3.5 Copying
A blank sheet is ejected.LIf a blank sheet is ejected after the received document is printed out, the
size of the document sent by the other party is as large as, or larger than,
the recording paper, and the receiving reduction rate is not programmed
correctly. Program the proper rate in feature #36 (page 39).
LThe other party placed the document in their fax machine facing the wrong
way. Check with the other party....

9. Help
48
For assistance, please visit http://www.panasonic.com/help
9.3.6 Answering machine
9.3.7 If a power failure occurs
LThe unit will not function.
LThe unit is not designed for making emergency telephone calls when the power fails. Alternative arrangements
should be made for access to emergency services.
LFax transmission and reception will be interrupted.
LIf delayed transmission (feature #25 on page 38) is programmed and a power failure prevents the document from
being sent at the set time,...

10. Maintenance
49
10 Maintena nce Jams

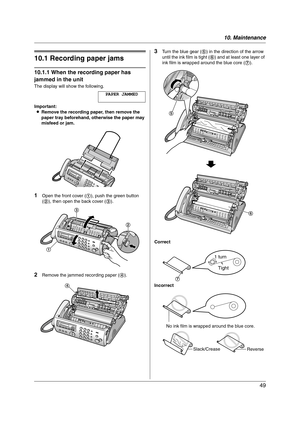

10.1 Recording paper jams
10.1.1 When the recording paper has
jammed in the unit
The display will show the following.
PAPER JAMMED
Important:
LRemove the recording paper, then remove the
paper tray beforehand, otherwise the paper may
misfeed or jam.
1Open the front cover (1), push the green button
(2), then open the back cover (3).
2Remove the jammed recording paper (4).
3Turn the blue gear (5) in the direction of the arrow
until the ink film is tight (6) and...

10. Maintenance
50

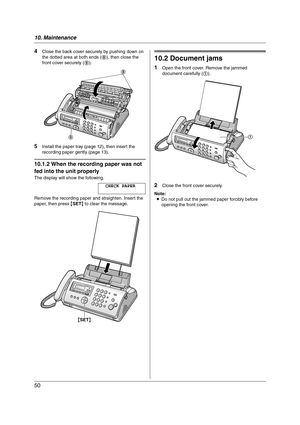

4Close the back cover securely by pushing down on
the dotted area at both ends (8), then close the
front cover securely (9).
5Install the paper tray (page 12), then insert the
recording paper gently (page 13).
10.1.2 When the recording paper was not
fed into the unit properly
The display will show the following.
CHECK PAPER
Remove the recording paper and straighten. Insert the
paper, then press {SET} to clear the message.
10.2 Document jams
1Open the front cover. Remove the jammed...
