Panasonic Kx Vc300 Operating Manual

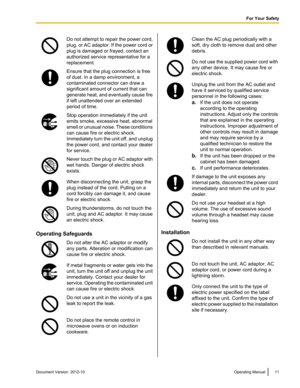

Do not attempt to repair the power cord,
plug, or AC adaptor. If the power cord or
plug is damaged or frayed, contact an
authorized service representative for a
replacement.Ensure that the plug connection is free
of dust. In a damp environment, a
contaminated connector can draw a
significant amount of current that can
generate heat, and eventually cause fire
if left unattended over an extended
period of time.Stop operation immediately if the unit
emits smoke, excessive heat, abnormal
smell or unusual...

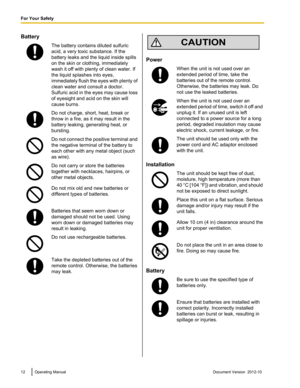

BatteryThe battery contains diluted sulfuric
acid, a very toxic substance. If the
battery leaks and the liquid inside spills
on the skin or clothing, immediately
wash it off with plenty of clean water. If
the liquid splashes into eyes,
immediately flush the eyes with plenty of
clean water and consult a doctor.
Sulfuric acid in the eyes may cause loss
of eyesight and acid on the skin will
cause burns.Do not charge, short, heat, break or
throw in a fire, as it may result in the
battery leaking, generating...

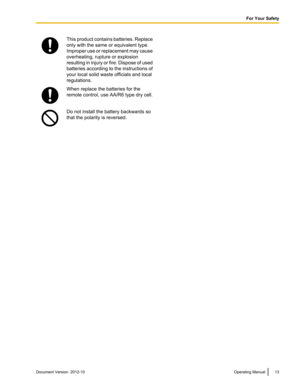

This product contains batteries. Replace
only with the same or equivalent type.
Improper use or replacement may cause
overheating, rupture or explosion
resulting in injury or fire. Dispose of used
batteries according to the instructions of
your local solid waste officials and local
regulations.When replace the batteries for the
remote control, use AA/R6 type dry cell.Do not install the battery backwards so
that the polarity is reversed.Document Version  2012-10  Operating Manual13
For Your Safety

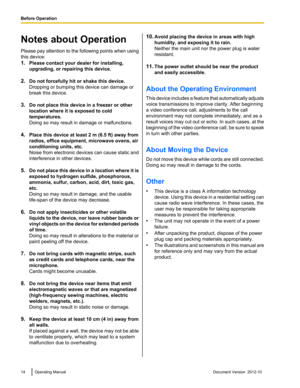

Notes about Operation
Please pay attention to the following points when using
this device:
1. Please contact your dealer for installing,
upgrading, or repairing this device.
2. Do not forcefully hit or shake this device.
Dropping or bumping this device can damage or
break this device.
3. Do not place this device in a freezer or other
location where it is exposed to cold
temperatures.
Doing so may result in damage or malfunctions.
4. Place this device at least 2 m (6.5 ft) away from
radios, office...

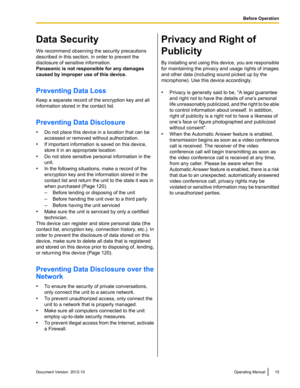

Data Security
We recommend observing the security precautions
described in this section, in order to prevent the
disclosure of sensitive information.
Panasonic is not responsible for any damages
caused by improper use of this device.
Preventing Data Loss
Keep a separate record of the encryption key and all
information stored in the contact list.
Preventing Data Disclosure
• Do not place this device in a location that can be
accessed or removed without authorization.
• If important information is saved on...

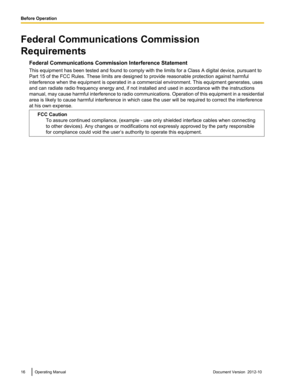

Federal Communications Commission
Requirements Federal Communications Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with...

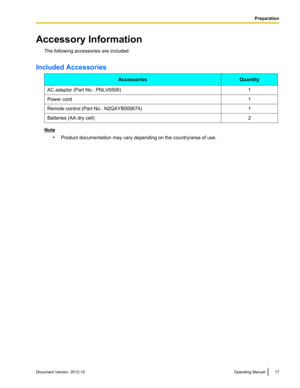

Accessory InformationThe following accessories are included:
Included AccessoriesAccessoriesQuantityAC adaptor (Part No.: PNLV6506)1Power cord1Remote control (Part No.: N2QAYB000674)1Batteries (AA dry cell)2
Note •Product documentation may vary depending on the country/area of use.
Document Version  2012-10  Operating Manual17Preparation
Preparation

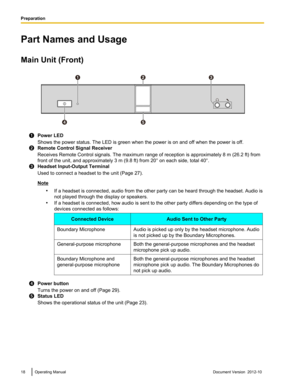

Part Names and Usage
Main Unit (Front)
Power LED
Shows the power status. The LED is green when the power is on and off when the power is off.
Remote Control Signal Receiver
Receives Remote Control signals. The maximum range of reception is approximately 8 m (26.2 ft) from
front of the unit, and approximately 3 m (9.8 ft) from 20° on each side, total 40°.
Headset Input-Output Terminal
Used to connect a headset to the unit (Page 27).
Note
•If a headset is connected, audio from the other party can be heard...

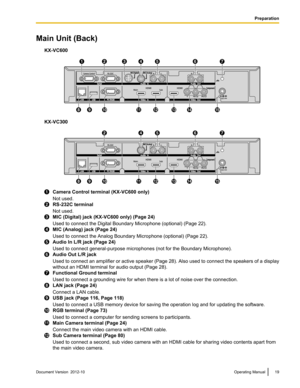

Main Unit (Back)KX-VC600
KX-VC300
Camera Control terminal (KX-VC600 only)
Not used.
RS-232C terminal
Not used.
MIC (Digital) jack (KX-VC600 only) (Page 24)
Used to connect the Digital Boundary Microphone (optional) (Page 22).
MIC (Analog) jack (Page 24)
Used to connect the Analog Boundary Microphone (optional) (Page 22).
Audio In L/R jack (Page 24)
Used to connect general-purpose microphones (not for the Boundary Microphone).
Audio Out L/R jack
Used to connect an amplifier or active speaker ( Page 28)....

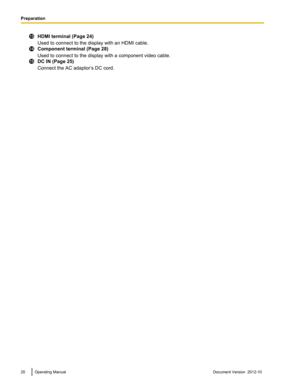

HDMI terminal (Page 24)
Used to connect to the display with an HDMI cable.
Component terminal (Page 28)
Used to connect to the display with a component video cable.
DC IN (Page 25)
Connect the AC adaptor’s DC cord.
20Operating ManualDocument Version  2012-10
