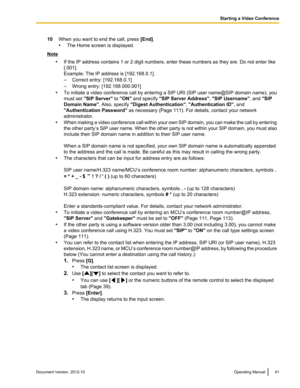

10When you want to end the call, press [End].
• The Home screen is displayed.Note
•If the IP address contains 1 or 2 digit numbers, enter these numbers as they are. Do not enter like
[.001].
Example: The IP address is [192.168.0.1].
– Correct entry: [192.168.0.1]
– Wrong entry: [192.168.000.001]
• To initiate a video conference call by entering a SIP URI (SIP user name@SIP domain name), you
must set  "SIP Server"  to "ON"  and specify  "SIP Server Address" , "SIP Username"...

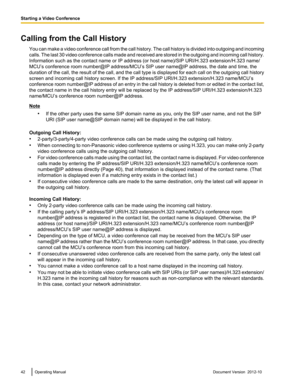

Calling from the Call HistoryYou can make a video conference call from the call history. The call history is divided into outgoing and incoming
calls. The last 30 video conference calls made and received are stored in the outgoing and incoming call history.
Information such as the contact name or IP address (or host name)/SIP URI/H.323 extension/H.323 name/
MCU’s conference room number@IP address/MCU’s SIP user name@IP address, the date and time, the
duration of the call, the result of the call, and the...

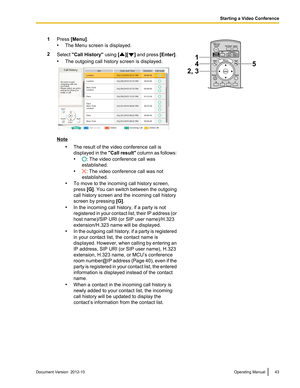

1Press [Menu] .
• The Menu screen is displayed.2Select  "Call History"  using [][] and press  [Enter].
• The outgoing call history screen is displayed.
Note
•The result of the video conference call is
displayed in the  "Call result " column as follows:
•
: The video conference call was
established.
•
: The video conference call was not
established.
• To move to the incoming call history screen,
press  [G]. You can switch between the outgoing
call history screen and the incoming call...

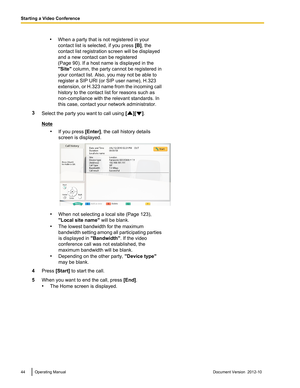

•When a party that is not registered in your
contact list is selected, if you press  [B], the
contact list registration screen will be displayed
and a new contact can be registered
(Page 90). If a host name is displayed in the
"Site"  column, the party cannot be registered in
your contact list. Also, you may not be able to
register a SIP URI (or SIP user name), H.323
extension, or H.323 name from the incoming call
history to the contact list for reasons such as
non-compliance with the relevant...

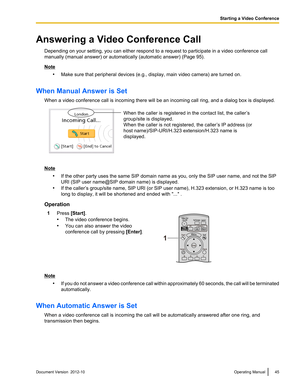

Answering a Video Conference CallDepending on your setting, you can either respond to a request to participate in a video conference call
manually (manual answer) or automatically (automatic answer) (Page 95).
Note
•Make sure that peripheral devices (e.g., display, main video camera) are turned on.
When Manual Answer is Set When a video conference call is incoming there will be an incoming call ring, and a dialog box is displayed.
Note•If the other party uses the same SIP domain name as you, only the SIP...

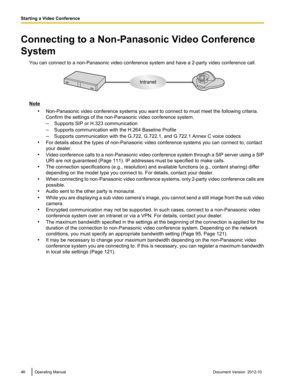

Connecting to a Non-Panasonic Video Conference
System You can connect to a non-Panasonic video conference system and have a 2-party video conference call.
Note•Non-Panasonic video conference systems you want to connect to must meet the following criteria.
Confirm the settings of the non-Panasonic video conference system.
– Supports SIP or H.323 communication
– Supports communication with the H.264 Baseline Profile
– Supports communication with the G.722, G.722.1, and G.722.1 Annex C voice codecs
• For...

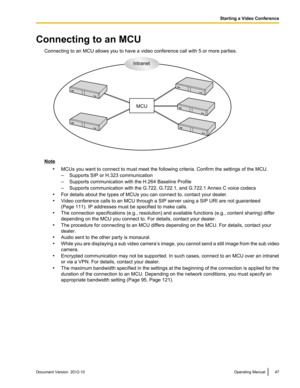

Connecting to an MCUConnecting to an MCU allows you to have a video conference call with 5 or more parties.
Note•MCUs you want to connect to must meet the following criteria. Confirm the settings of the MCU.
– Supports SIP or H.323 communication
– Supports communication with the H.264 Baseline Profile
– Supports communication with the G.722, G.722.1, and G.722.1 Annex C voice codecs
• For details about the types of MCUs you can connect to, contact your dealer.
• Video conference calls to an MCU through a...

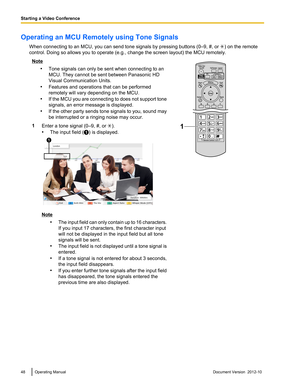

Operating an MCU Remotely using Tone SignalsWhen connecting to an MCU, you can send tone signals by pressing buttons (0–9, #, or
) on the remote
control. Doing so allows you to operate (e.g., change the screen layout) the MCU remotely.
Note
•Tone signals can only be sent when connecting to an
MCU. They cannot be sent between Panasonic HD
Visual Communication Units.
• Features and operations that can be performed
remotely will vary depending on the MCU.
• If the MCU you are connecting to does not support...

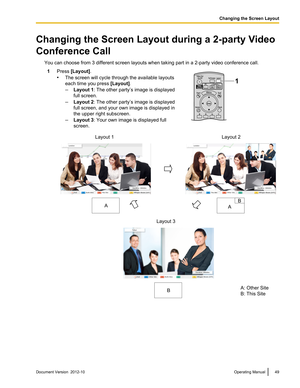

Changing the Screen Layout during a 2-party Video
Conference Call You can choose from 3 different screen layouts when taking part in a 2-party video conference call.1Press  [Layout] .
• The screen will cycle through the available layouts
each time you press  [Layout].
– Layout 1 : The other party’s image is displayed
full screen.
– Layout 2 : The other party’s image is displayed
full screen, and your own image is displayed in
the upper right subscreen.
– Layout 3 : Your own image is displayed full...

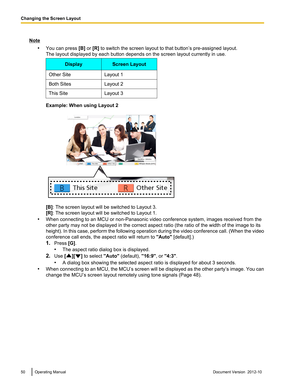

Note•You can press  [B] or  [R] to switch the screen layout to that button’s pre-assigned layout.
The layout displayed by each button depends on the screen layout currently in use.DisplayScreen LayoutOther SiteLayout 1Both SitesLayout 2This SiteLayout 3
Example: When using Layout 2
[B] : The screen layout will be switched to Layout 3.
[R] : The screen layout will be switched to Layout 1.
• When connecting to an MCU or non-Panasonic video conference system, images received from the
other party may not be...
