Panasonic Lcd Display Th 32lhd7 Operating Instructions

11

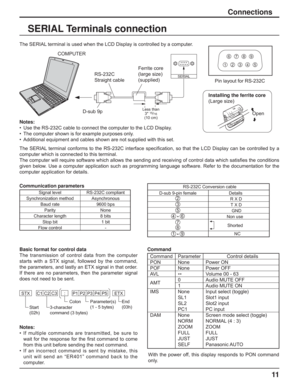

Connections
SERIAL Terminals connection
Notes:
•  Use the RS-232C cable to connect the computer to the LCD Display.
•  The computer shown is for example purposes only.
•  Additional equipment and cables shown are not supplied with this set.
The SERIAL terminal conforms to the RS-232C interface specifi cation, so that the LCD Display can be controlled by a
computer which is connected to this terminal.
The computer will require software which allows the sending and receiving of control data which satisfi...

12

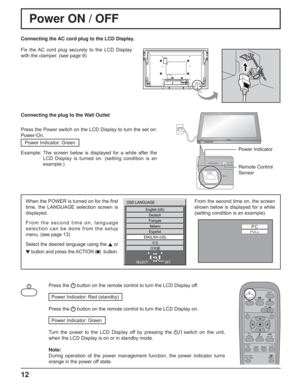

Power ON / OFF
When the POWER is turned on for the fi rst
time, the LANGUAGE selection screen is
displayed.
From the second time on, language
selection can be done from the setup
menu. (see page 13)
Select the desired language using the

or

button and press the ACTION (  )
button.From the second time on, the screen
shown below is displayed for a while
(setting condition is an example).
English (UK)
Deutsch
Français
Italiano
Español
ENGLISH (US)
OSD LANGUAGE
SELECT SET
PCFULL...

13

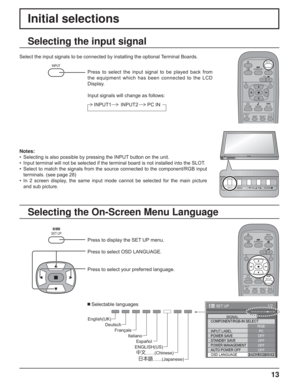

Initial selections
Selecting the On-Screen Menu Language Selecting the input signal
Press to display the SET UP menu.
Press to select OSD LANGUAGE.
Press to select your preferred language.
   Selectable languages
1/2
PC
OFF
STANDBY SAVE
OFF
POWER MANAGEMENTOFF
AUTO POWER OFF
OFF
OSD LANGUAGEENGLISH (
US) COMPONENT/RGB-IN SELECT
RGB
INPUT LABELSIGNAL
POWER SAVE
SET UP
Select the input signals to be connected by installing the optional Terminal Boards.
Press to select the input signal to be played back...

14

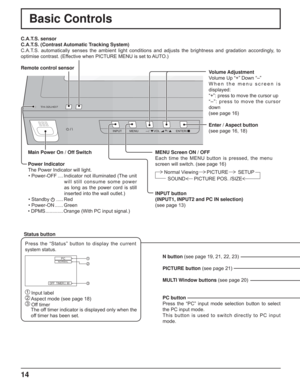

INPUT MENU ENTER/+/ VOL-/
TH-32LHD7
Main Power On / Off Switch
Power Indicator
The Power Indicator will light.
• Power-OFF .... Indicator not illuminated (The unit
will still consume some power
as long as the power cord is still
inserted into the wall outlet.)
• Standby
    ..... Red
• Power-ON ...... Green
• DPMS ............. Orange (With PC input signal.)Volume Adjustment
Volume Up “+” Down “–”
When the menu screen is
displayed:
“+”: press to move the cursor up
“–”: press to move the cursor...

15
DISPLAY
INPUT
SURROUND
VOL
NR
SOUNDSET UP
ASPECT PICTURE
POS. /SIZE
OFF TIMER
PC
MULTI
PIPSWAPSELECTMOVEZOOM

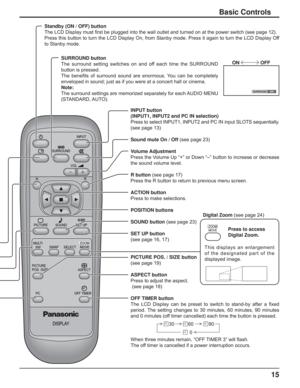

Basic Controls
SURROUND button
The surround setting switches on and off each time the SURROUND
button is pressed.
The benefi ts of surround sound are enormous. You can be completely
enveloped in sound; just as if you were at a concert hall or cinema.
Note:
The surround settings are memorized separately for each AUDIO MENU
(STANDARD, AUTO). Standby (ON / OFF) button
The LCD Display...

16
DISPLAY
INPUT
SURROUND
VOL
NR
SOUNDSET UP
ASPECT PICTURE
POS. /SIZE
OFF TIMER
PC
MULTI
PIPSWAPSELECTMOVEZOOM
Normal Viewing PICTURE SETUP
SOUNDPICTURE POS. /SIZE

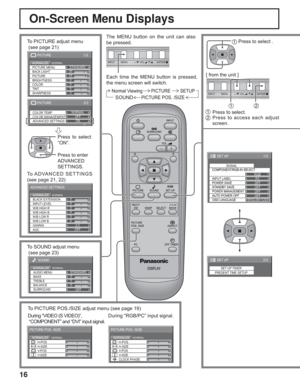

On-Screen Menu Displays
The MENU button on the unit can also
be pressed.
Each time the MENU button is pressed,
the menu screen will switch.
0
0
0
0
0
0
2.2 W/B LOW B BLACK EXTENSION
W/B HIGH B
W/B LOW R
AGC GAMMA INPUT LEVEL
W/B HIGH R
ADVANCED SETTINGS
NORMALNORMALIZE
OFF
0
0
0
SOUND
NORMALNORMALIZESTANDARD
OFF TREBLE AUDIO MENU...

17

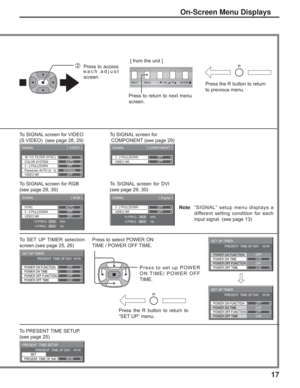

To SIGNAL screen for RGB
(see page 29, 30) To SIGNAL screen for VIDEO
(S VIDEO)  (see page 28, 29)To SIGNAL screen for
 COMPONENT (see page 29)
2  Press to access
each adjust
screen.
Press the R button to return
to previous menu.
Press the R button to return to
“SET UP” menu. Press to select POWER ON
TIME / POWER OFF TIME.
Press to set up POWER
ON TIME/ POWER OFF
TIME. To SET UP TIMER selection
screen.(see page 25, 26)
To PRESENT TIME SETUP.
(see page 25)Press to return to next menu...

18

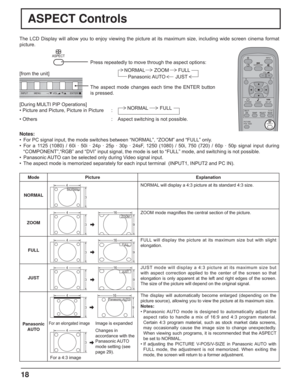

ASPECT Controls
The LCD Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format
picture.
Press repeatedly to move through the aspect options:
Notes:
•  For PC signal input, the mode switches between “NORMAL”, “ZOOM” and “FULL” only.
•  For a 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p signal input during
“COMPONENT”,“RGB” and “DVI” input signal, the mode is set to “FULL” mode, and switching is not...

19

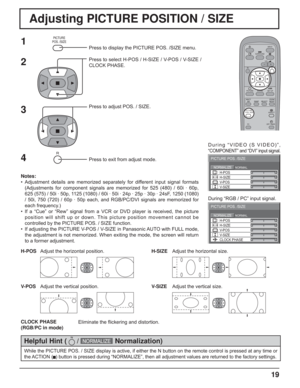

Adjusting PICTURE POSITION / SIZE
NORMALNORMALIZE
PICTURE POS. /SIZE
V-POS H-POS
V-SIZEH-SIZE
CLOCK PHASE
1Press to display the PICTURE POS. /SIZE menu.
Press to select H-POS / H-SIZE / V-POS / V-SIZE /
CLOCK PHASE.
Press to adjust POS. / SIZE.
Press to exit from adjust mode.During “VIDEO (S VIDEO)”,
“COMPONENT” and “DVI” input signal.
During “RGB / PC” input signal.
3 2
Notes:
• Adjustment details are memorized separately for different input signal formats
(Adjustments for component signals are...

20
MULTI
PIPMULTI
PIPMULTI
PIP
ABABAB
BABABA
PC1
VIDEO2SELECT
SWAPSWAPSWAP
PC1
VIDEO2
VIDEO2
VIDEO1PC1
VIDEO2
A
A
A
CB
B
B
D

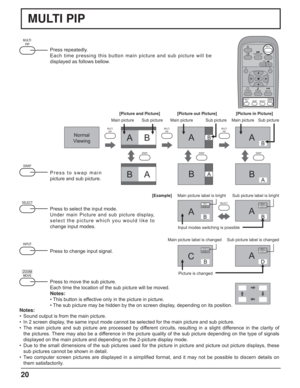

MULTI PIP
Press repeatedly.
Each time pressing this button main picture and sub picture will be
displayed as follows bellow.
Press to swap main
picture and sub picture.
Press to select the input mode.
Under main Picture and sub picture display,
select the picture which you would like to
change input modes.
Press to move the sub picture.
Each time the location of the sub picture...
