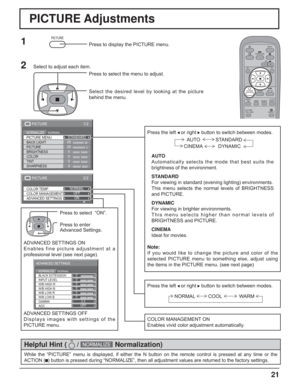

Page 21
21 2/2 ADVANCED SETTINGS COLOR TEMP COLOR MANAGEMENTNORMAL OFF ON PICTURE 1/2 25 0 0 0 320 PICTURE NORMALNORMALIZESTANDARD BRIGHTNESS SHARPNESS PICTURE MENU COLOR PICTURE BACK LIGHT TINT Press to select “ON”. Press the left or right button to switch between modes. AUTO Automatically selects the mode that best suits the brightness of the environment. STANDARD For viewing in standard (evening lighting) environments. This menu selects the normal levels of BRIGHTNESS and PICTURE. DYNAMIC For...

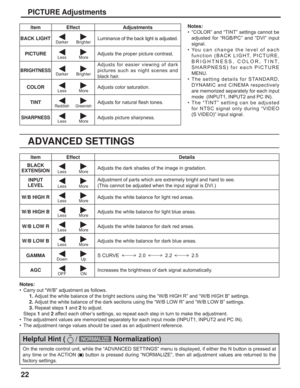

Page 22
22 PICTURE Adjustments ADVANCED SETTINGS Notes: • “COLOR” and “TINT” settings cannot be adjusted for “RGB/PC” and “DVI” input signal. • You can change the level of each function (BACK LIGHT, PICTURE, BRIGHTNESS, COLOR, TINT, SHARPNESS) for each PICTURE MENU. • The setting details for STANDARD, DYNAMIC and CINEMA respectively are memorized separately for each input mode (INPUT1, INPUT2 and PC IN). • The “TINT” setting can be adjusted for NTSC signal only during “VIDEO (S VIDEO)” input...

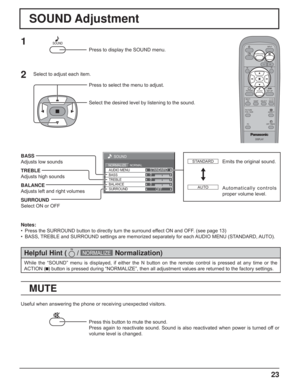

Page 23
23 0 0 0 SOUND NORMALNORMALIZESTANDARD OFF TREBLE AUDIO MENU BALANCEBASS SURROUND SOUND Adjustment MUTE BASS Adjusts low sounds TREBLE Adjusts high sounds BALANCE Adjusts left and right volumes SURROUND Select ON or OFF Notes: • Press the SURROUND button to directly turn the surround effect ON and OFF. (see page 13) • BASS, TREBLE and SURROUND settings are memorized separately for each AUDIO MENU (STANDARD, AUTO). 1 Press to display the SOUND menu. Press to select the menu to adjust. Select the...

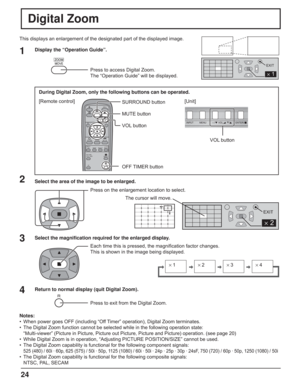

Page 24
24 Digital Zoom This displays an enlargement of the designated part of the displayed image. Select the area of the image to be enlarged. Press on the enlargement location to select. Return to normal display (quit Digital Zoom). Press to exit from the Digital Zoom. Notes: • When power goes OFF (including “Off Timer” operation), Digital Zoom terminates. • The Digital Zoom function cannot be selected while in the following operation state: “Multi-viewer” (Picture in Picture, Picture out Picture, Picture...

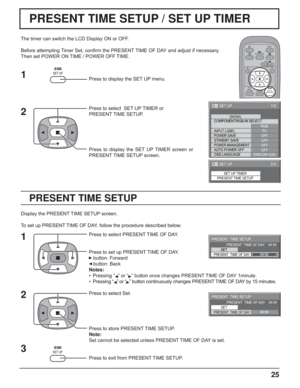

Page 25
25 PRESENT TIME SETUP / SET UP TIMER PRESENT TIME SETUP The timer can switch the LCD Display ON or OFF. Before attempting Timer Set, confi rm the PRESENT TIME OF DAY and adjust if necessary. Then set POWER ON TIME / POWER OFF TIME. Press to display the SET UP menu. Press to select SET UP TIMER or PRESENT TIME SETUP. Press to display the SET UP TIMER screen or PRESENT TIME SETUP screen. Display the PRESENT TIME SETUP screen. To set up PRESENT TIME OF DAY, follow the procedure described below. Press to...
Page 26

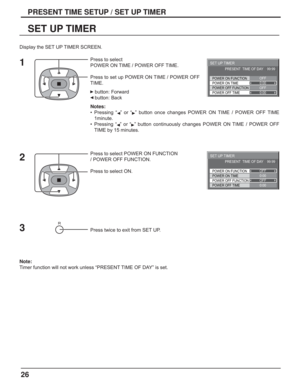

26 PRESENT TIME SETUP / SET UP TIMER SET UP TIMER Press to select POWER ON TIME / POWER OFF TIME. Press to set up POWER ON TIME / POWER OFF TIME. button: Forward button: Back Notes: • Pressing “ ” or “ ” button once changes POWER ON TIME / POWER OFF TIME 1minute. • Pressing “ ” or “ ” button continuously changes POWER ON TIME / POWER OFF TIME by 15 minutes. Press to select POWER ON FUNCTION / POWER OFF FUNCTION. Press to select ON. Press twice to exit from SET UP. Note: Timer function...

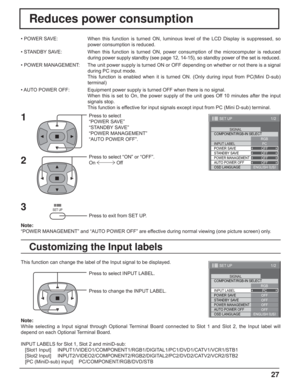

Page 27
27 Reduces power consumption Press to select “POWER SAVE” “STANDBY SAVE” “POWER MANAGEMENT” “AUTO POWER OFF”. Press to select “ON” or “OFF”. On Off Press to exit from SET UP. • POWER SAVE: When this function is turned ON, luminous level of the LCD Display is suppressed, so power consumption is reduced. • STANDBY SAVE: When this function is turned ON, power consumption of the microcomputer is reduced during power supply standby (see page 12, 14-15), so standby power of the set is reduced. • POWER...
Page 28

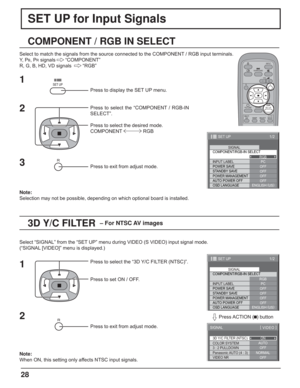

28 SET UP for Input Signals 3D Y/C FILTER – For NTSC AV images COMPONENT / RGB IN SELECT Select to match the signals from the source connected to the COMPONENT / RGB input terminals. Y, P B, PR signals “COMPONENT” R, G, B, HD, VD signals “RGB” Press to display the SET UP menu. Press to select the “COMPONENT / RGB-IN SELECT”. Press to select the desired mode. COMPONENT RGB Press to exit from adjust mode. Select “SIGNAL” from the “SET UP” menu during VIDEO (S VIDEO) input signal mode. (“SIGNAL...
Page 29
29 3:2 PULLDOWN / VIDEO NR COLOR SYSTEM / Panasonic AUTO Select SIGNAL from the “SET UP” menu during VIDEO (S VIDEO) input signal mode.(“SIGNAL [VIDEO]” menu is displayed.) SET UP for Input Signals Press to select the “COLOR SYSTEM” or “Panasonic AUTO”. Press to select each function. If the image becomes unstable: With the system set on Auto, under conditions of low level or noisy input signals the image may in rare cases become unstable. Should this occur, set the system to match the format of the...

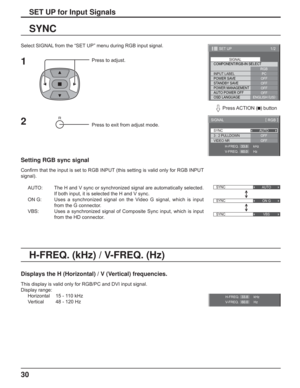

Page 30
30 SET UP for Input Signals Select SIGNAL from the “SET UP” menu during RGB input signal. Press to adjust. Press to exit from adjust mode. SYNC Setting RGB sync signal Confi rm that the input is set to RGB INPUT (this setting is valid only for RGB INPUT signal). AUTO: The H and V sync or synchronized signal are automatically selected. If both input, it is selected the H and V sync. ON G: Uses a synchronized signal on the Video G signal, which is input from the G connector. VBS: Uses a synchronized...
