Panasonic LCD Projector PT-LB60NTU PT-LB60U Operating Instructions

ENGLISH-31
Useful functions

Projector control
panel

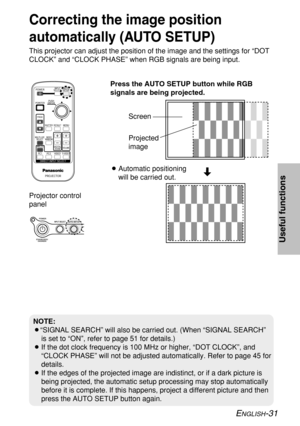

Correcting the image position
automatically (AUTO SETUP)
This projector can adjust the position of the image and the settings for\
 “DOT
CLOCK” and “CLOCK PHASE” when RGB signals are being input.Press the AUTO SETUP button while RGB
signals are being projected.
BAutomatic positioning
will be carried out.
NOTE:
B“SIGNAL SEARCH” will also be carried out. (When “SIGNAL SEARCH\
”
is set to “ON”, refer to page 51 for details.)
B If the dot clock frequency...

32-ENGLISH

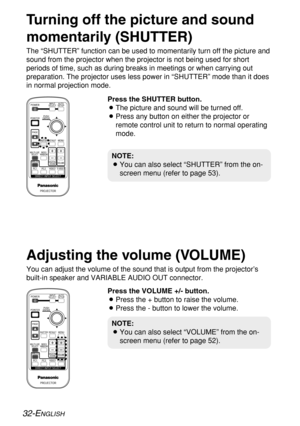

Turning off the picture and sound
momentarily (SHUTTER)
The “SHUTTER” function can be used to momentarily turn off the pic\
ture and
sound from the projector when the projector is not being used for short
periods of time, such as during breaks in meetings or when carrying out
preparation. The projector uses less power in “SHUTTER” mode than \
it does
in normal projection mode.Press the SHUTTER button.
BThe picture and sound will be turned off.
B Press any button on either the projector or...

ENGLISH-33

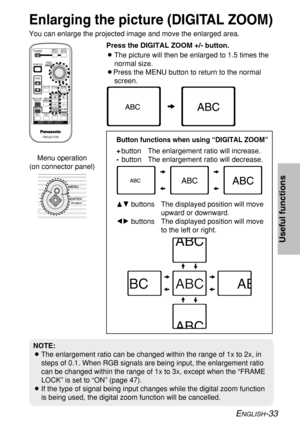

Enlarging the picture (DIGITAL ZOOM)
You can enlarge the projected image and move the enlarged area.BThe picture will then be enlarged to 1.5 times the
normal size.
BPress the MENU button to return to the normal screen.
Press the DIGITAL ZOOM +/- button.
NOTE:
B
The enlargement ratio can be changed within the range of 1x to 2x, in
steps of 0.1. When RGB signals are being input, the enlargement ratio
can be changed within the range of 1x to 3x, except when the “FRAME
LOCK” is set to “ON” (page...

34-ENGLISH

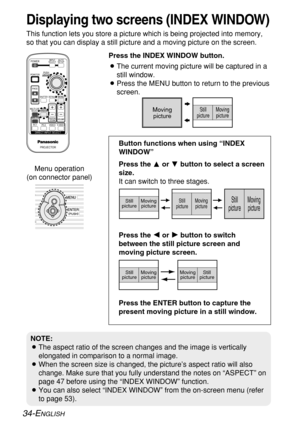

Displaying two screens (INDEX WINDOW)
This function lets you store a picture which is being projected into mem\
ory,
so that you can display a still picture and a moving picture on the scre\
en.BThe current moving picture will be captured in a
still window.
B Press the MENU button to return to the previous
screen.
Press the INDEX WINDOW button.
NOTE:
B
The aspect ratio of the screen changes and the image is vertically
elongated in comparison to a normal image.
B When the screen size is...

ENGLISH-35
BA pointer will be displayed in the middle of the
projected image.
B Press the POINTER button to cancel the pointer
display.
Press the POINTER button.
NOTE:
B
The pointer cannot be displayed when a menu screen is being
displayed. Moving the pointer
Press the
FGIHbuttons to move the
pointer.

You can select the pointer in “POINTER
SELECT ” from 3 types (refer to page 50).
Pointer1 Pointer2 Pointer3

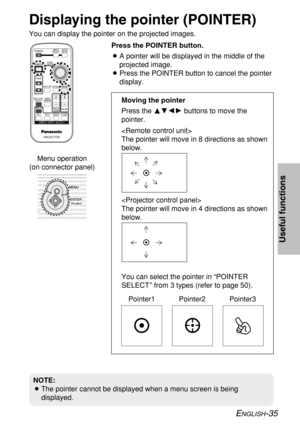

Displaying the pointer (POINTER)
You can display the pointer on the projected images.
Useful...

36-ENGLISH
On-screen menus

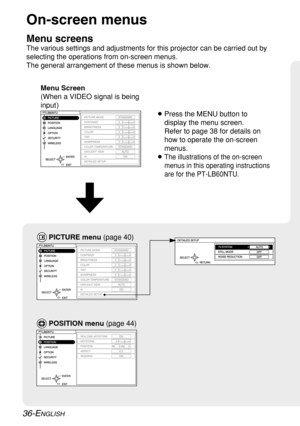

Menu screens
The various settings and adjustments for this projector can be carried o\
ut by
selecting the operations from on-screen menus.
The general arrangement of these menus is shown below.Menu Screen
(When a VIDEO signal is being
input )

POSITION menu  (page 44)

BPress the MENU button to
display the menu screen.
Refer to page 38 for details on
how to operate the on-screen
menus.
B
The illustrations of the on-screen
menus in this operating instructions
are for the...

ENGLISH-37
Adjustments and settings

2/2

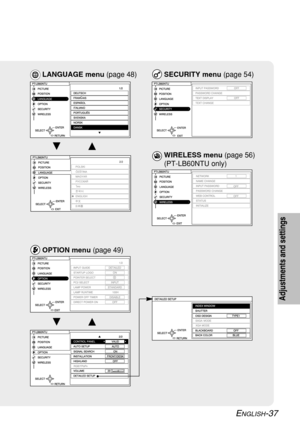

LANGUAGE menu (page 48)
SECURITY menu (page 54)

WIRELESS menu  (page 56)
(PT-LB60NTU only)
OPTION menu  (page 49)
G     F
G     F

38-ENGLISH

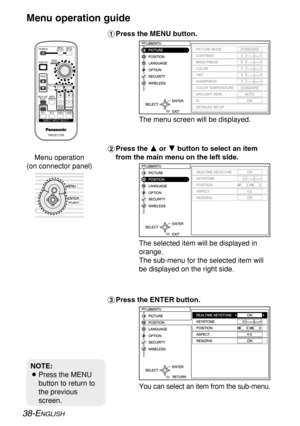

#Press the MENU button.
$ Press the  F
F
or G
G
button to select an item
from the main menu on the left side.
% Press the ENTER button.
Menu operation guide

The menu screen will be displayed.
The selected item will be displayed in
orange.
The sub-menu for the selected item will
be displayed on the right side.
You can select an item from the sub-menu.

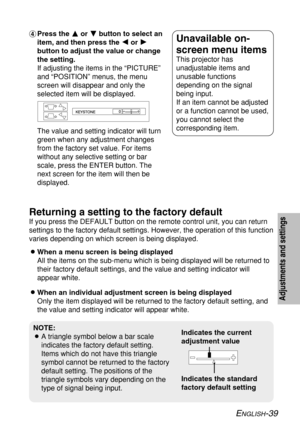

NOTE:
B Press the MENU
button to return to
the previous
screen.

Menu operation
(on connector panel)

ENGLISH-39
Adjustments and settings
&Press the  F F
or G G
button to select an
item, and then press the  I
I
or H
H
button to adjust the value or change
the setting.
If adjusting the items in the “PICTURE”
and “POSITION” menus, the menu
screen will disappear and only the
selected item will be displayed.
The value and setting indicator will turn
green when any adjustment changes
from the factory set value. For items
without any selective setting or bar
scale, press the ENTER button. The
next screen for...

40-ENGLISH
Adjusting the picture

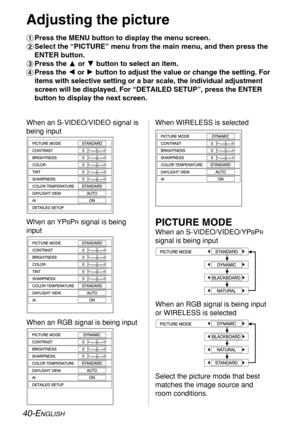

#Press the MENU button to display the menu screen.
$ Select the “PICTURE” menu from the main menu, and then press the
ENTER button.
% Press the F or G button to select an item.
& Press the  Ior H button to adjust the value or change the setting. For
items with selective setting or a bar scale, the individual adjustment
screen will be displayed. For “DETAILED SETUP”, press the ENTER
button to display the next screen.
When an S-VIDEO/VIDEO signal is
being input When...
