Page 21

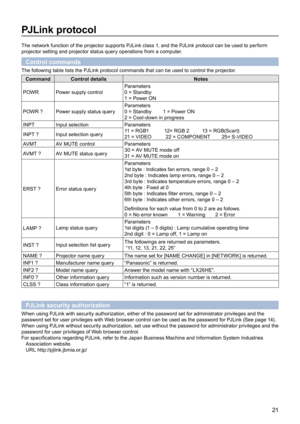

21 PJLink protocol The network function of the projector supports PJLink class 1, and the PJLink protocol can be used to perform projector setting and projector status query operations from a computer. Control commands The following table lists the PJLink protocol commands that can be used to control the projector. CommandControl detailsNotes POWRPower supply control Parameters 0 = Standby 1 = Power ON POWR ?Power supply status query Parameters 0 = Standby 1 = Power ON 2 = Cool-down in progress...

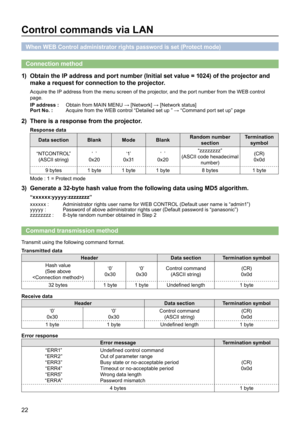

Page 22
![Page 22
22
Control commands via LAN
When WEB Control administrator rights password is set (Protect mode)
Connection method
Obtain the IP address and port number (Initial set value = 1024) of the projector and 1)
make a request for connection to the projector.
Acquire the IP address from the menu screen of the projector, and the port number from the WEB control
page.
IP address :Obtain from MAIN MENU → [Network] → [Network status]
Port No. :Acquire from the WEB control “Detailed set up ” → “Command port set up”...](http://img.usermanuals.tech/thumb/58/75979/w300_pt-lw25_en_network_om_d-21.png "Page 22
22
Control commands via LAN
When WEB Control administrator rights password is set (Protect mode)
Connection method
Obtain the IP address and port number (Initial set value = 1024) of the projector and 1)
make a request for connection to the projector.
Acquire the IP address from the menu screen of the projector, and the port number from the WEB control
page.
IP address :Obtain from MAIN MENU → [Network] → [Network status]
Port No. :Acquire from the WEB control “Detailed set up ” → “Command port set up”...")
22 Control commands via LAN When WEB Control administrator rights password is set (Protect mode) Connection method Obtain the IP address and port number (Initial set value = 1024) of the projector and 1) make a request for connection to the projector. Acquire the IP address from the menu screen of the projector, and the port number from the WEB control page. IP address :Obtain from MAIN MENU → [Network] → [Network status] Port No. :Acquire from the WEB control “Detailed set up ” → “Command port set up”...

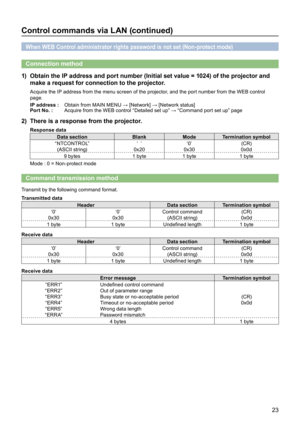

Page 23
![Page 23
23
Control commands via LAN (continued)
When WEB Control administrator rights password is not set (Non-protect mode)
Connection method
Obtain the IP address and port number (Initial set value = 1024) of the projector and 1)
make a request for connection to the projector.
Acquire the IP address from the menu screen of the projector, and the port number from the WEB control
page.
IP address :Obtain from MAIN MENU → [Network] → [Network status]
Port No. :Acquire from the WEB control “Detailed set up” →...](http://img.usermanuals.tech/thumb/58/75979/w300_pt-lw25_en_network_om_d-22.png "Page 23
23
Control commands via LAN (continued)
When WEB Control administrator rights password is not set (Non-protect mode)
Connection method
Obtain the IP address and port number (Initial set value = 1024) of the projector and 1)
make a request for connection to the projector.
Acquire the IP address from the menu screen of the projector, and the port number from the WEB control
page.
IP address :Obtain from MAIN MENU → [Network] → [Network status]
Port No. :Acquire from the WEB control “Detailed set up” →...")
23 Control commands via LAN (continued) When WEB Control administrator rights password is not set (Non-protect mode) Connection method Obtain the IP address and port number (Initial set value = 1024) of the projector and 1) make a request for connection to the projector. Acquire the IP address from the menu screen of the projector, and the port number from the WEB control page. IP address :Obtain from MAIN MENU → [Network] → [Network status] Port No. :Acquire from the WEB control “Detailed set up” →...

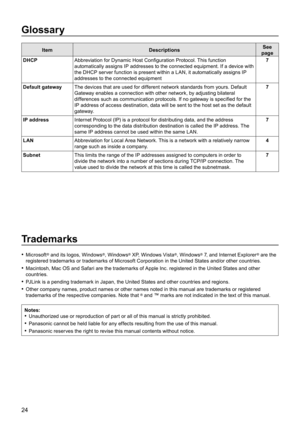

Page 24
24 Glossary ItemDescriptionsSee page DHCPAbbreviation for Dynamic Host Configuration Protocol. This function automatically assigns IP addresses to the connected equipment. If a device with the DHCP server function is present within a LAN, it automatically assigns IP addresses to the connected equipment 7 Default gatewayThe devices that are used for different network standards from yours. Default Gateway enables a connection with other network, by adjusting bilateral differences such as...

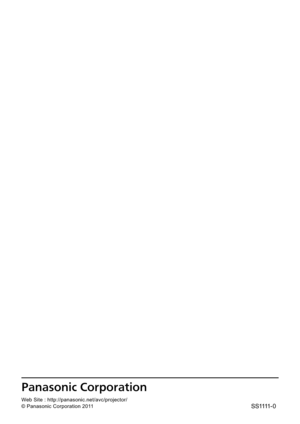

Page 25
0ñ1111111 10Á0ä11111111 11 Web Site : http://panasonic.net/avc/projector/ © Panasonic Corporation 201 1 S S 1111 - 0
