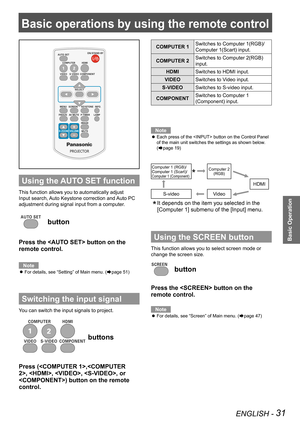

Page 31

ENGLISH - 31
Basic Operation
Basic operations by using the remote control
Using the AUTO SET function
This function allows you to automatically adjust
Input search, Auto Keystone correction and Auto PC
adjustment during signal input from a computer.
 button
Press the  button on the
remote control.
Note
For details, see “Setting” of Main menu. ( zÆpage 51)
Switching the input signal
You can switch the input signals to project.
 buttons
Press (,, , , , or
) button on the remote
control.
COMPUTER...

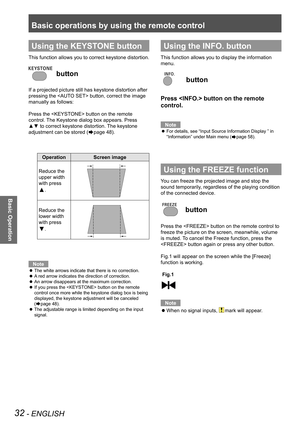

Page 32

Basic operations by using the remote control
32 - ENGLISH
Basic Operation
Using the KEYSTONE button
This function allows you to correct keystone distortion.
 button
If a projected picture still has keystone distortion after
pressing the  button, correct the image
manually as follows:
Press the  button on the remote
control. The Keystone dialog box appears. Press
▲▼ to correct keystone distortion. The keystone
adjustment can be stored (Æpage 48).
OperationScreen image
Reduce the
upper width
with...

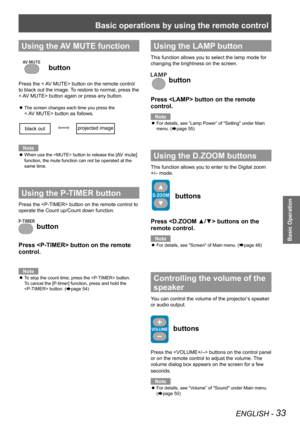

Page 33

Basic operations by using the remote control
ENGLISH - 33
Basic Operation
Using the AV MUTE function
 button
Press the < AV MUTE> button on the remote control
to black out the image. To restore to normal, press the
< AV MUTE> button again or press any button.
The screen changes each time you press the   z
< AV MUTE> button as follows.
Note
When use the  button to release the [ zAV mute]
function, the mute function can not be operated at the
same time.
Using the P-TIMER button
Press the  button on...

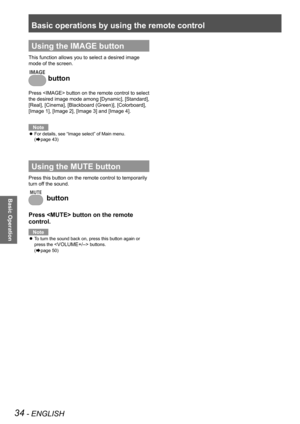

Page 34

Basic operations by using the remote control
34 - ENGLISH
Basic Operation
Using the IMAGE button
This function allows you to select a desired image
mode of the screen.
 button
Press  button on the remote control to select
the desired image mode among [Dynamic], [Standard],
[Real], [Cinema], [Blackboard (Green)], [Colorboard],
[Image 1], [Image 2], [Image 3] and [Image 4].
Note
For details, see “Image select” of Main menu.   z
(Æpage 43)
Using the MUTE button
Press this button on the remote control to...

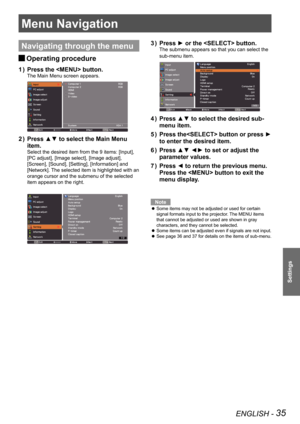

Page 35

ENGLISH - 35
Settings
Menu Navigation
Navigating through the menu
Operating procedure J
Press the  button.1 )
The Main Menu screen appears.
Press ▲▼ to select the Main Menu 2 )
item.
Select the desired item from the 9 items: [Input],
[PC adjust], [Image select], [Image adjust],
[Screen], [Sound], [Setting], [Information] and
[Network]. The selected item is highlighted with an
orange cursor and the submenu of the selected
item appears on the right.
Press ► or the  button.3 )
The submenu appears so...

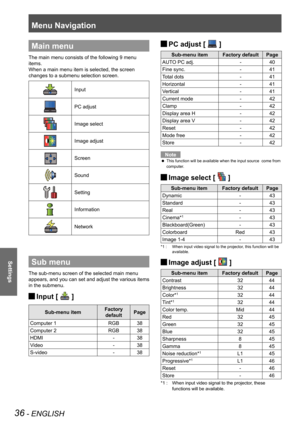

Page 36

Menu Navigation
36 - ENGLISH
Settings
Main menu
The main menu consists of the following 9 menu
items.
When a main menu item is selected, the screen
changes to a submenu selection screen.
Input
PC adjust
Image select
Image adjust
Screen
Sound
Setting
Information
Network
Sub menu
The sub-menu screen of the selected main menu
appears, and you can set and adjust the various items
in the submenu.
Input [  J ]
Sub-menu itemFactory
defaultPage
Computer 1RGB38
Computer 2RGB38
HDMI -38
Video -38
S-video -...

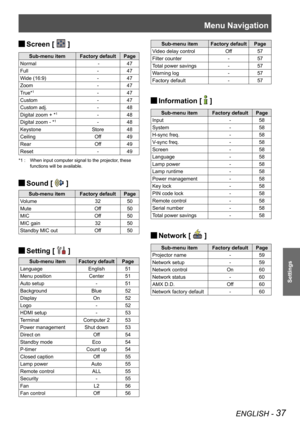

Page 37

Menu Navigation
ENGLISH - 37
Settings
Screen [  J ]
Sub-menu itemFactory defaultPage
Normal - 47
Full - 47
Wide (16:9)- 47
Zoom- 47
True*1- 47
Custom- 47
Custom adj.- 48
Digital zoom + *1- 48
Digital zoom - *1- 48
KeystoneStore 48
CeilingOff 49
RearOff 49
Reset- 49
When input computer signal to the projector, these *1 :
functions will be available.
Sound [  J ]
Sub-menu itemFactory defaultPage
Volume3250
MuteOff50
MICOff50
MIC gain3250
Standby MIC outOff50
Setting [  J ]
Sub-menu itemFactory...

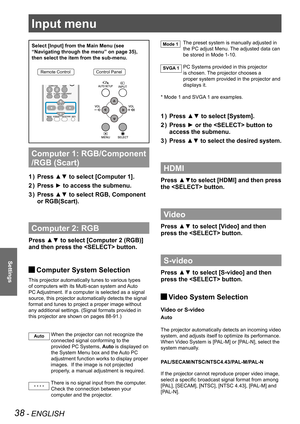

Page 38

38 - ENGLISH
Settings
Input menu
Select [Input] from the Main Menu (see
“Navigating through the menu” on page 35),
then select the item from the sub-menu.
Remote ControlControl Panel
Computer 1: RGB/Component
/RGB (Scart)
Press ▲▼ to select [Computer 1]. 1 )
Press ► to access the submenu.2 )
Press ▲▼ to select RGB, Component 3 )
or RGB(Scart).
Computer 2: RGB
Press ▲▼ to select [Computer 2 (RGB)]
and then press the  button.
 JComputer System Selection
This projector automatically tunes to...

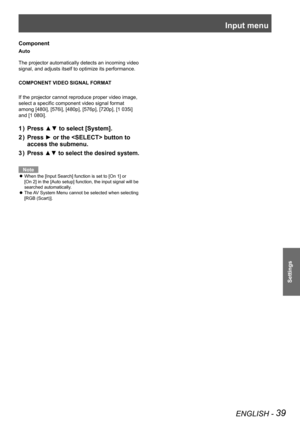

Page 39

Input menu
ENGLISH - 39
Settings
Component
Auto
The projector automatically detects an incoming video
signal, and adjusts itself to optimize its performance.
COMPONENT VIDEO SIGNAL FORMAT
If the projector cannot reproduce proper video image,
select a specific component video signal format
among [480i], [576i], [480p], [576p], [720p], [1 035i]
and [1 080i].
Press ▲▼ to select [System].1 )
Press ► or the  button to 2 )
access the submenu.
Press ▲▼ to select the desired system.3 )
Note
When the...

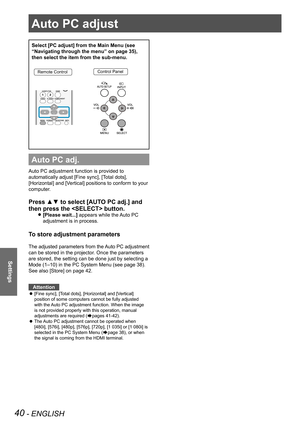

Page 40

Auto PC adjust
40 - ENGLISH
Settings
Auto PC adjust
Select [PC adjust] from the Main Menu (see
“Navigating through the menu” on page 35),
then select the item from the sub-menu.
Remote ControlControl Panel
Auto PC adj.
Auto PC adjustment function is provided to
automatically adjust [Fine sync], [Total dots],
[Horizontal] and [Vertical] positions to conform to your
computer.
Press ▲▼ to select [AUTO PC adj.] and
then press the  button.
[Please wait...] z appears while the Auto PC
adjustment is in...
