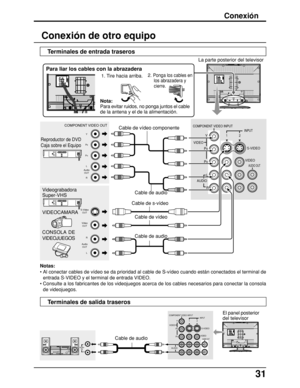

31 COMPONENT VIDEO INPUTINPUT 2 1 S-VIDEO VIDEO AUDIO OUT VIDEO Y P B PR AUDIO L R PR PB Y R L COMPONENT VIDEO OUT Audio OUT S-Video OUT Video OUT R L Audio OUT Conexión Conexión de otro equipo Notas: •Al conectar cables de vídeo se da prioridad al cable de S-vídeo cuando están conectados el terminal de entrada S-VIDEO y el terminal de entrada VIDEO. •Consulte a los fabricantes de los videojuegos acerca de los cables necesarios para conectar la consola de videojuegos.Cable de audio Reproductor de DVD...
Page 32

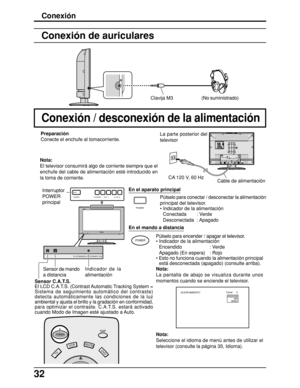

32 R-STANDBY G-POWER ON POWER TV/VIDEO– VOL +CH R-STANDBY G-POWER ON Conexión / desconexión de la alimentación Púlselo para encender / apagar el televisor. • Indicador de la alimentación Encendido : Verde Apagado (En espera) : Rojo • Esto no funciona cuando la alimentación principal está desconectada (apagado) (consulte arriba). Nota: La pantalla de abajo se visualiza durante unos momentos cuando se enciende el televisor. Nota: Seleccione el idioma de menú antes de utilizar el televisor (consulte la...
Page 33

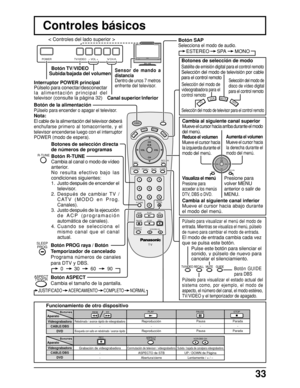

33 POWER TV/VIDEO– VOL +CHR-STANDBY G-POWER ON VCRDVD 123 456 78 0 9 RETURN EXITMENU PLAY R-TUNEGUIDE RECALL MUTE TV/VIDEO STOP T V PA U S EREC FF REW ASPECT TV/VCR VCR/DBS CH SAP CHO K CH VOL VOL DBS/CBL T V POWER SLEEP PROG Videograbadora CABLE/DBS DVD Videograbadora CABLE/DBS DVDRebobinado / avance rápido de videograbadora-Búsqueda con salto en rebobinado / avance rápido Reproducción - Reproducción Grabación de videograbadora - - Pausa - PausaParada - Parada Subida / bajada de canalpara...
Page 34

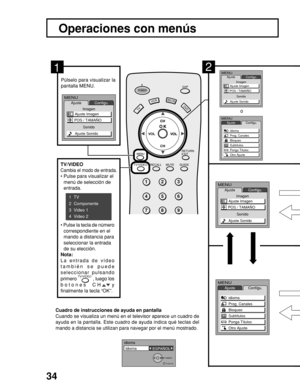

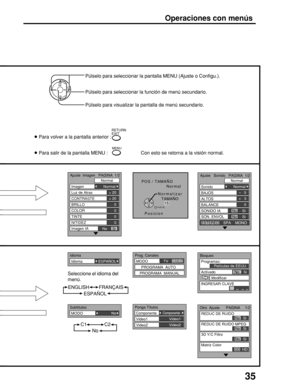

34 VCRDVD 1 2 3 4 5 6 7 8 9 RETURN EXIT GUIDE RECALL MUTE SAPPOWER CH DBS/CBLL TV CH VOL TV/VIDEOO 21 Operaciones con menús Pú lselo para visualizar la pantalla MENU. o MENU Ajuste Imagen Sonido Configu. Ajuste Imagen Ajuste Sonido POS / TAMA ÑO MENU Ajuste Configu. idioma Prog. Canales Bloqueo Subt ítulos Ponga T ítulos Otro Ajuste MENU Ajuste Imagen Sonido Configu. Ajuste Imagen Ajuste Sonido POS / TAMA ÑO MENUAjuste Configu. idioma Prog. Canales Bloqueo Subt ítulos Ponga Títulos Otro Ajuste...
Page 35
34 VCRDVD 1 2 3 4 5 6 7 8 9 RETURN EXIT GUIDE RECALL MUTE SAPPOWER CH DBS/CBLL TV CH VOL TV/VIDEOO 21 Operaciones con menús Pú lselo para visualizar la pantalla MENU. o MENU Ajuste Imagen Sonido Configu. Ajuste Imagen Ajuste Sonido POS / TAMA ÑO MENU Ajuste Configu. idioma Prog. Canales Bloqueo Subt ítulos Ponga T ítulos Otro Ajuste MENU Ajuste Imagen Sonido Configu. Ajuste Imagen Ajuste Sonido POS / TAMA ÑO MENUAjuste Configu. idioma Prog. Canales Bloqueo Subt ítulos Ponga Títulos Otro Ajuste...
Page 36

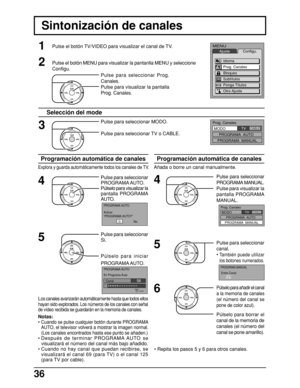

36 Sintonización de canales Pulse para seleccionar Prog. Canales. Pulse para visualizar la pantalla Prog. Canales. 2 3 Pulse para seleccionar MODO. Pulse para seleccionar TV o CABLE. 4 Pulse para seleccionar PROGRAMA AUTO. Púlselo para visualizar la pantalla PROGRAMA AUTO. 5Pulse para seleccionar Si. Explora y guarda automáticamente todos los canales de TV. Programación automática de canales 1Pulse el botón TV/VIDEO para visualizar el canal de TV. Notas: • Cuando se pulse cualquier botón durante...
Page 37

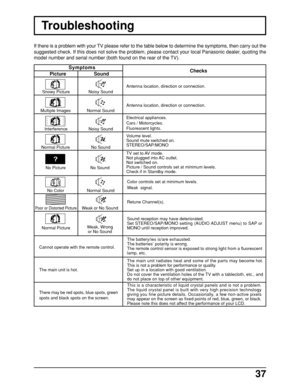

37 Troubleshooting If there is a problem with your TV please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model number and serial number (both found on the rear of the TV). Symptoms Checks Antenna location, direction or connection. Picture Sound Antenna location, direction or connection. Electrical appliances. Cars / Motorcycles. Fluorescent lights. Volume level. Sound...
Page 38

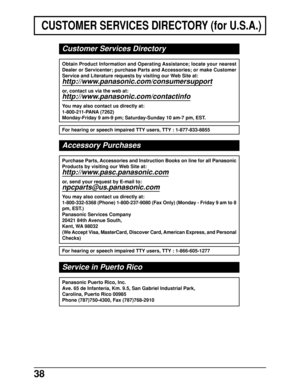

38 Customer Services Directory Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at: http://www.panasonic.com/consumersupport or, contact us via the web at: http://www.panasonic.com/contactinfo You may also contact us directly at: 1-800-211-PANA (7262) Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST. For hearing or speech impaired TTY users, TTY...
Page 39

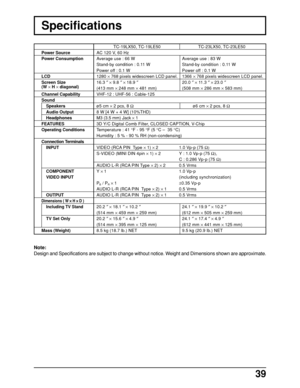

39 Specifications Note: Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate. TC-19LX50, TC-19LE50 TC-23LX50, TC-23LE50 AC 120 V, 60 Hz Average use : 66 W Average use : 83 W Stand-by condition : 0.11 W Stand-by condition : 0.11 W Power off : 0.1 W Power off : 0.1 W 1280 × 768 pixels widescreen LCD panel. 1366 × 768 pixels widescreen LCD panel. 16.3 ″ × 9.8 ″ × 18.9 ″20.0 ″ × 11.3 ″ × 23.0 ″ (413 mm × 248 mm × 481 mm) (508 mm × 286 mm × 583 mm) VHF-12...
Page 40

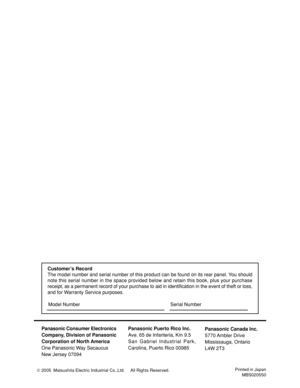

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America One Panasonic Way Secaucus New Jersey 07094Panasonic Puerto Rico Inc. Ave. 65 de Infanteria, Km 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985 Printed in Japan MBS0205S0 Panasonic Canada Inc. 5770 Ambler Drive Mississauga, Ontario L4W 2T3 Customer’s Record The model number and serial number of this product can be found on its rear panel. You should note this serial number in the space provided below...
