Panasonic Lcd Television Tc 20le50 Operating Instructions

11

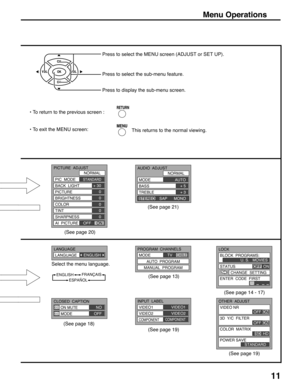

Menu Operations
(See page 18) Select the menu language.(See page 20) • To return to the previous screen :
• To exit the MENU screen:
This returns to the normal viewing. Press to select the MENU screen (ADJUST or SET UP).
Press to select the sub-menu feature.
Press to display the sub-menu screen.
(See page 14 - 17)
(See page 19) (See page 21)
(See page 13)
(See page 19)
CLOSED  CAPTION
MODEOFF
ON MUTENO
LANGUAGE
ENGLISHLANGUAGE
OFF          ONCOOLCOOL
PICTURE  ADJUST
NORMAL
PIC  MODE
BACK  LIGHT...

12
POWER
TV/VIDEO VOL CH

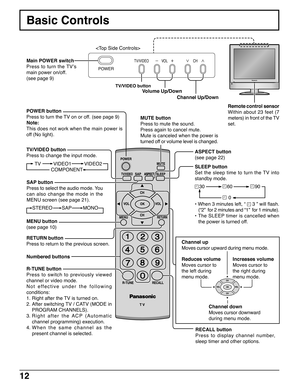

Basic Controls
POWER button
Press to turn the TV on or off. (see page 9)
Note:
This does not work when the main power is
off (No light).
Numbered buttons
TV/VIDEO button
Press to change the input mode.
R-TUNE button
Press to switch to previously viewed
channel or video mode.
Not effective under the following
conditions:
1. Right after the TV is turned on.
2. After switching TV / CATV (MODE in
PROGRAM CHANNELS).
3.Right after the ACP (Automatic
channel programming) execution....

13

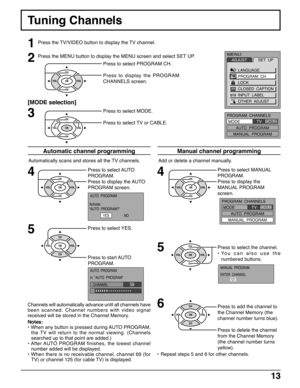

Tuning Channels
Automatically scans and stores all the TV channels.
Notes:
• When any button is pressed during AUTO PROGRAM,
the TV will return to the normal viewing. (Channels
searched up to that point are added.)
• After AUTO PROGRAM finishes, the lowest channel
number added will be displayed.
• When there is no receivable channel, channel 69 (for
TV) or channel 125 (for cable TV) is displayed.Press to select PROGRAM CH.
Press to display the PROGRAM
CHANNELS screen.
2
3
Press to select MODE.
Press...

14

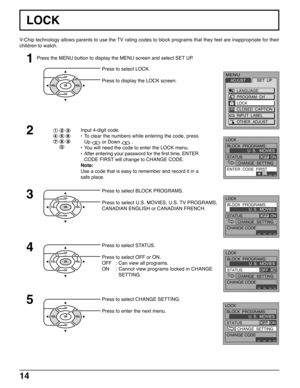

V-Chip technology allows parents to use the TV rating codes to block programs that they feel are inappropriate for their
children to watch.
Input 4-digit code.
•To clear the numbers while entering the code, press
Up
 or Down  .
•You will need the code to enter the LOCK menu.
•After entering your password for the first time, ENTER
CODE FIRST will change to CHANGE CODE.
Note:
Use a code that is easy to remember and record it in a
safe place.Press to select LOCK.
Press to display the LOCK screen.
3...

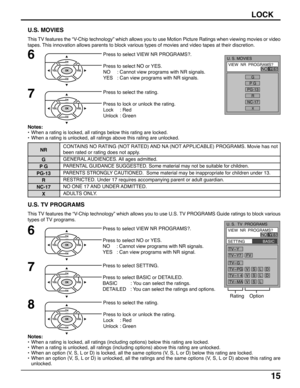

15
Press to select VIEW NR PROGRAMS?.
Press to select NO or YES.
NO : Cannot view programs with NR signals.
YES : Can view programs with NR signal.
U.S. TV PROGRAMS
6
8
Press to select SETTING.
Press to select BASIC or DETAILED.
BASIC : You can select the ratings.
DETAILED : You can select the ratings and options.7
Press to select the rating.
Press to lock or unlock the rating.
Lock : Red
Unlock : Green
LOCK
Rating Option
VIEW  NR  PROGRAMS? U. S.  TV  PROGRAMS
TV
—G
TV
—PG
TV
—1 4
TV
—MA
V
V
VD
DL
L
LS...

16

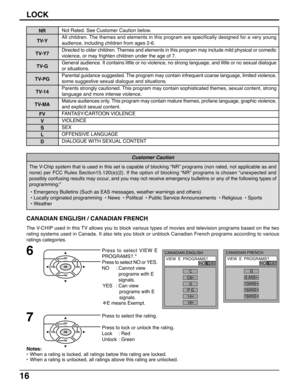

LOCK
6Press to select VIEW E
PROGRAMS?.∗
Press to select NO or YES.
NO : Cannot view
programs with E
signals.
YES : Can view
programs with E
signals.
∗E means Exempt.
7Press to select the rating.
Press to lock or unlock the rating.
Lock : Red
Unlock : Green
CANADIAN FRENCH
VIEW  E  PROGRAMS?
NO  YES
G
8 ANS+
13ANS+
16ANS+
18ANS+
CANADIAN ENGLISH
VIEW  E  PROGRAMS?
NO  YES
C
C8+
G
P G
14+
18+
CANADIAN ENGLISH / CANADIAN FRENCH
The V-CHIP used in this TV allows you to block various types of movies and...

17

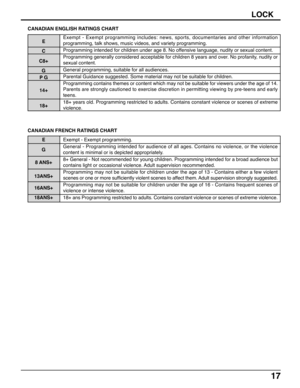

Exempt - Exempt programming includes: news, sports, documentaries and other information
programming, talk shows, music videos, and variety programming.
Programming intended for children under age 8. No offensive language, nudity or sexual content.
Programming generally considered acceptable for children 8 years and over. No profanity, nudity or
sexual content.
General programming, suitable for all audiences.
Parental Guidance suggested. Some material may not be suitable for children.
Programming...

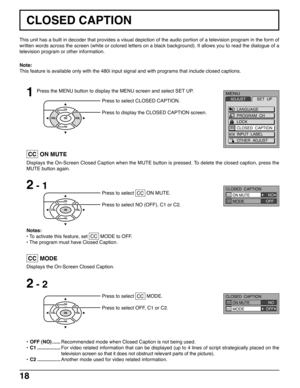

18
This unit has a built in decoder that provides a visual depiction of the audio portion of a television program in the form of
written words across the screen (white or colored letters on a black background). It allows you to read the dialogue of a
television program or other information.
Press to select CLOSED CAPTION.
Press to display the CLOSED CAPTION screen.
1
2
 - 1
Displays the On-Screen Closed Caption when the MUTE button is pressed. To delete the closed caption, press the
MUTE button again.
2...

19

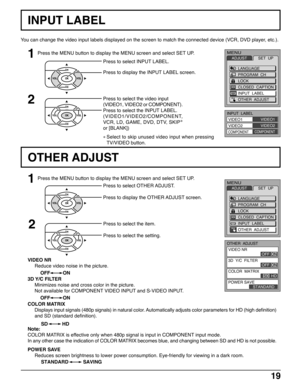

You can change the video input labels displayed on the screen to match the connected device (VCR, DVD player, etc.).
Press to select INPUT LABEL.
Press to display the INPUT LABEL screen.
1
2
Press to select the video input
(VIDEO1, VIDEO2 or COMPONENT).
Press to select the INPUT LABEL.
(VIDEO1/VIDEO2/COMPONENT,
VCR, LD, GAME, DVD, DTV, SKIP∗
or [BLANK])
∗Select to skip unused video input when pressing
TV/VIDEO button.
INPUT LABEL
Press to select OTHER ADJUST.
Press to display the OTHER ADJUST...

20

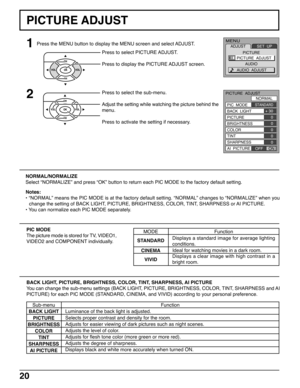

PICTURE ADJUST
1
2
Press to select PICTURE ADJUST.
Press to display the PICTURE ADJUST screen.
Press to select the sub-menu.
Adjust the setting while watching the picture behind the
menu.
Press to activate the setting if necessary.
PIC MODE
The picture mode is stored for TV, VIDEO1,
VIDEO2 and COMPONENT individually.
BACK LIGHT, PICTURE, BRIGHTNESS, COLOR, TINT, SHARPNESS, AI PICTURE
You can change the sub-menu settings (BACK LIGHT, PICTURE, BRIGHTNESS, COLOR, TINT, SHARPNESS and AI
PICTURE) for each...
