Panasonic Memory Card Camera Recorder AG-AF100AP Operating Instructions

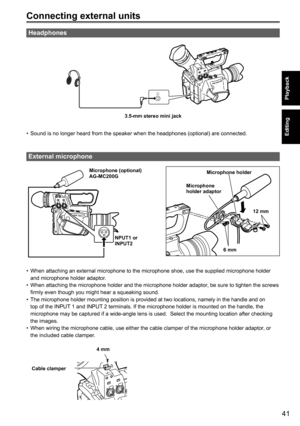

41
Playback
Editing
Connecting external units
Headphones
3.5-mm stereo mini jack
• Sound is no longer heard from the speaker when the headphones (optional) are connected.
External microphone
Microphone (optional)
AG-MC200G
NPUT1 or
INPUT2 Microphone holder
Microphone
holder adaptor
6 mm12 mm
•
When attaching an external microphone to the microphone shoe, use the supplied microphone holder
and microphone holder adaptor.
•  When attaching the microphone holder and the microphone holder adaptor , be sure...

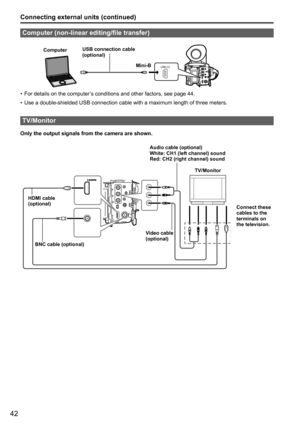

42
Connecting external units (continued)
Computer (non-linear editing/file transfer)
USB 2.0
ComputerUSB connection cable
(optional)
Mini-B
• For details on the computer’s conditions and other factors, see page 44.
•  Use a double-shielded USB connection cable with a maximum length of three meters.
TV/Monitor
Only the output signals from the camera are shown.
HDMI cable
(optional)
BNC cable (optional) Video cable
(optional)Audio cable (optional)
White: CH1 (left channel) sound
Red: CH2 (right channel)...

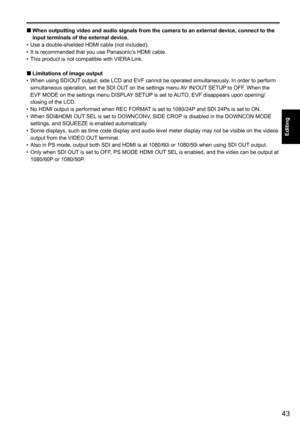

43
Editing


■When outputting video and audio signals from the camera to an external device, connect to the
input terminals of the external device.
•  Use a double-shielded HDMI cable (not included).
•  It is recommended that you use Panasonic’s HDMI cable.
•  This product is not compatible with VIERA Link.

■Limitations of image output
•  When using SDIOUT output, side LCD and EVF cannot be operated simultaneously. In order to perform
simultaneous operation, set the SDI OUT on the settings menu AV...

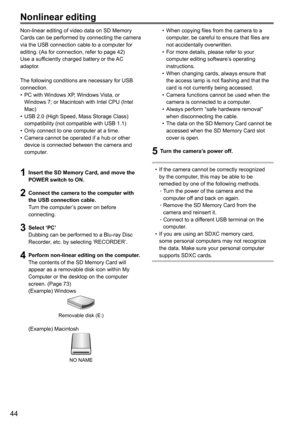

44
Nonlinear editing
Non-linear editing of video data on SD Memory
Cards can be performed by connecting the camera
via the USB connection cable to a computer for
editing. (As for connection, refer to page 42)
Use a sufficiently charged battery or the AC
adaptor.
The following conditions are necessary for USB
connection.
• PC with Windows XP, Windows Vista, or
Windows 7; or Macintosh with Intel CPU (Intel
Mac)
•  USB 2.0 (High Speed, Mass Storage Class)
compatibility (not compatible with USB 1.1)...

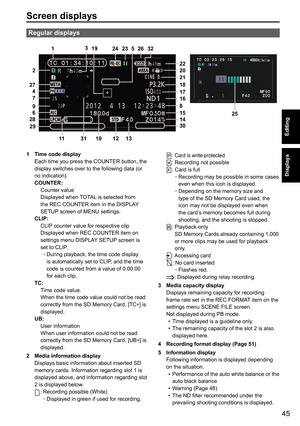

45
Displays
Editing
Screen displays
Regular displays
1
2
2747
962811
101213
1415
81617
24
2319
35
18
212022
2930
31
2632
25
1  Time code display
Each time you press the COUNTER button, the
display switches over to the following data (or
no indication).
COUNTER:
 Counter value
    Displayed when TOTAL is selected from
the REC COUNTER item in the DISPLAY
SETUP screen of MENU settings.
CLIP:
  CLIP counter value for respective clip
    Displayed when REC COUNTER item on
settings menu DISPLAY SETUP...

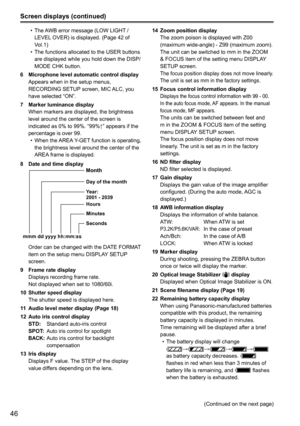

46
Screen displays (continued)
(Continued on the next page)
•
The AWB error message (LOW LIGHT /
LEVEL OVER) is displayed. (Page 42 of
Vol.1)
•  The functions allocated to the USER buttons
are displayed while you hold down the DISP/
MODE CHK button.
6  Microphone level automatic control display
Appears when in the setup menus,
RECORDING SETUP screen, MIC ALC, you
have selected “ON”.
7  Marker luminance display
When markers are displayed, the brightness
level around the center of the screen is...

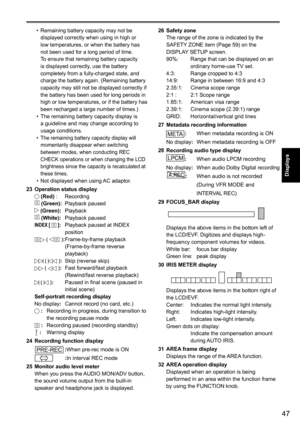

47
Displays

• Remaining battery capacity may not be
displayed correctly when using in high or
low temperatures, or when the battery has
not been used for a long period of time.
To ensure that remaining battery capacity
is displayed correctly, use the battery
completely from a fully-charged state, and
charge the battery again. (Remaining battery
capacity may still not be displayed correctly if
the battery has been used for long periods in
high or low temperatures, or if the battery has
been...

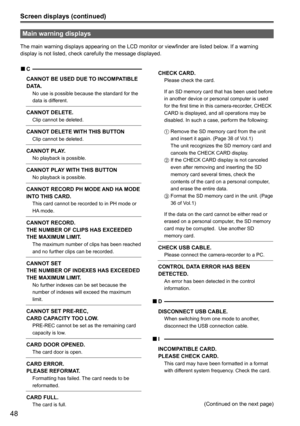

48
Screen displays (continued)
(Continued on the next page)

■C
CANNOT BE USED DUE TO INCOMPATIBLE
DATA.
    No use is possible because the standard for the
data is different.
CANNOT DELETE. Clip cannot be deleted.
CANNOT DELETE WITH THIS BUTTON Clip cannot be deleted.
CANNOT PLAY. No playback is possible.
CANNOT PLAY WITH THIS BUTTON No playback is possible.
CANNOT RECORD PH MODE AND HA MODE
INTO THIS CARD.
   This card cannot be recorded to in PH mode or
HA mode.
CANNOT RECORD.
THE NUMBER OF...

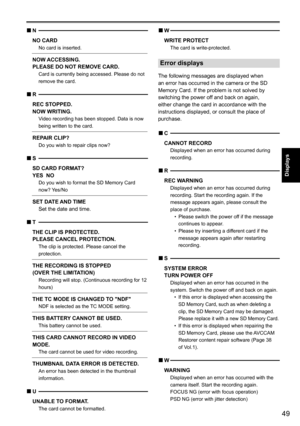

49
Displays


■N
NO CARD  No card is inserted.
NOW ACCESSING.
PLEASE DO NOT REMOVE CARD.
   Card is currently being accessed. Please do not
remove the card.

■R
REC STOPPED.
NOW WRITING.
    Video recording has been stopped. Data is now
being written to the card.
REPAIR CLIP? Do you wish to repair clips now?

■S
SD CARD FORMAT?
YES  NO
    Do you wish to format the SD Memory Card
now? Yes/No
SET DATE AND TIME
 Set the date and time.

■T
THE CLIP IS PROTECTED.
PLEASE CANCEL PROTECTION.
    The...

50

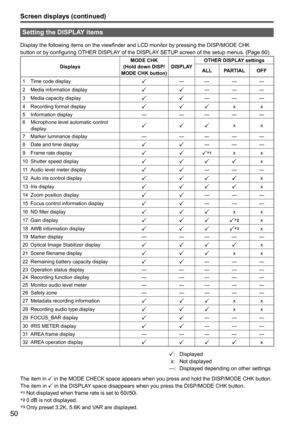

Screen displays (continued)Setting the DISPLAY items
Display the following items on the viewfinder and LCD monitor by pressing the DISP/MODE CHK
button or by configuring OTHER DISPLAY of the DISPLAY SETUP screen of the setup menus. (Page 60)
Displays MODE CHK
(Hold down DISP/
MODE CHK button) DISPLAYOTHER DISPLAY settings
ALL PARTIAL OFF
1  Time code display
— — ——
2  Media information display
— ——
3  Media capacity display
— ——
4  Recording format display
x x
5  Information display ——— ——
6...
