Page 151
![Page 151
151
Chapter8ConnectingtoExternalDevices
• This unit does not support hard disk drives that are 2 TB or
larger.
Viewing hard disk drive data
Use the following procedures to view data on a hard disk
drive connected via USB.
1 SwitchtoUSBhostmode.
For details, refer to [Switching to USB Host Mode]
(page 150).
2ConnectaharddiskdriveviaUSB.
3Pressthe THUMBNAILbutton. Openthe...](http://img.usermanuals.tech/thumb/58/76182/w300_aghpx370p_en_om_d-150.png "Page 151
151
Chapter8ConnectingtoExternalDevices
• This unit does not support hard disk drives that are 2 TB or
larger.
Viewing hard disk drive data
Use the following procedures to view data on a hard disk
drive connected via USB.
1 SwitchtoUSBhostmode.
For details, refer to [Switching to USB Host Mode]
(page 150).
2ConnectaharddiskdriveviaUSB.
3Pressthe THUMBNAILbutton. Openthe...")
151 Chapter8ConnectingtoExternalDevices • This unit does not support hard disk drives that are 2 TB or larger. Viewing hard disk drive data Use the following procedures to view data on a hard disk drive connected via USB. 1 SwitchtoUSBhostmode. For details, refer to [Switching to USB Host Mode] (page 150). 2ConnectaharddiskdriveviaUSB. 3Pressthe THUMBNAILbutton. Openthe...

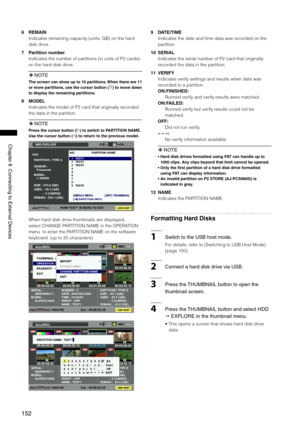

Page 152
![Page 152
15
Chapter8ConnectingtoExternalDevices
6 REMAIN
Indicates remaining capacity (units: GB) on the hard
disk drive.
7 Partition number
Indicates the number of partitions (in units of P2 cards)
on the hard disk drive.
NOTE
The screen can show up to 10 partitions. When there are 11
or more partitions, use the cursor button (]) to move down
to display the remaining partitions.
8 MODEL
Indicates the model of P2 card that originally recorded
the data in the partition....](http://img.usermanuals.tech/thumb/58/76182/w300_aghpx370p_en_om_d-151.png "Page 152
15
Chapter8ConnectingtoExternalDevices
6 REMAIN
Indicates remaining capacity (units: GB) on the hard
disk drive.
7 Partition number
Indicates the number of partitions (in units of P2 cards)
on the hard disk drive.
NOTE
The screen can show up to 10 partitions. When there are 11
or more partitions, use the cursor button (]) to move down
to display the remaining partitions.
8 MODEL
Indicates the model of P2 card that originally recorded
the data in the partition....")
15 Chapter8ConnectingtoExternalDevices 6 REMAIN Indicates remaining capacity (units: GB) on the hard disk drive. 7 Partition number Indicates the number of partitions (in units of P2 cards) on the hard disk drive. NOTE The screen can show up to 10 partitions. When there are 11 or more partitions, use the cursor button (]) to move down to display the remaining partitions. 8 MODEL Indicates the model of P2 card that originally recorded the data in the partition....
Page 153
15 Chapter8ConnectingtoExternalDevices 5SelectOPERATIONFORMAT(HDD)inthe menuanduseacursorbuttonandtheSET buttontoselect YES. • Select YES in the confirmation message that appears again to start hard disk drive formatting. • Handled as a “TYPE S” hard disk drive after formatting. NOTE All data on a hard disk drive is deleted when the disk is formatted. It is...

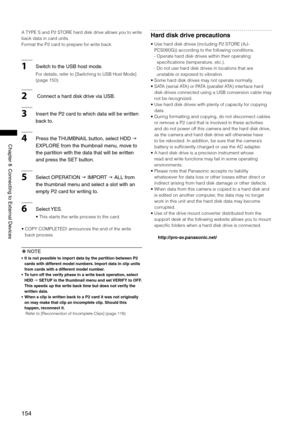

Page 154
![Page 154
154
Chapter8ConnectingtoExternalDevices
A TYPE S and P2 STORE hard disk drive allows you to write
back data in card units.
Format the P2 card to prepare for write back.
1SwitchtotheUSBhostmode.
For details, refer to [Switching to USB Host Mode]
(page 150).
2 ConnectaharddiskdriveviaUSB.
3InsertthePcardtowhichdatawillbewritten
backto....](http://img.usermanuals.tech/thumb/58/76182/w300_aghpx370p_en_om_d-153.png "Page 154
154
Chapter8ConnectingtoExternalDevices
A TYPE S and P2 STORE hard disk drive allows you to write
back data in card units.
Format the P2 card to prepare for write back.
1SwitchtotheUSBhostmode.
For details, refer to [Switching to USB Host Mode]
(page 150).
2 ConnectaharddiskdriveviaUSB.
3InsertthePcardtowhichdatawillbewritten
backto....")
154 Chapter8ConnectingtoExternalDevices A TYPE S and P2 STORE hard disk drive allows you to write back data in card units. Format the P2 card to prepare for write back. 1SwitchtotheUSBhostmode. For details, refer to [Switching to USB Host Mode] (page 150). 2 ConnectaharddiskdriveviaUSB. 3InsertthePcardtowhichdatawillbewritten backto....
Page 155
![Page 155
155
Chapter8ConnectingtoExternalDevices
Connections to the DVCPRO/DV Connector
Recording signals input to the
DVCPRO/DV connector
1Connecta194cable(DVcable).
For details, see [Precautions in 1394 Connections]
(page 156).
• Make sure that the signal format of the camera
and the connected device is the same.
2 TorouteinputsviatheIEEE194interface,set...](http://img.usermanuals.tech/thumb/58/76182/w300_aghpx370p_en_om_d-154.png "Page 155
155
Chapter8ConnectingtoExternalDevices
Connections to the DVCPRO/DV Connector
Recording signals input to the
DVCPRO/DV connector
1Connecta194cable(DVcable).
For details, see [Precautions in 1394 Connections]
(page 156).
• Make sure that the signal format of the camera
and the connected device is the same.
2 TorouteinputsviatheIEEE194interface,set...")
155 Chapter8ConnectingtoExternalDevices Connections to the DVCPRO/DV Connector Recording signals input to the DVCPRO/DV connector 1Connecta194cable(DVcable). For details, see [Precautions in 1394 Connections] (page 156). • Make sure that the signal format of the camera and the connected device is the same. 2 TorouteinputsviatheIEEE194interface,set...

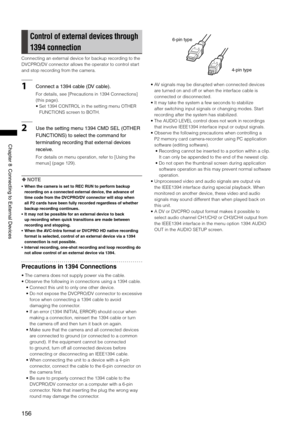

Page 156
![Page 156
156
Chapter8ConnectingtoExternalDevices
Control of external devices through
1394 connection
Connecting an external device for backup recording to the
DVCPRO/DV connector allows the operator to control start
and stop recording from the camera.
1Connecta194cable(DVcable).
For details, see [Precautions in 1394 Connections]
(this page).
• Set 1394 CONTROL in the setting menu OTHER
FUNCTIONS screen to BOTH.
2...](http://img.usermanuals.tech/thumb/58/76182/w300_aghpx370p_en_om_d-155.png "Page 156
156
Chapter8ConnectingtoExternalDevices
Control of external devices through
1394 connection
Connecting an external device for backup recording to the
DVCPRO/DV connector allows the operator to control start
and stop recording from the camera.
1Connecta194cable(DVcable).
For details, see [Precautions in 1394 Connections]
(this page).
• Set 1394 CONTROL in the setting menu OTHER
FUNCTIONS screen to BOTH.
2...")
156 Chapter8ConnectingtoExternalDevices Control of external devices through 1394 connection Connecting an external device for backup recording to the DVCPRO/DV connector allows the operator to control start and stop recording from the camera. 1Connecta194cable(DVcable). For details, see [Precautions in 1394 Connections] (this page). • Set 1394 CONTROL in the setting menu OTHER FUNCTIONS screen to BOTH. 2...
Page 157
157 Chapter9MaintenanceandInspections Chapter 9 Maintenance and Inspections Inspections Before Shooting Make sure you check that the system is operating normally before embarking on a shoot. We recommend using a colour video monitor to check the image. Preparing for Inspections 1 Mountachargedbattery. 2TurnthePOWERswitchtoONtocheckthe batteryremaininglevelintheviewfinder. • When...

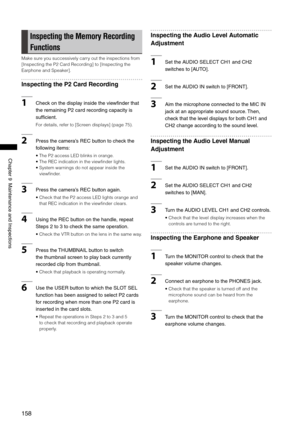

Page 158
![Page 158
158
Chapter9MaintenanceandInspections
Inspecting the Memory Recording
Functions
Make sure you successively carry out the inspections from
[Inspecting the P2 Card Recording] to [Inspecting the
Earphone and Speaker].
Inspecting the P2 Card Recording
1Checkonthedisplayinsidetheviewfinderthat
theremainingPcardrecordingcapacityis
sufficient.
For details, refer to [Screen displays] (page 75)....](http://img.usermanuals.tech/thumb/58/76182/w300_aghpx370p_en_om_d-157.png "Page 158
158
Chapter9MaintenanceandInspections
Inspecting the Memory Recording
Functions
Make sure you successively carry out the inspections from
[Inspecting the P2 Card Recording] to [Inspecting the
Earphone and Speaker].
Inspecting the P2 Card Recording
1Checkonthedisplayinsidetheviewfinderthat
theremainingPcardrecordingcapacityis
sufficient.
For details, refer to [Screen displays] (page 75)....")
158 Chapter9MaintenanceandInspections Inspecting the Memory Recording Functions Make sure you successively carry out the inspections from [Inspecting the P2 Card Recording] to [Inspecting the Earphone and Speaker]. Inspecting the P2 Card Recording 1Checkonthedisplayinsidetheviewfinderthat theremainingPcardrecordingcapacityis sufficient. For details, refer to [Screen displays] (page 75)....
Page 159
![Page 159
159
Chapter9MaintenanceandInspections
Inspection for Using an External
Microphone
1ConnectanexternalmicrophonetotheREAR1
andREARconnectors.
2SettheAUDIOINswitchto[REAR].
3SettheLINE/MIC/+48Vselectorswitcheson
therearpanelto[MIC]or[+48V],depending...](http://img.usermanuals.tech/thumb/58/76182/w300_aghpx370p_en_om_d-158.png "Page 159
159
Chapter9MaintenanceandInspections
Inspection for Using an External
Microphone
1ConnectanexternalmicrophonetotheREAR1
andREARconnectors.
2SettheAUDIOINswitchto[REAR].
3SettheLINE/MIC/+48Vselectorswitcheson
therearpanelto[MIC]or[+48V],depending...")
159 Chapter9MaintenanceandInspections Inspection for Using an External Microphone 1ConnectanexternalmicrophonetotheREAR1 andREARconnectors. 2SettheAUDIOINswitchto[REAR]. 3SettheLINE/MIC/+48Vselectorswitcheson therearpanelto[MIC]or[+48V],depending...

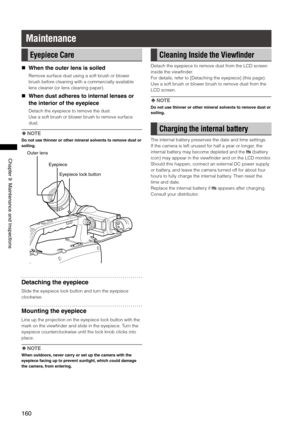

Page 160
160 Chapter9MaintenanceandInspections Maintenance Eyepiece Care When the outer lens is soiled Remove surface dust using a soft brush or blower brush before cleaning with a commercially available lens cleaner (or lens cleaning paper). When dust adheres to internal lenses or the interior of the eyepiece Detach the eyepiece to remove the dust. Use a soft brush or blower brush to remove surface dust. NOTE Do not use thinner or other mineral solvents to remove dust or...
