Panasonic Micro - Foaming Cleansing Device Eh Xc10 Operating Instructions

11

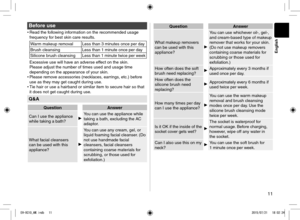

Before use
• Read the following information on the recommended usage
frequency for best skin care results.
Warm makeup removal Less than 3 minutes once per day
Brush cleansing Less than 1 minute once per day
Silicone brush cleansing
Less than 1 minute twice per week
Excessive use will have an adverse effect on the skin.
Please adjust the number of times used and usage time
depending on the appearance of your skin.
•  Please remove accessories (necklaces, earrings, etc.) before
use as they may get...

12
English

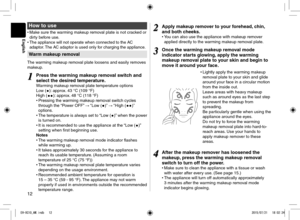

 How to use
• Make sure the warming makeup removal plate is not cracked or
dirty before use.
•
The appliance will not operate when connected to the AC
adaptor. The AC adaptor is used only for charging the appliance.
Warm makeup removal
The warming makeup removal plate loosens and easily removes
makeup.
 1
1Press the warming makeup removal switch and
select the desired temperature.
Warming makeup removal plate temperature options
Low (): approx. 43 °C (109 °F)
High (): approx. 48 °C (118...

13
English

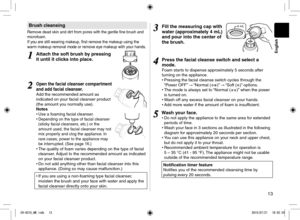

Brush cleansing
Remove dead skin and dirt from pores with the gentle fi ne brush and
microfoam.
If you are still wearing makeup, fi rst remove the makeup using the
warm makeup removal mode or remove eye makeup with your hands.
 1
1Attach the soft brush by pressing
it until it clicks into place.
2
2Open the facial cleanser compartment
and add facial cleanser.
Add the recommended amount as
indicated on your facial cleanser product
(the amount you normally use).
Notes
•
Use a foaming...

14



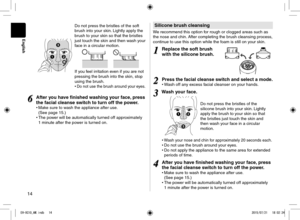

Do not press the bristles of the soft
brush into your skin. Lightly apply the
brush to your skin so that the bristles
just touch the skin and then wash your
face in a circular motion.
If you feel irritation even if you are not
pressing the brush into the skin, stop
using the brush.
•
Do not use the brush around your eyes.
6
6After you have finished washing your face, press
the facial cleanse switch to turn off the power.
•
Make sure to wash the appliance after use.
(See page 15.)
•...

15

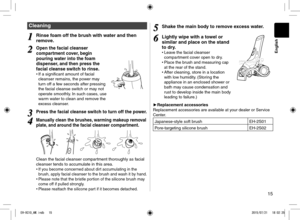

Cleaning
1
1Rinse foam off the brush with water and then
remove.
2
2Open the facial cleanser
compartment cover, begin
pouring water into the foam
dispenser, and then press the
facial cleanse switch to rinse.
•
If a significant amount of facial
cleanser remains, the power may
turn off a few seconds after pressing
the facial cleanse switch or may not
operate smoothly. In such cases, use
warm water to clean and remove the
excess cleanser.
3
3Press the facial cleanse switch to turn off the...

16

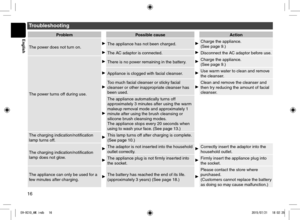

Troubleshooting
ProblemPossible cause Action
The power does not turn on.
The appliance has not been charged.Charge the appliance.
(See page 9.)
The AC adaptor is connected.Disconnect the AC adaptor before use.
The power turns off during use.
There is no power remaining in the battery.Charge the appliance.
(See page 9.)
Appliance is clogged with facial cleanser.Use warm water to clean and remove
the cleanser.
Too much facial cleanser or sticky facial
cleanser or other inappropriate cleanser has...

17

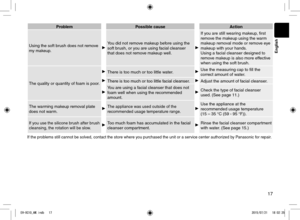

ProblemPossible cause Action
Using the soft brush does not remove
my makeup.
You did not remove makeup before using the
soft brush, or you are using facial cleanser
that does not remove makeup well.
If you are still wearing makeup, first
remove the makeup using the warm
makeup removal mode or remove eye
makeup with your hands.
Using a facial cleanser designed to
remove makeup is also more effective
when using the soft brush.
The quality or quantity of foam is poor.
There is too much or too...

18

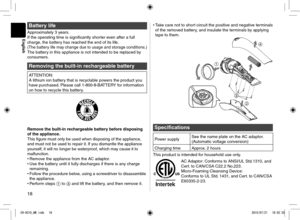

• Take care not to short circuit the positive and negative terminals
of the removed battery, and insulate the terminals by applying
tape to them.



Specifications
Power supply
See the name plate on the AC adaptor.
(Automatic voltage conversion)
Charging time Approx. 2 hours
This product is intended for household use only.
AC Adaptor: Conforms to ANSI/UL Std.1310, and
Cert. to CAN/CSA C22.2 No.223.
Micro-Foaming Cleansing Device:
 Conforms to UL Std. 1431, and Cert. to CAN/CSA
E60335-2-23....

19

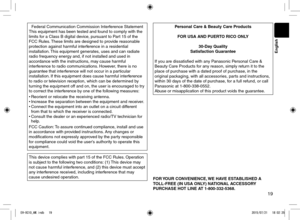

Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio...

20
EH-XC10_AM.indb   202015/07/21   18:02:25
